Knight Global Electrified Rail Systems, Capacity 1140 lbs - KG ERAD4000

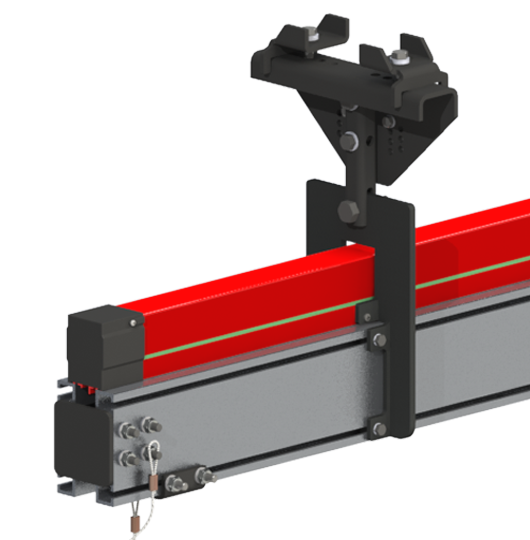

Electrified Rail Systems are a complete power supply suspension system that can be used in combination with a Knight Servo System, VFD tractors, power tools, and other electrical devices. The ERAD Series is a fully enclosed electrical system that eliminates the stack-up of runway festooning. The power travels through a conductor power rail (ERail), mounted on top of Knight's ERAD4000 ergonomically friendly aluminum rail. The standard ERail is equipped with (4) four poles, nominal current 60 amp, 240/480V which can run multiple systems on (1) one rail assembly.
Features:
- Patent Pending
- Fully Enclosed Electrical System
- Horizontal curved sections available
- Compliant with International Standards
- Added safety against shock
- Knight's unique hanger design allows for adjustments while leveling the system
Benefits:
- Eliminates stack-up of festooning trolleys and hanging electrical cables
- Simplifies installation by including electrical rail within suspension
- Eliminates need for tow bars
- Stacked compact design eliminates need from installing load rail and power rail separately
- Twice the power of the competition
Specifications:
- ERail Electrical Capacity: Up to 60 amps / 690 volts
- Max Weight Capacity: Up to 1,140 lbs [517 kg]
System Component:
ERail:
Available in 4 poles with a nominal current of 60 A. Optional 5, 6, and 7 poles available upon request.
ERail Conductor Trolley:
Travels inside of the ERail and is combined with the Knight load trolley. Copper graphite shoes are used for energy and control voltages over 35 V.
ERAD4000:
Combined with Knight's load trolleys, provides the most ergonomically friendly rail system. Rail comes in lengths up to 25ft [9.1m] without a splice. Capacities up to 1,140 lbs. [517 kg].
Suspension Points:
Knight adjustable hangers and End Trucks support both the Load Rail and ERail. Hangers have the ability to mount to I-Beams, C-Channels, Angle Iron, and many others.
ERail End Caps and Stops:
Attaches to the end of the ERail Series Rail. The Redundant End Cap is primarily used to prevent load and ERail trolleys from exiting the rail.
Power Supply End Feed:
Power supply feed for ERail. Comes standard with 4 poles, 5-7 poles available upon request.
Rail Capacities
| Hanger Span |
Deflection Criteria |
| 1:350 Capacity* |
1:450 Capacity* |
1:550 Capacity* |
| 5 lbs [1.52 kg] |
1140 lbs [517 kg] |
1140 lbs [517 kg] |
1140 lbs [517 kg] |
| 6 lbs [1.83 kg] |
945 lbs [429 kg] |
945 lbs [429 kg] |
945 lbs [429 kg] |
| 7 lbs [2.13 kg] |
810 lbs [367 kg] |
810 lbs [367 kg] |
790 lbs [358 kg] |
| 8 lbs [2.45 kg] |
705 lbs [320 kg] |
705 lbs [320 kg] |
600 lbs [272 kg] |
| 9 lbs [2.74 kg] |
625 lbs [283 kg] |
575 lbs [261 kg] |
470 lbs [213 kg] |
| 10 lbs [3.05 kg] |
560 lbs [254 kg] |
460 lbs [209 kg] |
375 lbs [170 kg] |
| 11 lbs [3.35 kg] |
490 lbs [222 kg] |
375 lbs [170 kg] |
300 lbs [136 kg] |
| 12 lbs [3.66 kg] |
405 lbs [184 kg] |
310 lbs [141 kg] |
245 lbs [111 kg] |
| 13 lbs [3.96 kg] |
340 lbs [154 kg] |
255 lbs [116 kg] |
205 lbs [93 kg] |
| 14 lbs [4.27 kg] |
285 lbs [129 kg] |
215 lbs [98 kg] |
170 lbs [77 kg] |
| 15 lbs [4.57 kg] |
240 lbs [109 kg] |
180 lbs [82 kg] |
140 lbs [64 kg] |
| 16 lbs [4.88 kg] |
205 lbs [93 kg] |
150 lbs [68 kg] |
120 lbs [54 kg] |
| 17 lbs [5.18 kg] |
175 lbs [79 kg] |
130 lbs [59 kg] |
100 lbs [45 kg] |
| 18 lbs [5.49 kg] |
150 lbs [68 kg] |
110 lbs [50 kg] |
80 lbs [36 kg] |
| 19 lbs [5.79 kg] |
130 lbs [59 kg] |
90 lbs [41 kg] |
65 lbs [29 kg] |
| 20 lbs [6.1 kg] |
110 lbs [50 kg] |
75 lbs [34 kg] |
55 lbs [25 kg] |
| 21 lbs [6.4 kg] |
90 lbs [41 kg] |
60 lbs [27 kg] |
40 lbs [18 kg] |
| 22 lbs [6.71 kg] |
80 lbs [36 kg] |
50 lbs [23 kg] |
30 lbs [14 kg] |
| 23 lbs [7.01 kg] |
65 lbs [29 kg] |
40 lbs [18 kg] |
20 lbs [9 kg] |
| 24 lbs [7.32 kg] |
50 lbs [23 kg] |
30 lbs [14 kg] |
15 lbs [7 kg] |
*Due to Ergonomic considerations, each rail span distance is tested to determine the maximum single point load required to achieve a predetermined deflection based on a ratio of 1:350 (1" of deflection for each 350" of length), 1:450 (1" of deflection in 450" of length) or 1:550 (1" of deflection for each 550" of length).
For purposes of estimating approximate ergonomic force requirements, the following formula may be used:
0.009 x total mass = maximum effort (in lbf) required to overcome inertia. Effort required to sustain movement is generally 0.35 x effort to overcome inertia e.g., 250 lbs. (1.03 kg) mass x 0.009 = 2.25 lbf (0.9 kg) to overcome inertia, 2.25 (0.9 kg) x 0.35 = .79 lbf (0.36 kg) to sustain movement
