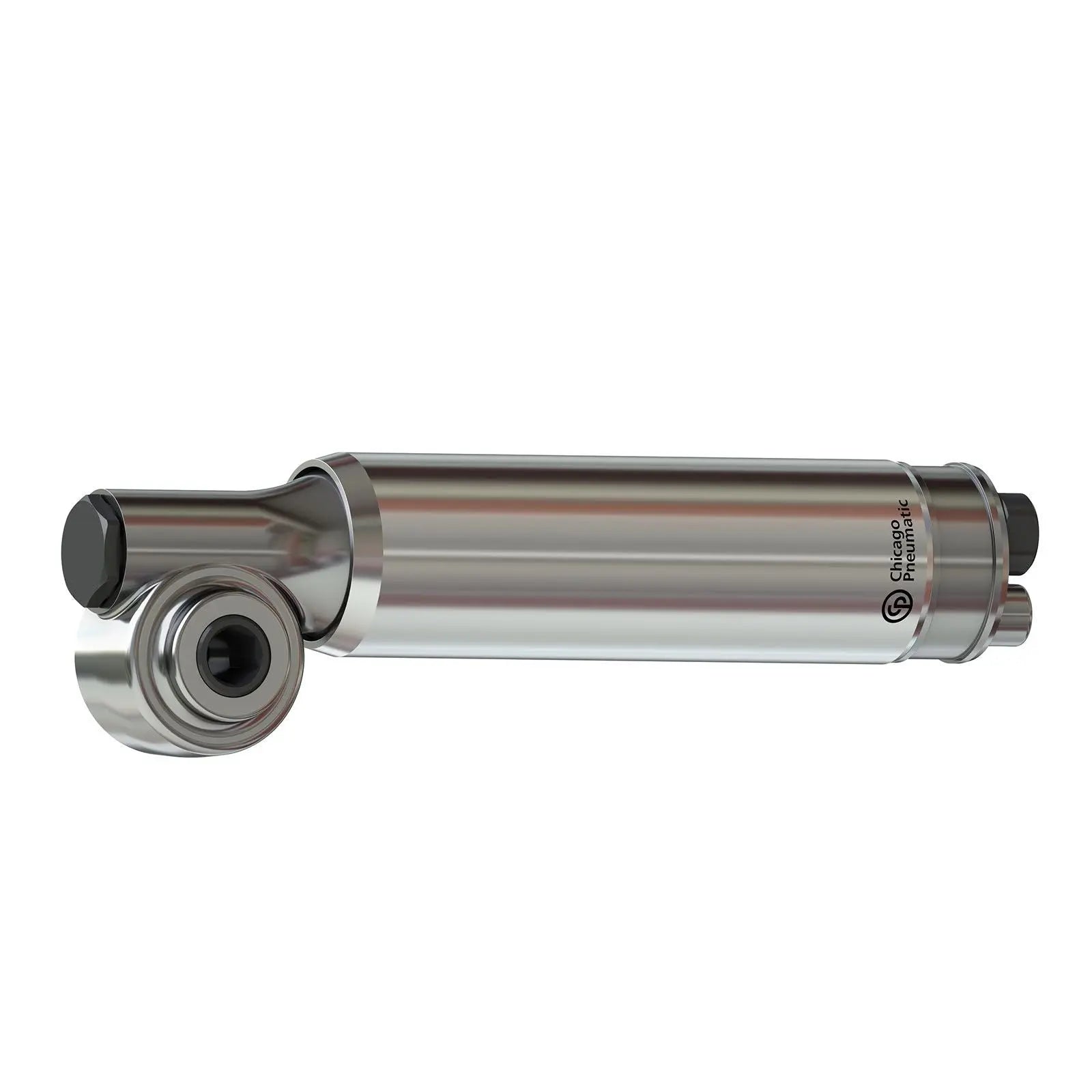

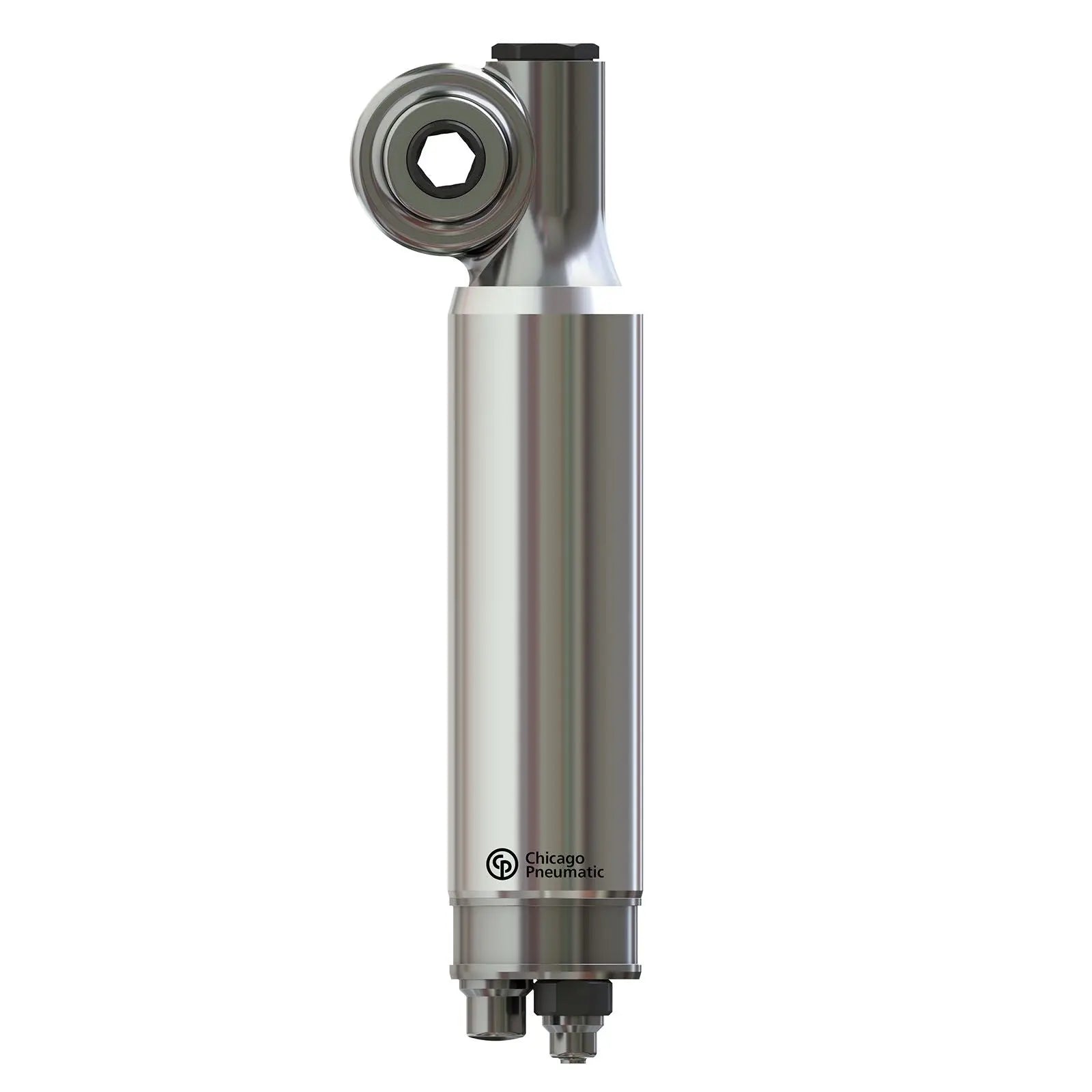

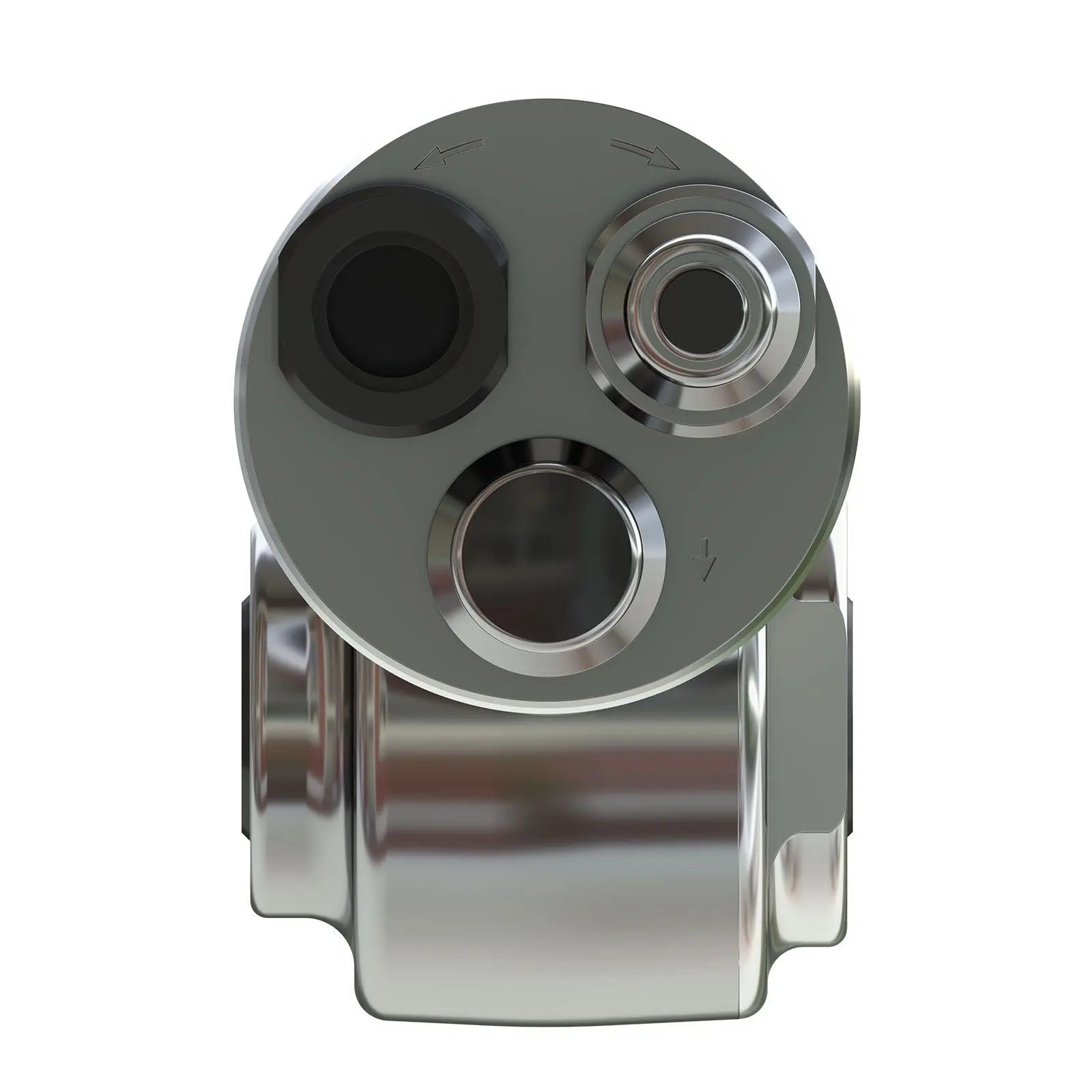

Chicago Pneumatic ATEX 660 W Reversible Vane Air Motor, 350 rpm Free Speed - CP 2051473204
The standard pneumatic vane motors 2H410-350-ATEX is compact in design, light in weight, have Hexagonal shaft spindle It is suitable for building using handheld machines or any industrial equipment. This reversible air motor delivers a maximum power of 660 W (0.89 hp), with a maximum torque of 102 Nm (37.6 ft. lbs) and 350 rpm free speed.
Features:
- Low friction and lubrication-free design of vanes for ruggedness
- Sustain stall torque loading indefinitely
- Short and compact planetary gear system for versatile solutions
- Long lasting efficiency with low air consumption design
- Strong starting torque for mobility during operation
Specifications:
- ATEX Certification: Yes
- Air Flow Max Power: 17 l/s
- Air Inlet Thread Size: 1/4 in
- Air Inlet Thread Type: BSP
- Back Head Coaxial: No
- Dimensions: 33.5 x 6.5 x 10 cm
- Front Nut Threaded: No
- Main Material Type: Steel
- Max Dynamic Air Working Pressure: 6.3 Bar
- Max Free Speed Range: 350 rpm
- Max Output Power: 0.7 kW
- Min Hose Diameter (16 ft Hose Length): 0.5 in
- Minimum Starting Torque: 51 Nm
- Motor Lubrication Free: No
- Rotation Drive: Reversible
- Spindle Type: Hexagonal
- Torque At Max Power: 51 Nm
- Weight: 4.41 lbs
- Country of Origin: Hungary
