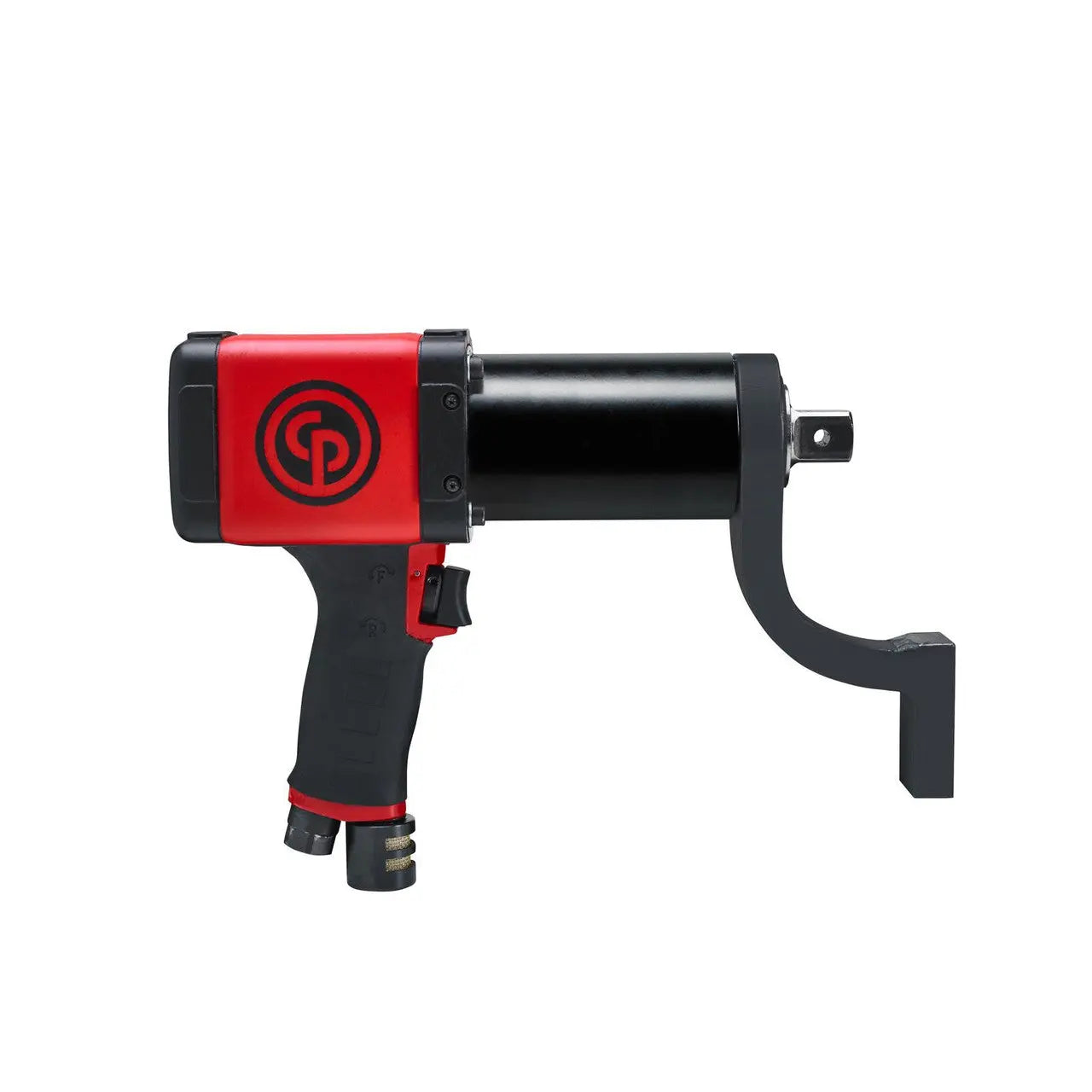

Chicago Pneumatic CP6613-FRL Pneumatic Pistol Grip Stall Nutrunner | CP66 Series | 20 RPM | 960 Max Torque | 3/4" Square Drive 6151800120
Designed for bolting applications in the oil & gas, power generation and heavy industrial application areas, the CP66 nutrunner series bring you a high torque level while also being accurate with low vibration.
Product Features:
- Compact tool for tight high torque application
- Industrial FRL ATC pack for high accuracy
- Vane type impact wrench air motor for high performance
- Lightweight, swiveling handle and one-finger reverse mode for high operator comfort
Torque
- Max torque in forward: 959 ft.lbf
- Max torque reverse: 959 ft.lbf
- Min torque in forward: 236 ft.lbf
- Torque Control System: Non shut-off-stall
Design & Functions
- Accuracy: (%)±5 %
- Adjustment: Torque Chart
- Handle type: Pistol
- Joint Type: Hard & Soft
- Main Material type: Composite
- Output drive size (in): 3/4
- Output drive type: Sq
- Output retainer type: Hole
- Reaction bar type: S-type
- Reversible: Yes
- Spline type: 40
- Starting system: Trigger
- Suspension option: Optional
Size & Weight
- Height (H): 8.35 in
- Length (L): 10 in
- Width (W): 2.83 in
- Side to Center: 1.26 in
- Weigh: t8.16 lb
- Weight without reaction arm: 8.16 lb
- Weight with reaction arm: 9.7 lb
Speed
- Free Speed20 rpm
- Air consumption at free speed: 48 cfm
Noise & vibrations
- Sound Power: 101 dB(A)
- Sound Pressure: 90 dB(A)
- Vibration (m/s²): <2.5
- Vibration: 8.5 ft/s²
Air information
- Air inlet thread size (in): 3/8
- Air inlet thread type: NPT
- Max dynamic air working pressure: 90 psi
- Min hose diam (5 m hose length): 16 mm
