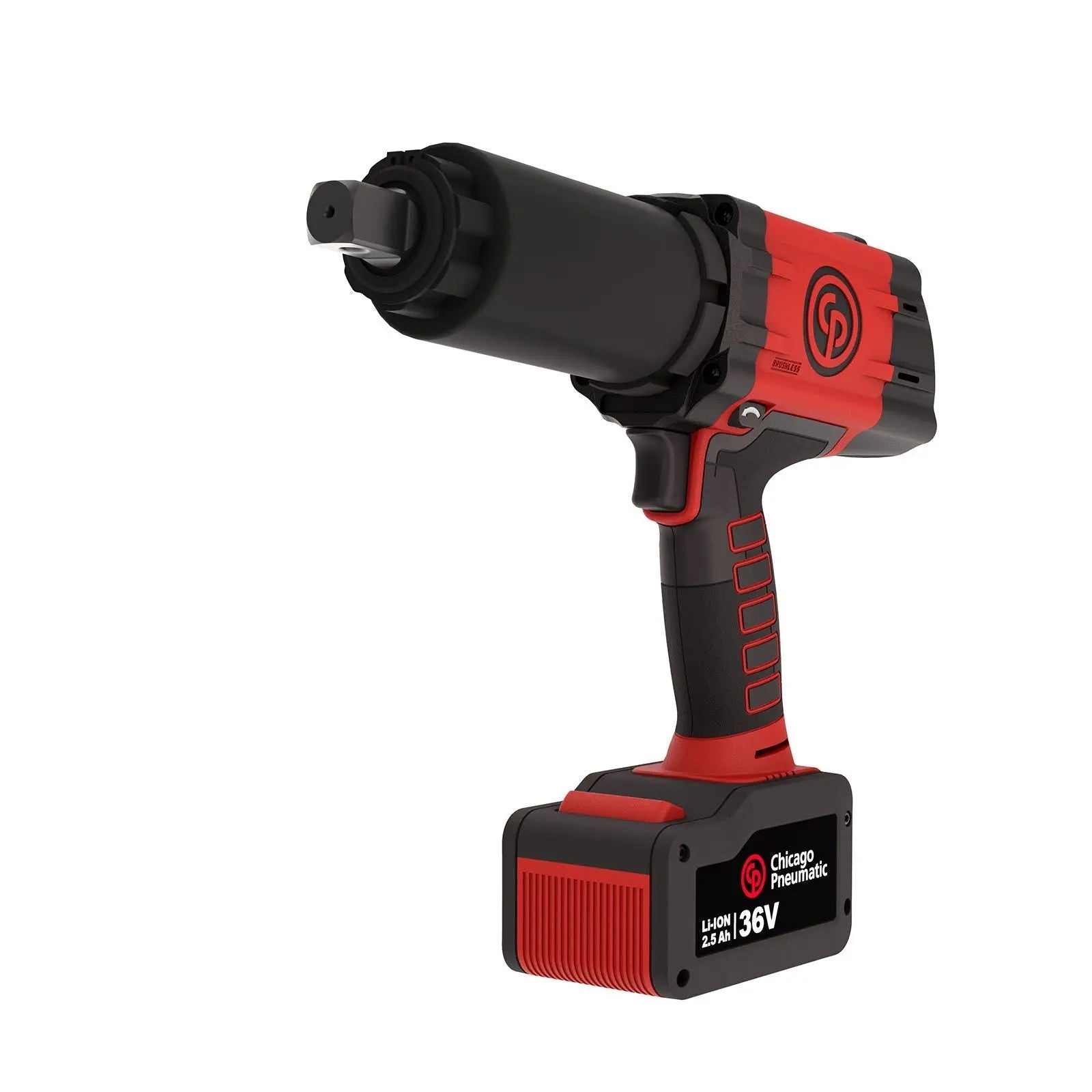

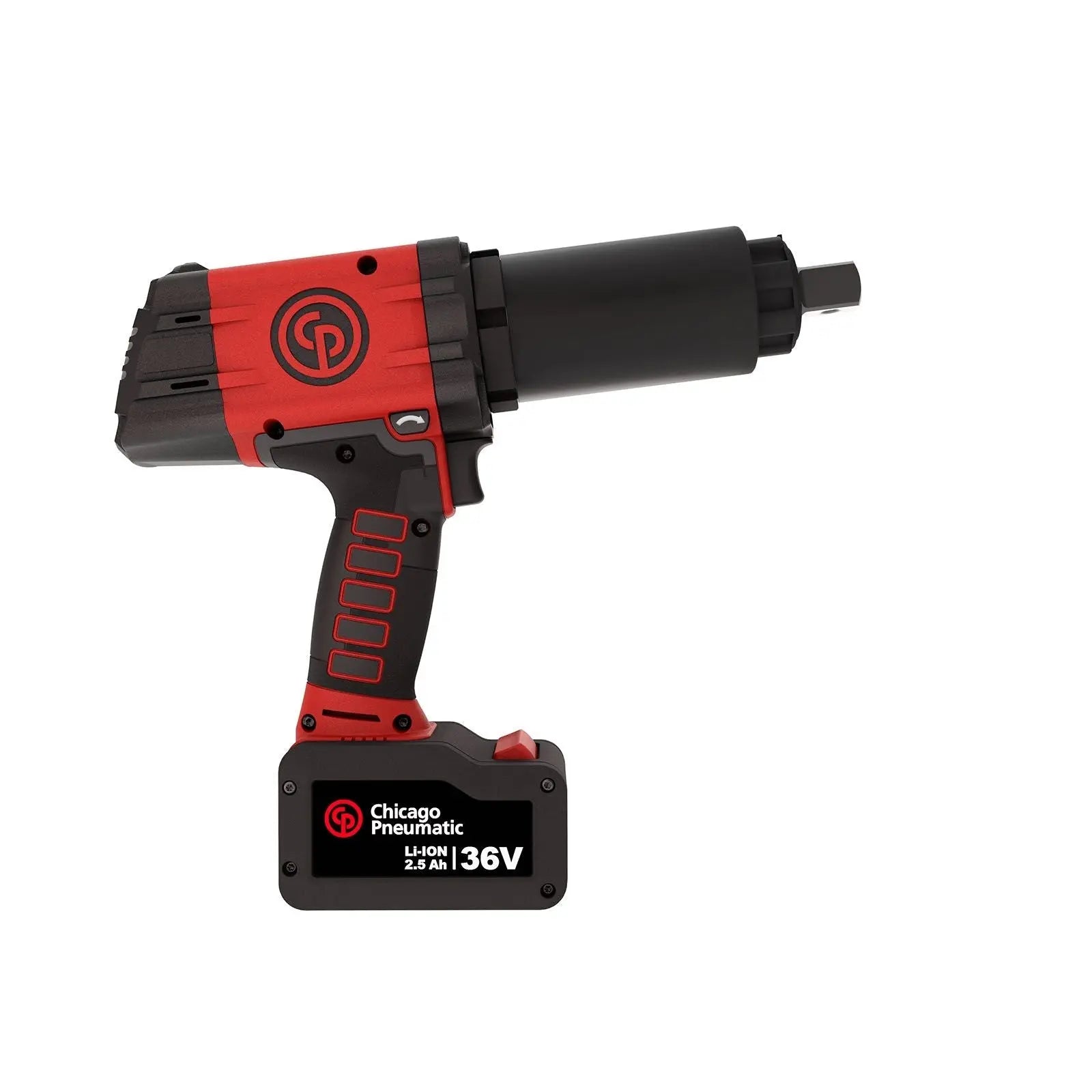

Chicago Pneumatic CP8613C 36V 3/4 in Battery Torque Wrench without Reaction Arm, 2.5AH - CP 6151570350
Torque tightening from 300 Nm / 220 to 1300 Nm / 960 with high precision (+/- 4%) and angle tightening. Intuitive handling on digital screen of the tool or via CPLinQ app. This tool is eligible for CP Care, which includes calibration as part of its preventive maintenance package to ensure optimal performance and long-term reliability.
Pack Includes:
- 1 CP8613C, 2 Batteries, 1 Battery Charger, 1 Charger Cable, 1 Plastic Case
Benefits:
- High precision with +/- 4%
- Safe tightening with second start button as standard
- Extended mobility with lightweight and compact battery
- Automatic release reaction arm
- Intuitive handling either on OLED Digital screen of the tool or via CPLinQ app
Specifications:
- Adjustment: Digital
- Free Speed: 10 rpm
- Joint Type: Hard and Soft
- Length (L): 318mm
- Maximum Ambient Operating Temperature: 60 deg C
- Reversible: Yes
- Sound Power: 72 dB(A)
- Sound Pressure: 83 dB(A)
- Country of Origin: Hungary
- Customs Tariff: 84672920
- Accuracy: +/-4 %
- Battery Weight: 0.8 kg
- Battery Capacity: 2.5 Ah
- Battery Type: Lithium-Ion
- Battery Voltage: 36 V
- Handle Type: Pistol
- Height (H): 285mm
- Main Material Type: Steel
- Maximum Ambient Storage Temperature: 60 deg C
- Maximum Recommended Ambient Charging Temperature: 45 deg C
- Maximum Torque in Forward: 1300 Nm
- Maximum Torque Reverse: 1300 Nm
- Minimum Ambient Operating Temperature: 0 deg C
- Minimum Ambient Storage Temperature: -20 deg C
- Minimum Recommended Ambient Charging Temperature: 0 deg C
- Minimum Torque in Forward: 300 Nm
- Output Drive Size: 3/4 in
- Output Drive Type: Square
- Output Retainer Type: Hole
- Power Weight Ratio: 350 Nm/kg
- Recommended Torque: 1040 Nm
- Sound Power: <72 dba
- Starting System: Double-Trigger
- Suspension Option: Optional
- Torque Control System: Shut-Off-Current Control
- Vibration: <2.5 m/s sq
- Weight without Reaction Arm: 3.7 kg
- Width (W): 77mm
- Weight: 3.7 kg
