Beta Tools 666 LBF.FT Zero Rest Click Type Torque Wrench - BT 006660762
Beta's Zero Reset Technology torque wrenches, releasing the tension after each use is not required due to high-performance materials and heat treatment of both the spring and component parts of the adjustment system. These torque wrenches are user friendly with high scale visibility and easy-to-select settings with extremely accurate increments. The graduated vernier scale allows minimum interval fractions to be set up in tenths of ft-lb. The double graduation in Nm allows for clearer, simpler torque visibility.
The 72 tooth mechanism reversible ratchet makes for quick, accurate wrench operation, ensuring a take-up angle of no more than 5 deg. These torque wrenches are ideal for right-hand tightening with a torque accuracy of +/- 3%. The bi-material, ergonomic handle, ensures a safe, comfortable hold and is made from materials resistant to fuel, oil and industrial liquids. 100% Italian made, these torque wrenches are designed, manufactured, assembled, tested and certified in Italy.
Features:
- The wrench that does not require releasing tension after use. 100% Italian-made, it is ideal for controlled tightening of screws/bolts
- Zero-Reset Technology: Based on higher-performance materials and improved heat treatment of both the spring and the component parts of the adjustment system, the wrench no longer requires releasing tension after use
- Easy Settings - The graduated vernier scale allows minimum interval fractions to be set up (in tenths of lbf.ft)
- Improved Visibility - Double graduation in Nm for clearer, simpler torque visibility
- 100% Italian-Made - Entirely designed and manufactured in Italy, assembled, tested and certified at Beta's Dynalab, at our headquarters in Sovico, which translates into top-quality torque wrenches
- Wide Range - The range comprising 7 wrenches allows tightening from 4 to 230 lbf.ft, with 1/4'' to 1/2'' male square drives
- Reversible Ratchet - 72 tooth mechanism, for quick, accurate wrench operation, ensuring a take-up angle of no more than 5 deg. Ideal for right-hand tightening; torque accuracy - +/- 3%
- Double Graduation - High scale visibility. Easy-to-select settings, with extremely accurate increments

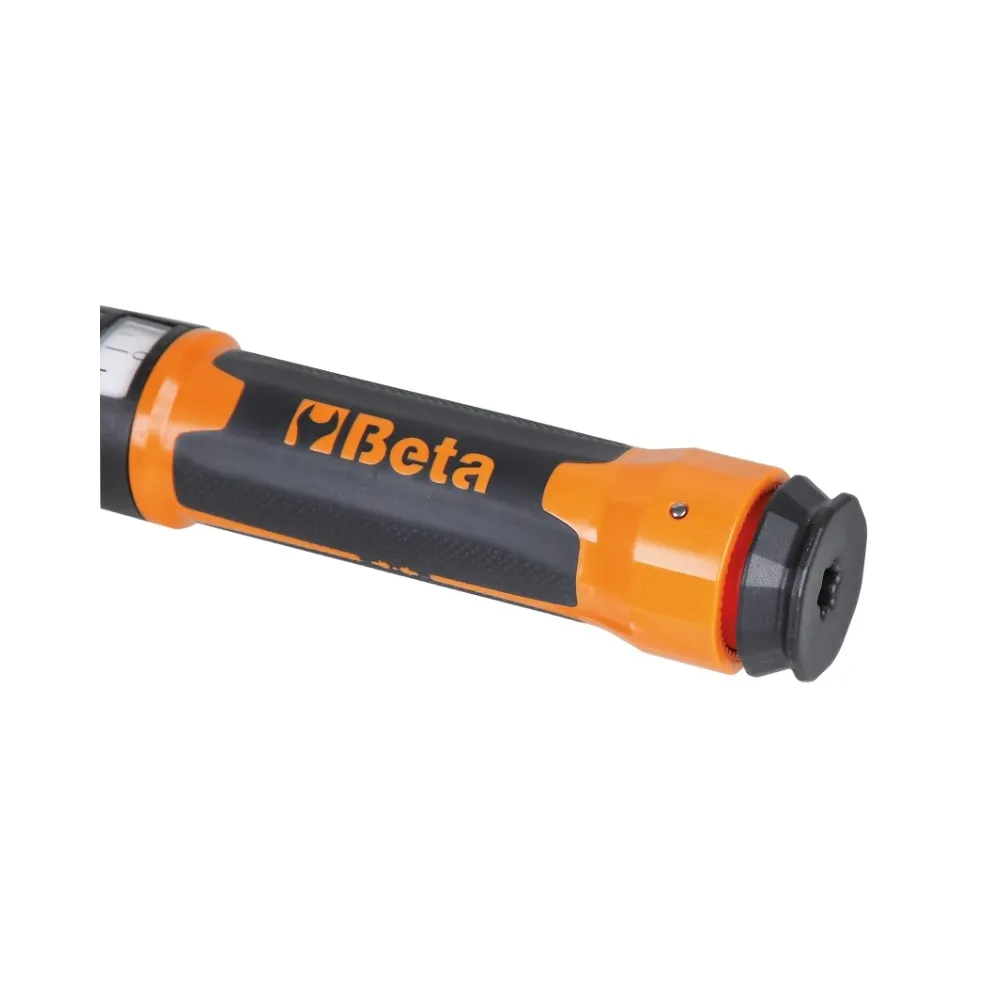

- Bi-Material Handle - Ergonomic handle, for a safe, comfortable hold. Made from materials resistant to fuel, oil and industrial liquids
- Torque Locking Push-Pull System - Lock/release knob with high-visibility red ring in released position. Torque is set by rotating the handle
- Click Mechanism - The mechanical click can be heard and touched
- Zero-Reset Technology - Based on the new parts, the wrench no longer has to be reset to the minimum value at the end of the operation cycle
Specifications:
Product ID |
Product Details |

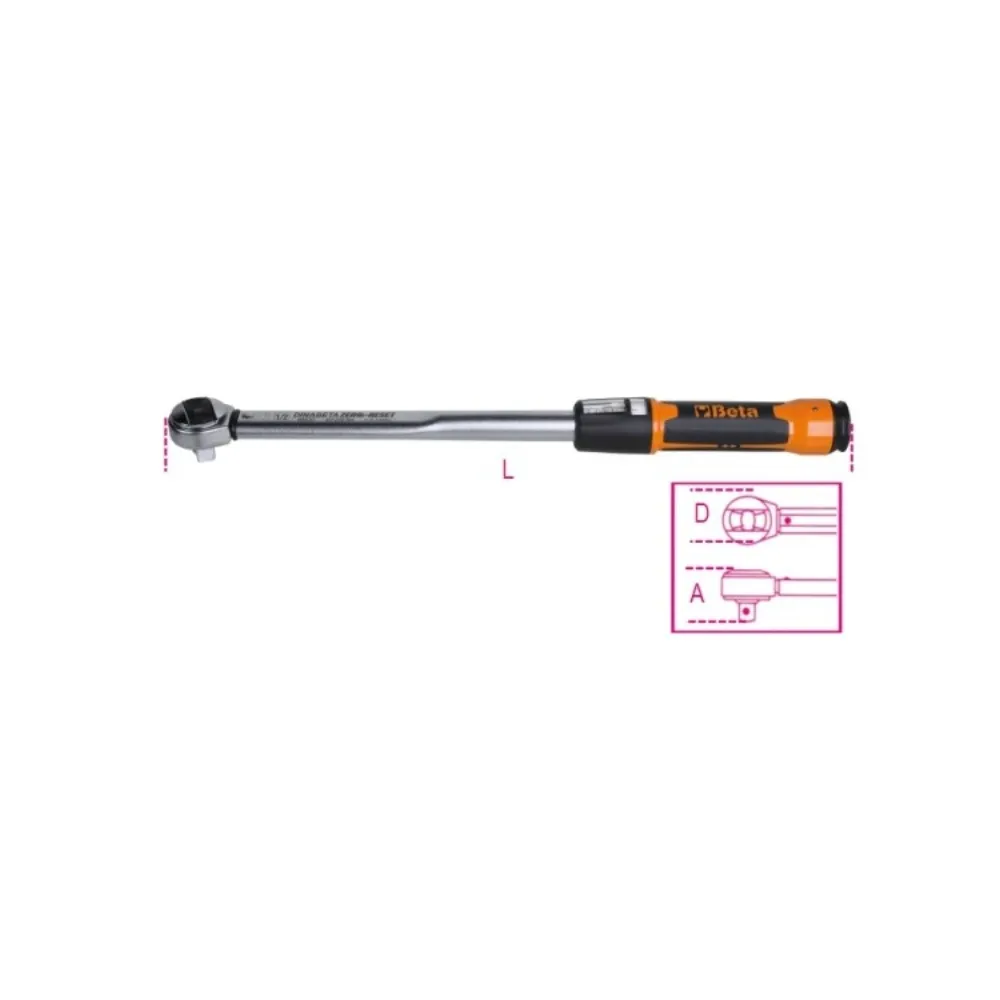

Refer Line Drawing Image |
Incremento |
Torque Size |
Drive Size |
Overall Weight |
A Size |
D Size |
L Size |
006660762 |
5 lbf.ft |
4 - 18 lbf.ft |
1/4 in |
395 g |
25mm |
26mm |
273mm |
006660763 |
5 lbf.ft |
4 - 18 lbf.ft |
3/8 in |
405 g |
29mm |
26mm |
273mm |
006660765 |
25 lbf.ft |
7 - 37 lbf.ft |
3/8 in |
680 g |
33mm |
30mm |
342mm |
006660780 |
25 lbf.ft |
15 - 75 lbf.ft |
3/8 in |
760 g |
33mm |
30mm |
385mm |
006660781 |
25 lbf.ft |
15 - 75 lbf.ft |
1/2 in |
770 g |
37mm |
30mm |
385mm |
006660782 |
5 lbf.ft |
30 - 150 lbf.ft |
1/2 in |
1020 g |
43mm |
42mm |
471mm |
006660783 |
10 lbf.ft |
50 - 230 lbf.ft |
1/2 in |
1270 g |
43mm |
42mm |
600mm |
