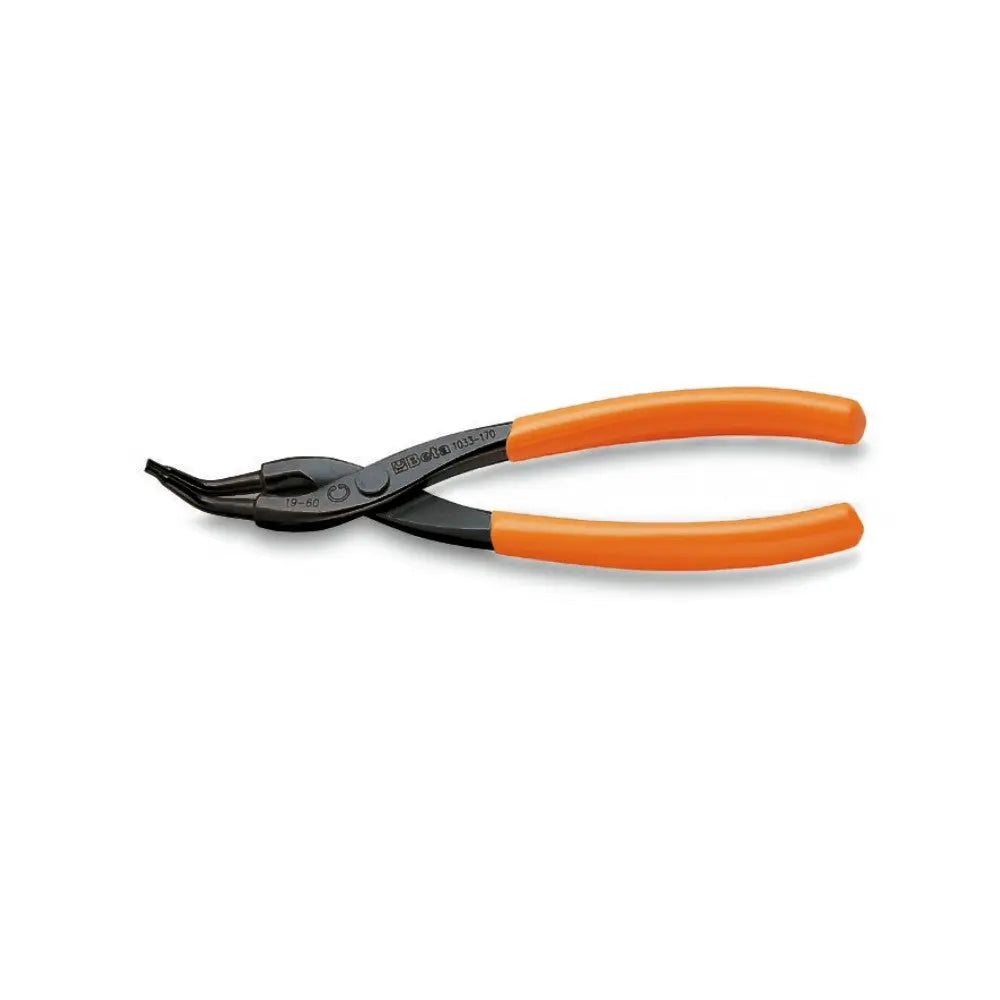

Beta Tools (Article# 1033 225) 45 deg Internal Circlip Plier, 225mm - BT 10330021

Circlip pliers are specialized hand tools designed for installing or removing circlips, which are ring-shaped fasteners used to secure components on a shaft or within a bore. These pliers have straight, parallel jaws designed to compress the circlip's ends, allowing it to be installed onto a shaft or removed from one.

Features:

• The sturdy snap ring pliers are designed to squeeze internal snap rings (circlips) from 40mm to 100mm (1 9/16 in to 4 in) ID
• The heavy jaws taper down to 3/32 in (2.3mm) diameter pins
• The jaws are bent to work with the plier handles at a 45 degree angle to the shaft
• 8-7/8 in overall length
• Black oxide finish with orange handles

Specifications:

• Overall Length: 225mm
• Certificate: UNI 7914 DIN 5256
• Diameter Size: 40-100mm
• Diameter1 Size: 2.3mm

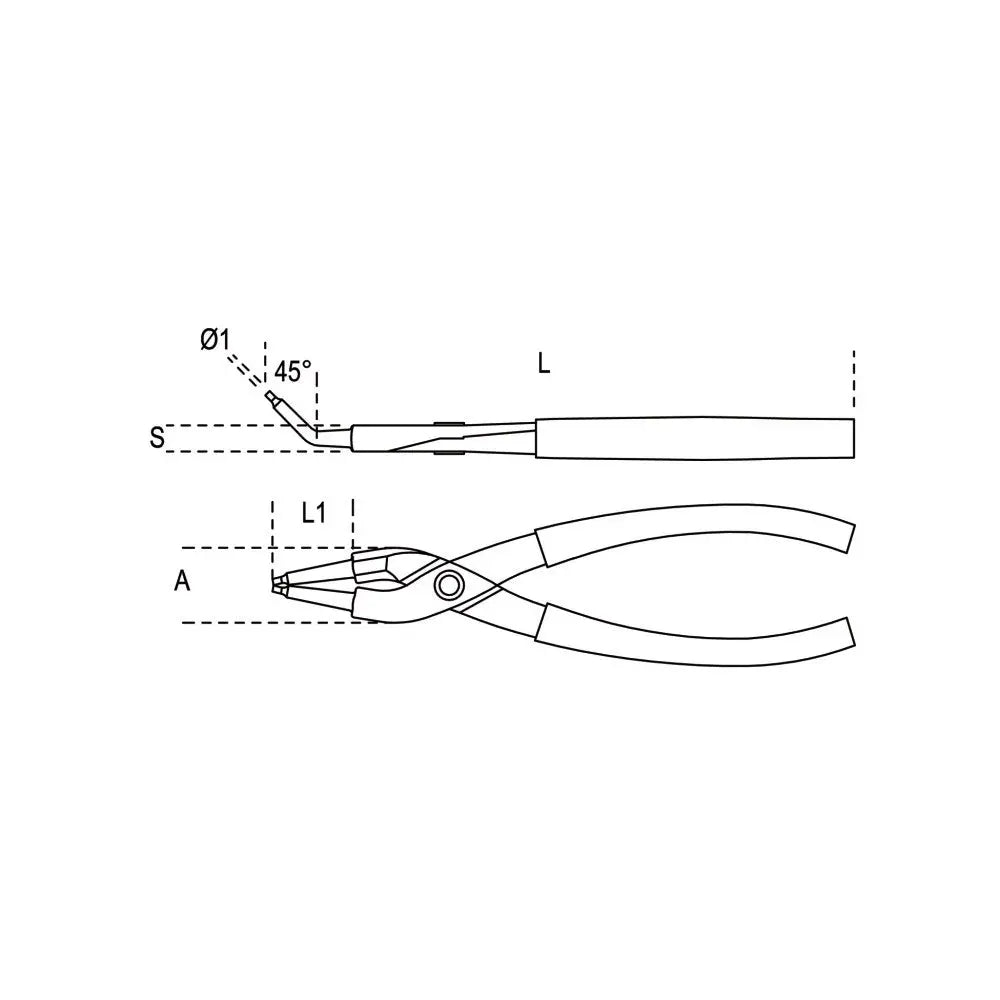

• A Size: 25mm (Refer Drawing Image)
• S Size: 11.2mm (Refer Drawing Image)
• L1 Size: 33mm (Refer Drawing Image)
• Weight: 0.55 lbs
