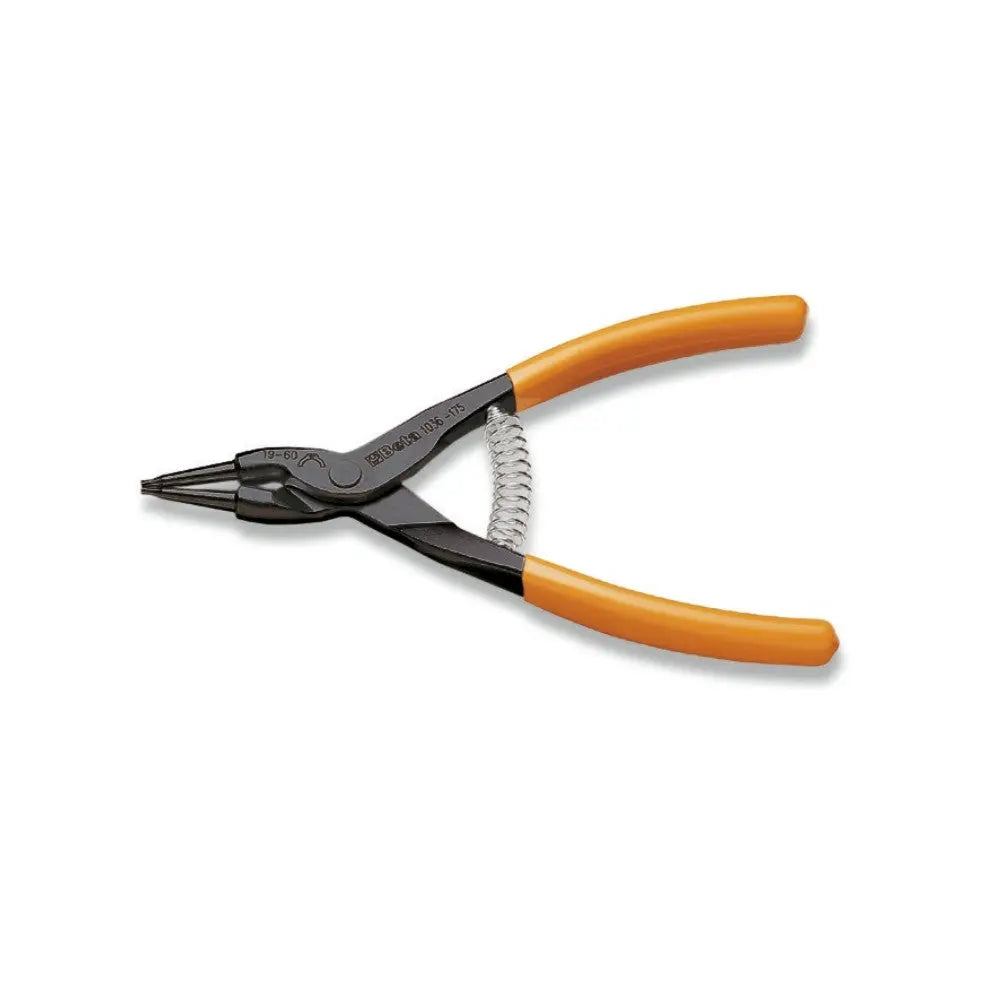

Beta Tools (Article# 1036 225) Straight External Circlip Plier, 225mm - BT 10360021
Circlip pliers are specialized hand tools designed for installing or removing circlips, which are ring-shaped fasteners used to secure components on a shaft or within a bore. These pliers have straight, parallel jaws designed to compress the circlip's ends, allowing it to be installed onto a shaft or removed from one.
Features:
- The sturdy snap ring pliers are designed to spread external snap rings (circlips) from 40mm to 100mm (1 9/16 in to 4 in) ID
- The heavy-duty jaws taper down to 3/32 in (2.3mm) diameter pins
- The jaws are straight, to work with the plier handles parallel to the shaft
- The PVC coated handles are sprung to close the jaws when you let go for easy one-handed use
- 8-7/8 in overall length with 1-1/4 in long jaws
- Black oxide finish with orange handles
Specifications:
- Overall Length: 225mm
- Certificate: UNI 7915 DIN 5254
- Diameter Size: 40-100mm
- Diameter1 Size: 2.3mm

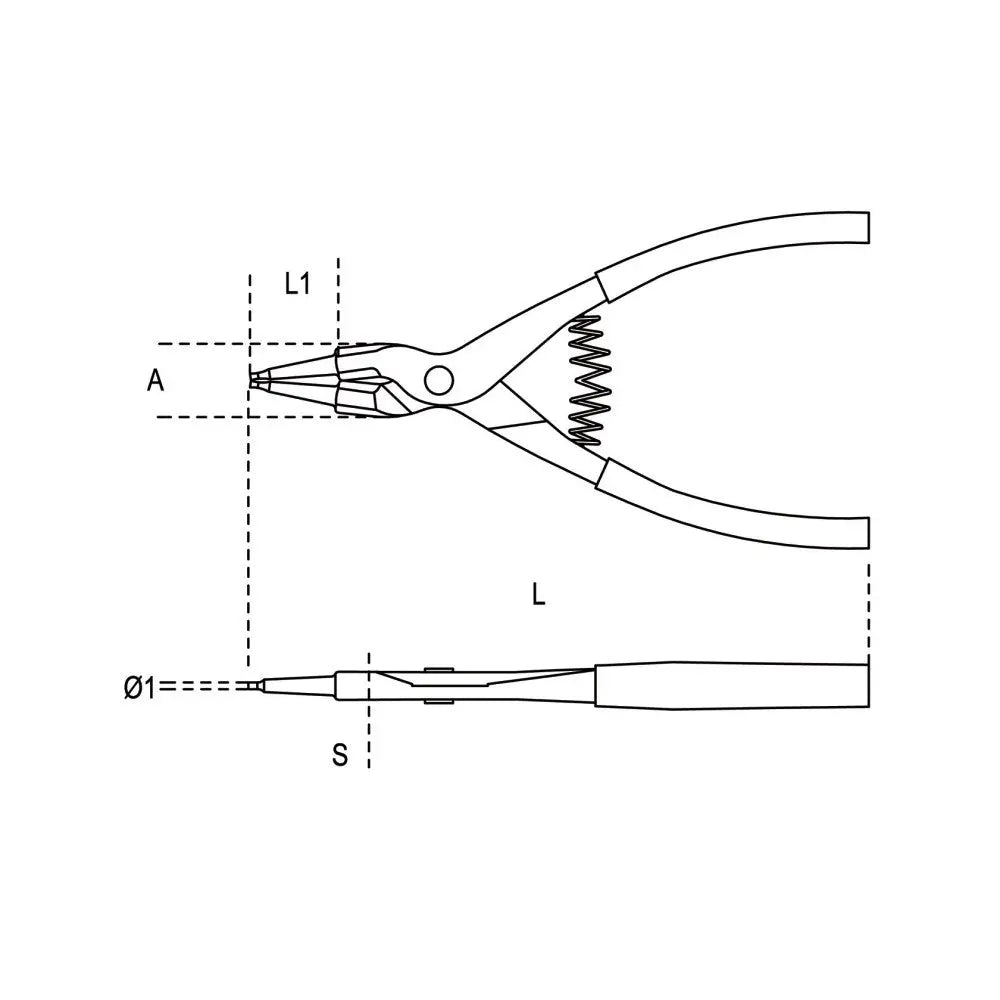

- A Size: 25mm (Refer Drawing Image)
- S Size: 11.2mm (Refer Drawing Image)
- L1 Size: 11mm (Refer Drawing Image)
- Weight: 0.55 lbs
