Beta Tools (Article# 1544/0) Internal Extractor - BT 15440100
Internal Extractor is a specialized tool used for extracting or removing components that are located inside a bore or cavity, such as bearings, bushings, or other press-fitted parts. These components are often difficult to remove without causing damage or deformation, which is where internal extractors come into play.
Features:
- For use in combination with items 1540 and 1542

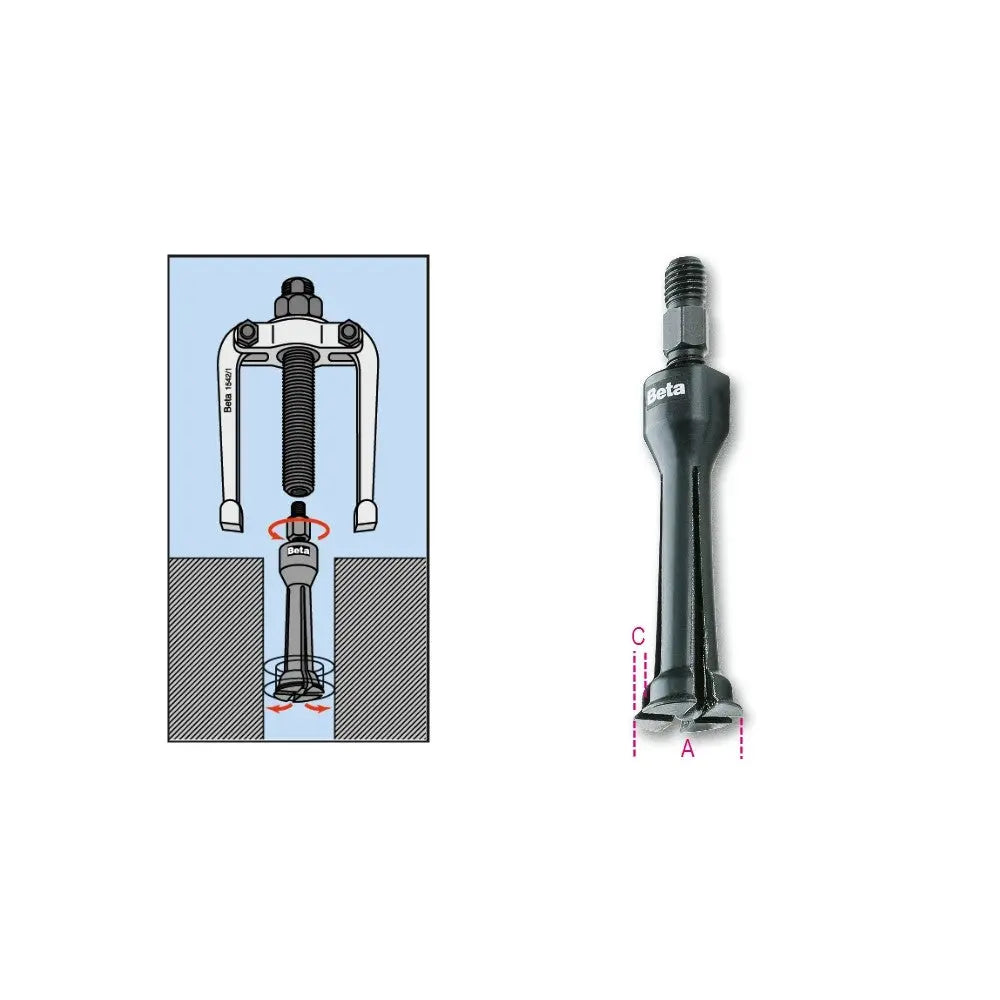

- Turning adjusting screw causes opposite end of part to pull (bearing, bushing, bush, jacket) to be gripped on through sector expansion
Specifications:
- Overall Length: 30mm
- Drive Size: 10mm
- Extractor Size: M10

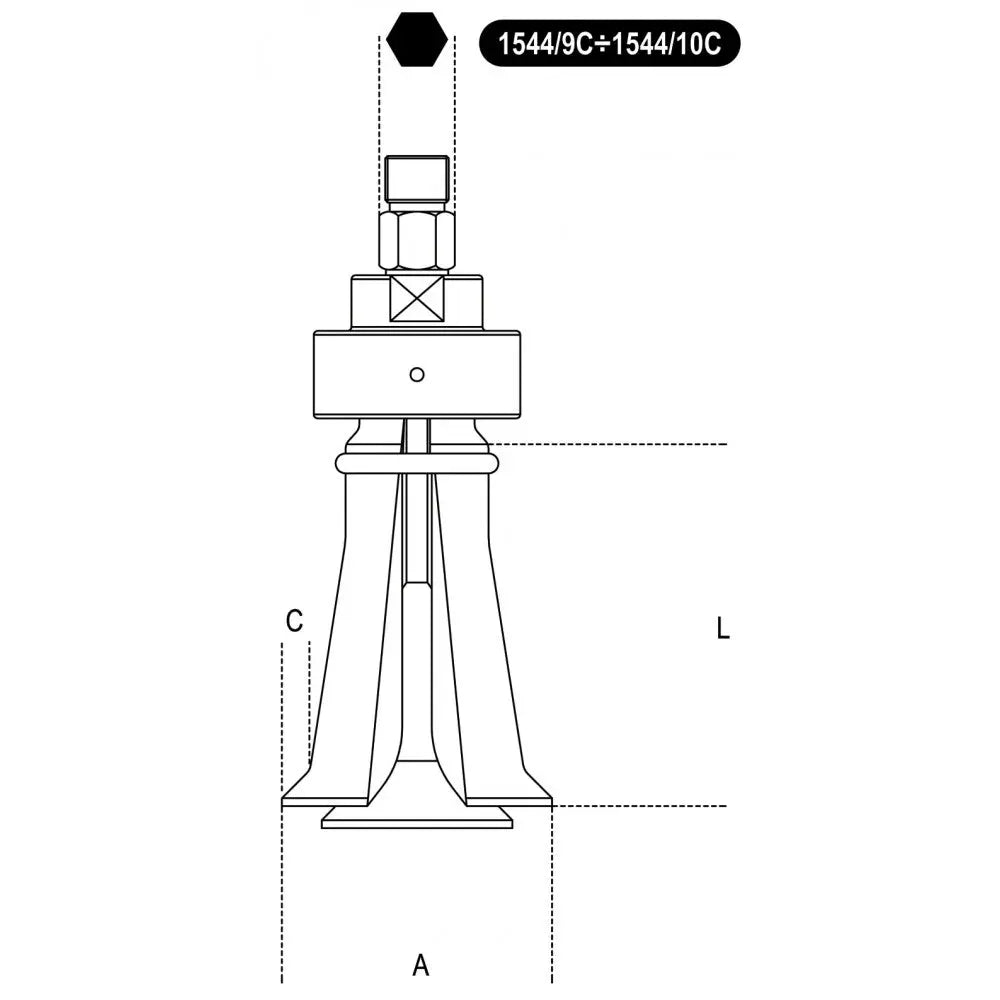

- C Size: 0.25mm (Refer Drawing Image)
- A Range: 5 - 7mm (Refer Drawing Image)
- Weight: 0.11 lbs
