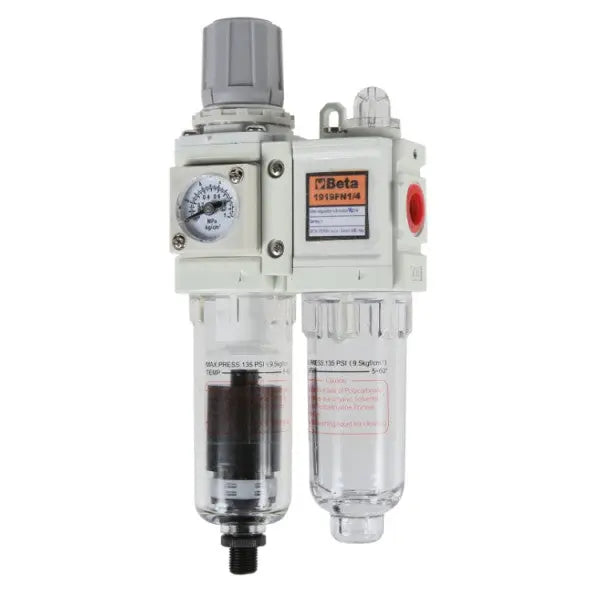

Beta Tools (Article# 1919FN1/4) Filter-Regulator Lubricator - BT 019190251
The Filter-Regulator Lubricator is essential for maintaining optimal performance in pneumatic systems. It effectively filters contaminants, regulates air pressure, and provides lubrication to ensure smooth operation, making it ideal for various industrial and workshop applications.
Features:
- Modular units with one condensate separator-filter and one lubricator
- The unit comprises the following - pressure regulator with locking device, air/oil micro-fog mixer with intensity regulator, polycarbonate cups with semiautomatic water exhaust valve, double graduated (bars-psi) analogue pressure gauge, fixing support
Characteristics:
- Filter-regulator-lubricator to remove impurities, maintain operating pressure and atomize micro-droplets of oil
- 3-IN-1 ARTICLE
- This article consists of the filter, which removes impurities, dust, condensate and oil particles to prevent internal damage to tool components, the regulator, which maintains constant pressure by preventing mechanical stress to the tools, and the lubricator, which adds microdroplets of atomized oil to the air to lubricate the internal moving parts of pneumatic tools, reducing friction and wear
Specifications:
- Country of Origin: Taiwan

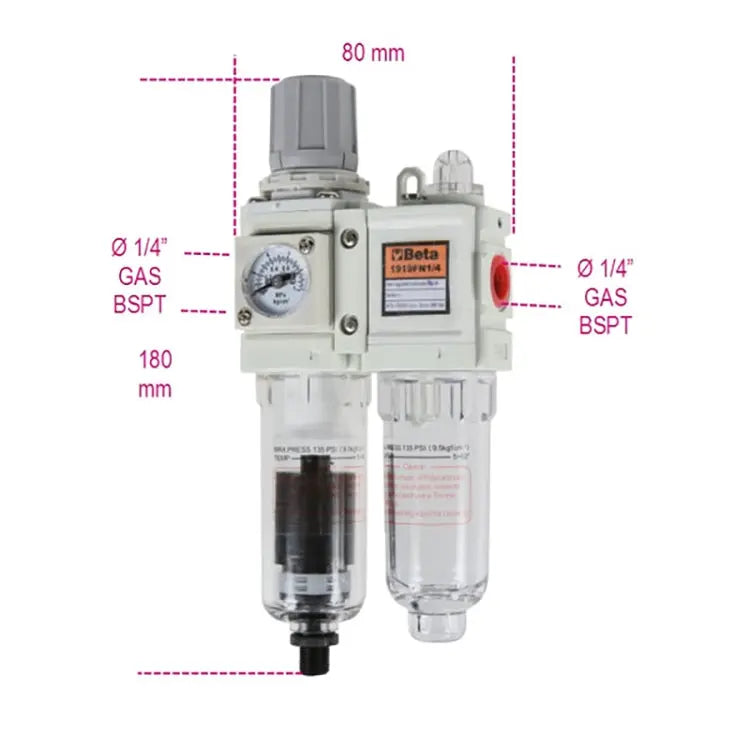

- Air In/Outlets: 1/4 in GAS BSPT
- Maximum Air Capacity: 3000 l/min
- Maximum Pressure: 10 bar
- Operating Pressure: 0.5 - 8.5 bar
- Operating Temperature: 5 - 60 deg C
- Filter Capacity: 5 microns
- Cup Capacity: 80 cc Air / 100 cc Oil
- Weight: 1.05 kg
