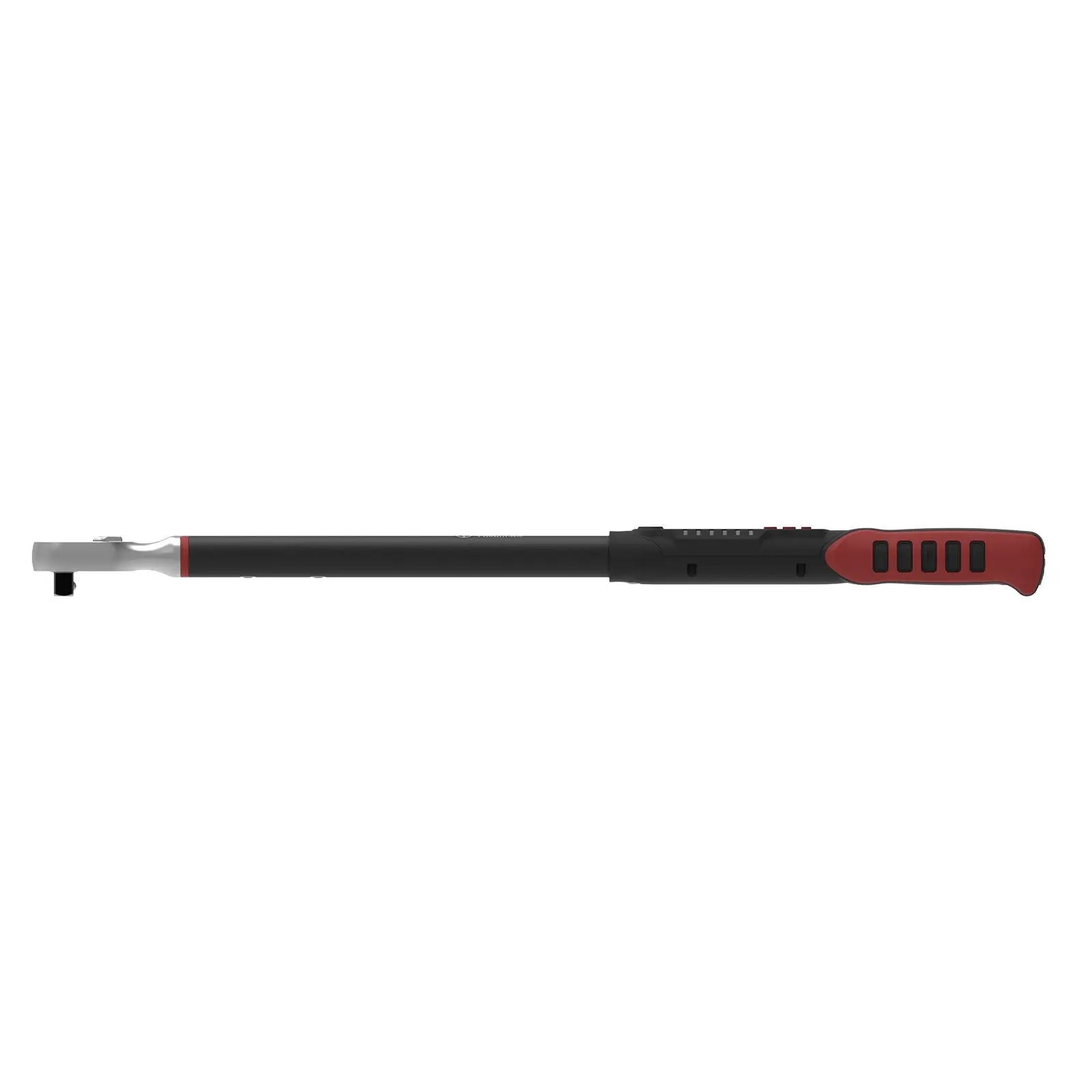

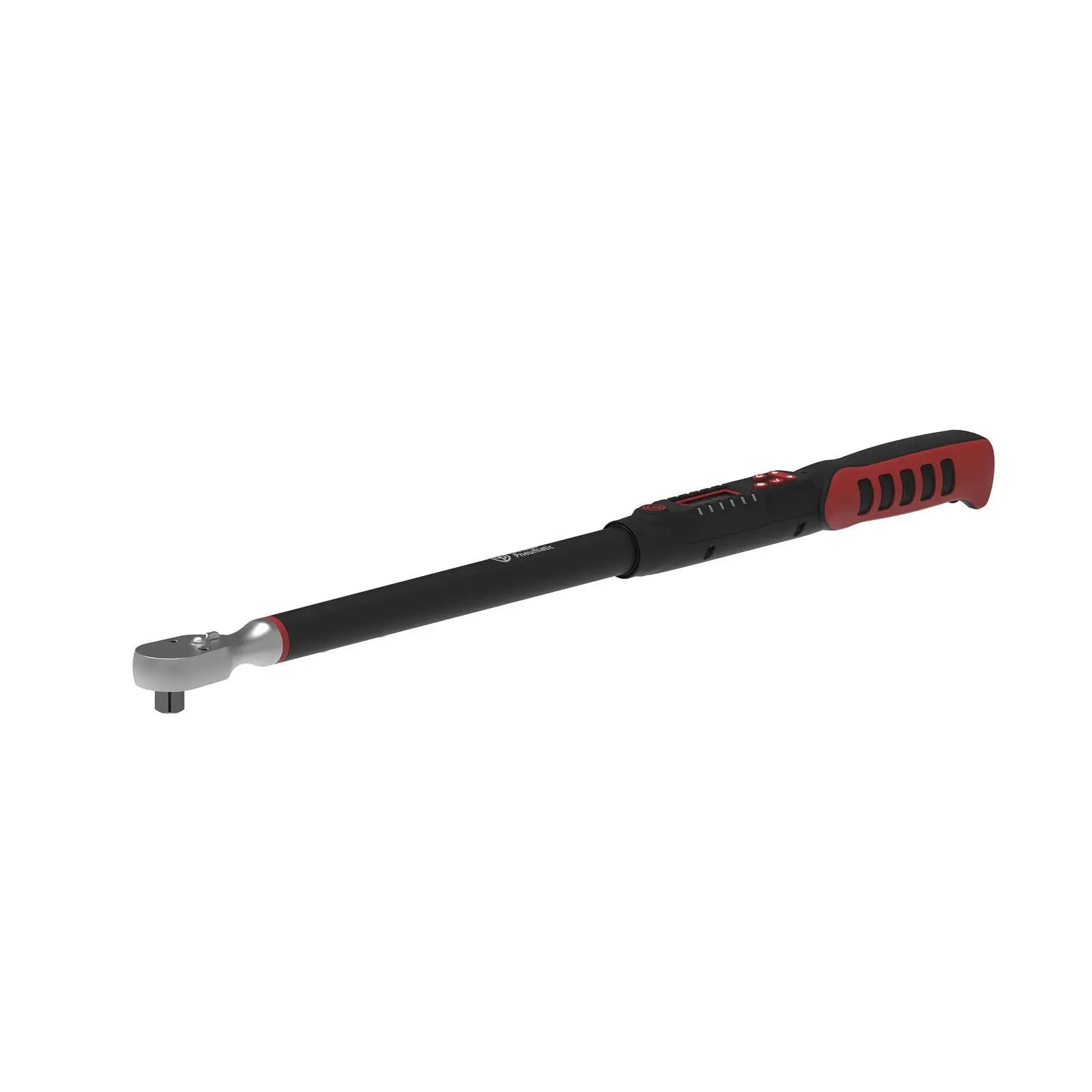

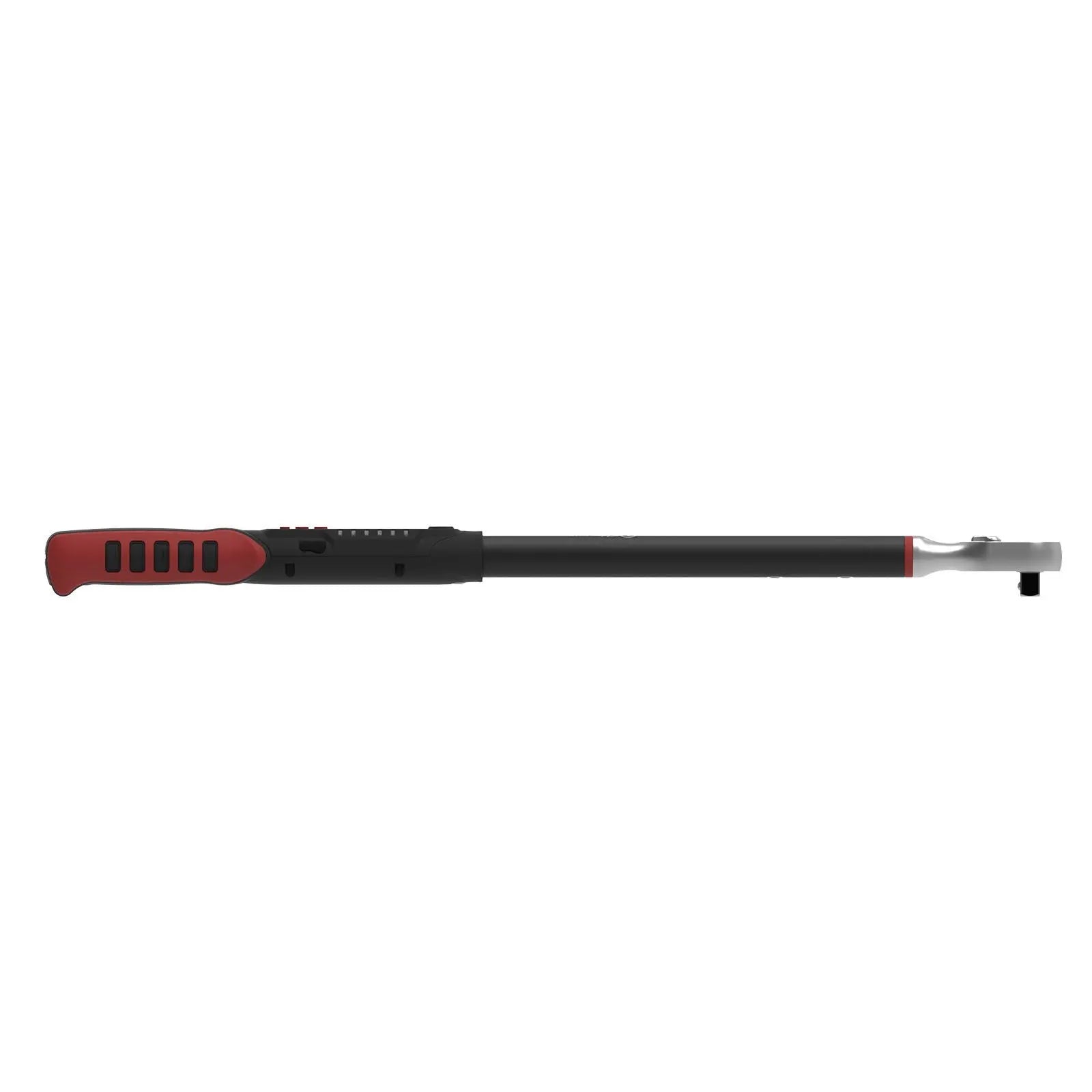

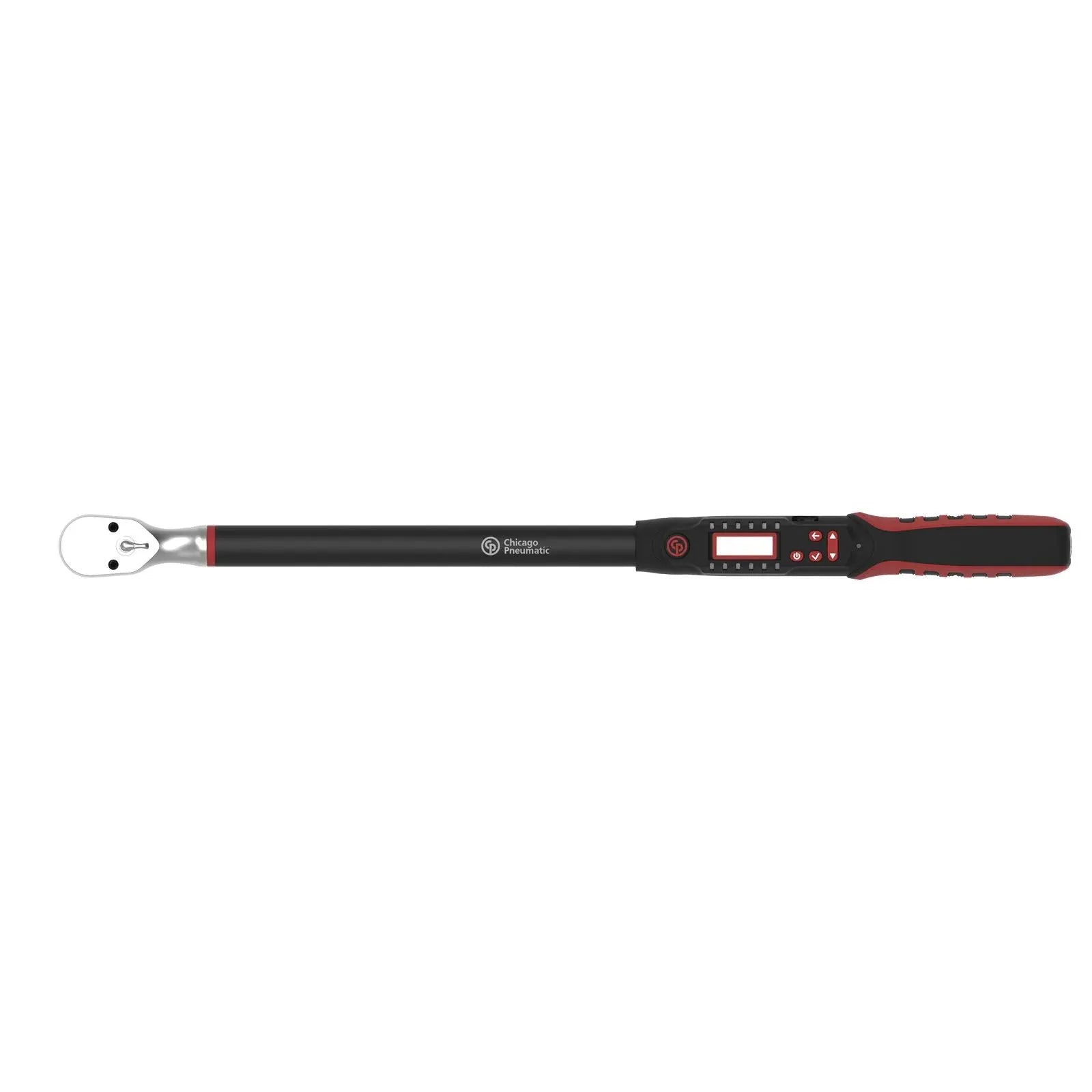

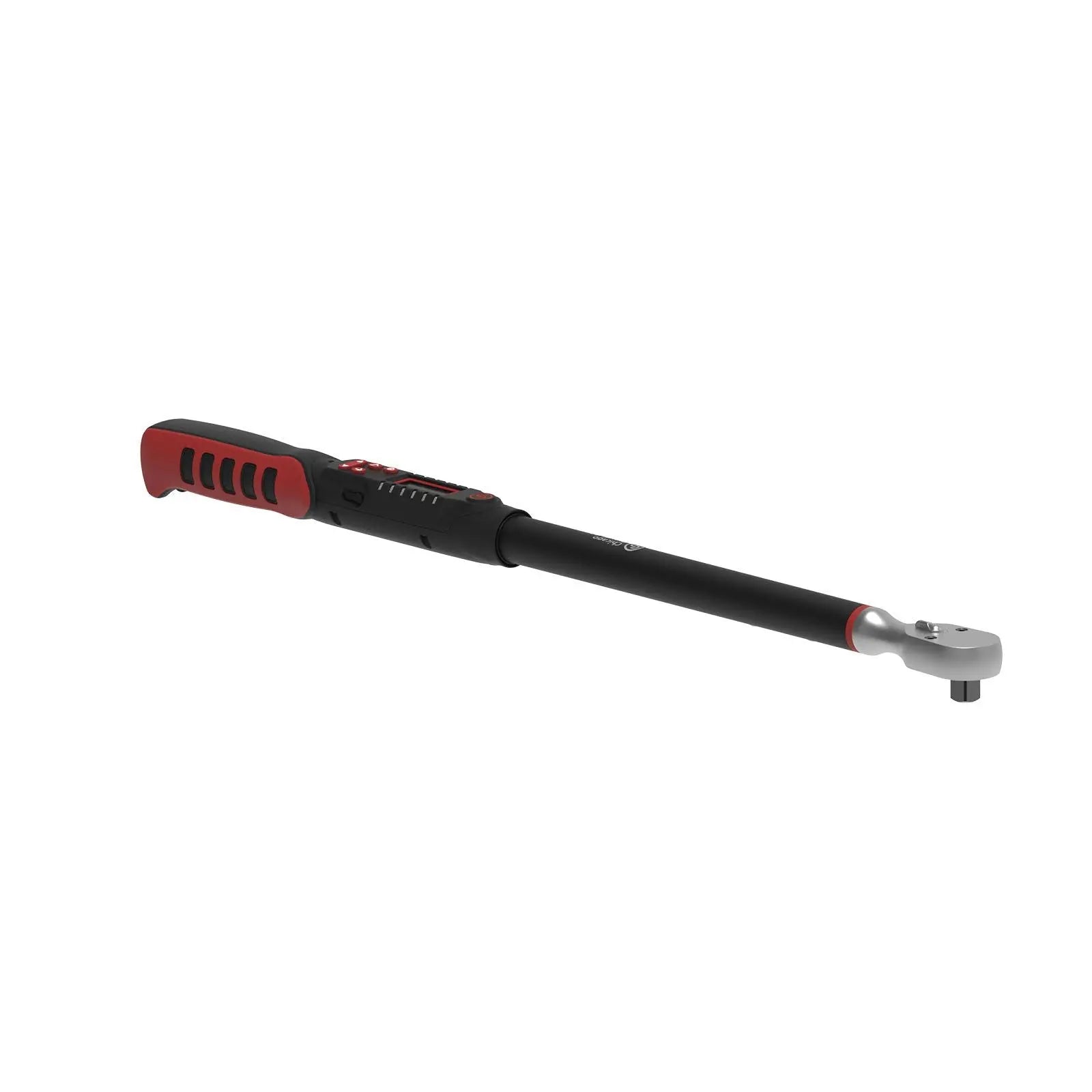

Chicago Pneumatic 1/2 in Digital Check Torque Wrench, 34 - 340 Nm - CP 8941089181
To further extend our range of high precision, cordless torque tools, Chicago Pneumatic is introducing the CP89 Series of Digital Torque Wrenches. The CP8918TC is a 1/2" drive model covering a torque range of 34 Nm (25 ft/lb) to 340 Nm (250 ft/lb) at +/- 2% accuracy. The CP8918TC features Torque and Angle measurement, P-Sets, Sequencing, Torque Check, Re-Hit Detection, and reporting via the CPLinQ application. This product is eligible for our Calibration services, ensuring high precision, compliance with industry standards, and optimal performance of your torque wrenches.
Pack Includes:
- CP89 Series eTorque Wrench delivered with USB Connection Cable, Calibration Certificate, Molded Plastic Case, and Removable Foam Insert
Features:
- CPLinQ compatibility and high precision
- Robust gear system accurate up to 25,000 cycles

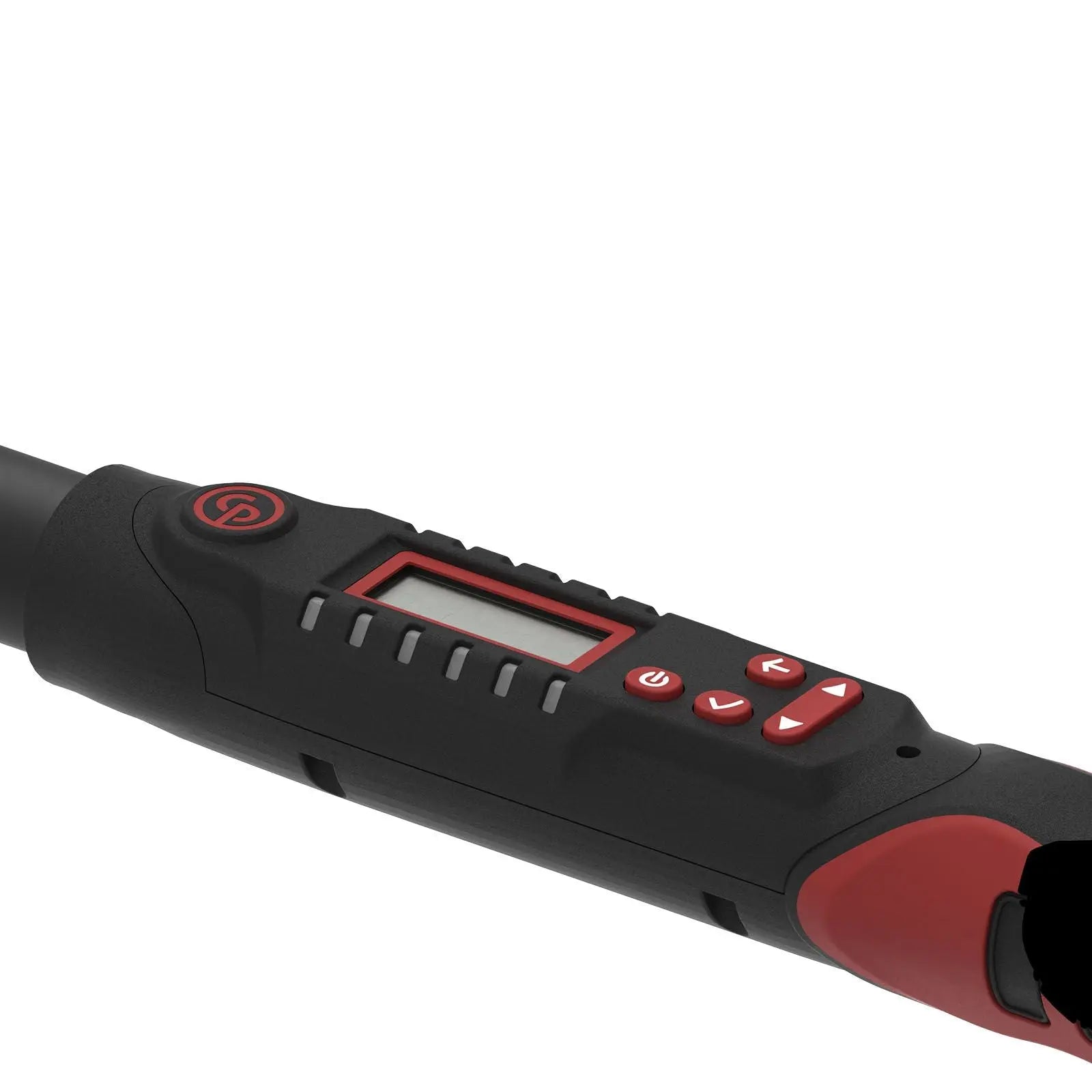

- 12 LED progressive light display
- Powerful vibration motor to alert operator
- Soft grip, non-slip handle
Specifications:
- Compliance: ISO 6789:2017
- Length (L): 629mm
- Maximum Ambient Operating Temperature: 40 deg C
- Country of Origin: Taiwan
- Customs Tariff: 82041100
- Accuracy: +/-2% (CW)
- Angle Accuracy: +/-2 degree (Rotating 90 deg at Angular Speed of 30 deg/s)
- Angle Measure: Yes
- Autonomy: 8h
- Battery Type: AA Batteries
- Communicating: Yes
- Communication Type: Bluetooth
- End-Fitting Management: No
- Feedback Type: Acoustic Buzzer, 2 x 6 LEDs
- Height (H): 45mm
- Lever Arm Length: 555mm
- Maximum Torque: 340 Nm
- Minimum Ambient Operating Temperature: -10 deg C
- Minimum Torque: 34 Nm
- Output Drive Size: 1/2 in
- Output Drive Type: Square
- Overload Torque: 10%, 20 Nm
- Quality Strategies: Yes
- Results Memory Capacity: 2000
- Side to Center: 20.5mm
- Tightening Direction: CW Only
- Tightening Strategies: No
- Type Class: Type I, Class 3
- Unit Measurement Supported: Nm, ft/lb
- Width (W): 44mm
- Weight: 1.5 kg
