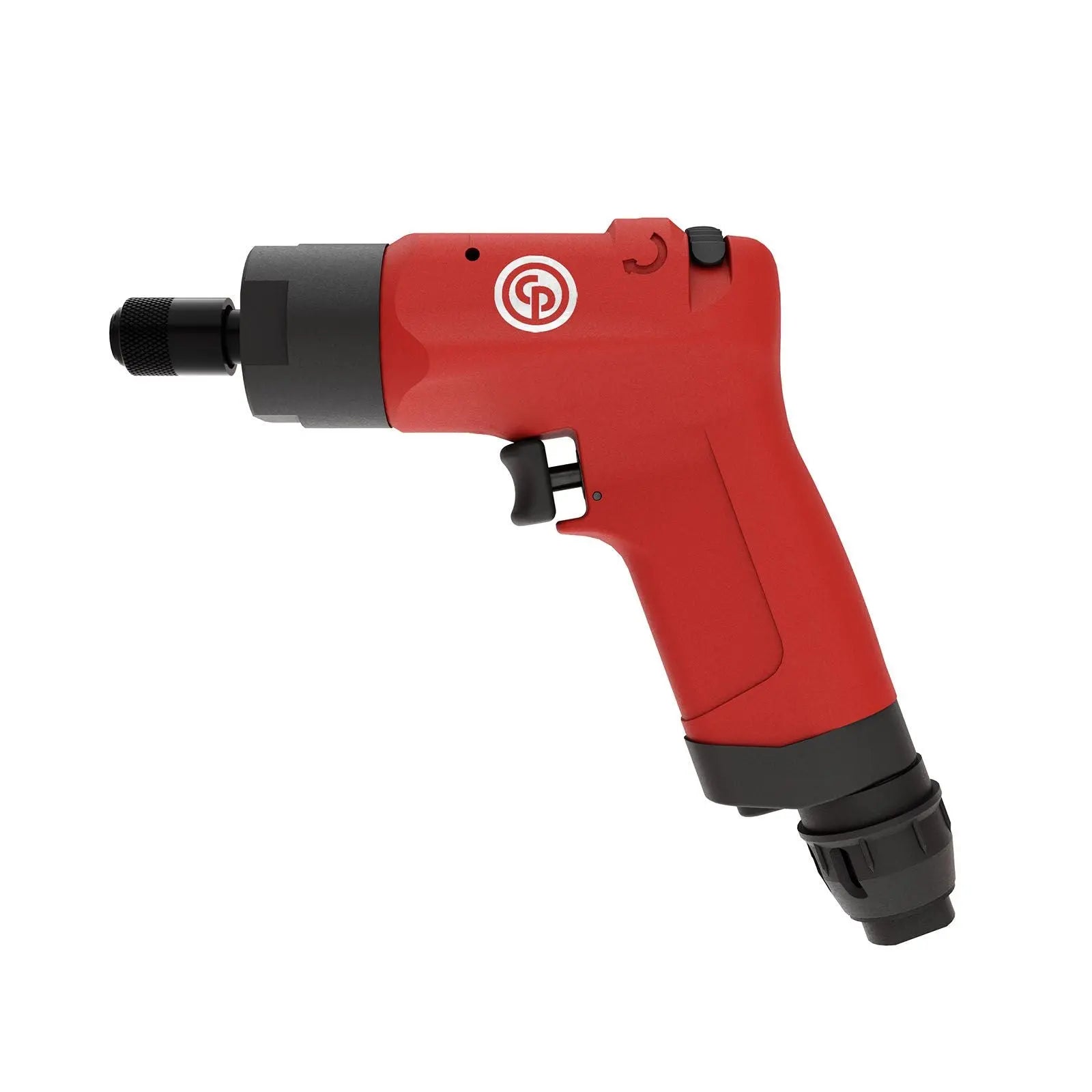

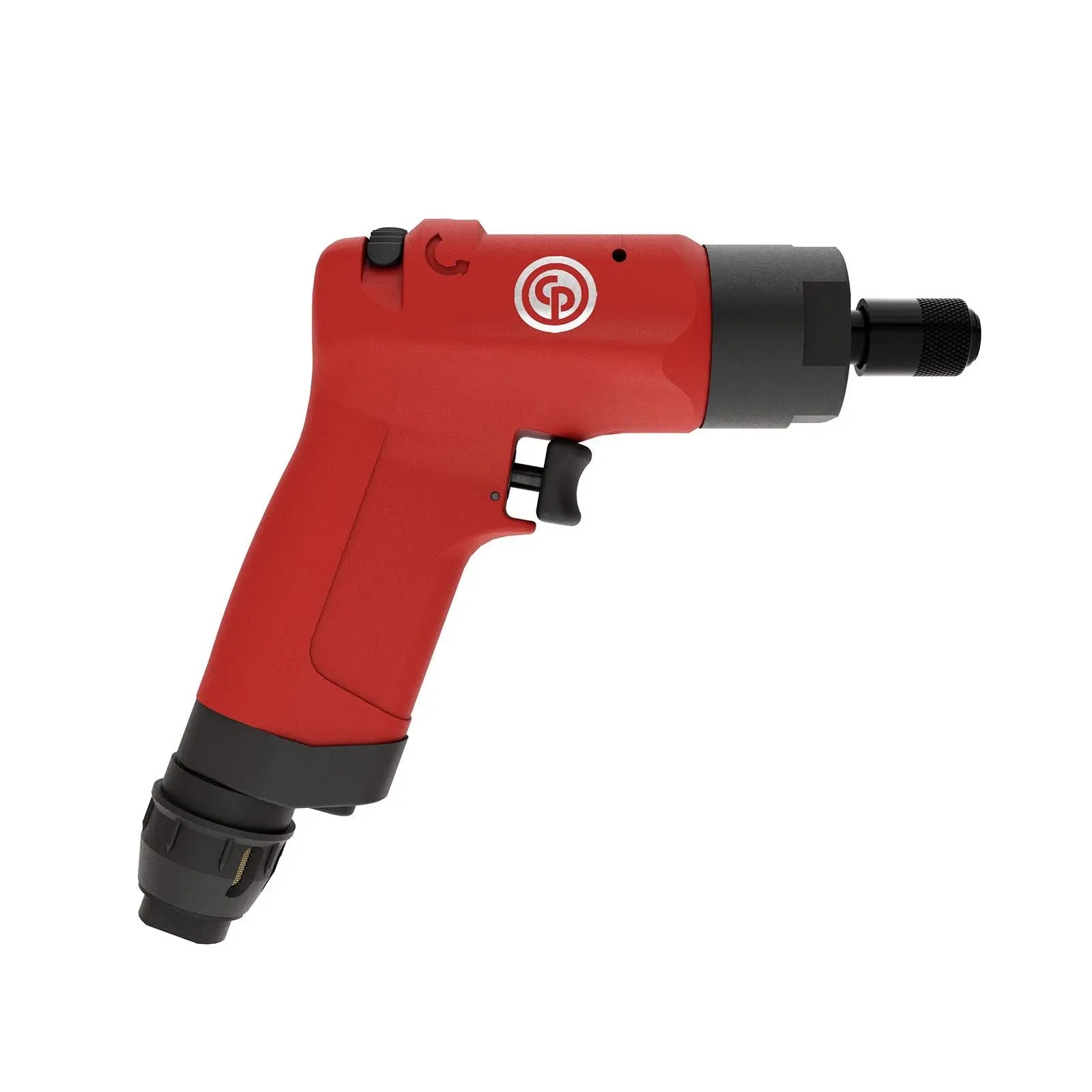

Chicago Pneumatic 1/4 in Hexagon Pistol Direct Drive Pneumatic Screwdriver, Free Speed 2400 rpm - CP 6151630070

The CP28 series direct drive pneumatic screwdriver have a high robustness with aluminum body. Designed for heavy duty applications. It has a speed of 2400 rpm and offers a tightening torque up to 3.32 ft.lb/4.5 Nm for the CP2810. CP2811 offers a speed of 750 rpm and a tightening torque up to 8.85 ft.lb/12 Nm. Good handling is ensured thanks to its convenient progressive trigger and one-hand reverse button.

Features:

• Durable stall torque clutch for various fastening
• Light weight for intensive use
• Robust aluminum body, even for heavy duty application
• Convenient progressive trigger and one-hand reverse button for ergonomic handing

Specifications:

• Body: Aluminum
• Free Speed: 2400 rpm
• Length (L): 183mm
• Reversible: Yes
• Sound Power: 94 dB(A)
• Sound Pressure: 83 dB(A)
• Country of Origin: Hungary
• Customs Tariff: 84671190
• Air Consumption at Free Speed: 5.6 l/s
• Air Inlet Thread Size: 1/4 in
• Air Inlet Thread Type: BSP
• Clutch Type: Direct Drive
• Clutch Housing: Steel
• Handle Type: Pistol
• Height (H): 160mm
• Maximum Dynamic Air Working Pressure: 6.3 bar
• Maximum Torque in Forward: 4.5 Nm
• Minimum Hose Diameter (16 ft Hose Length): 0.31 in
• Output Drive Size: 1/4 in
• Output Drive Type: Hexagon
• Output Retainer Type: Quick Change
• Starting System: Trigger
• Vibration: <2.5 m/s sq
• Width (W): 49mm
• Weight: 0.8 kg

Digital Assets:

• Exploded View
• CE Certificate
• Safety Information and Operator's Manual
• UKCA Declaration of conformity
