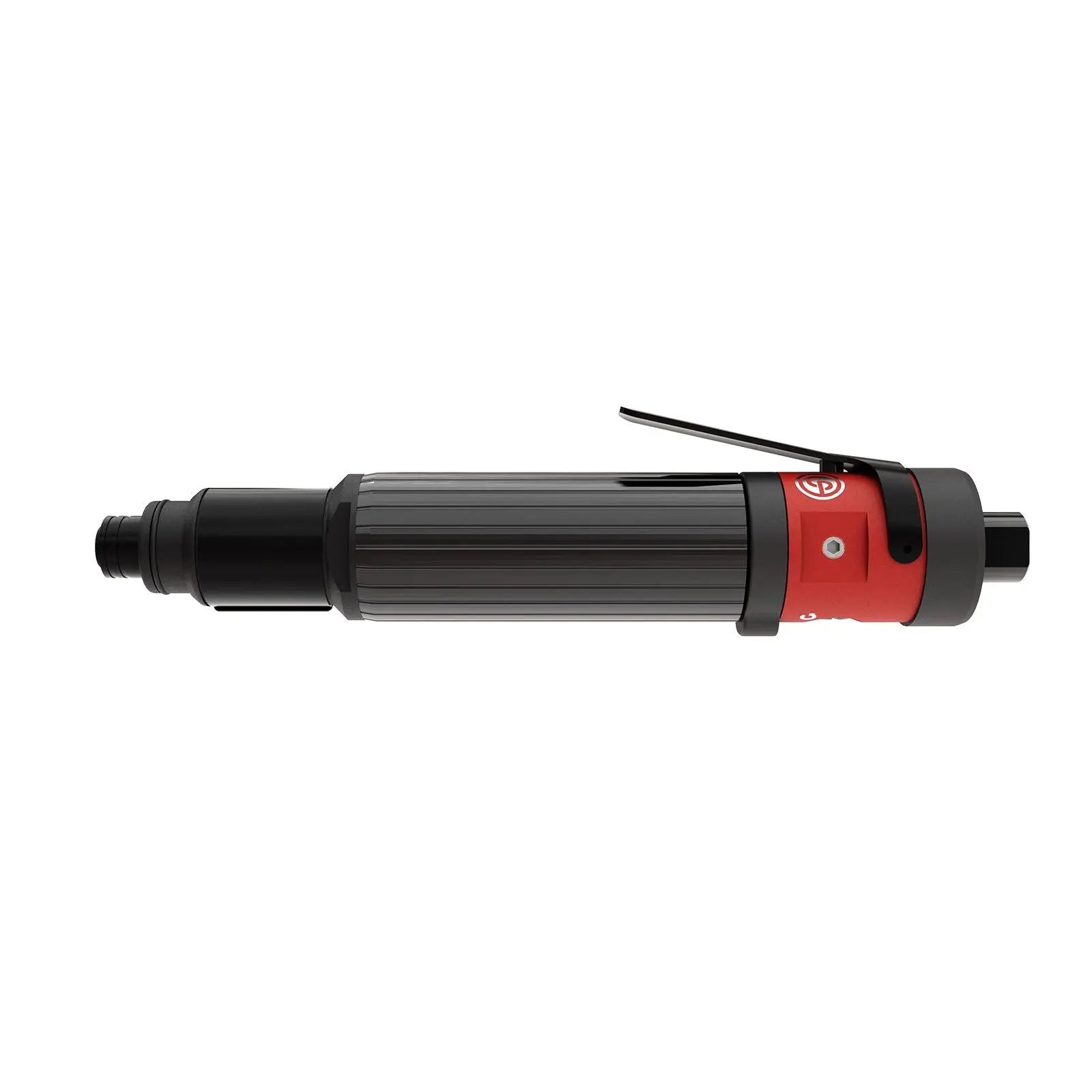

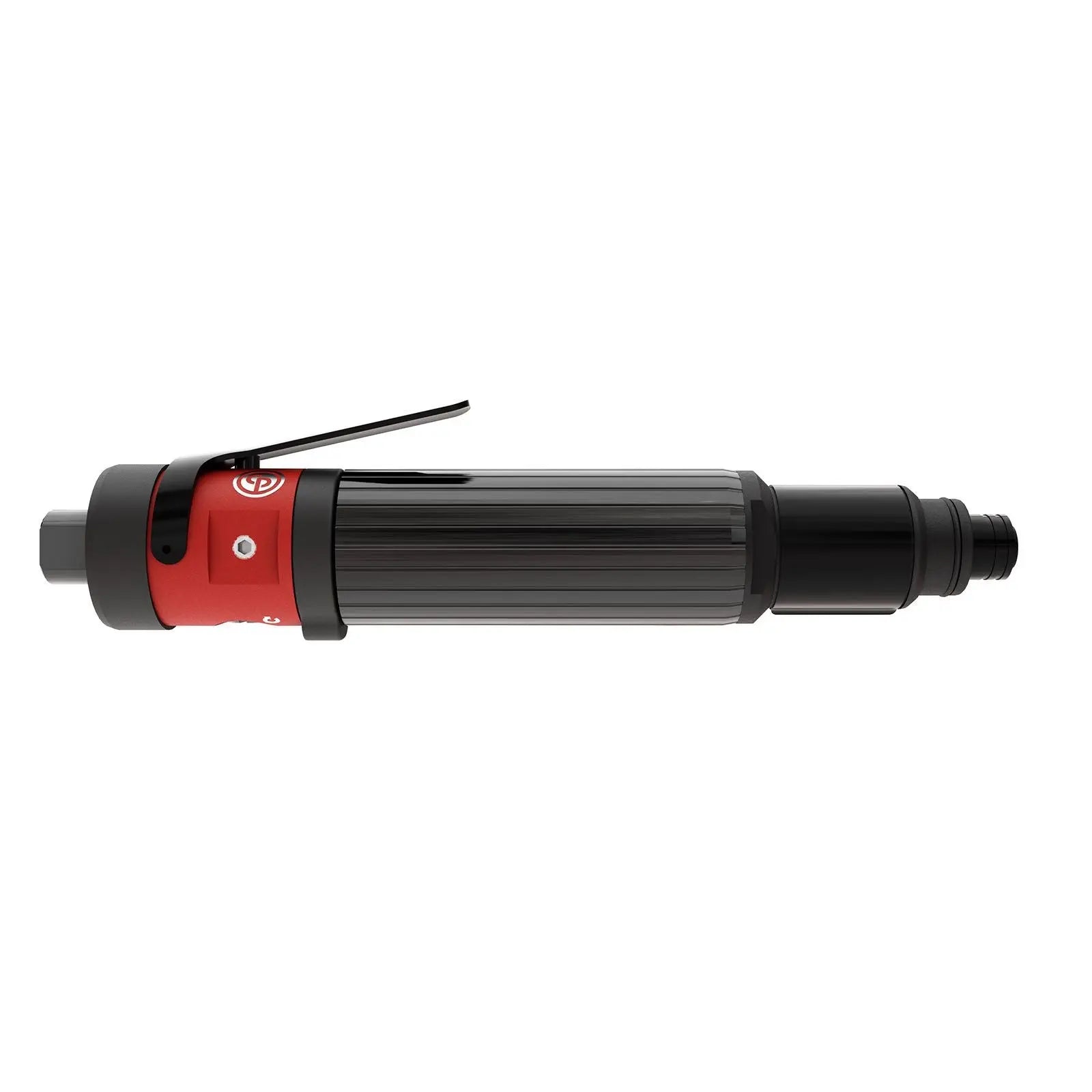

Chicago Pneumatic 1/4 in Hexagon Straight Shut Off Pneumatic Screwdriver - CP 6151630100

The CP2814 pneumatic screwdriver is the most robust 1/4" hex pistol shut-off clutch screwdriver with its aluminum body. Designed for heavy duty applications. It has a speed of 1100 rpm and offers a tightening torque up to 3.17 ft.lb/4.3 Nm. Good handling is ensured thanks to its convenient progressive trigger and one-hand reverse button.

Features:

• Accurate and durable shut-off clutch for various fastening
• Low noise level
• Robust aluminum body, even for heavy duty applications
• Convenient progressive trigger and one-hand reverse button for ergonomic handling

Specifications:

• Adjustment: Key
• Body: Aluminum
• Free Speed: 1500 rpm
• Length (L): 222mm
• Reversible: Yes
• Sound Pressure: 73 dB(A)
• Country of Origin: Hungary
• Customs Tariff: 84671190
• Air Consumption at Free Speed: 6 l/s
• Air Inlet Thread Size: 1/4 in
• Air Inlet Thread Type: BSP
• Clutch Type: Ball Clutch
• Clutch Housing: Steel
• Handle Type: Pistol
• Height (H): 28mm
• Main Material Type: Aluminum
• Maximum Dynamic Air Working Pressure: 6.3 bar
• Maximum Torque in Forward: 1.6 Nm
• Minimum Hose Diameter (16 ft Hose Length): 0.31 in
• Minimum Torque in Forward: 0.5 Nm
• Output Drive Size: 1/4 in
• Output Drive Type: Hexagon
• Output Retainer Type: Quick Change
• Starting System: Lever
• Torque Control System: Shut-Off-Pneumatic Valve
• Vibration: <2.5 m/s sq
• Width (W): 28mm
• Weight: 0.9 kg

Digital Assets:

• CE Certificate
• UKCA Declaration of conformity
• Safety Information and Operator's Manual
• Exploded View
