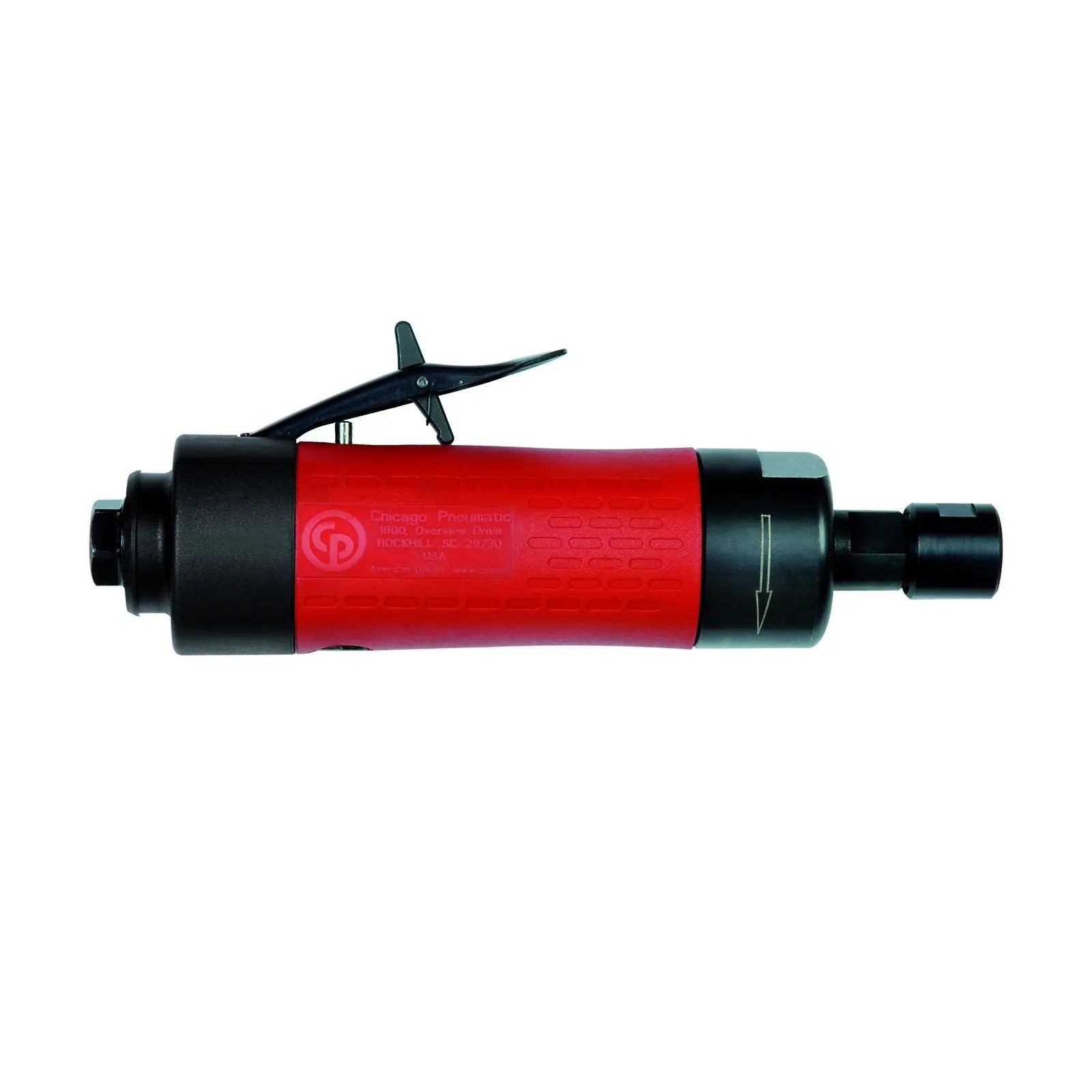

Chicago Pneumatic 1/4 in Pneumatic Die Grinder - CP 6151600270
The CP3000 Series - Die Grinders, with a collet capacity of 1/4" (6.35 mm), are defined by 12 models ranging from 0.4 hp (300 W) to 0.7 hp (500 W). All tools are fitted with a safety lever and, depending on the configuration, benefit from a front or rear exhaust. Use with either carbide burrs or mounted grinding stones, available separately.
Features:
- Industrial grade durability up to 1,000 hours between maintenance intervals
- Compact and composite handle for a great operator comfort
- Up to 0.7hp (500 W) industrial grade motor and 30,000 rpm for a perfect material removal result
Specifications:
- Angle Type: Straight
- Exhaust: Rear
- Free Speed: 15000 rpm
- Length (L): 195mm
- Sound Power: 91.7 dB(A)
- Sound Pressure: 80.7 dB(A)
- Country of Origin: Taiwan
- Customs Tariff: 84671110
- Air Consumption at Free Speed: 14 l/s
- Air Consumption at Load: 12 l/s
- Air Inlet Thread Size: 1/4 in
- Air Inlet Thread Type: NPT
- Collet Maximum Capacity: 1/4 in
- Collet/Collet Holder/Collet Nut Type: Erickson Series 200 Type
- Main Material Type: Aluminum, Composite Over-Sleeve
- Maximum Dynamic Air Working Pressure: 6.3 bar
- Maximum Power: 500 W
- Minimum Hose Diameter (16 ft Hose Length): 0.38 in
- Rotative Inlet: No
- Spindle Lock: No
- Starting System: Safety Lever
- Vibration: <2.5 m/s sq
- Weight: 0.86 kg
