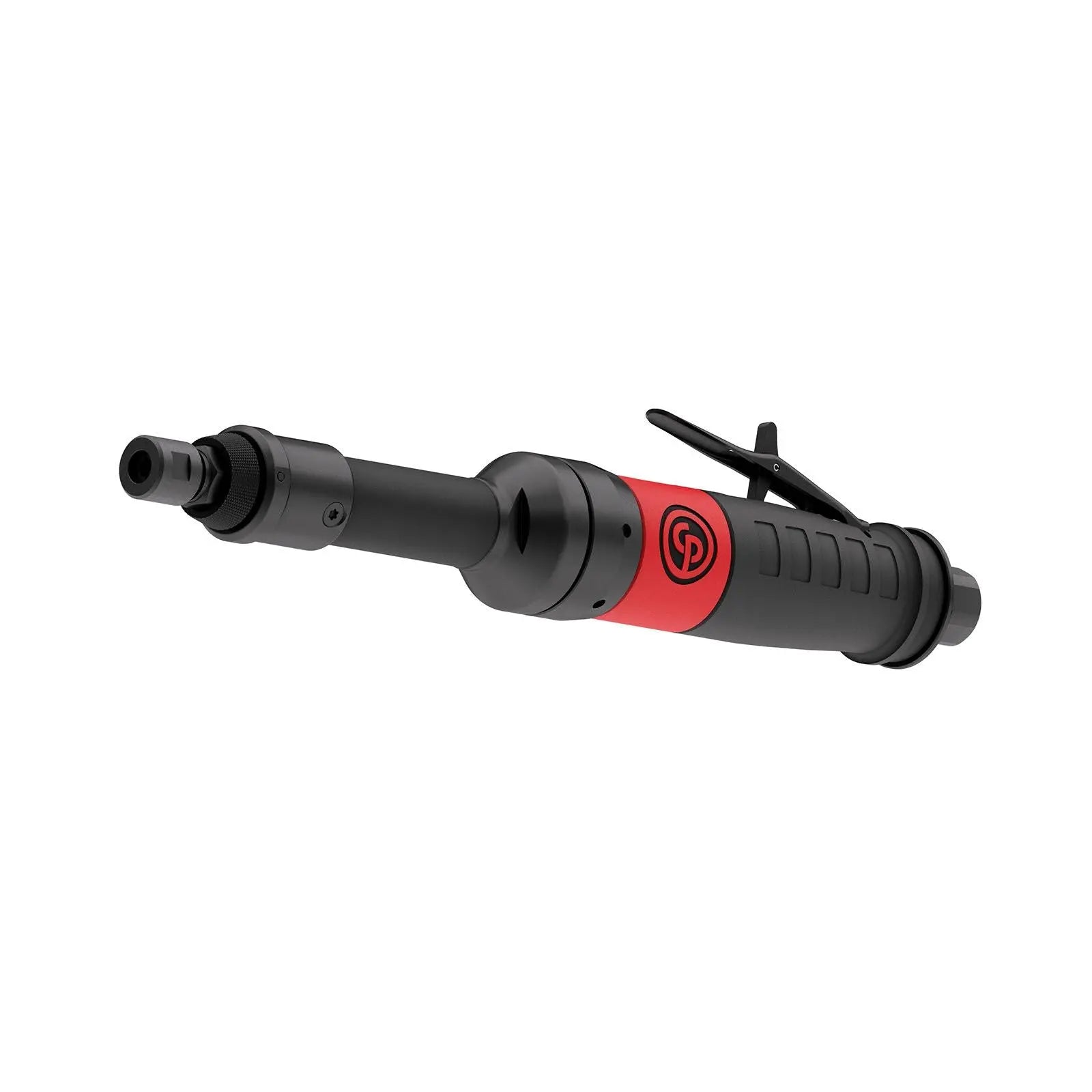

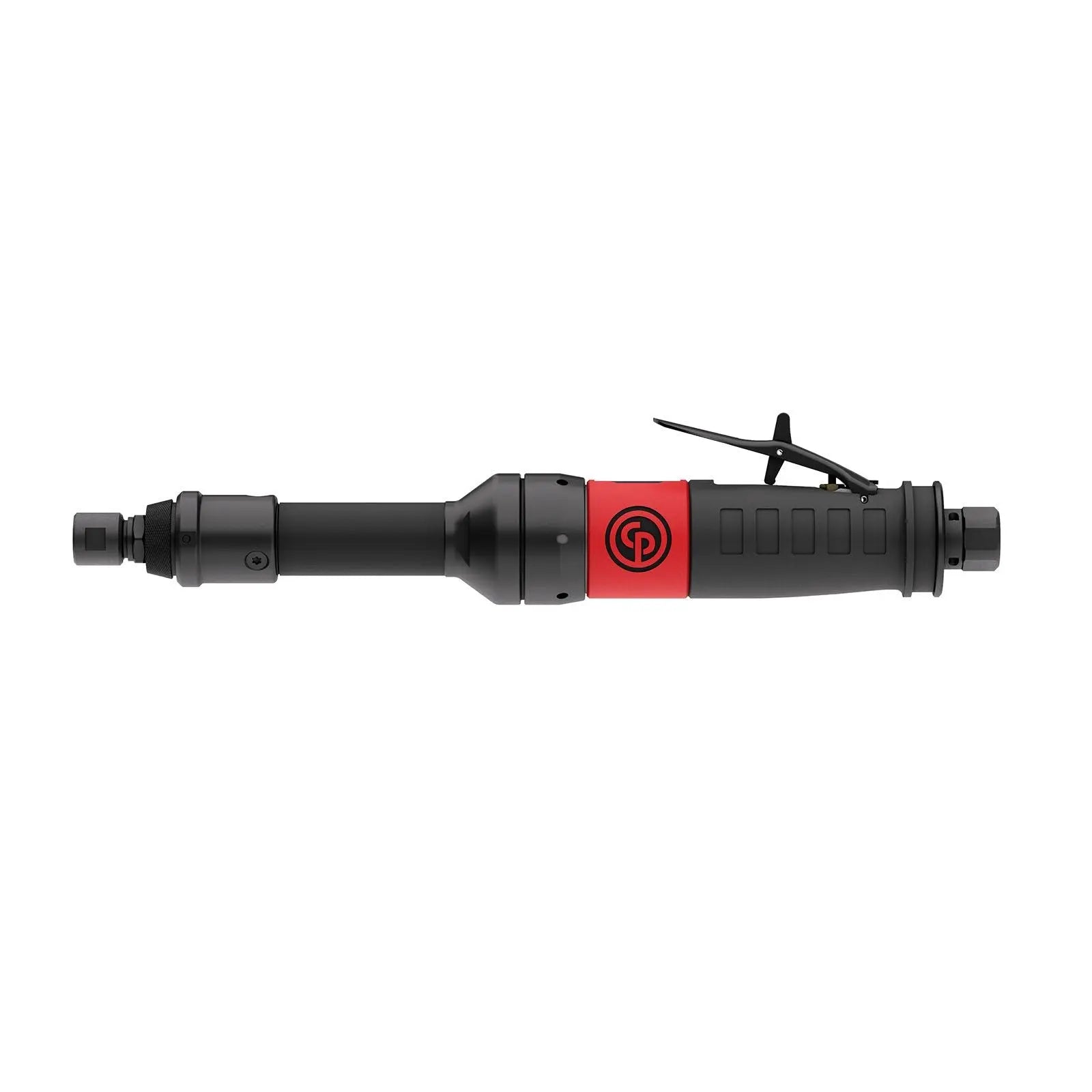

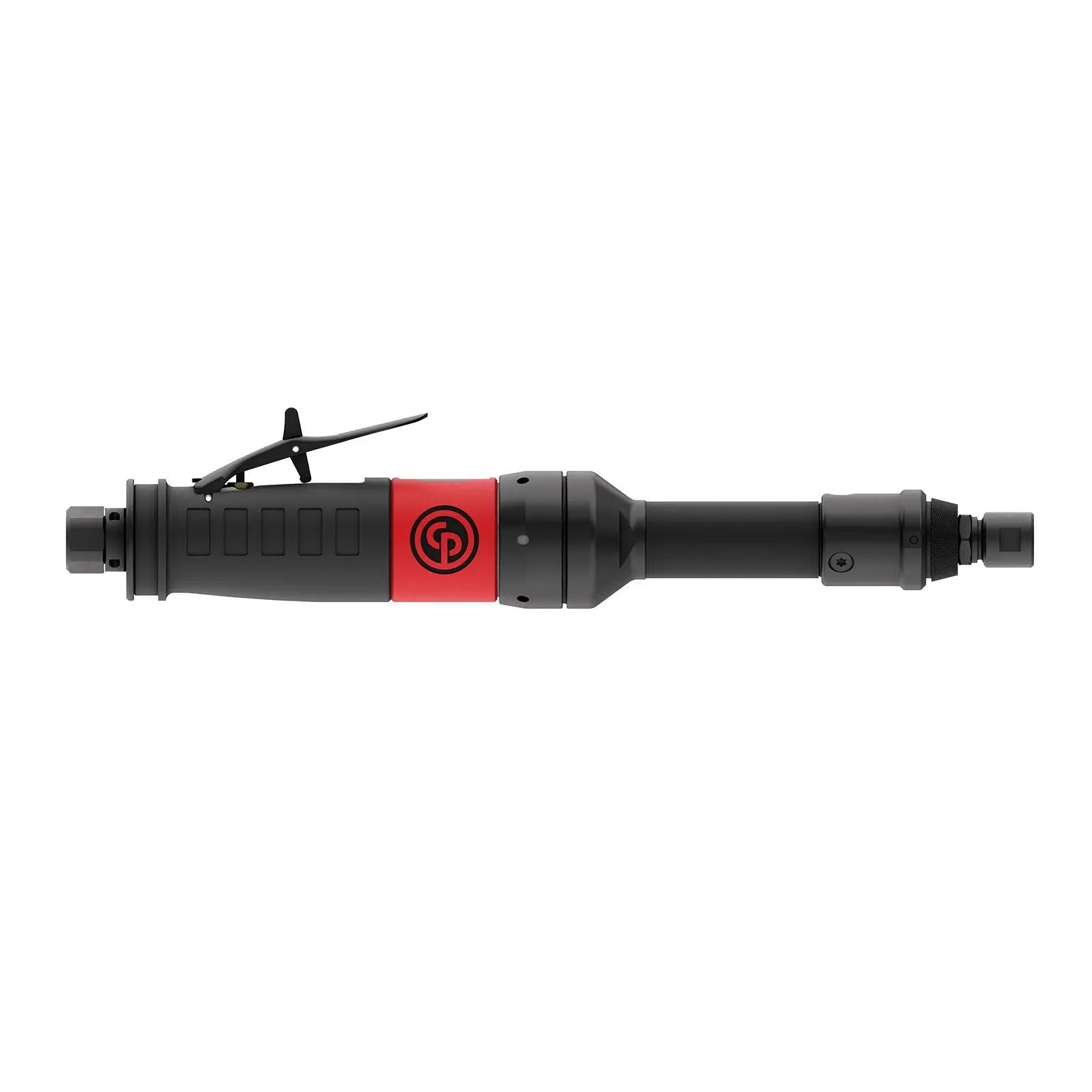

Chicago Pneumatic 1/4 in Pneumatic Die Grinder, 88 dB(A) Sound Power - CP 6151602350
The CP3550 Series, a 1/4" (6.35 mm) capacity die grinder with collet, features an angle or straight head to accommodate your most demanding access applications to maintain your quality at the highest level. It delivers maximum sustained power with 12,000 rpms capable of running carbide burrs or mounted points for grinding, contouring, deburring, and cleaning applications. The motor is extremely powerful and reliable with a 1.5 hp (1100 W). Additional features such as the spindle lock button, bevel gear design, and regulated motor make this tool a perfect solution for users working in industry.
Features:
- Industrial grade durability up to 1,000 hours between maintenance intervals
- Streamlined safety lever for operator safety
- 1.5 hp (1,100 W) governed motor to maintain maximal abrasive speed

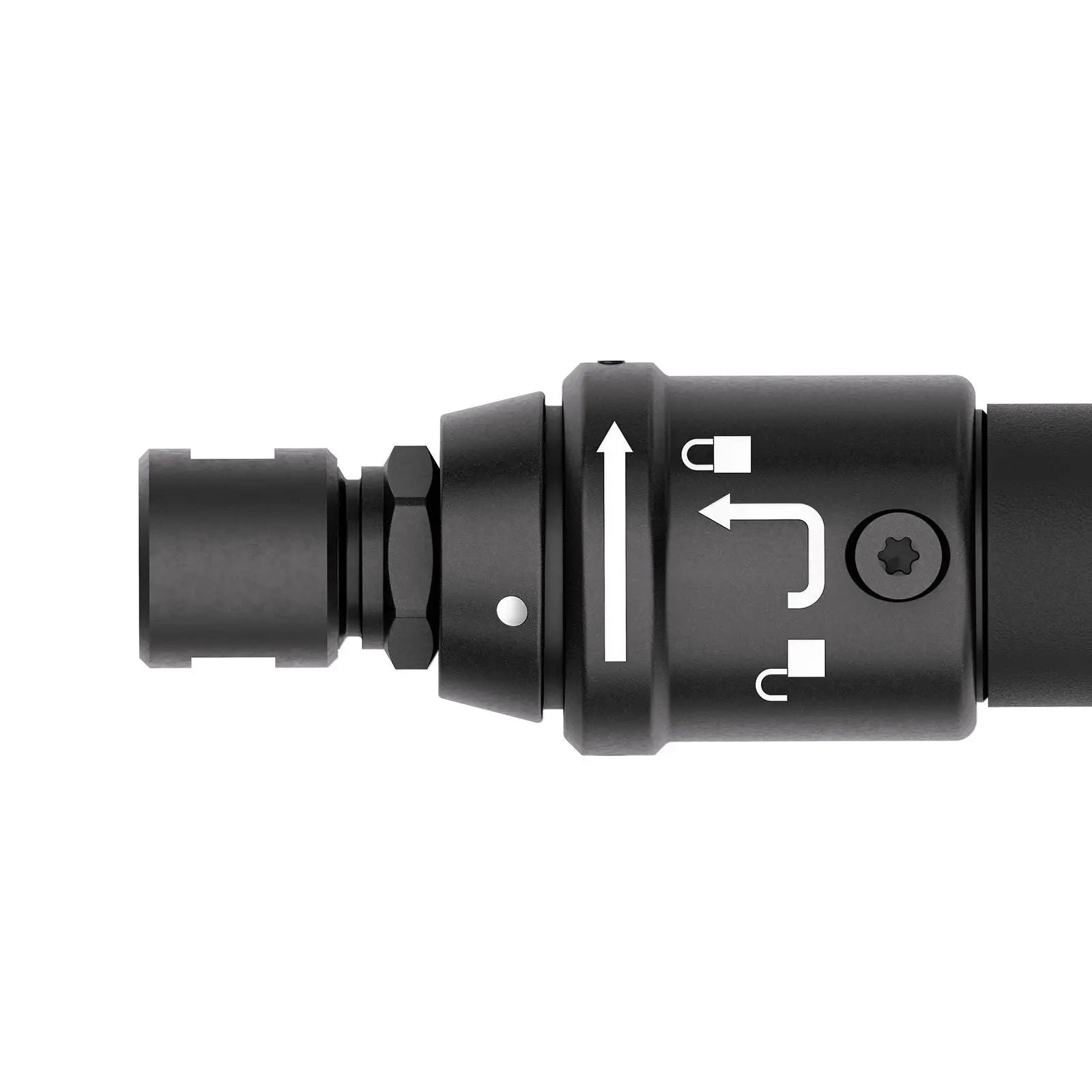

- Spindle lock button allows for fast carbide burr replacement to reduce tool downtime
Specifications:
- Angle Type: 90 deg
- Exhaust: Rear
- Free Speed: 12000 rpm
- Length (L): 365mm
- Sound Power: 88 dB(A)
- Sound Pressure: 77 dB(A)
- Country of Origin: Taiwan
- Customs Tariff: 84671110
- Air Consumption at Free Speed: 8 l/s
- Air Consumption at Load: 26 l/s
- Air Inlet Thread Size: 3/8 in
- Air Inlet Thread Type: NPT
- Collet Maximum Capacity: 1/4 in
- Collet, Collet Holder, Collet Nut Type: Erickson Series 200 Type
- Governor Type: Ball
- Height (H): 52mm
- Main Material Type: Aluminum, Composite Over-Sleeve
- Maximum Dynamic Air Working Pressure: 6.3 bar
- Maximum Power: 1100 W
- Minimum Hose Diameter (16 ft Hose Length): 0.5 in
- Rotative Inlet: Yes
- Side to Center: 26mm
- Spindle Lock: Yes
- Starting System: Safety Lever
- Vibration: 2.5 m/s sq
- Weight: 1.4 kg
