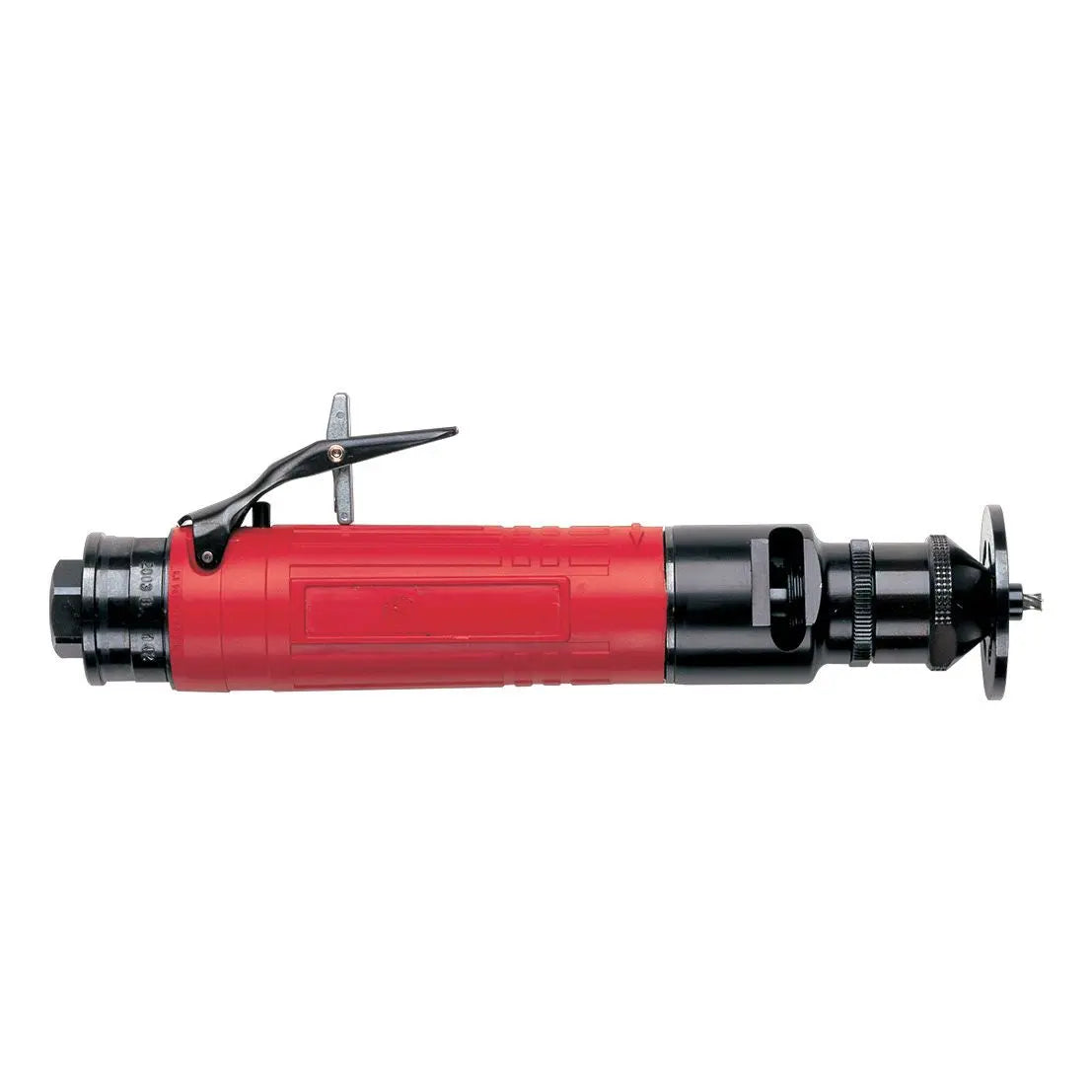

Chicago Pneumatic 1/4 in Straight Pneumatic Die Grinder, Free Speed 24000 rpm - CP 6151702900
The CP3109 Series - pneumatic Straight Die Grinders - meets the intensive needs of grinding, contouring, deburring, and cleaning with carbide burrs, mounted points, abrasive wheels, and flap wheels. It has a 6.35 mm (1/4") or CNOMO capacity collet with a very durable bevel gear and a powerful 0.8 hp (600 W) motor. The range consists of 18 models, straight or straight extended housing collet spindle with 4 free speed options from 15,000 to 28,000 rotations per minute.
Features:
- Highest durability in demanding applications, up to 2,000 hours maintenance intervals
- Streamlined safety lever for operator safety
- Steel housing with an insulating composite over-housing for operator comfort and superior ergonomics
- Powerful 0.8hp (600 W) governed motor
Specifications:
- Angle Type: Straight
- Exhaust: Rear
- Free Speed: 24000 rpm
- Length (L): 222mm
- Sound Power: 93 dB(A)
- Sound Pressure: 82 dB(A)
- Country of Origin: Hungary
- Customs Tariff: 84671110
- Air Consumption at Free Speed: 8.6 l/s
- Air Consumption at Load: 15 l/s
- Air Inlet Thread Size: 3/8 in
- Air Inlet Thread Type: BSP
- Collet Maximum Capacity: 1/4 in
- Collet/Collet Holder/Collet Nut Type: Erickson Series 200 Type
- Governor Type: Ball
- Main Material Type: Aluminum, Composite Over-Sleeve
- Maximum Power: 600 W
- Minimum Hose Diameter (16 ft Hose Length): 0.38 in
- Rotative Inlet: No
- Spindle Lock: No
- Starting System: Safety Lever
- Uncertainty Vibration-K: 1.3 m/s sq
- Vibration: 4.97 m/s sq
- Weight: 1.2 kg
