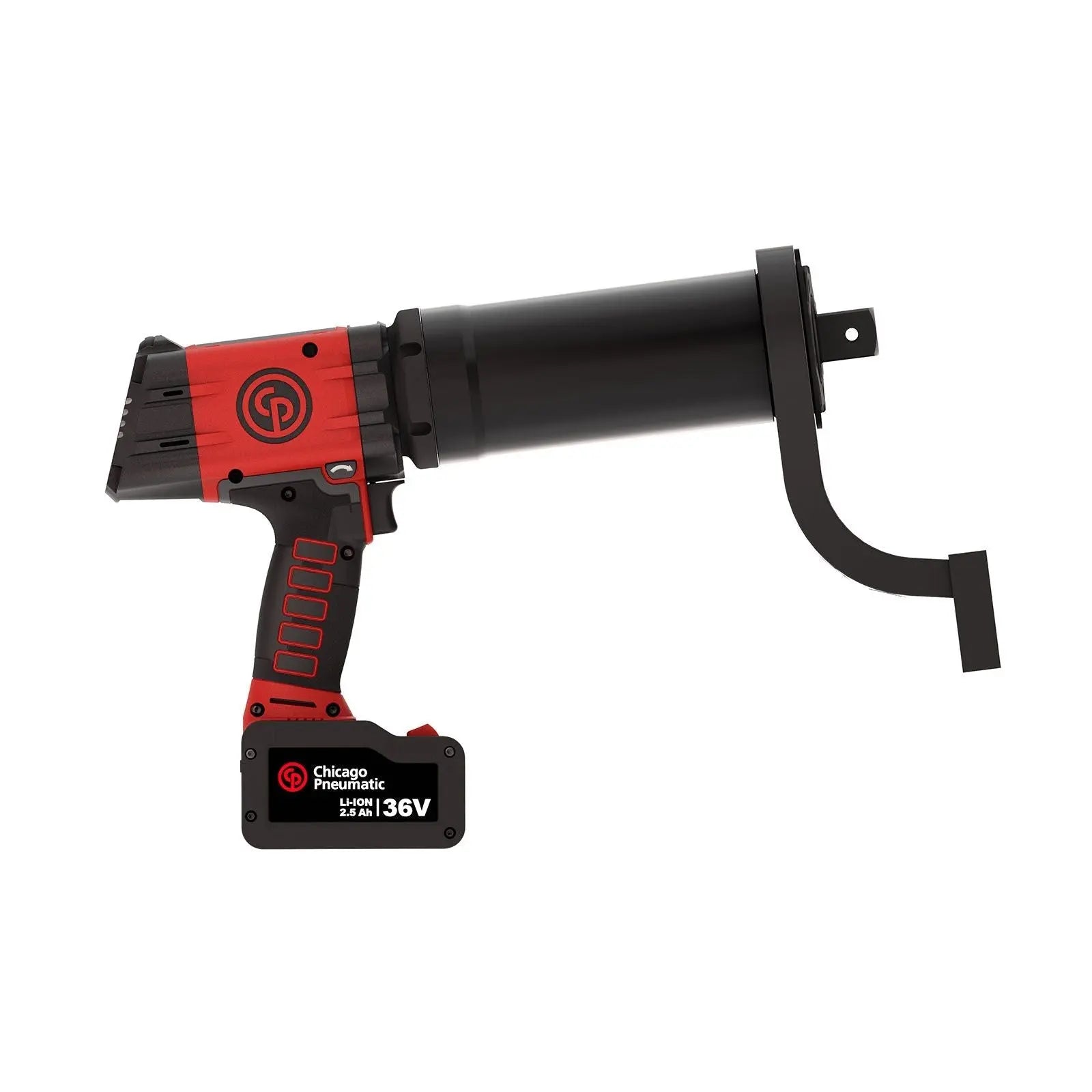

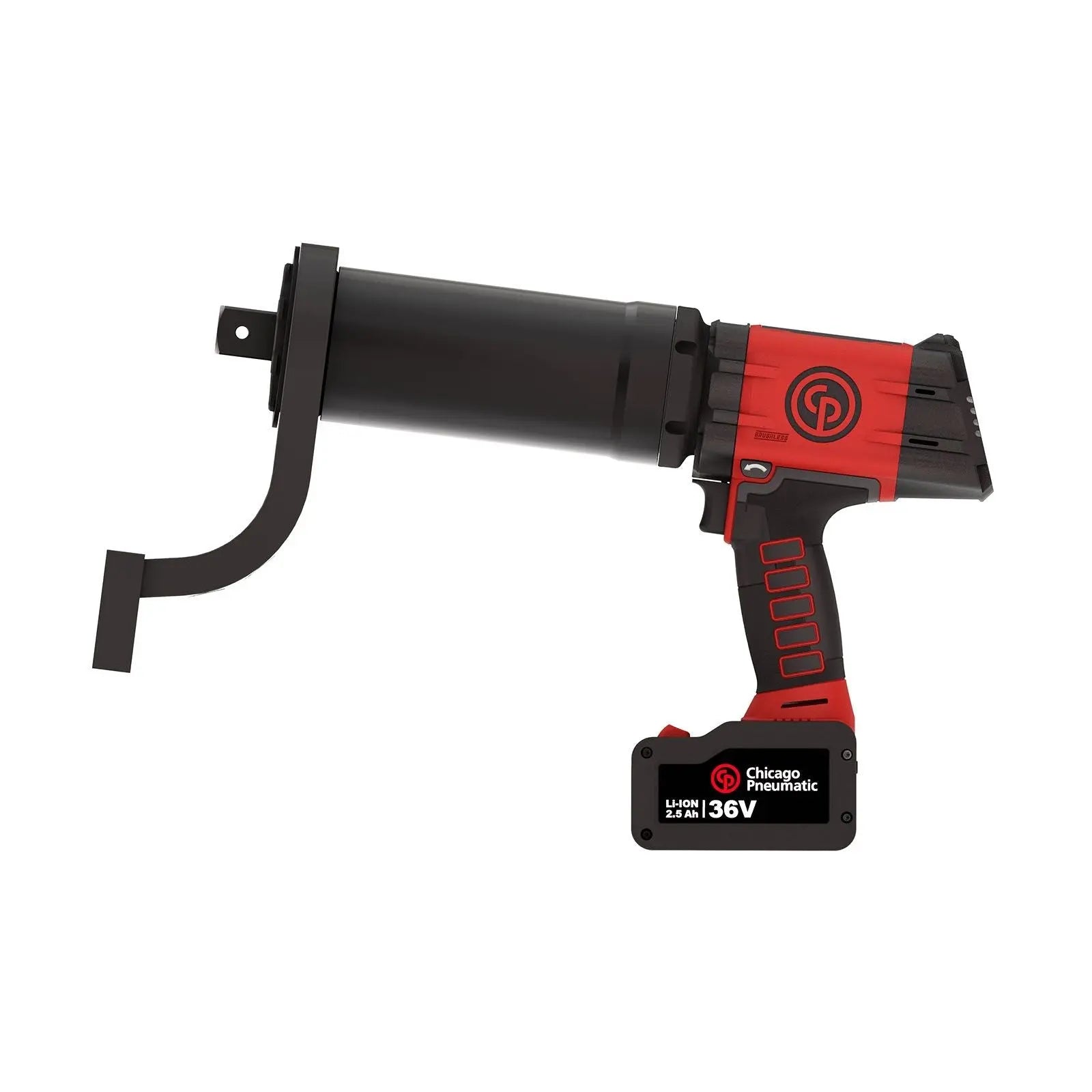

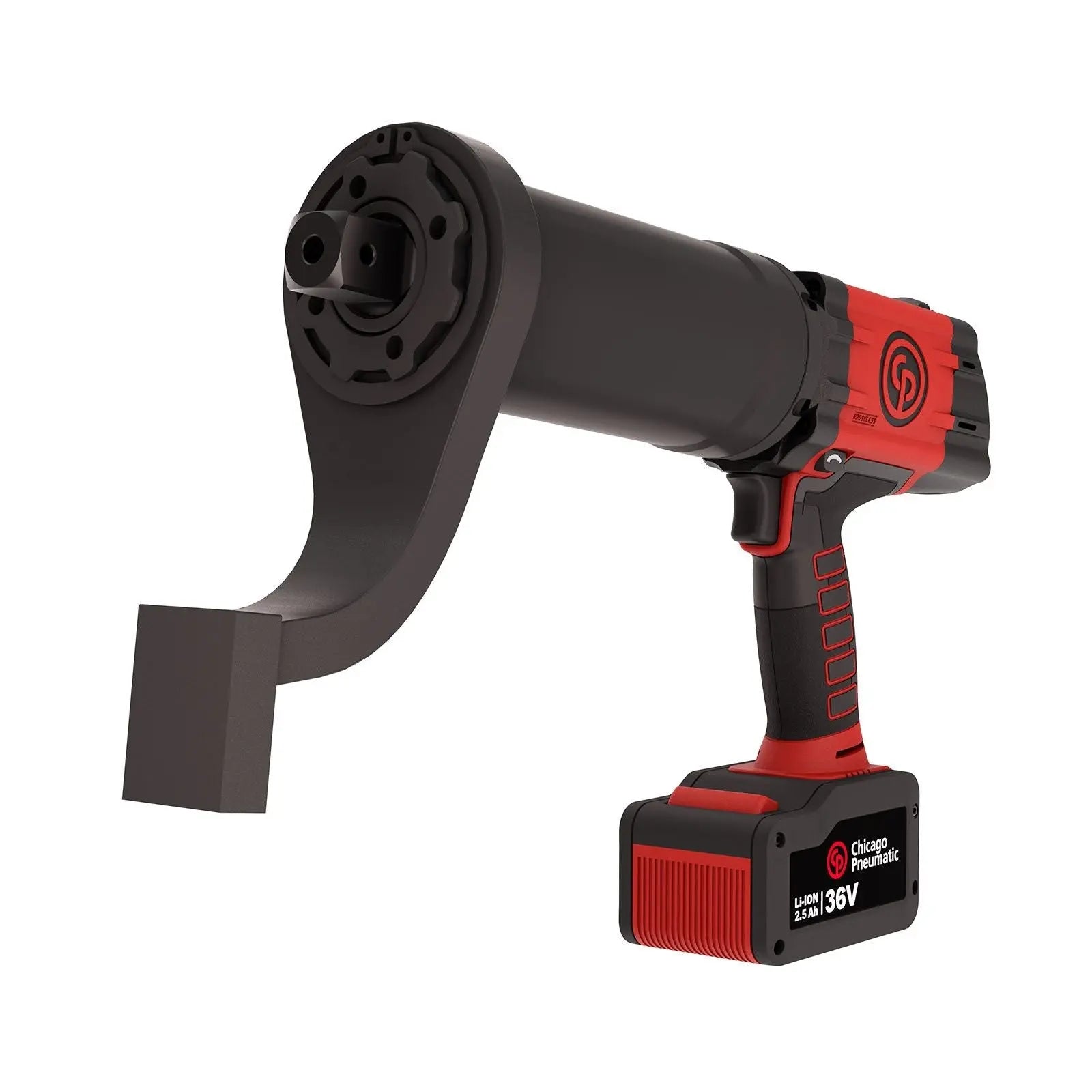

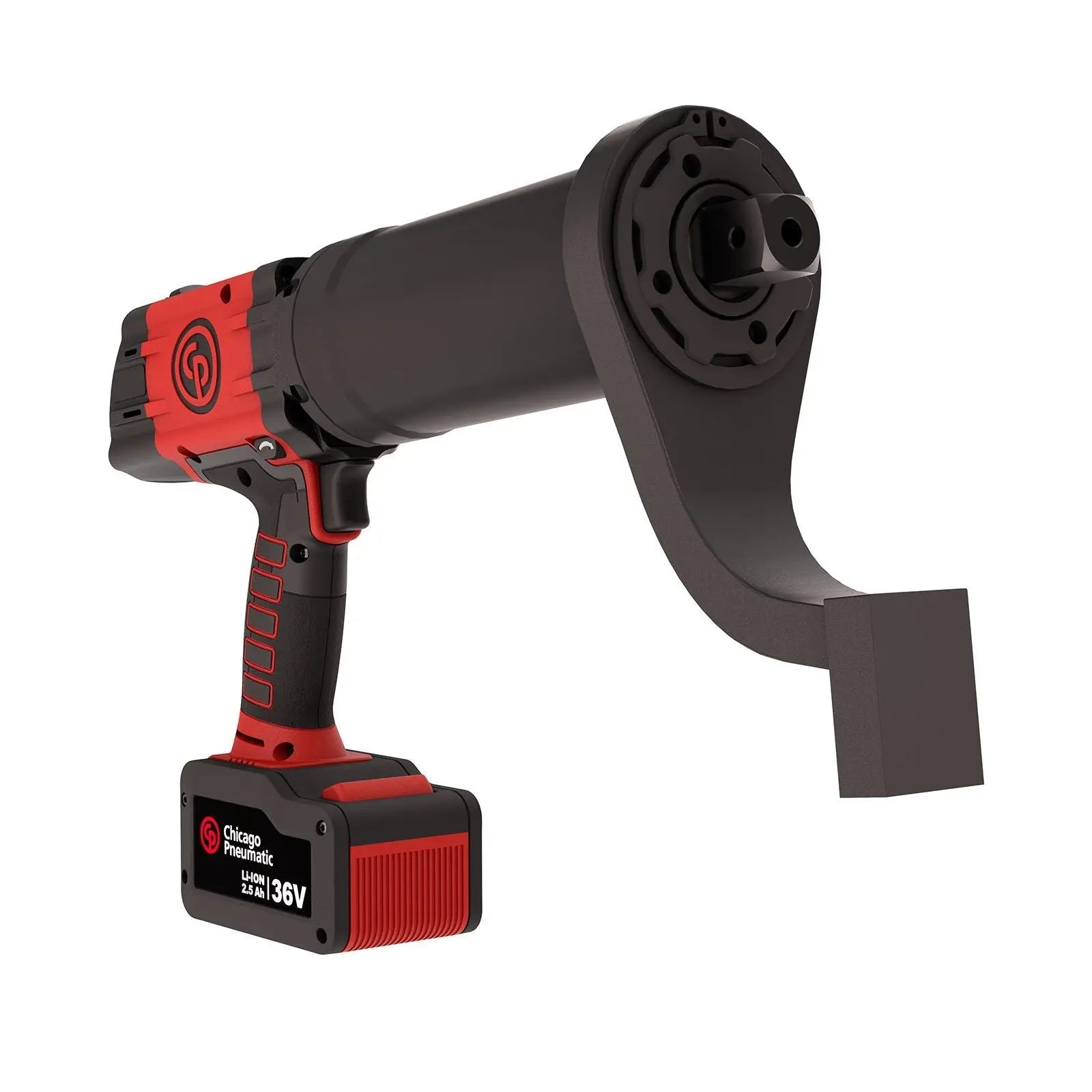

Chicago Pneumatic 1 in Battery Check Torque Wrench - CP 6151570690
Torque tightening and torque check from 1000 Nm / 740 ft.lb to 4100 Nm / 3020 ft.lb with high precision (+/- 4%), as well as angle tightening and counting sequence. Intuitive handling on digital screen of the tool or via CPLinQ app, which also includes data collection for traceability. This tool is eligible for CP Care, which includes calibration as part of its preventive maintenance package to ensure optimal performance and long-term reliability.
Pack Includes:
- 1 CP8641TC, 1 S Type reaction bar, 2 Batteries, 1 Battery charger, 1 Charger cable, 1 Plastic case
Features:
- High precision with +/- 4%
- Safe tightening with second start button as standard
- Extended mobility with lightweight and compact battery
- Automatic release reaction arm

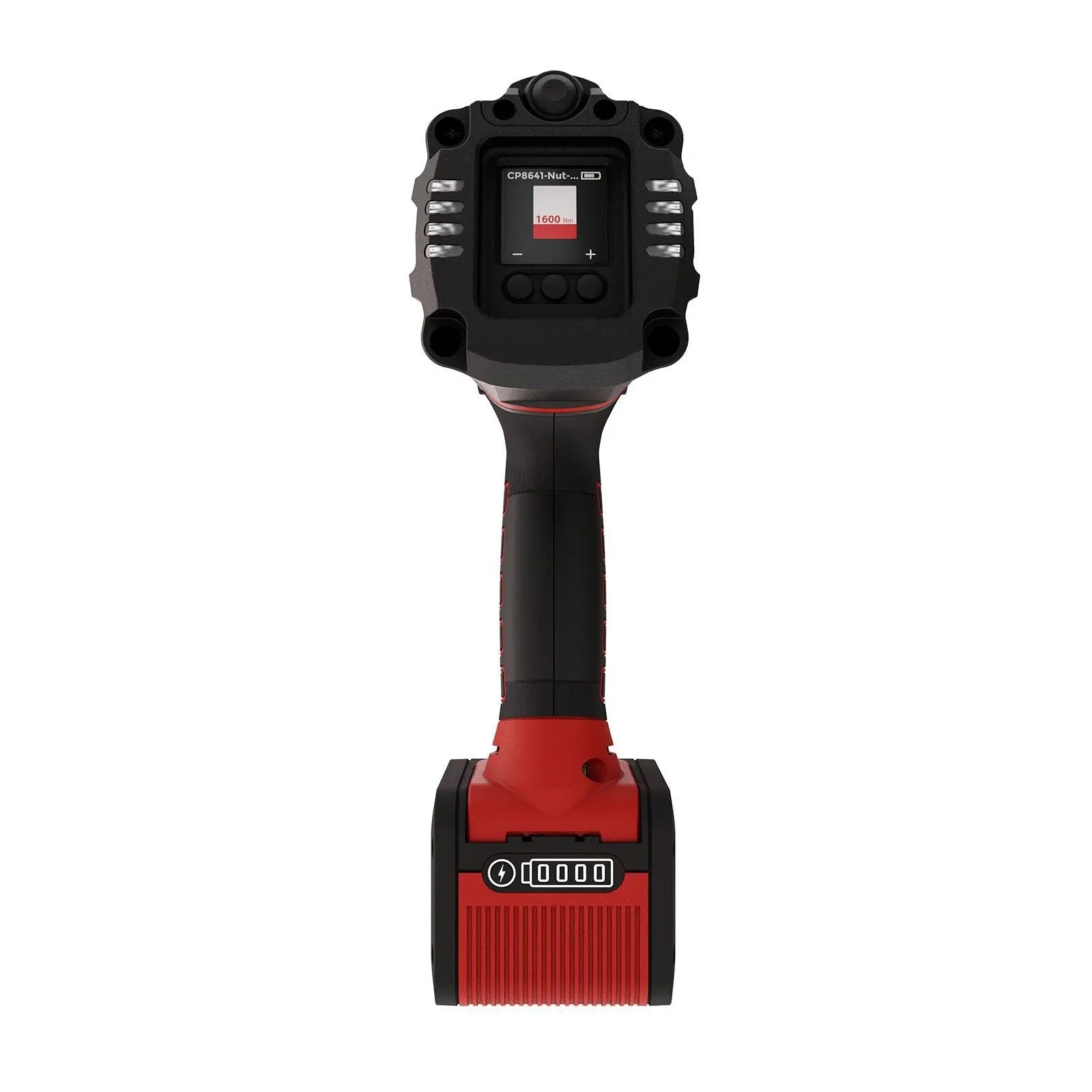

- Intuitive handling either on OLED Digital screen of the tool or via CPLinQ app
Specifications:
- Adjustment: Digital
- Free Speed: 3 rpm
- Joint Type: Hard, Soft
- Length (L): 409mm
- Maximum Ambient Operating Temperature: 60 deg C
- Reversible: Yes
- Sound Power: 66 dB(A)
- Sound Pressure: 83 dB(A)
- Country of Origin: Hungary
- Customs Tariff: 84672920
- A Size: 50mm
- Accuracy: +/-4%
- B Size: 81mm
- Battery Weight: 0.8 kg
- Battery Capacity: 2.5 Ah
- Battery Type: Lithium-Ion
- Battery Voltage: 36 V
- C Size: 215mm
- D Size: 239mm
- E Size: 89mm
- F Size: 38mm
- Handle Type: Pistol
- Height (H): 285mm
- I Size: 116mm
- J Size: 67mm
- K Size: 76mm
- M Size: 42mm
- Main Material Type: Steel
- Maximum Ambient Storage Temperature: 60 deg C
- Maximum Recommended Ambient Charging Temperature: 45 deg C
- Maximum Torque in Forward: 4100 Nm
- Maximum Torque Reverse: 4100 Nm
- Minimum Ambient Operating Temperature: 0 deg C
- Minimum Ambient Storage Temperature: -20 deg C
- Minimum Recommended Ambient Charging Temperature: 0 deg C
- Minimum Torque in Forward: 1000 Nm
- Output Drive Size: 1 in
- Output Drive Type: Square
- Output Retainer Type: Hole
- Power Weight Ratio: 470 Nm/kg
- Reaction Bar Type: S-Type
- Recommended Torque: 3280 Nm
- Sound Power: <72 dba
- Spline Type: 0
- Starting System: Double-Trigger
- Suspension Option: Optional
- Torque Control System: Shut-Off-Current Control
- Vibration: 2.5 m/s sq
- Weight with Reaction Arm: 10.6 kg
- Weight without Reaction Arm: 8.6 kg
- Width (W): 101mm
- Weight: 8.6 kg
