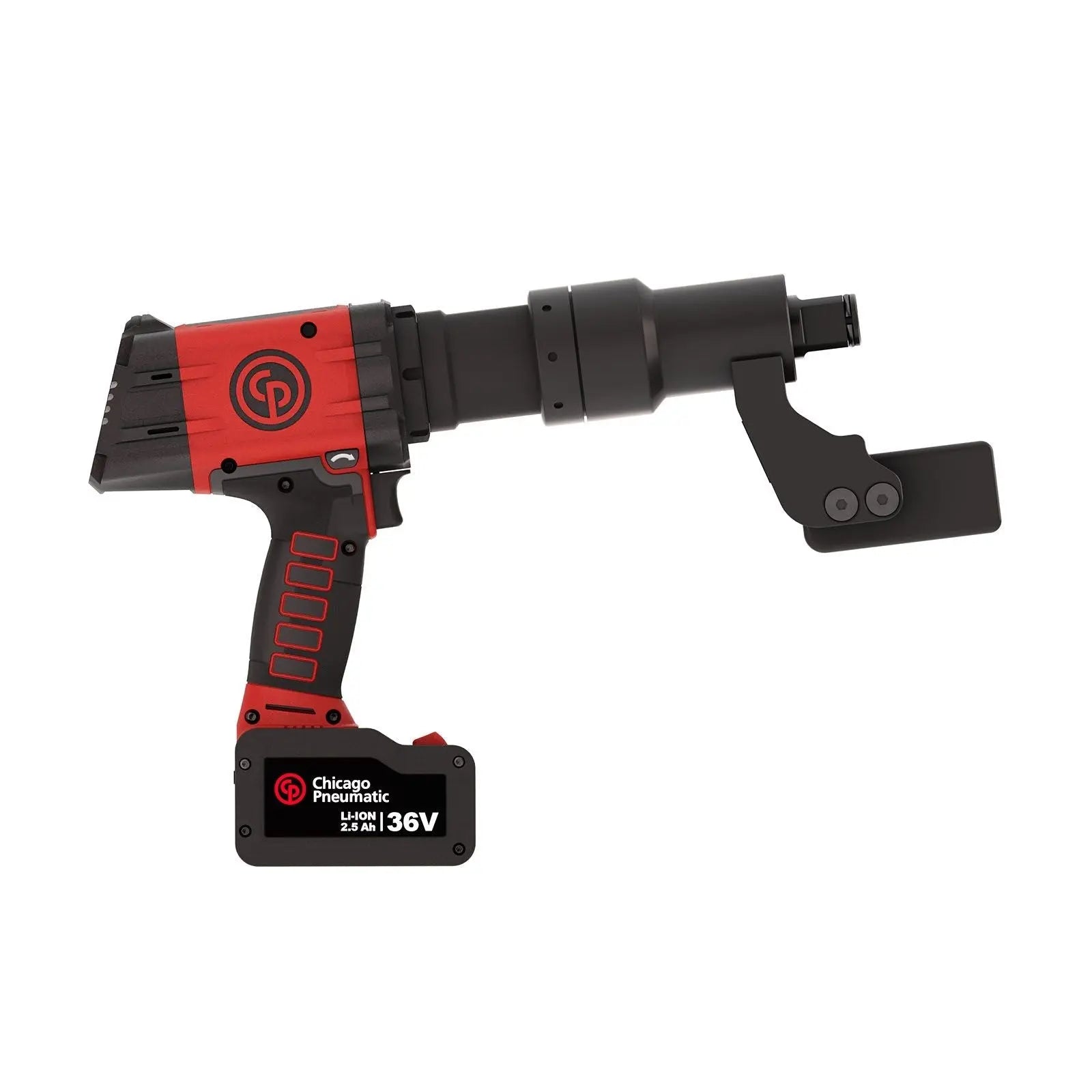

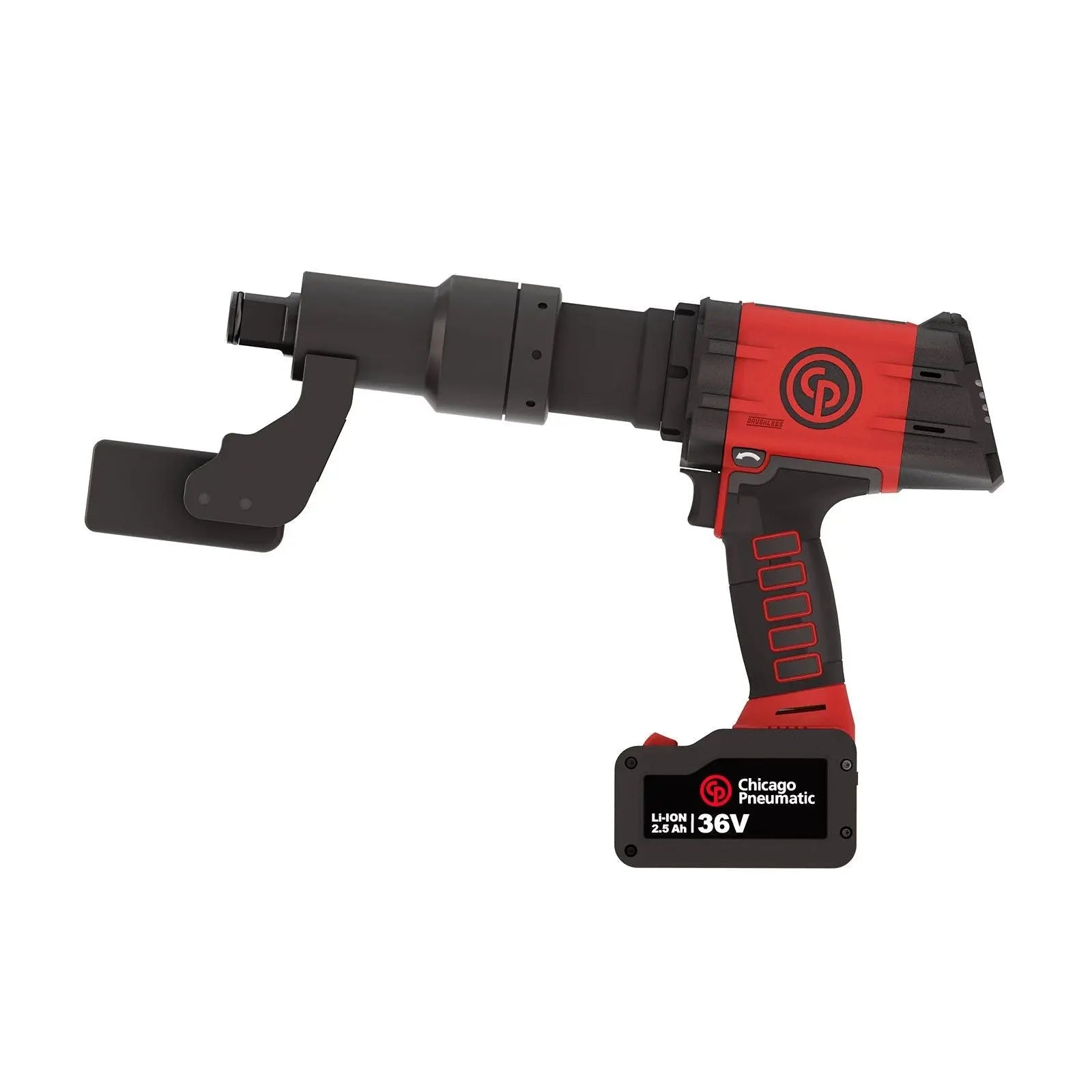

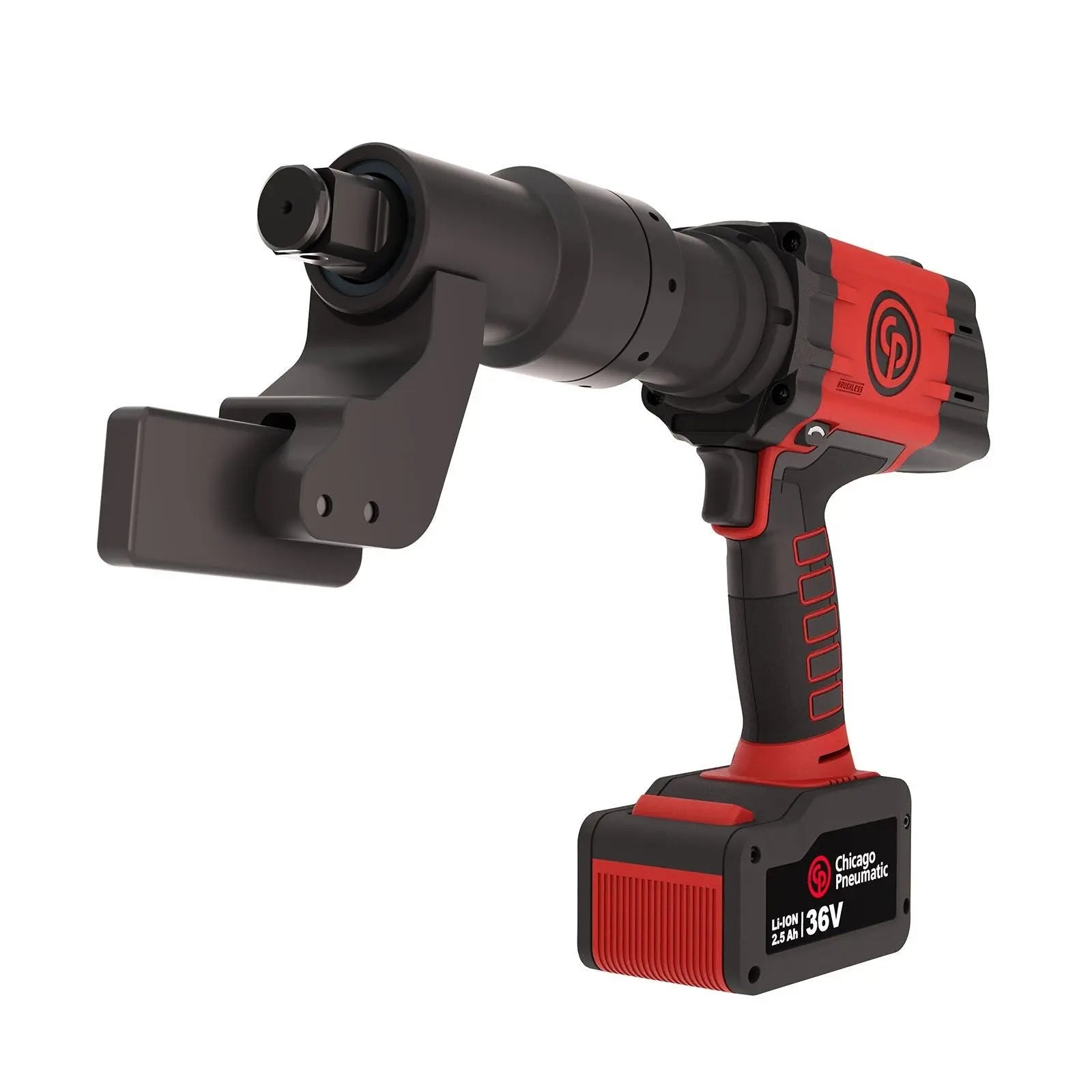

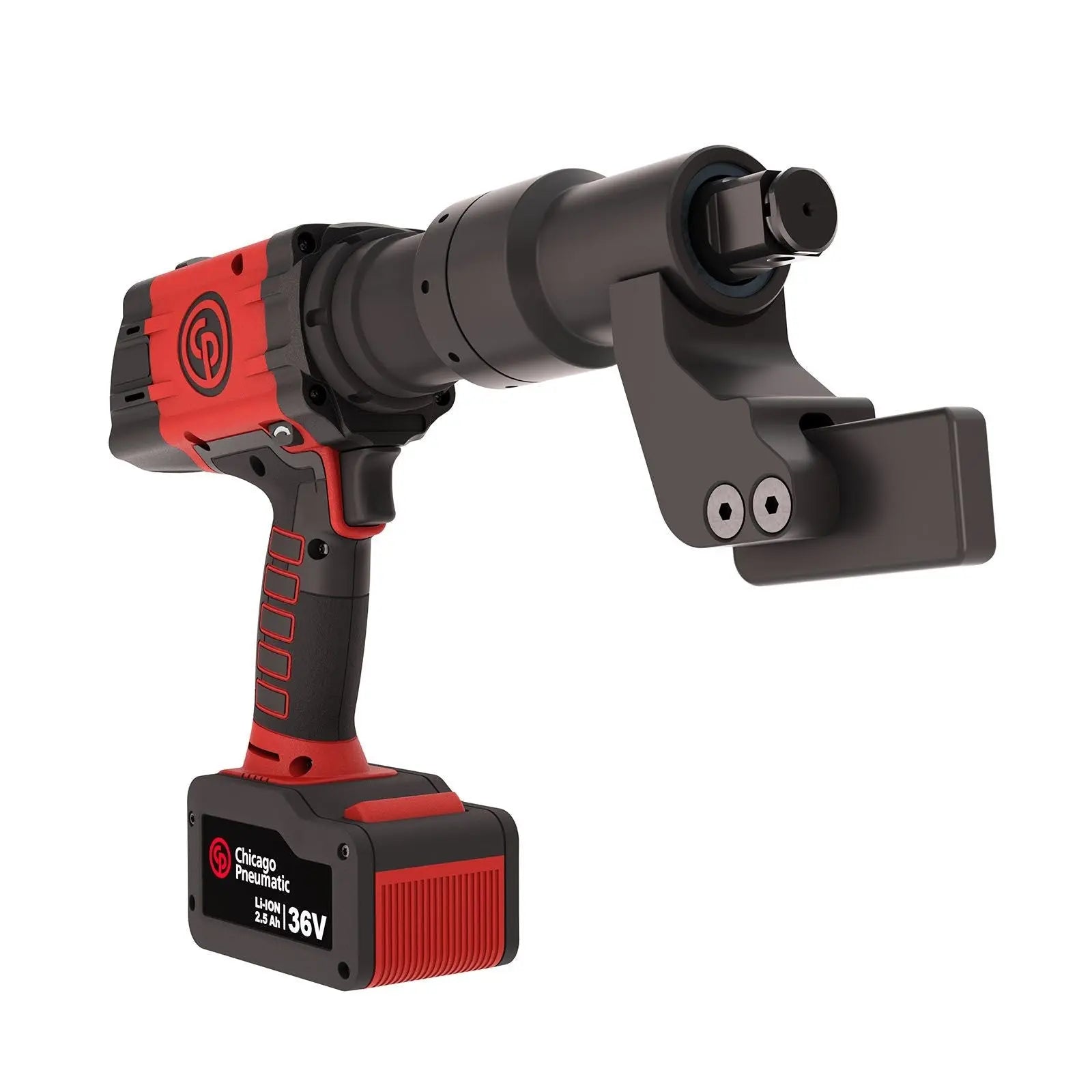

Chicago Pneumatic 1 in Battery Torque Wrench with Blade - CP 6151570500

CP8609 eBlueTork with Blade reaction arm. Torque tightening from 300 Nm / 220 ft.lb to 900 Nm / 665 ft.lb with high precision (+/- 4%). Intuitive handling on digital screen of the tool. This tool is eligible for CP Care, which includes calibration as part of its preventive maintenance package to ensure optimal performance and long-term reliability. Calibration is also available as a standalone service.

Pack Includes:

• 1 CP8609-B, 2 Batteries, 1 Battery Charger, 1 Charger Cable, 1 Plastic Case

Features:

• High precision (+/- 4%) for safe tightening

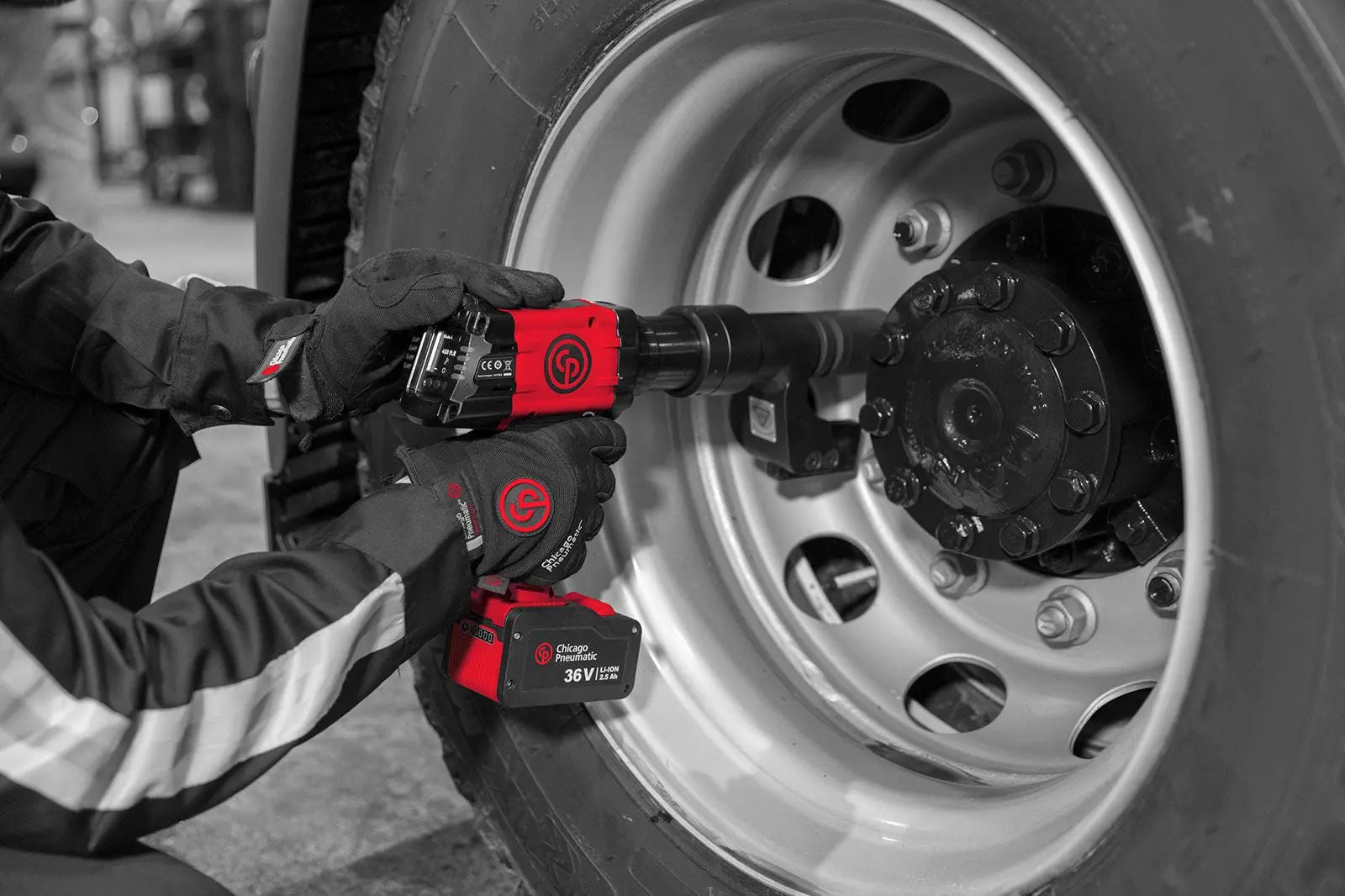

• Fast and long-lasting gearbox dedicated to wheel tightening
• Extended mobility with lightweight and compact battery
• Automatic release reaction arm
• Intuitive handling either on OLED Digital screen of the tool or via CPLinQ app

Specifications:

• Adjustment: Digital
• Free Speed: 15 rpm
• Joint Type: Hard and Soft
• Length (L): 380mm
• Maximum Ambient Operating Temperature: 60 deg C
• Reversible: Yes
• Sound Power: 73 dB(A)
• Sound Pressure: 62 dB(A)
• Country of Origin: Hungary
• Customs Tariff: 84672920
• Accuracy: +/-4 %
• Battery Weight: 0.8 kg
• Battery Capacity: 2.5 Ah
• Battery Type: Lithium-Ion
• Battery Voltage: 36 V
• Handle Type: Pistol
• Height (H): 285mm
• Main Material Type: Steel
• Max Ambient Storage Temperature: 60 deg C
• Maximum Recommended Ambient Charging Temperature: 45 deg C
• Maximum Torque in Forward: 900 Nm
• Maximum Torque Reverse: 900 Nm
• Minimum Ambient Operating Temperature: 0 deg C
• Minimum Ambient Storage Temperature: -20 deg C
• Minimum Recommended Ambient Charging Temperature: 0 deg C
• Minimum Torque in Forward: 300 Nm
• Output Drive Size: 1 in
• Output Drive Type: Square
• Output Retainer Type: Dual
• Power Weight Ratio: 150 Nm/kg
• Reaction Bar Type: Blade Included
• Recommended Torque: 720 Nm
• Side to Center: 33.5mm
• Sound Power: <83 dba
• Starting System: Double-Trigger
• Suspension Option: Optional
• Torque Control System: Shut-Off-Current Control
• Uncertainty Vibration-K: 0.6 m/s sq
• Vibration: <2.5 m/s sq
• Weight with Reaction Arm: 6.3 kg
• Weight without Reaction Arm: 5.8 kg
• Width (W): 77mm
• Weight: 5.8 kg

Digital Assets:

• Technical data sheet
• Exploded View
• Operators manual
• Safety instructions and safety data sheets
• Product Environmental Card (PEC)
