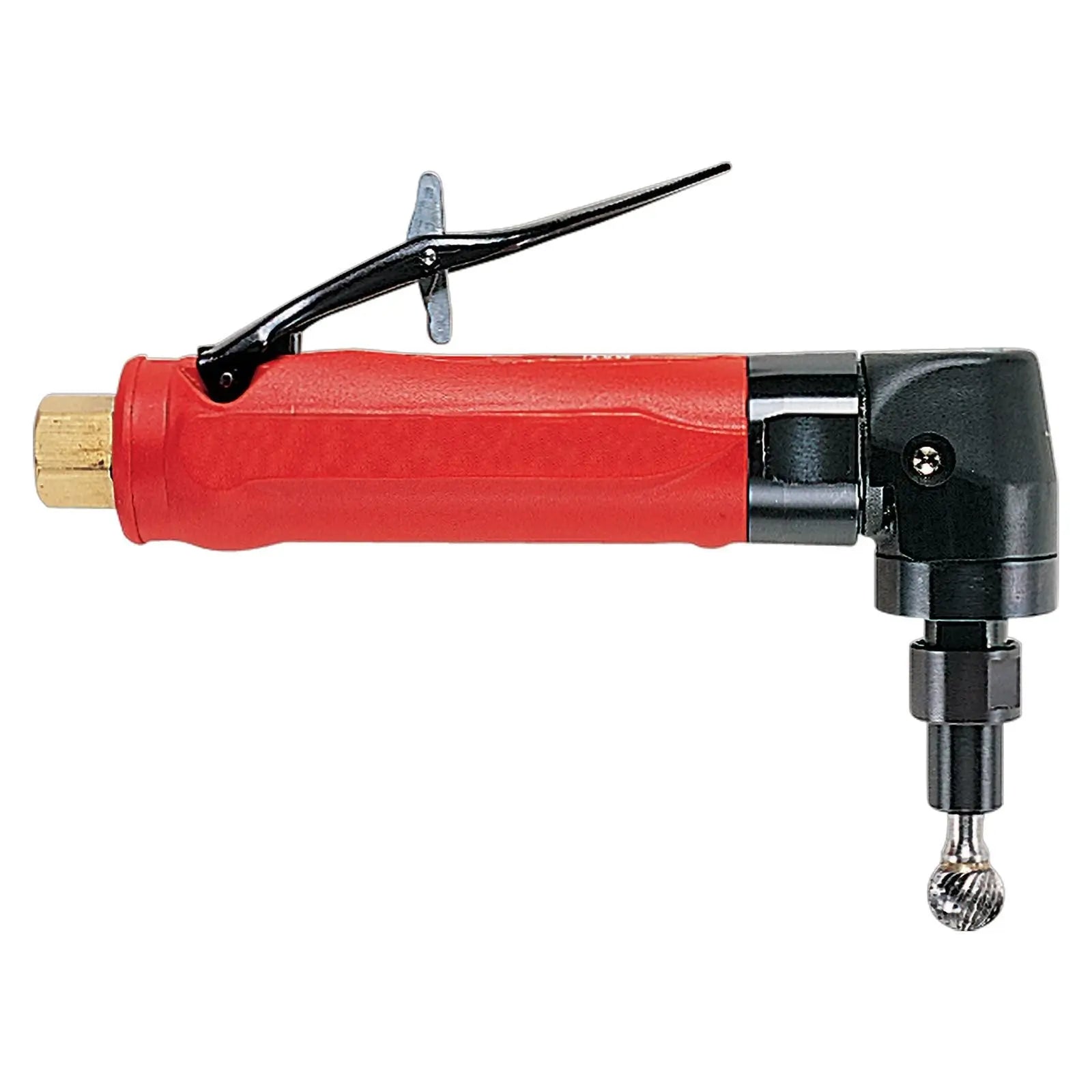

Chicago Pneumatic 300 Series Short Angle Grinder/Sander, 6mm Clamp - CP 6151704610
The CP3019 Series - angle pneumatic Die Grinders, with a 1/4" (6.35 mm) collet capacity or CNOMO collet capacity consists of 4 models with 2 free speed options from 12,000 to 20,000 rpm. The powerful motor offers 0.5 hp (375 W) for optimum productivity in heavy applications such as deburring, die contouring, and light chamfering. The range is characterized by a compact design and a simplified safety lever.
Features:
- Highest durability in demanding applications, up to 2,000 hours maintenance intervals
- Streamlined safety lever for operator safety
- Powerful 0.5 hp (375 W) governed motor ensures safety
- Compact body with an insulating composite over-housing for operator comfort and superior ergonomics
Specifications:
- Free Speed: 18000 rpm
- Length (L): 166mm
- Sound Power: 88 dB(A)
- Sound Pressure: 77 dB(A)
- Country of Origin: Hungary
- Customs Tariff: 84671110
- Air Consumption at Free Speed: 10 l/s
- Air Consumption at Load: 6.5 l/s
- Air Inlet Thread Size: 1/4 in
- Air Inlet Thread Type: NPT
- Autobalancer: No
- Guard Positions: 0
- Height (H): 76mm
- Main Material Type: Aluminum, Composite Over-Sleeve
- Maximum Dynamic Air Working Pressure: 6.3 bar
- Maximum Power: 375 W
- Minimum Hose Diameter (16 ft Hose Length): 0.31 in
- Spindle Lock: No
- Starting System: Safety Lever
- Swiveling Guard: No
- Uncertainty Vibration-K: 2.1 m/s sq
- Vibration: 4.1 m/s sq
- Weight: 0.51 kg
