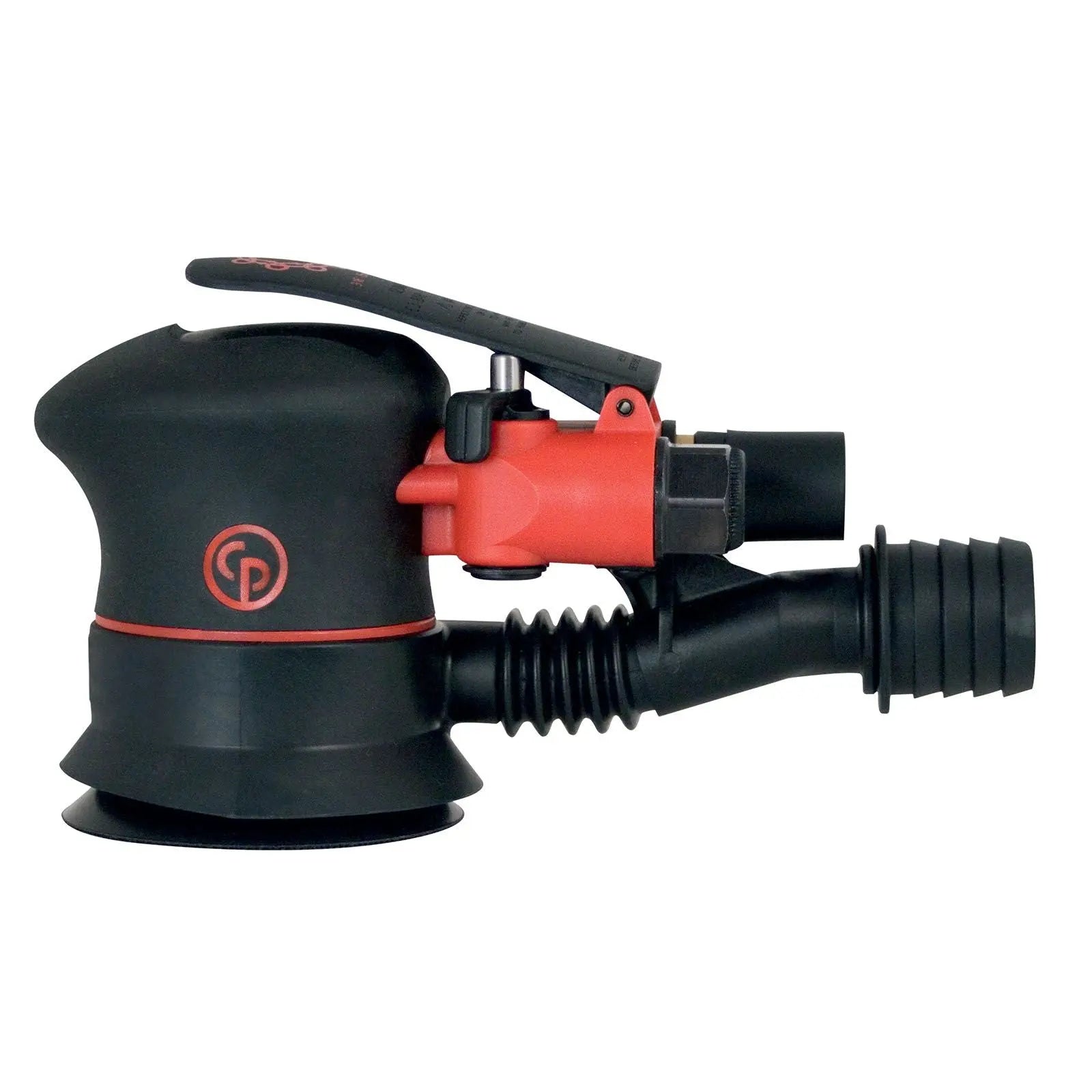

Chicago Pneumatic 6 in Pneumatic Orbital Sander - CP 8941072253
Designed for body shops applications like final sanding, finishing, and pre-polishing processed, this 3" (75mm) / 6" (150mm) pneumatic orbital sander (3/32" - 2.5mm orbit) series offers efficiency with its power of 0.3 hp (210 W) and great comfort with its palm shape in soft grip. This model belongs to the CP7225 series which is composed of 8 models: 4x Non Vacuum (NV) model (Hook and Loop and PSA pad), 1x Self Vacuum (SV) model (Hook and Loop pad) and 3x Central Vacuum (CV) model (Hook and Loop and PSA pad). Note: PSA pad not available for all references.
Features:
- Operator comfort with ergonomic palm shape in soft grip for perfect control
- 2 Sponges (yellow = Hard / white = soft) or 1 polishing foam
- Powerful motor 0.29 hp (210 W) for vertical and horizontal applications
- 3"(75 mm) / 6"(150 mm) Random orbital with palm sander with 3/32"(2.5mm) orbit for final sanding, finishing and pre-polishing
Specifications:
- Abrasive Pad Attachment: PSA
- Exhaust: Rear
- Free Speed: 12000 rpm
- Length (L): 221mm
- Sound Power: 92 dB(A)
- Sound Pressure: 81 dB(A)
- Country of Origin: Taiwan
- Customs Tariff: 84671110
- Air Consumption at Free Speed: 8 l/s
- Air Consumption at Load: 7.6 l/s
- Air Inlet Thread Size: 1/4 in
- Air Inlet Thread Type: NPT
- Auto-Balancer: No
- Circular Abrasive Pad Size: 6 in
- Height (H): 105mm
- Main Material Type: Aluminum, Composite Over-Sleeve
- Maximum Dynamic Air Working Pressure: 6.3 bar
- Maximum Power: 210 W
- Minimum Hose Diameter (16 ft Hose Length): 0.38 in
- Orbit Size: 3/32 in
- Orbit Type: Random
- Output Spindle Thread: 5/8-24 UNF
- Overspeed Shut-Off: No
- Pad Holes Number: 6
- Pad Type: Foam
- Rotative Inlet: No
- Starting System: Lever
- Uncertainty Vibration-K: 3.2 m/s sq
- Vacuum: Central Vacuum
- Vibration: 7.7 m/s sq
- Width (W): 150mm
- Weight: 0.83 kg
