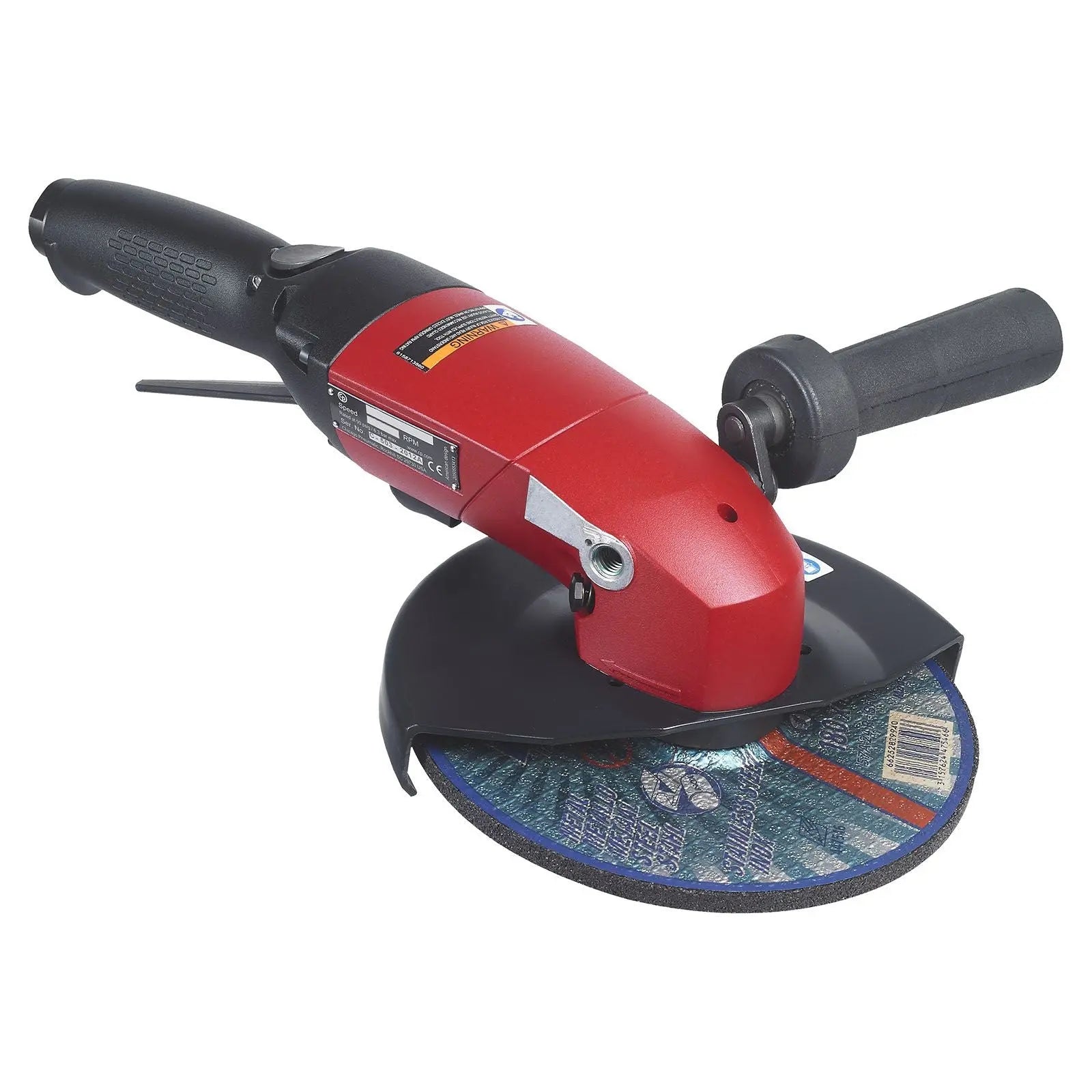

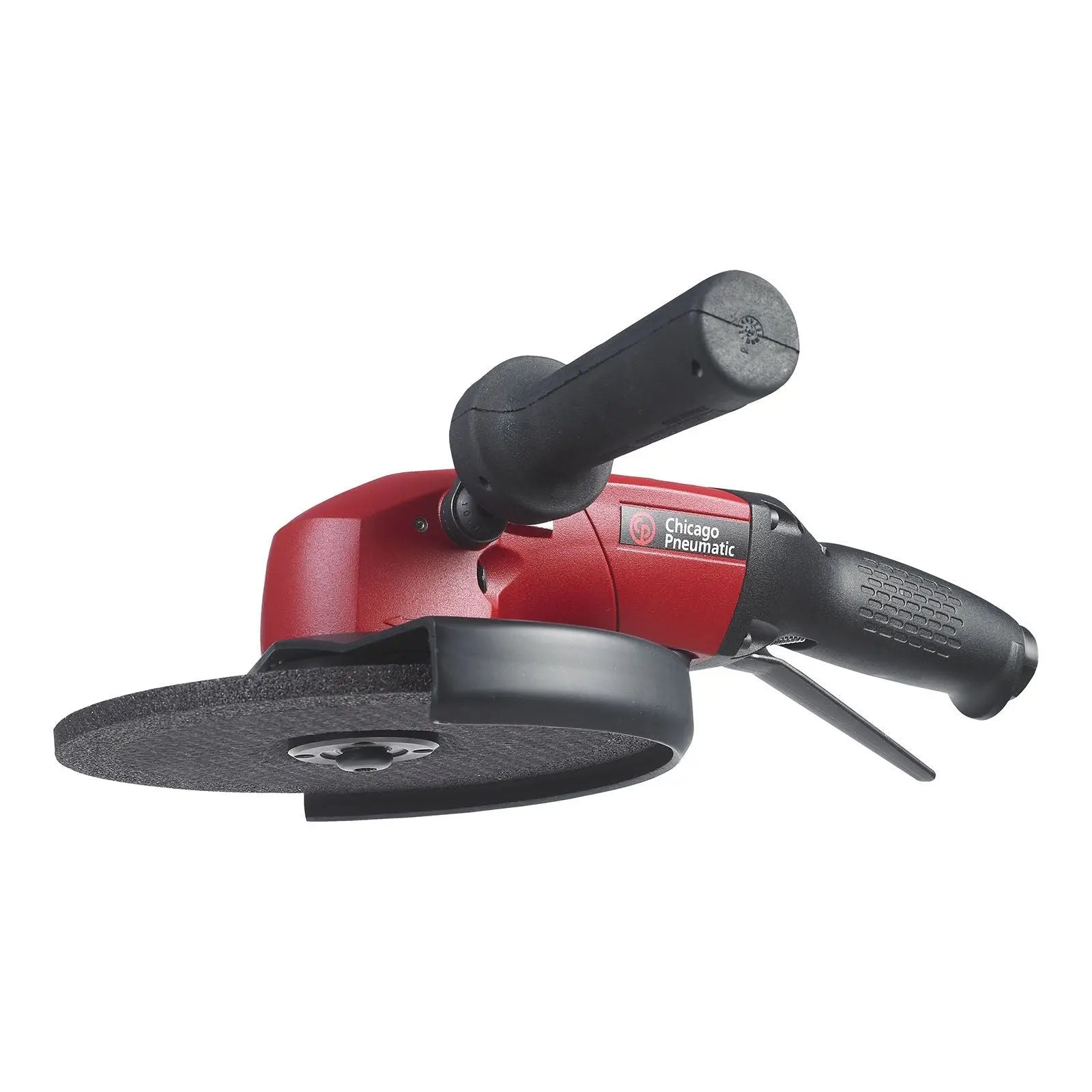

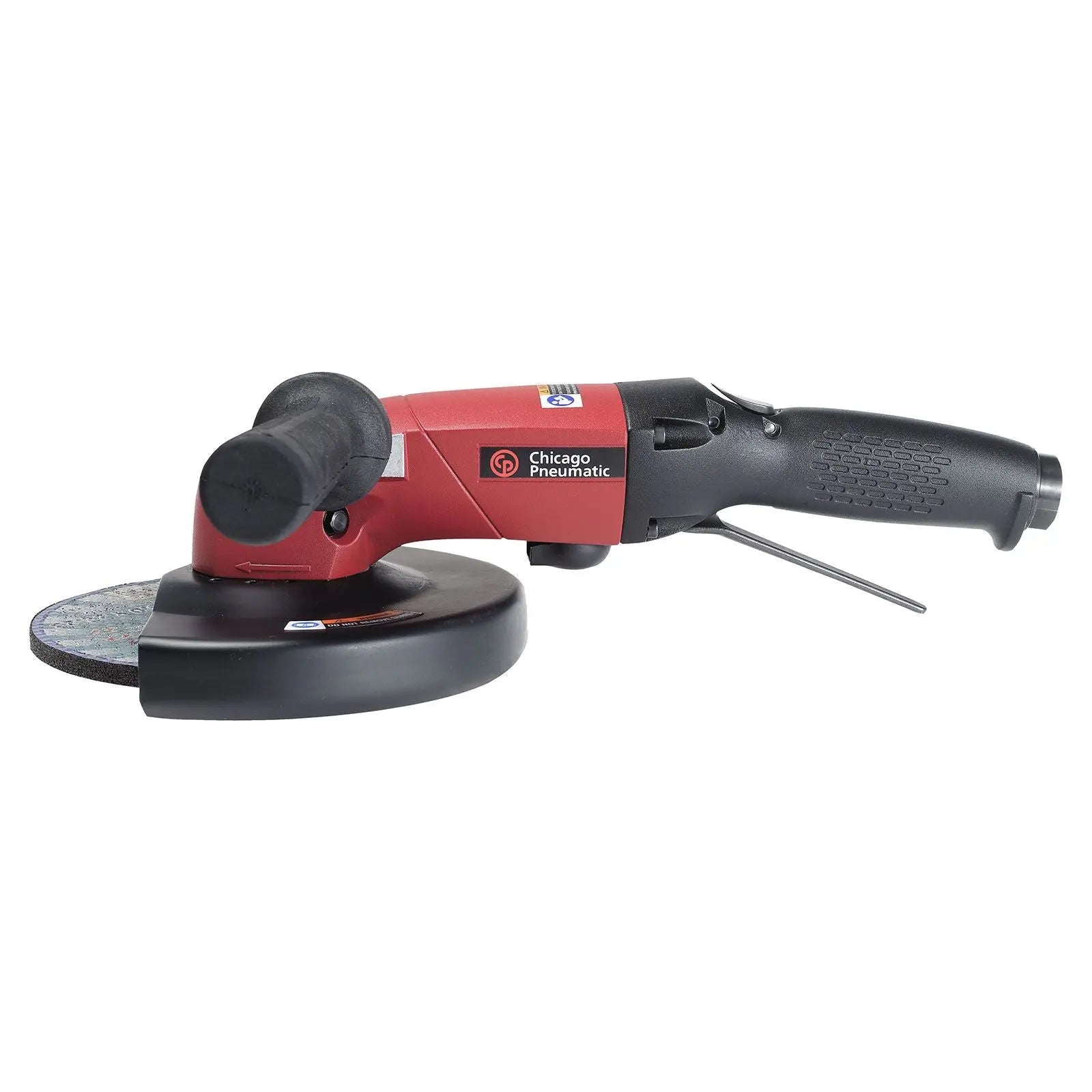

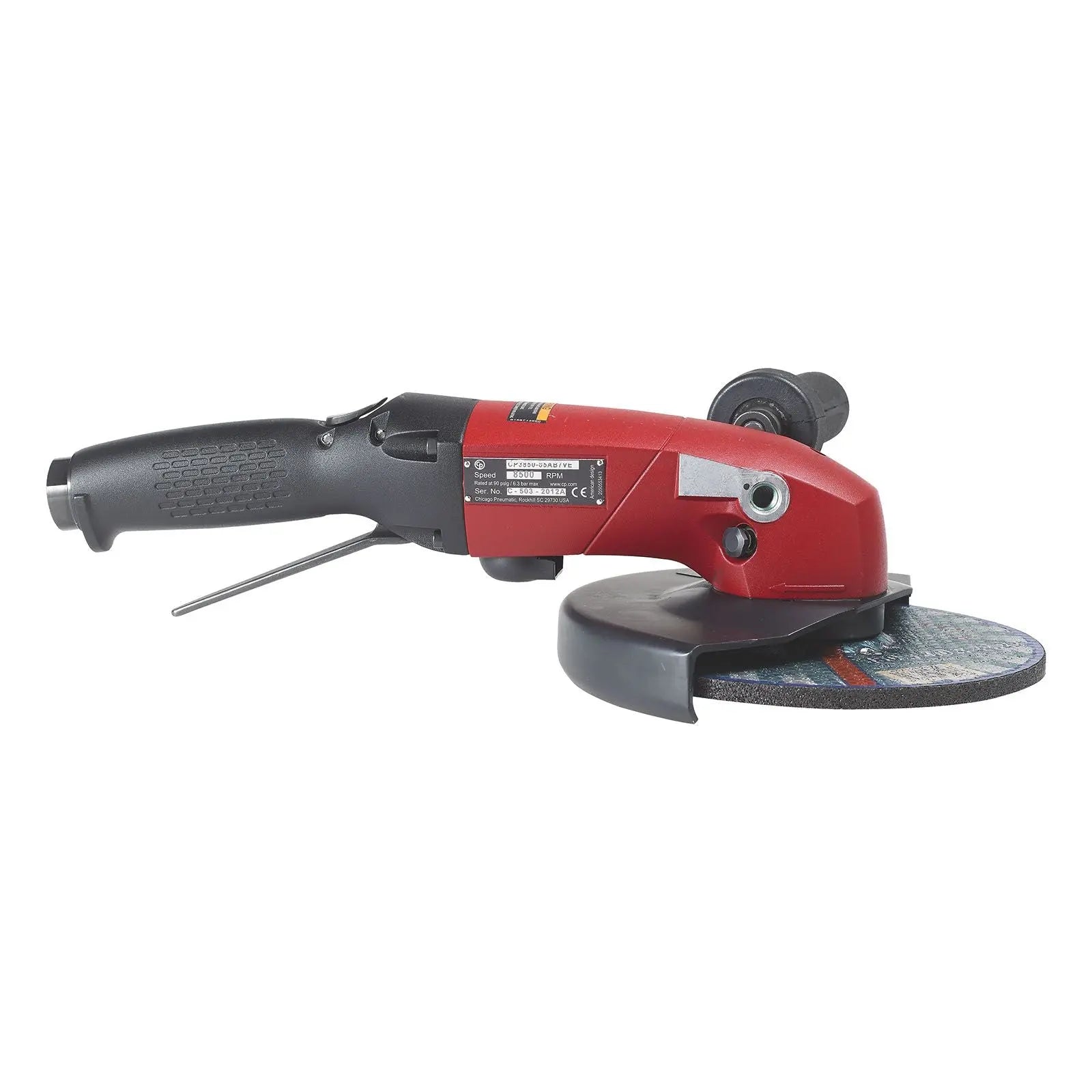

Chicago Pneumatic 7 in Straight Grinder - CP 6151704930
The CP3850 Series angle grinder is a rugged and durable tool with a regulated 2.8 hp (2100 W) motor and a free speed of 6,500 to 8,500 rpm. Designed for rough industrial use such as grinding, cutting, contouring, deburring, and weld cleaning, it offers ergonomic handling due to its curved design. A 360 degree exhaust muffler, a multi-position guard and a spindle lock button ensure comfort and safety. Available in 11-models for 7" and 9" wheels and pads. Possibility to select tools with 5/8-11" or Hex spindle thread.
Benefits:
- Highly durable spiral bevel gear reduces vibration and torque transmission stress, resulting in a 2,000 h maintenance interval
- Double streamlined safety lever facilitates single-handed engagement and helps reduce risk of accidental start up
- Ergonomic, multi-position (360 degree), anti-vibration side handle to keep the operator's wrist straight and comfortable
- 360 degree Adjustable air exhaust with integrated muffler for a noise level limited to 84 dB(A)
- Debris magnet to collect debris and extend super durable spiral bevel gear
Specifications:
- Free Speed: 8500 rpm
- Length (L): 340mm
- Sound Power: 98 dB(A)
- Sound Pressure: 87 dB(A)
- Country of Origin: Hungary
- Customs Tariff: 84671110
- Air Consumption at Free Speed: 17 l/s
- Air Consumption at Load: 36 l/s
- Air Inlet Thread Size: 1/2 in
- Air Inlet Thread Type: BSP
- Autobalancer: Yes
- Guard Maximum Rotation: 150 deg
- Guard Positions: 7
- Main Material Type: Aluminum
- Maximum Dynamic Air Working Pressure: 6.3 bar
- Maximum Power: 2100 W
- Minimum Hose Diameter (16 ft Hose Length): 0.63 in
- Rotative Guard Type: Screws
- Side to Center: 29mm
- Spindle Lock: Yes
- Starting System: Safety Lever
- Swiveling Guard: Key
- Uncertainty Vibration-K: 1 m/s sq
- Vibration: 5.4 m/s sq
- Wheel/Disc Diameter: 7 in
- Weight: 2.7 kg
