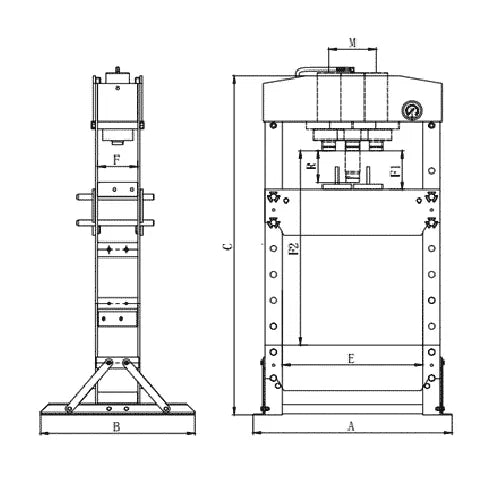

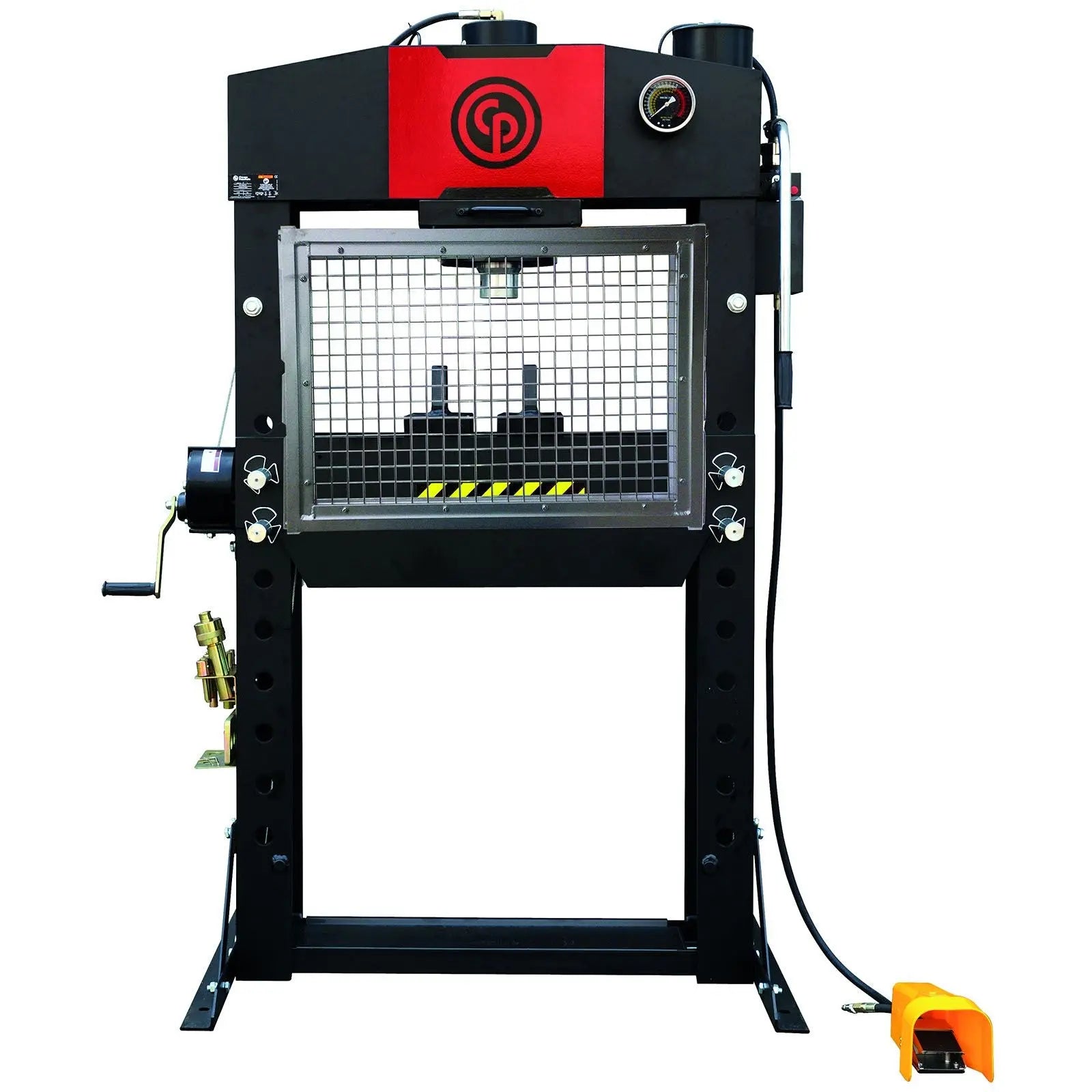

Chicago Pneumatic 75 Ton Workshop Press - CP 8941086751
The CP86 series is equipped with 2 stable V blocks, a quick chuck, and 8 punches supplied with each press. Moveable cylinder ensures flexibility. Comes with rubber grip handle and easy-to-reach foot pedal for quick cylinder descent. Each workshop is equipped with an adjustable workbench with 8 positions. Large gauge measuring short and metric tons offers easy pressing control. Chicago Pneumatic workshop presses are CE, TUV, and ASME certified. Available in 2 models for 75 and 100 tons. A protection cage is recommended for safety reasons - not included.
Features:
- The Air foot driven pump enables fast, easy performance
- 2 Steps stroke system - one for quick approach and a high precision small stroke for fine load tuning
- Durable, robust steel frame
- 2 Holes in each foot to fix in the floor guarantee higher stability
- 2 Dismountable steel rods adjustable to the bench and a dedicated winch to allow operators to work alone
Specifications:
- Country of Origin: China
- Customs Tariff: 84629090
- Compression Force: 75 ton(s)
- Hydraulic Stroke: 250mm
- Main Material Type: Steel
- Oil Capacity: 5 ml
- Weight: 498 kg
