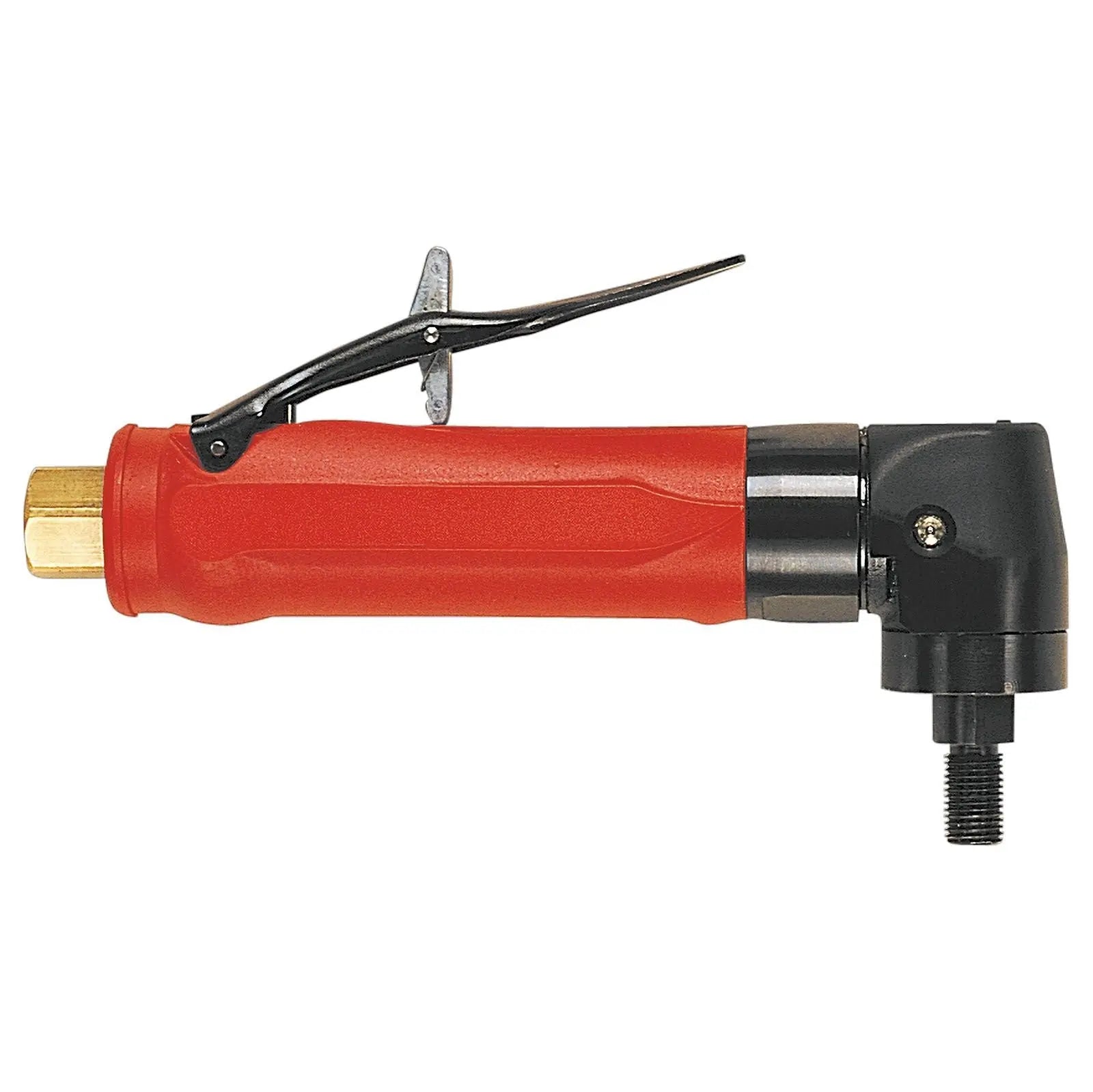

Chicago Pneumatic Angle Sander, Free Speed 9000 rpm - CP 6151702030

The CP3019 3" (75mm) pneumatic rotary angle sander is designed with compactness and durability in mind. It is equipped with a very durable bevel gear and a powerful 0.5 hp (375W) motor that perfectly meets the requirements of industrial finishing operations.

Features:

• Highly durable bevel gear allow maintenance intervals up to 2000 hours
• Compact body for confined space applications
• Insulating composite over housing ensure operator comfort
• Streamlined safety lever
• Rear exhaust

Specifications:

• Exhaust: Rear
• Free Speed: 9000 rpm
• Length (L): 166mm
• Sound Power: 87 dB(A)
• Sound Pressure: 76 dB(A)
• Country of Origin: Hungary
• Customs Tariff: 84671110
• Air Consumption at Free Speed: 2.2 l/s
• Air Consumption at Load: 8 l/s
• Air Inlet Thread Size: 1/4 in
• Air Inlet Thread Type: NPT
• Autobalancer: No
• Circular Abrasive Pad Size: 3 in
• Energy Type: Pneumatic
• Governor Type: Ball
• Height (H): 59mm
• Main Material Type: Aluminum, Composite Over-Sleeve
• Maximum Dynamic Air Working Pressure: 6.3 bar
• Maximum Power: 375 W
• Minimum Hose Diameter (16 ft Hose Length): 0.31 in
• Output Spindle Thread: 3/8-24 UNF
• Overspeed Shut-Off: No
• Rotative Inlet: No
• Spindle Lock: No
• Starting System: Safety Lever
• Vibration: <2.5 m/s sq
• Weight: 0.6 kg

Digital Assets:

• CE Certificate
• Safety Information and Operator's Manual
• UKCA Declaration of conformity
• Exploded View
