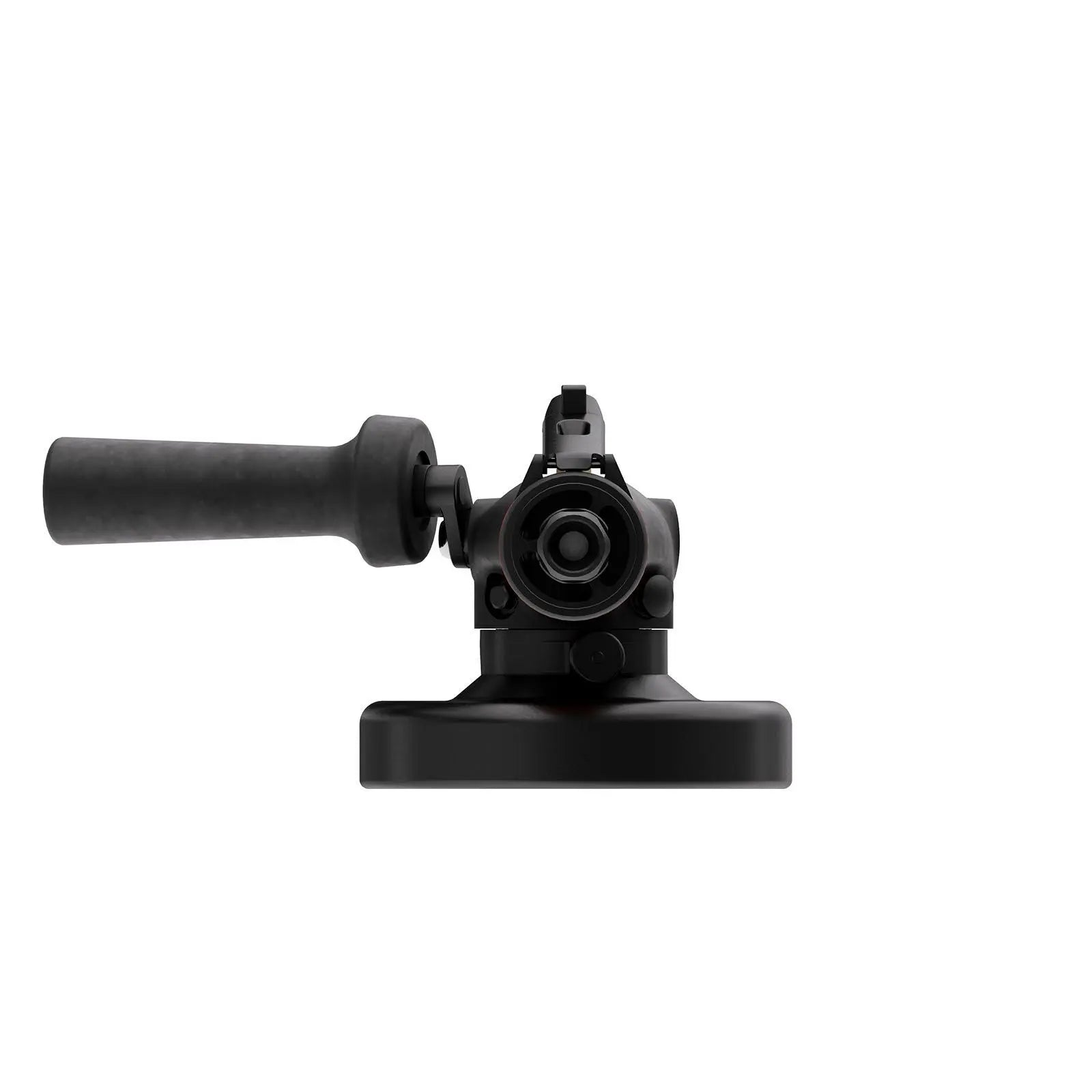

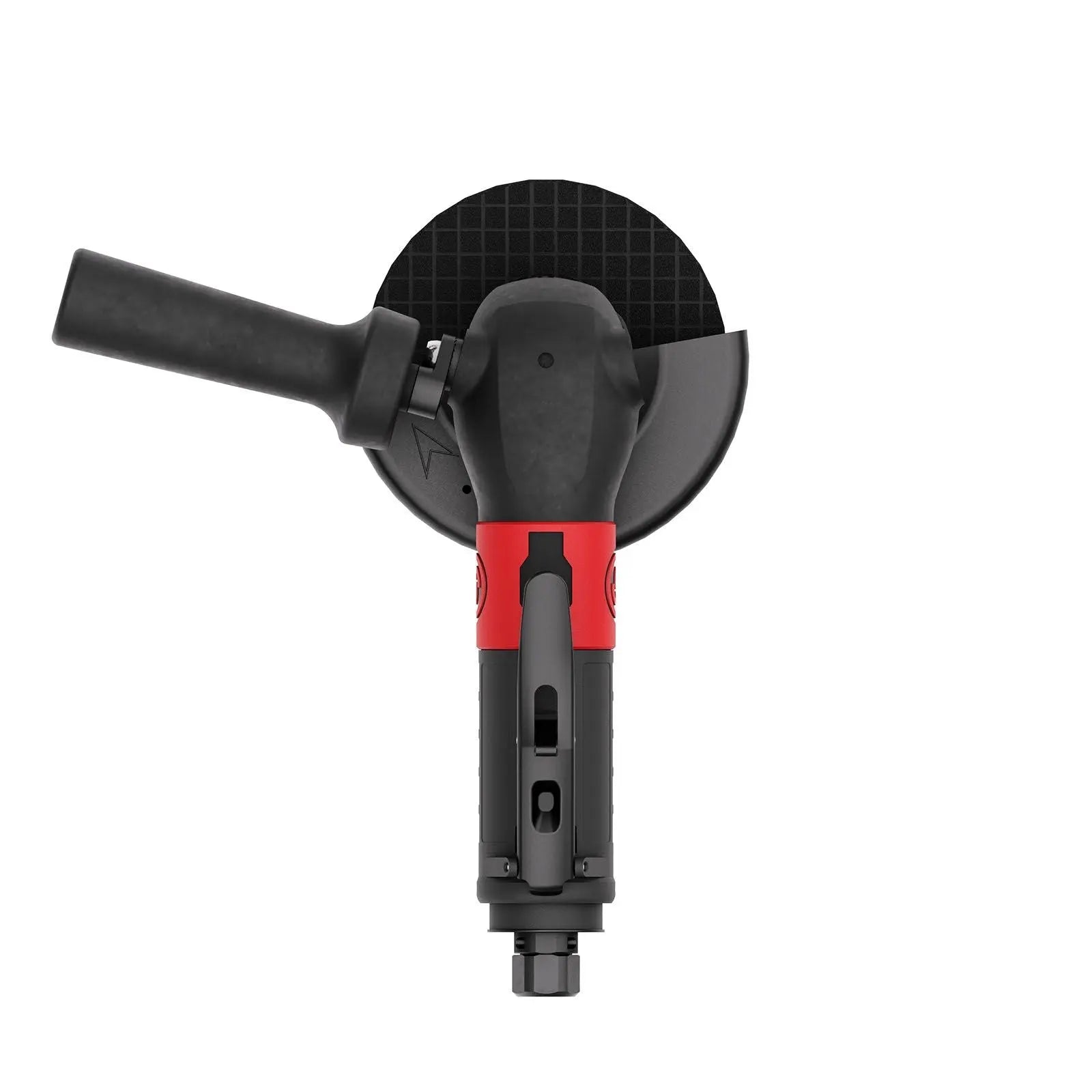

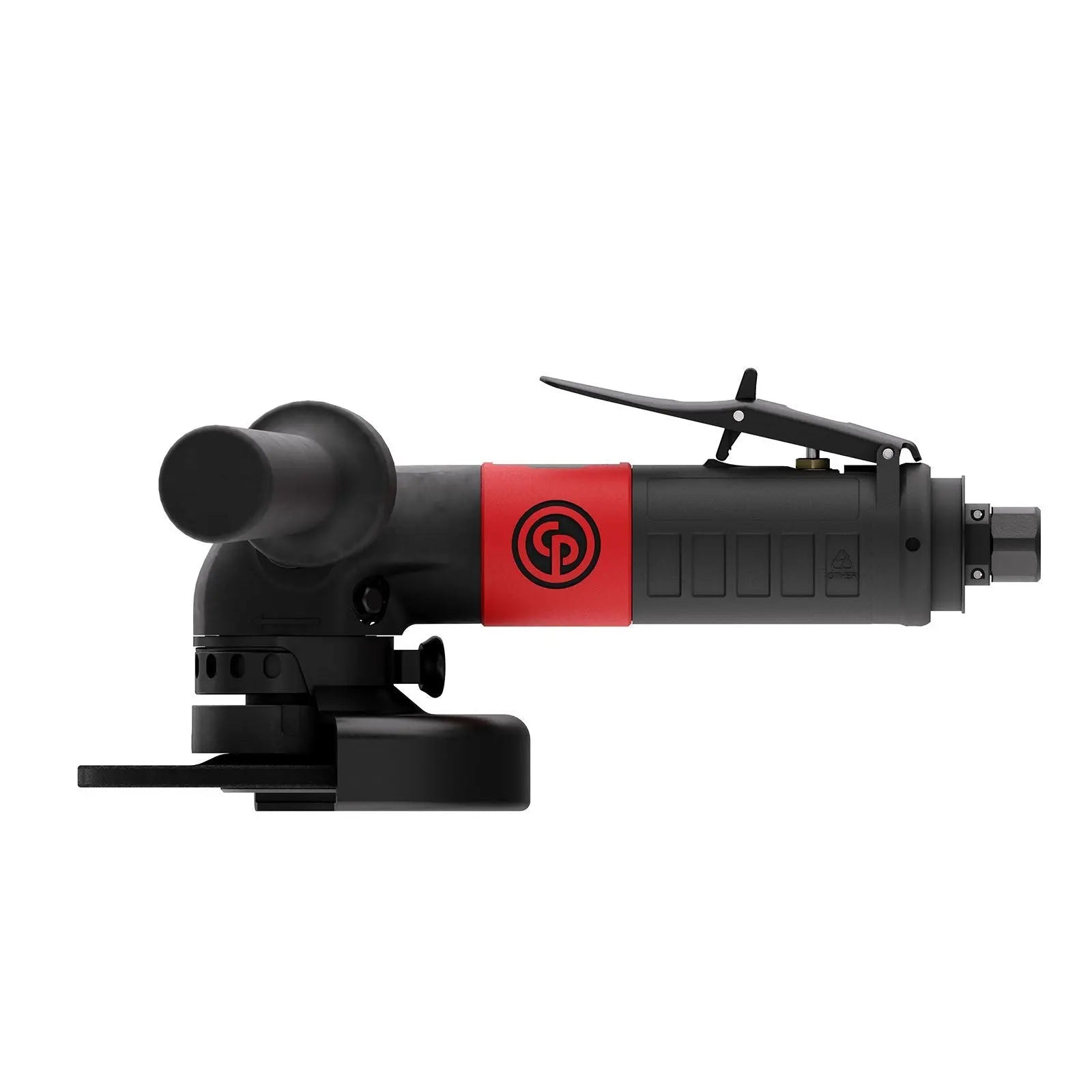

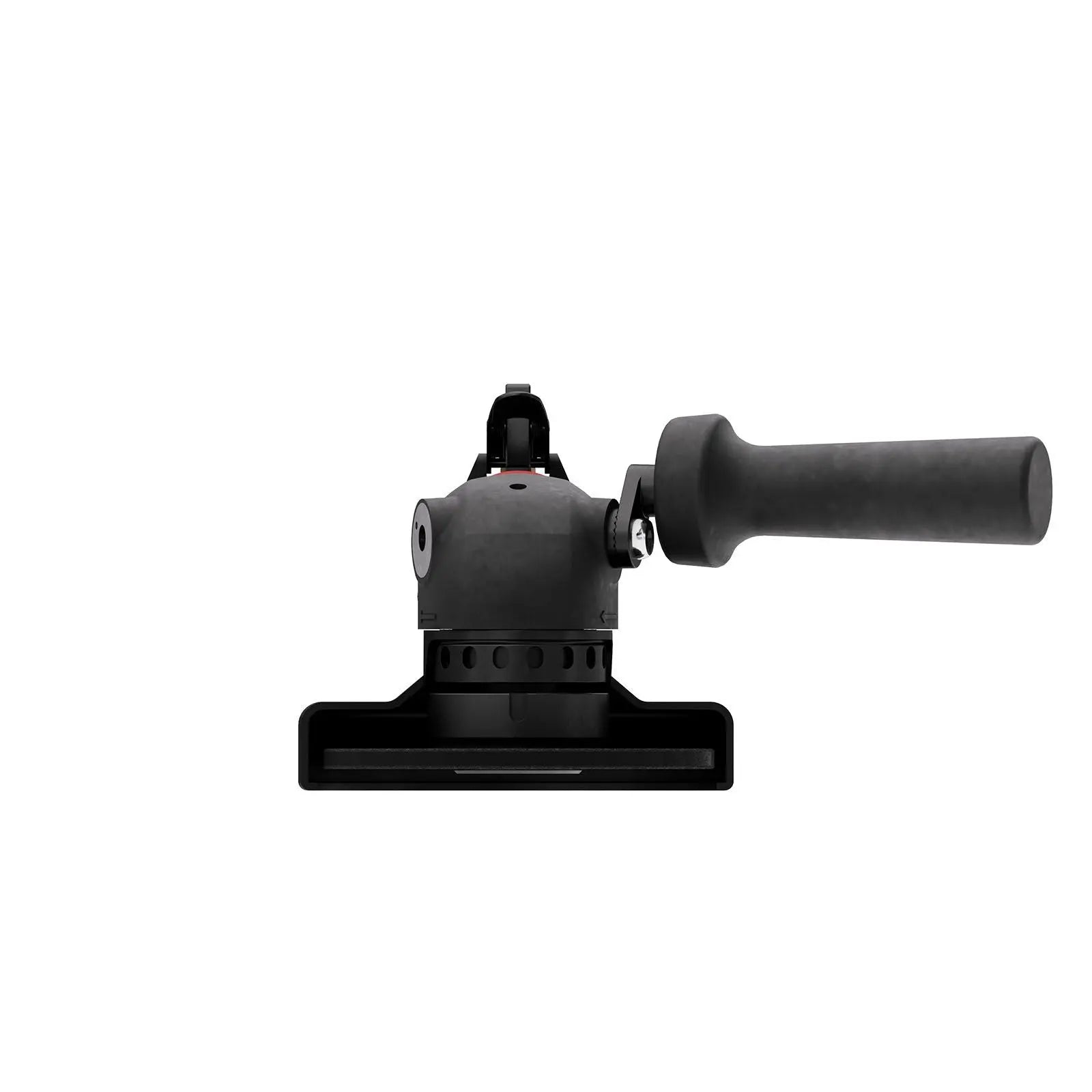

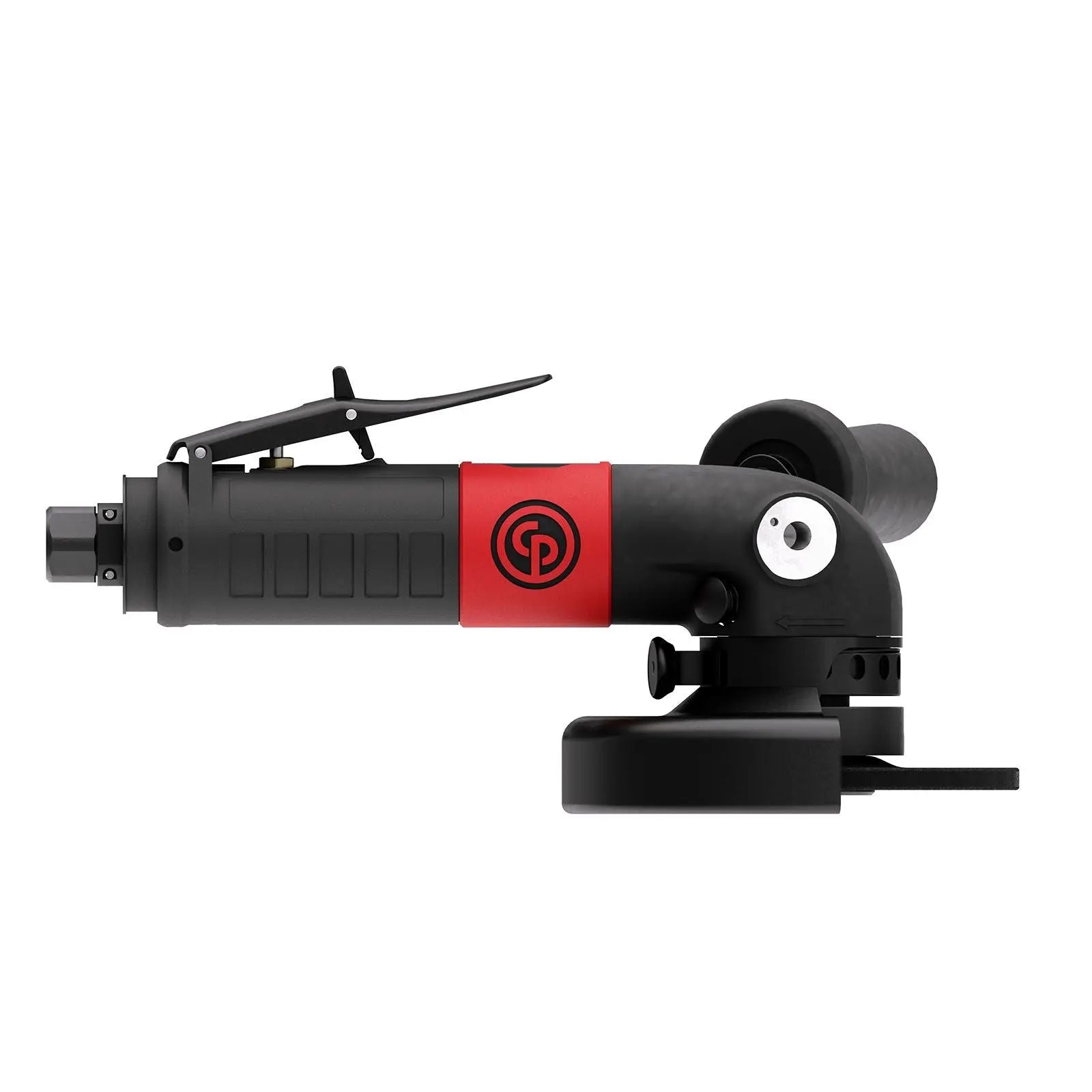

Chicago Pneumatic CP3650-120AB5V Series Angle Grinder - CP 6151607900
In heavy-duty industrial applications, the CP3650 series is a powerful and durable tool, combining quality and value. This grinder ensures sustainable productivity with a 1800W governed motor and extended maintenance intervals. With +25% improved robustness and exceptional bevel gear life, it prioritizes operator safety and comfort through enhanced ergonomics, while achieving a 7% carbon footprint reduction. The innovative CP3650 series delivers sustainable productivity without compromising on operator safety and wellbeing.
Features:
- +25% Improved robustness with an exceptional bevel gear life of 2500 hours
- Governed motor for better productivity and reduced vibration
- A more durable design with a protective rubber on angle head housing and a steel swiveling air inlet
- Spindle lock button for fast and easy abrasive disc change
- Improved ergonomics with an orientable vibration damping side handle and a swiveling air inlet
Specifications:
- Free Speed: 12000 rpm
- Length (L): 247.5mm
- Sound Power: 92.8 dB(A)
- Sound Pressure: 103.8 dB(A)
- Country of Origin: Hungary
- Customs Tariff: 84671110
- Abrasive Type: 27, 41
- Air Consumption at Free Speed: 19.4 1/sNl
- Air Consumption at Load: 29.5 1/sNl
- Air Inlet Thread Size: 3/8 in
- Air Inlet Thread Type: BSP
- Auto-Balancer: Yes
- Guard Maximum Rotation: 360 deg
- Guard Positions: 15
- Height (H): 102mm
- Main Material Type: Aluminum, Composite Over-Sleeve
- Maximum Dynamic Air Working Pressure: 6.3 bar
- Maximum Power: 1612 W
- Maximum Wheel Thickness: 10mm
- Minimum Hose Diameter (16 ft Hose Length): 0.5 in
- Output Spindle Thread: 5/8-11 UNC
- Rotative Guard Type: Pull, Turn
- Side to Center: 34mm
- Spindle Lock: Yes
- Starting System: Safety Lever
- Swiveling Guard: Keyless
- Uncertainty Vibration-K: 1.2 m/s sq
- Vibration: 5.9 m/s sq
- Wheel Inner Diameter: 22.2mm
- Wheel/Disc Diameter: 5 in
- Width (W): 140mm
- Weight: 2.25 kg
