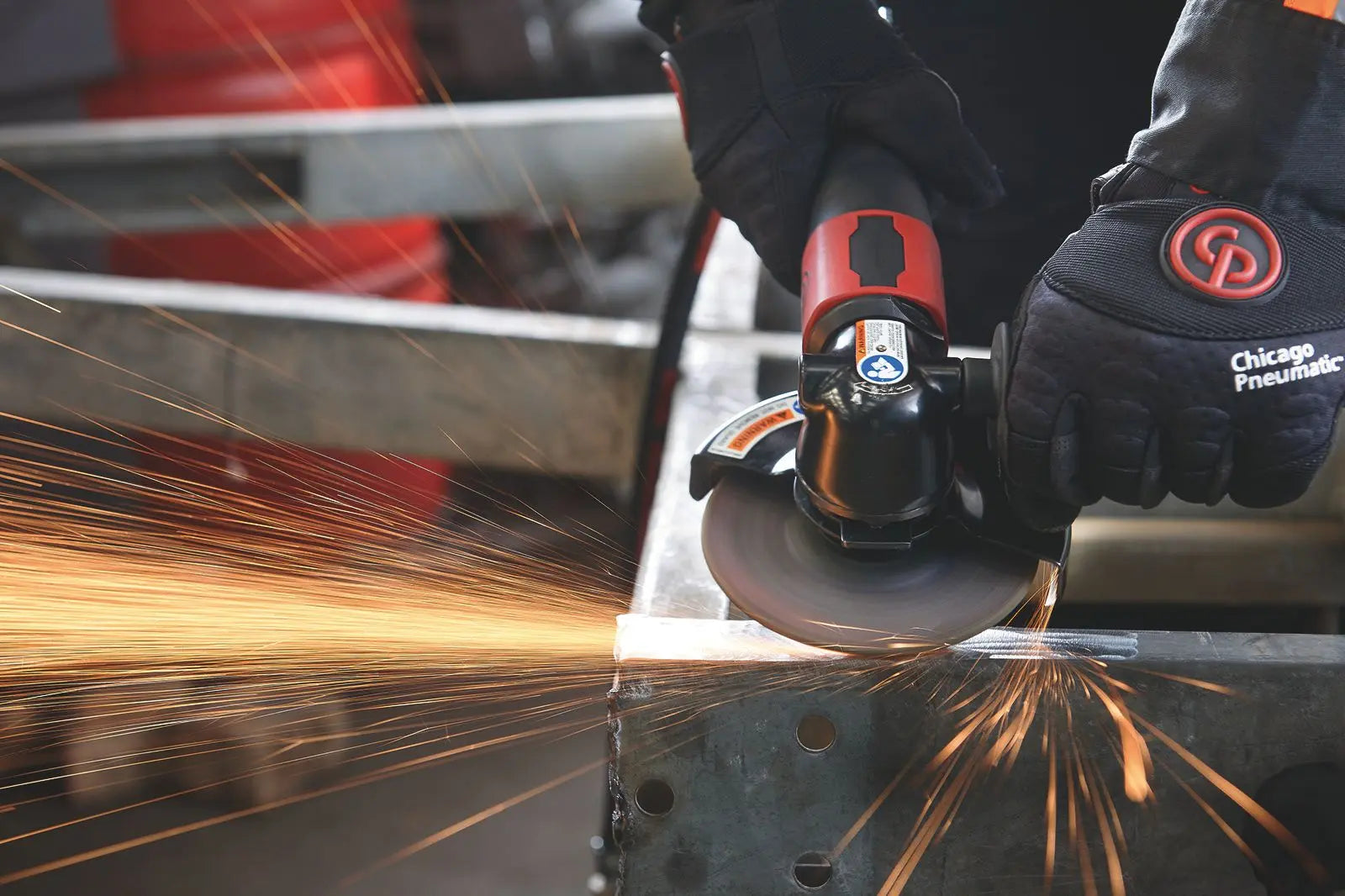

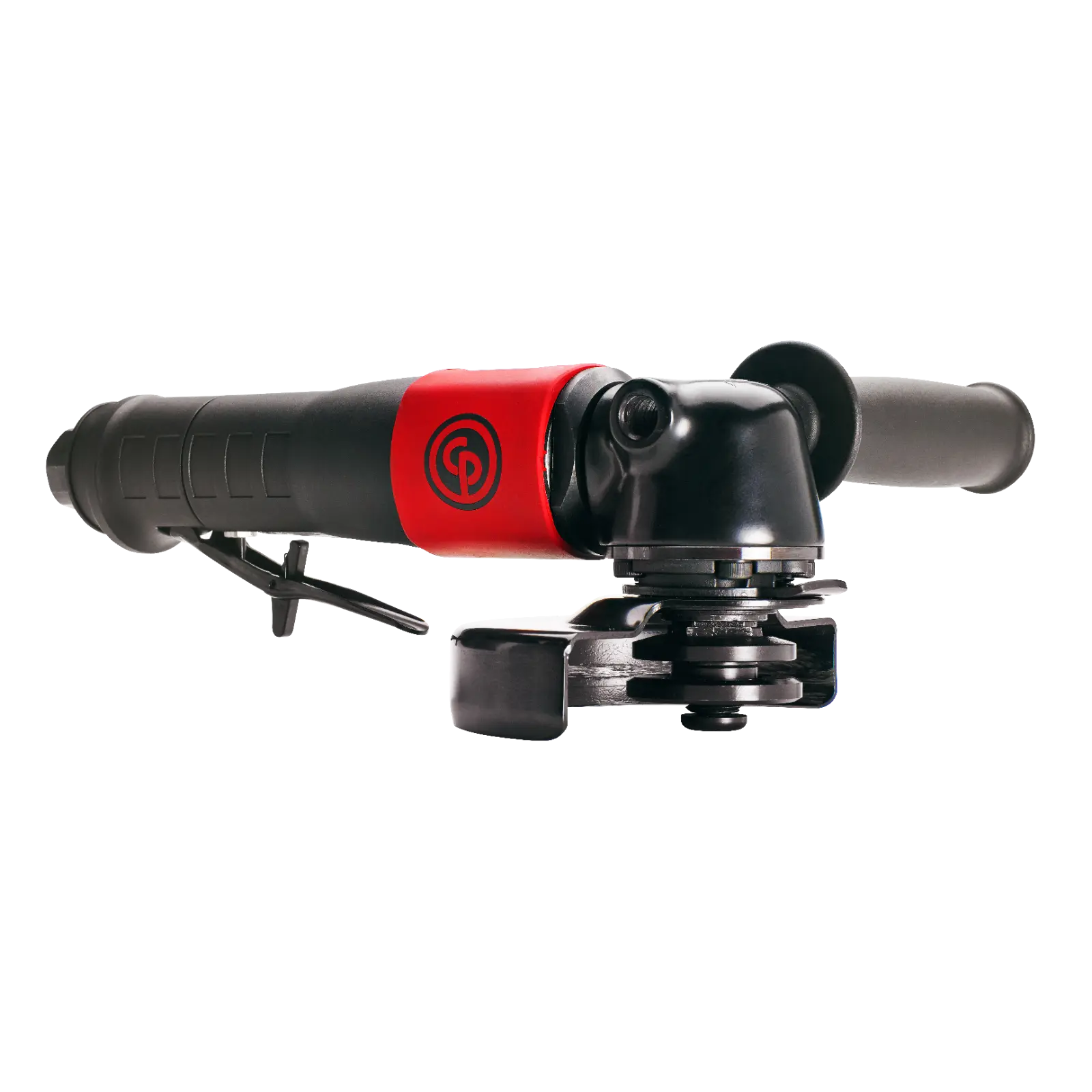

Chicago Pneumatic CP7545-C 4.5 in Pneumatic Angle Grinder - CP 8941075451
Designed for variety of applications such as sanding with flap discs, grinding, and cutting, this angle grinder series offers high efficiency with its power of 1.1 hp (840 W) and high durability with its high quality bevel gears and governed motor. The range consists of 7 models: 2 x 4" wheel (3/8"- 24 spindle thread), 2 x 4.5" wheel (3/8"- 24 and 5/8"- 11 spindle thread) and 3 x 5" wheel (M14 and 3/8"- 24 and 5/8"- 11 spindle thread).
Features:
- High durability thanks to its high quality bevel gears and governed motor
- High security with its robust steel keyless adjustable wheel rotative guard and its CP safety Lever
- Streamline composite handle (right or left) and composite grip for better operator comfort
- Rear exhaust (exhaust hose included)
- 360 deg Swivel air inlet
Specifications:
- Free Speed: 12000 rpm
- Length (L): 270mm
- Sound Power: 96 dB(A)
- Sound Pressure: 85 dB(A)
- Country of Origin: Taiwan
- Customs Tariff: 84671110
- Air Consumption at Free Speed: 9.3 l/s
- Air Consumption at Load: 18 l/s
- Air Inlet Thread Size: 1/4 in
- Air Inlet Thread Type: NPT
- Autobalancer: No
- Guard Positions: 0
- Main Material Type: Aluminum, Composite Over-Sleeve
- Maximum Dynamic Air Working Pressure: 6.3 bar
- Maximum Power: 840 W
- Minimum Hose Diameter (16 ft Hose Length): 0.38 in
- Output Spindle Thread: 3/8-24 UNF
- Rotative Guard Type: Lock
- Spindle Lock: No
- Starting System: Safety Lever
- Swiveling Guard: Keyless
- Uncertainty Vibration-K: 2.1 m/s sq
- Vibration: 7 m/s sq
- Wheel/Disc Diameter: 4-1/2 in
- Weight: 1.6 kg
