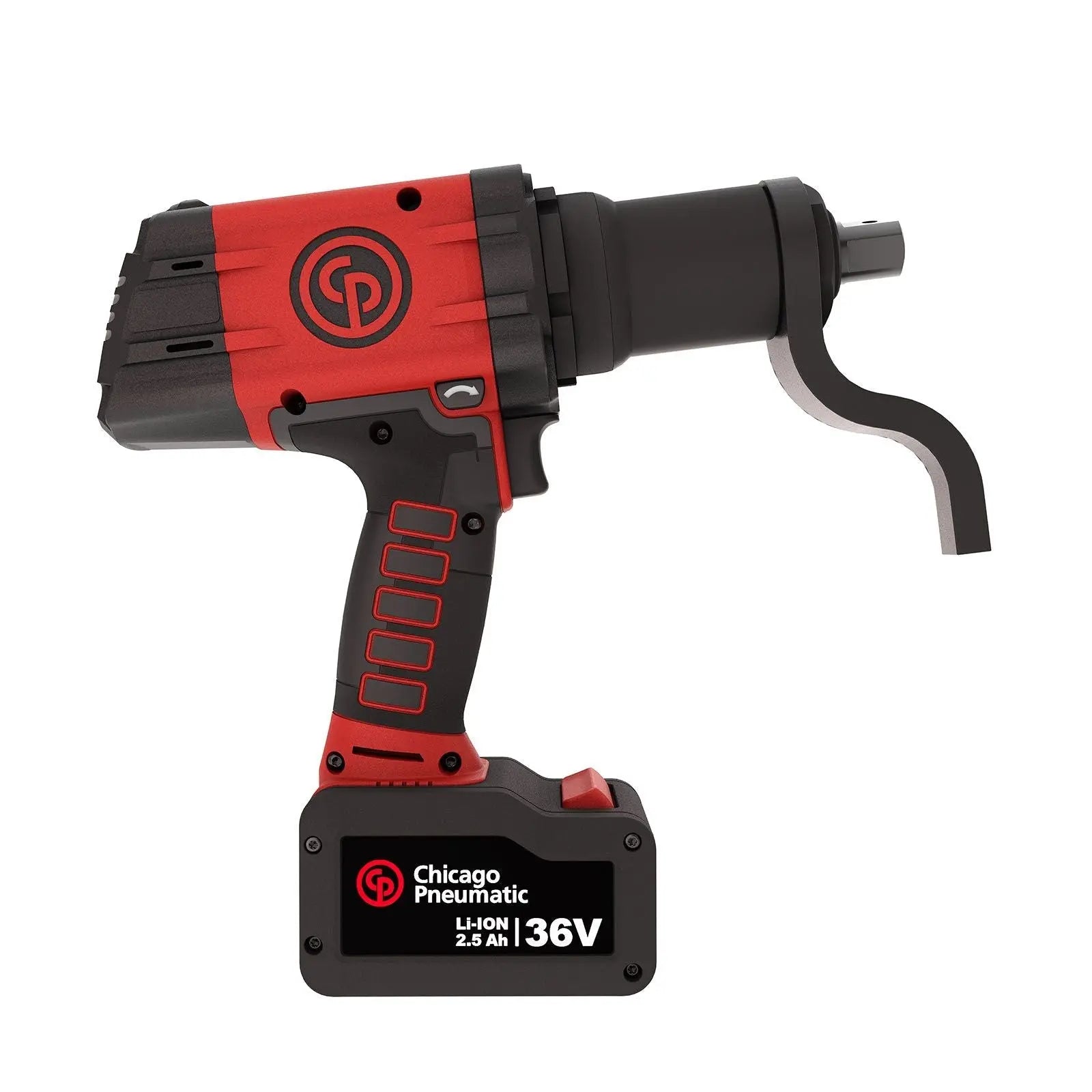

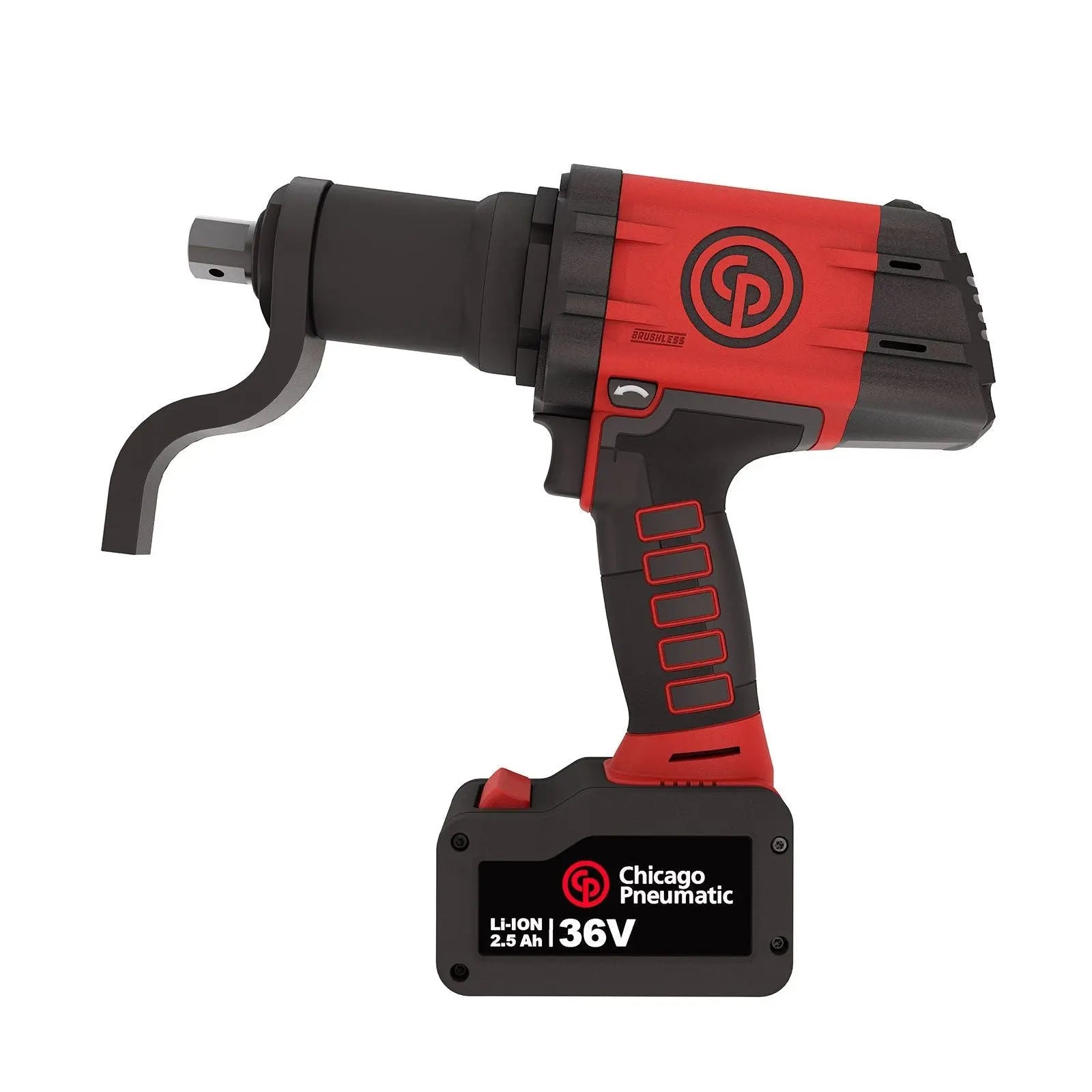

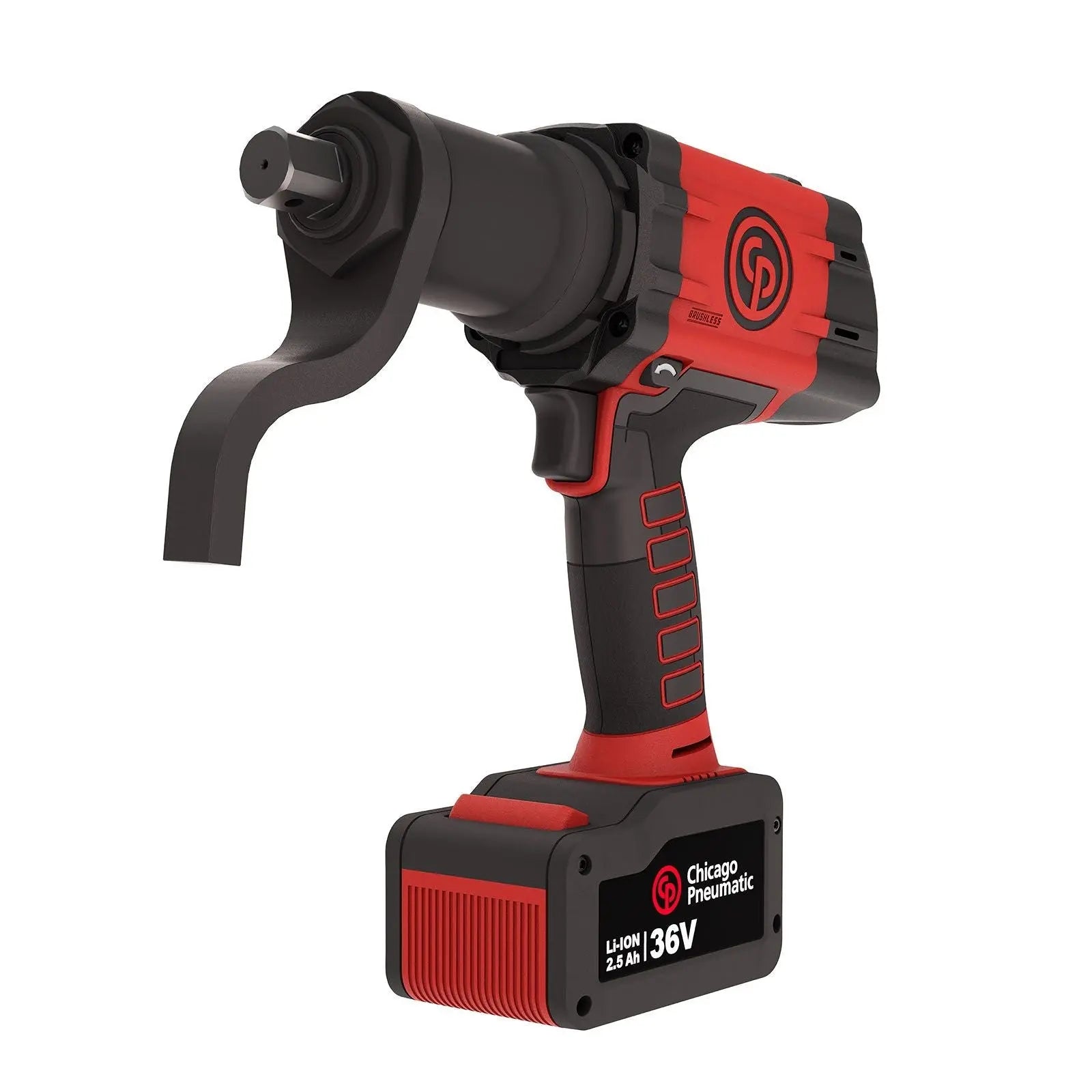

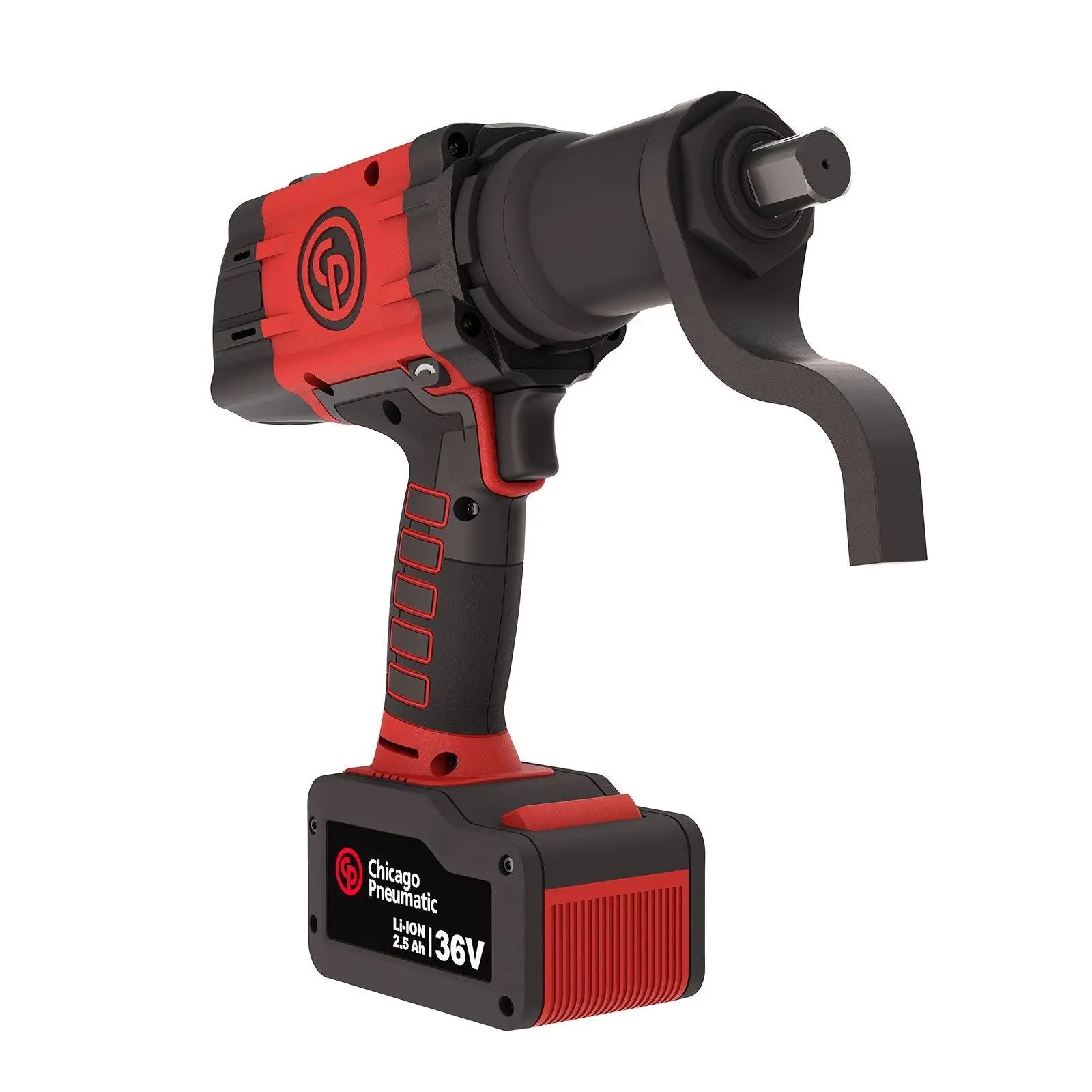

Chicago Pneumatic CP8603 36V 3/4 in Battery Torque Wrench, 2.5AH - CP 6151570380

Torque tightening from 70 Nm / 50 ft. lbs to 325 Nm / 240 with high precision (+/- 4%). Intuitive handling on digital screen of the tool. This tool is eligible for CP Care, which includes calibration as part of its preventive maintenance package to ensure optimal performance and long-term reliability.

Pack Includes:

• 1 CP8603, 1 S Type Reaction Bar, 2 Batteries, 1 Battery Charger, 1 Charger Cable, 1 Plastic Case

Benefits:

• High precision with +/- 4%
• Safe tightening with second start button as standard
• Extended mobility with lightweight and compact battery
• Automatic release reaction arm

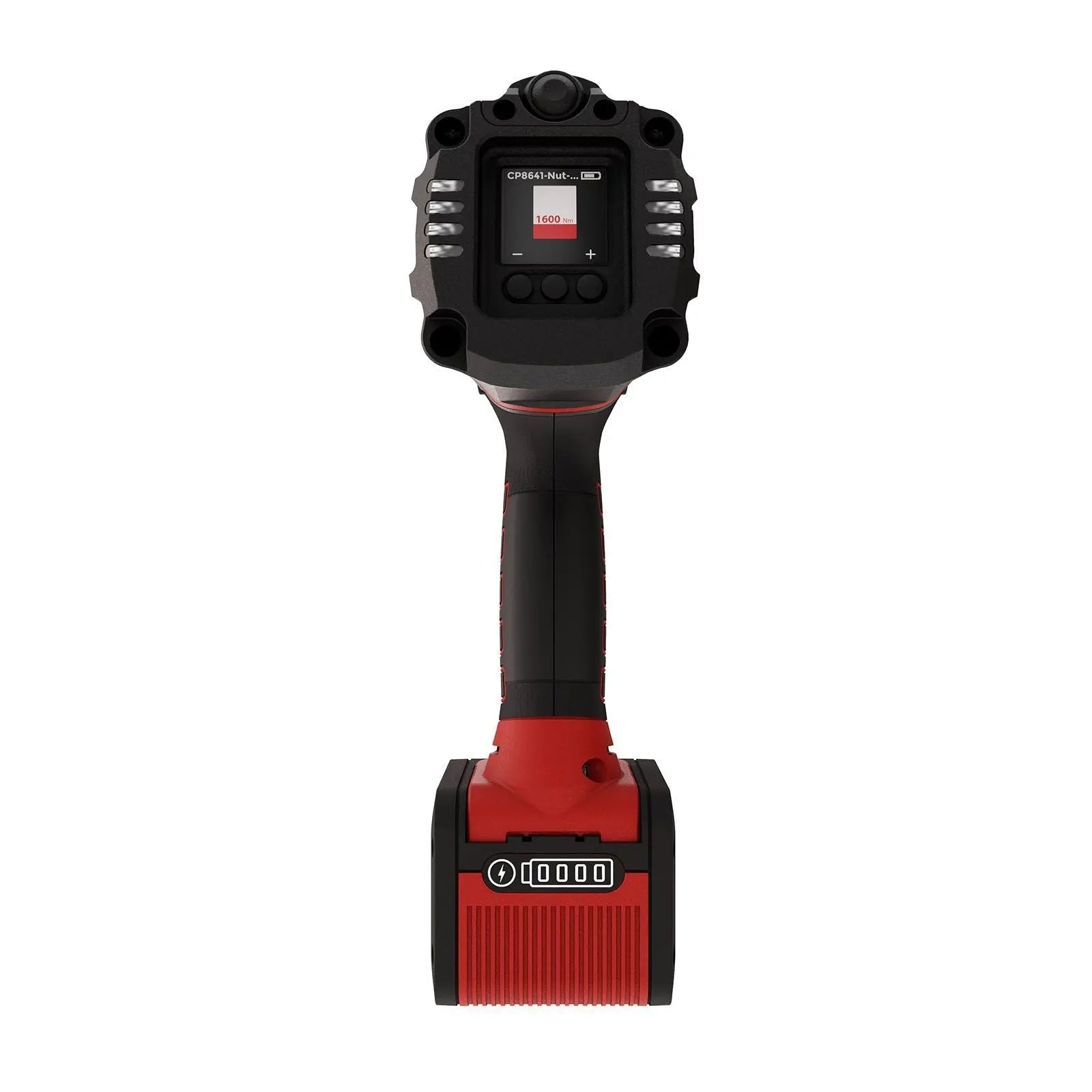

• Intuitive handling either on OLED Digital screen of the tool or via CPLinQ app

Specifications:

• Adjustment: Digital
• Free Speed: 20 rpm
• Joint Type: Hard and Soft
• Length (L): 363mm
• Maximum Ambient Operating Temperature: 60 deg C
• Reversible: Yes
• Sound Power: 58.9 dB(A)
• Country of Origin: Hungary
• Customs Tariff: 84672920
• Accuracy: +/-4 %
• Battery Weight: 0.8 kg
• Battery Capacity: 2.5 Ah
• Battery Type: Lithium-Ion
• Battery Voltage: 36 V
• Handle Type: Pistol
• Height (H): 285mm
• Main Material Type: Steel
• Maximum Ambient Storage Temperature: 60 deg C
• Maximum Recommended Ambient Charging Temperature: 45 deg C
• Maximum Torque in Forward: 325 Nm
• Maximum Torque Reverse: 325 Nm
• Minimum Ambient Operating Temperature: 0 deg C
• Minimum Ambient Storage Temperature: -20 deg C
• Minimum Recommended Ambient Charging Temperature: 0 deg C
• Minimum Torque in Forward: 70 Nm
• Output Drive Size: 3/4 in
• Output Drive Type: Square
• Output Retainer Type: Hole
• Power Weight Ratio: 110 Nm/kg
• Reaction Bar Type: S-Type
• Recommended Torque: 260 Nm
• Sound Power: <72 dba
• Starting System: Double-Trigger
• Suspension Option: Optional
• Torque Control System: Shut-Off-Current Control
• Vibration: <2.5 m/s sq
• Weight with Reaction Arm: 3.3 kg
• Weight without Reaction Arm: 2.9 kg
• Width (W): 77mm
• Weight: 2.9 kg

Digital Assets:

• Operators manual
• Safety instructions and safety data sheets
• Exploded View
• Technical data sheet
