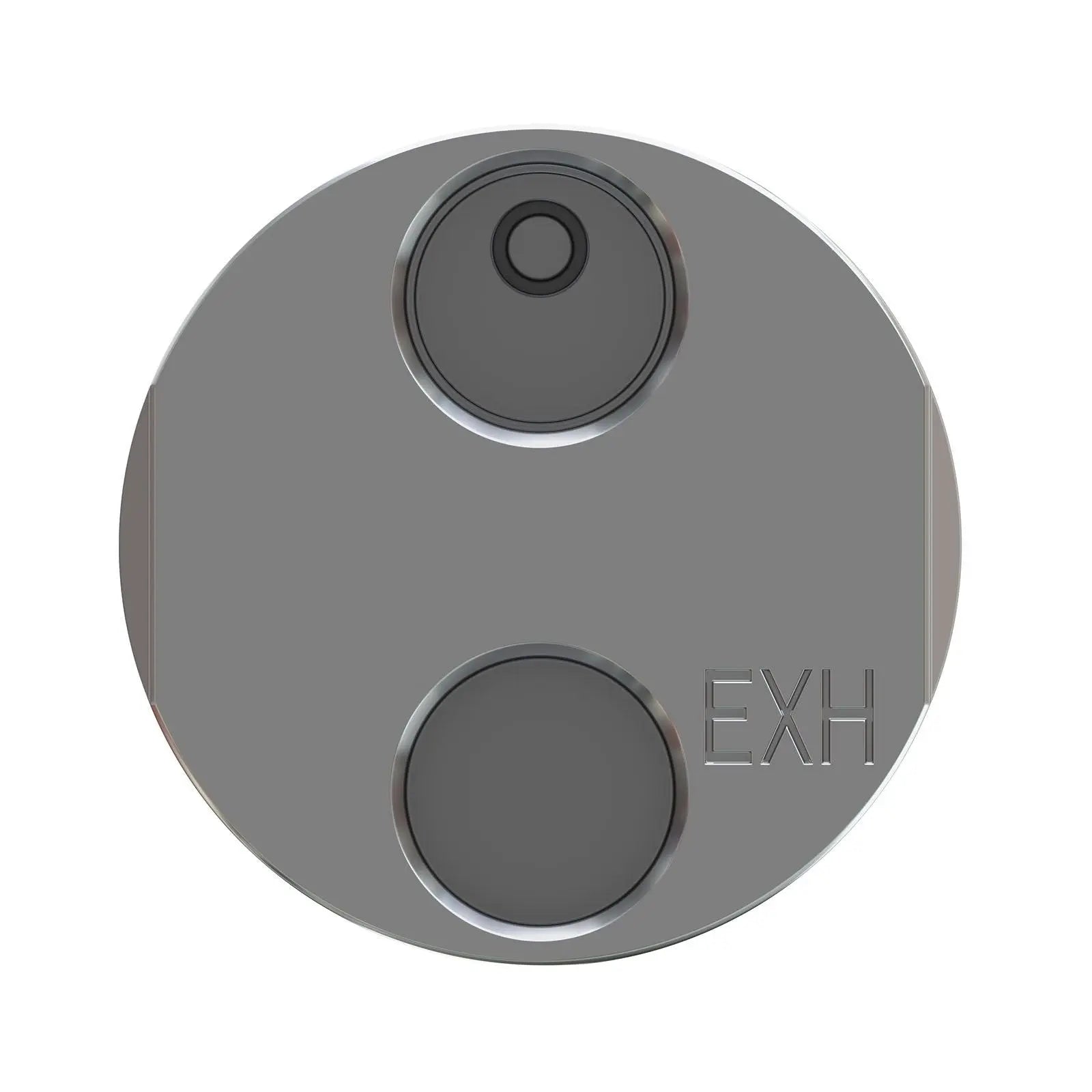

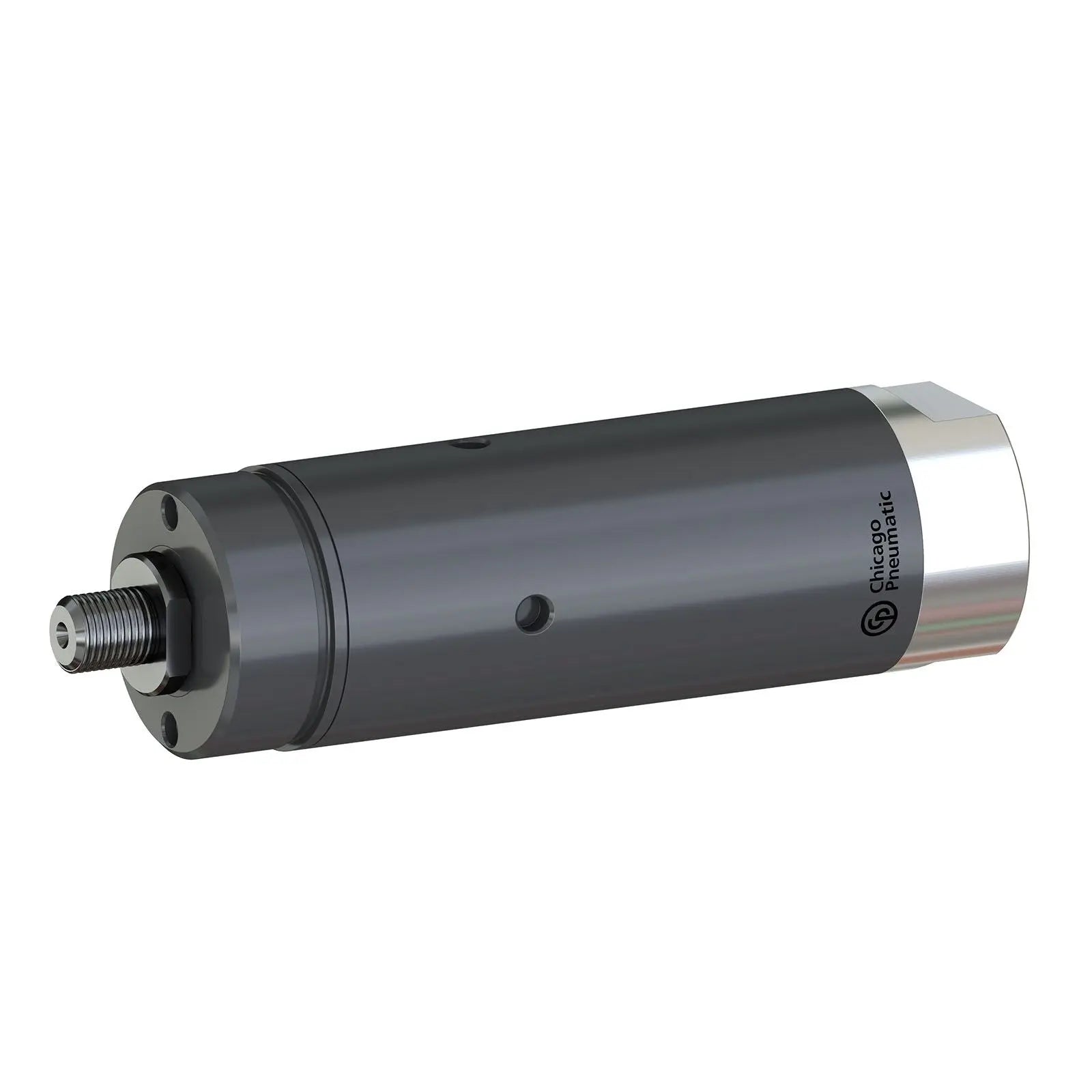

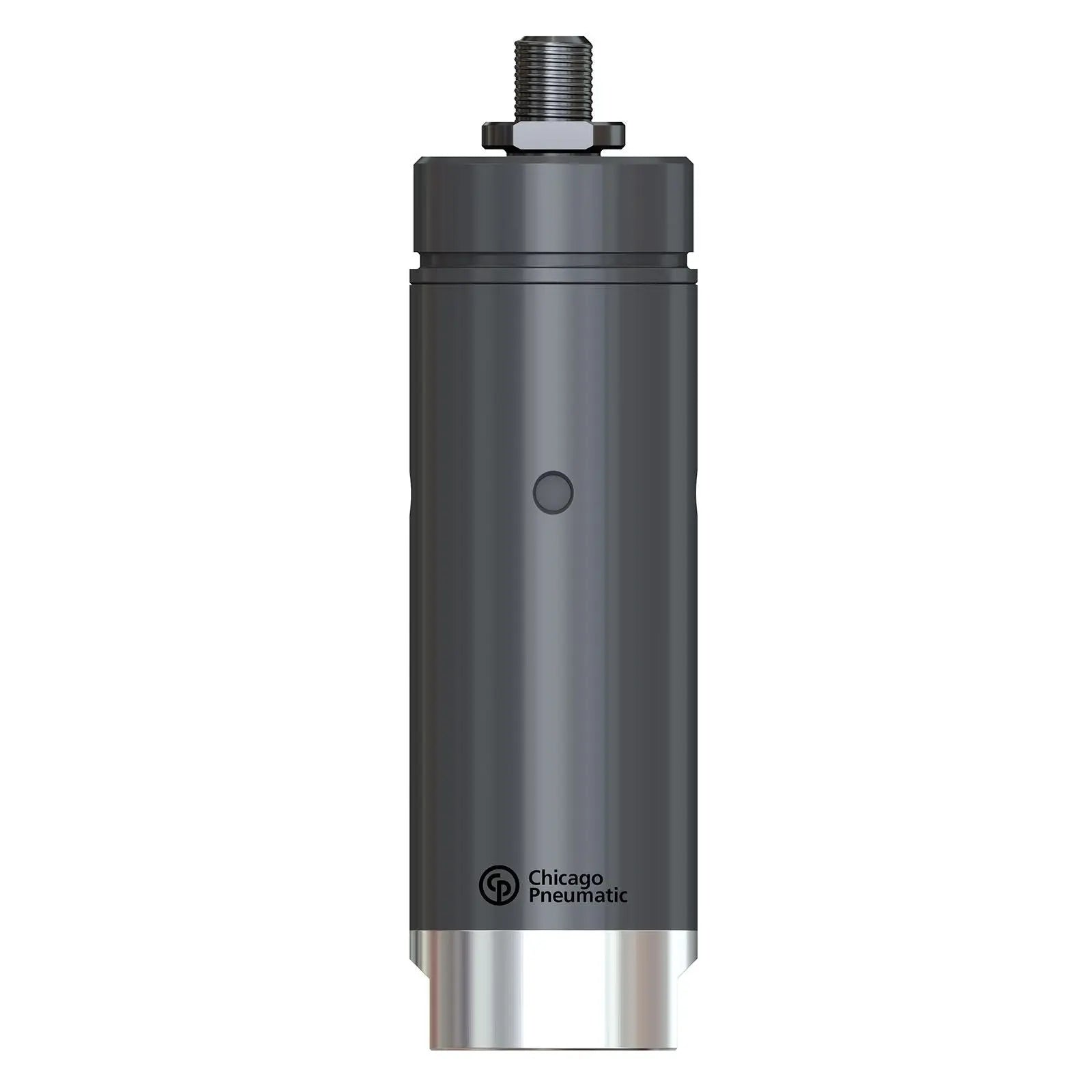

Chicago Pneumatic M25-480-TL-ATEX 250 W Non-Reversible Vane Air Motor, Free Speed 480 rpm, ATEX Certified - CP 2051478354
The standard pneumatic vane motors M25-480-TL-ATEX is compact in design, light in weight, have Threaded shaft spindle It is suitable for building using handheld machines or any industrial equipment. This non-reversible air motor delivers a maximum power of 250 W (0.35 hp), with a maximum torque of 23.6 Nm (17.4) and 480 rpm free speed and is ATEX certified Ex II 2 G Ex h IIC T6 Gb for gas and Ex II 2 D Ex h IIIC T85 degree C Db for dust.
Benefits:
- Low friction and lubrication-free design of vanes for ruggedness
- Sustain stall torque loading indefinitely
- Short and compact planetary gear system for versatile solutions
- Long lasting efficiency with low air consumption design
- Strong starting torque for mobility during operation
Specifications:
- Back Head Coaxial: No
- Country of Origin: Hungary
- Customs Tariff: 84123900
- Air Consumption at Load: 5.3 l/s
- Air Flow Maximum Power: 5.3 l/s
- Air Inlet Thread Size: 1/8 in
- Air Inlet Thread Type: BSP
- Front Nut Threaded: Yes
- Index of Protection (IP Code): IP66
- Main Material Type: Steel
- Maximum Dynamic Air Working Pressure: 6.3 bar
- Maximum Free Speed Range: 480 rpm
- Maximum Outer Power: 0.3 kW
- Minimum Starting Torque: 22 Nm
- Motor Lubrication Free: Yes
- Output Spindle Thread: 3/8 - 24 UNF
- Rotation Drive: Clockwise
- Shaft Loading Code: b
- Spindle Type: Threaded Shaft
- Stall Torque: 23.6 Nm
- Torque at Maximum Power: 11.8 Nm
- Weight: 0.75 kg
