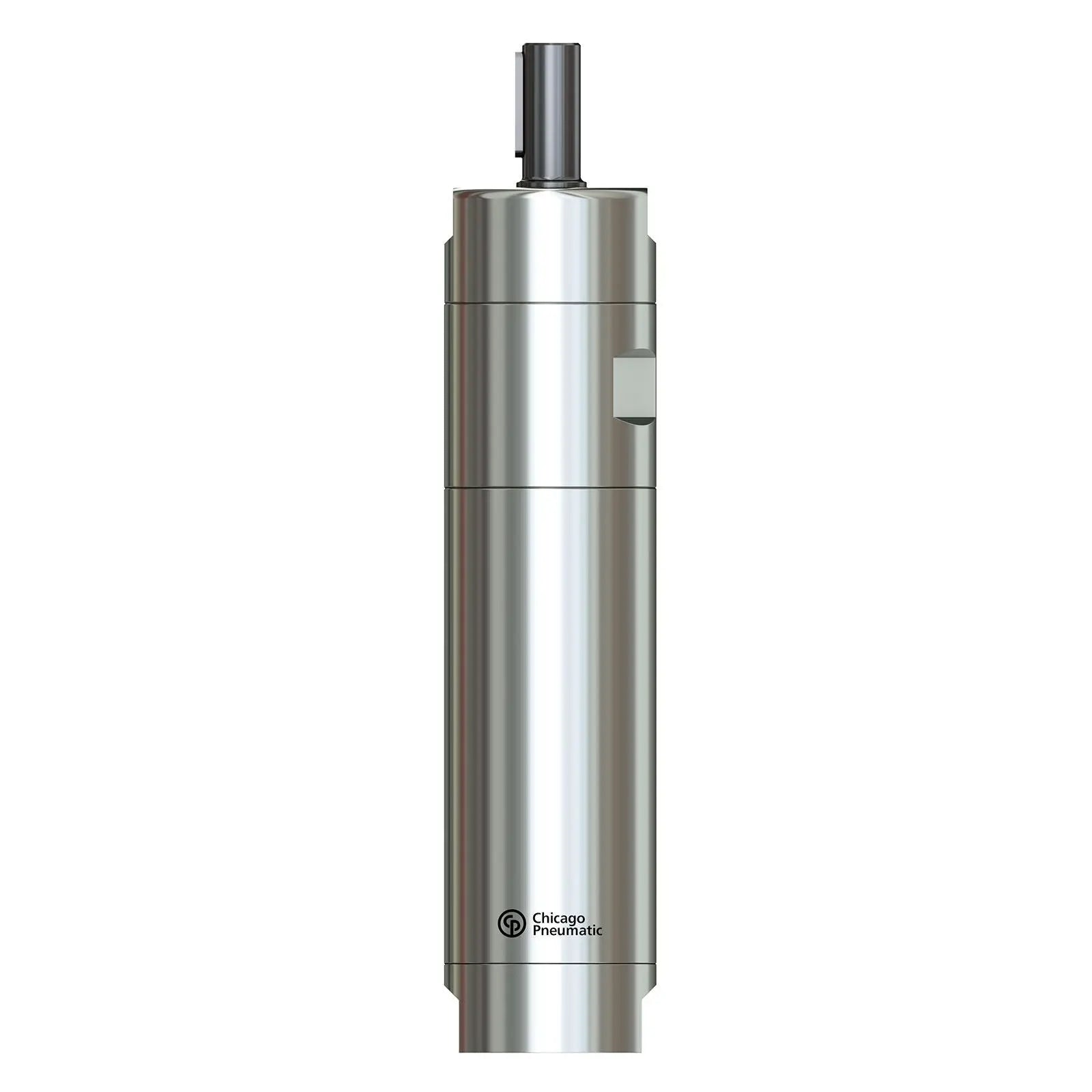

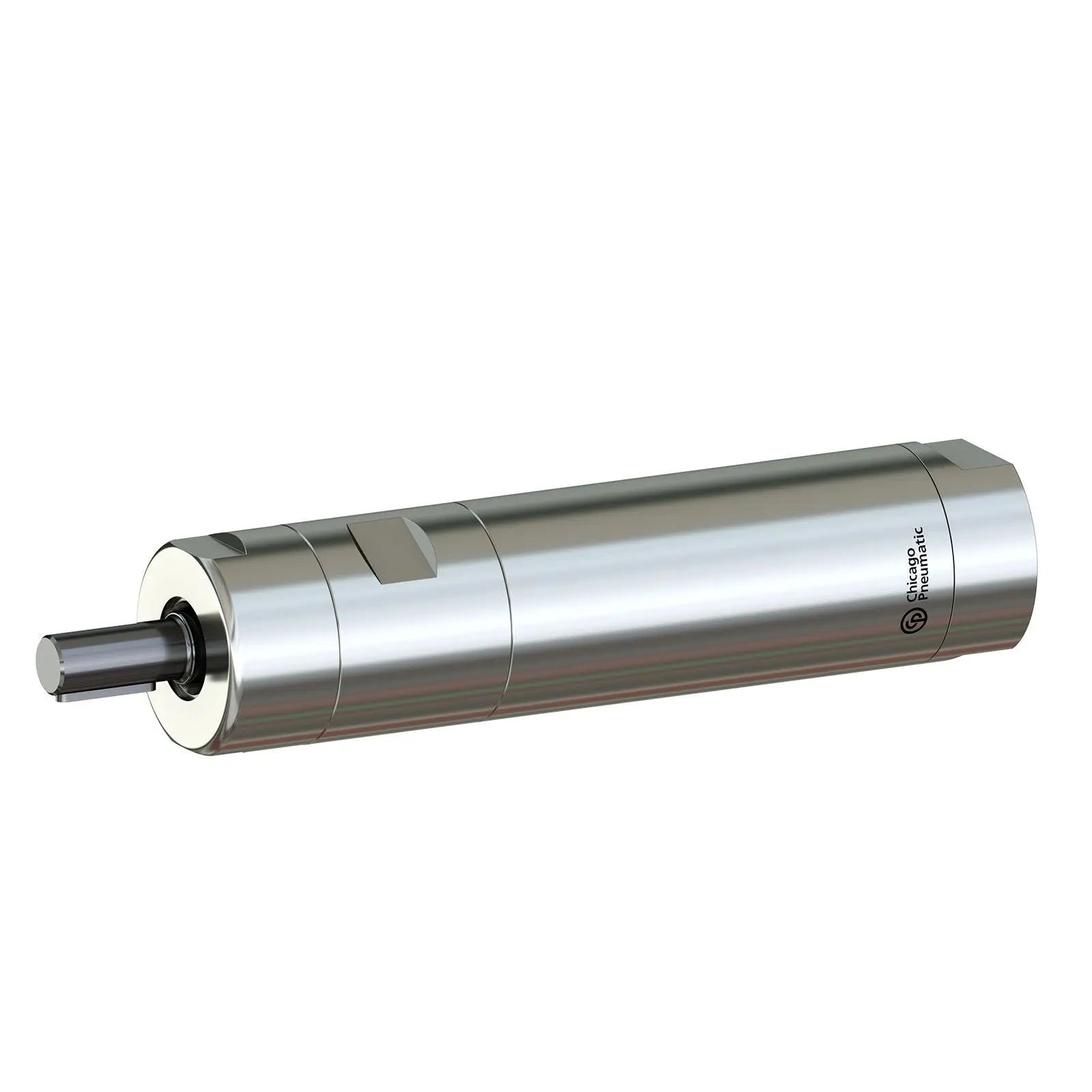

Chicago Pneumatic M25-770-KSL-ATEX 250 W Non-Reversible Stainless Steel Air Motor, Free Speed 770 rpm, ATEX Certified - CP 2051478484
The stainless steel pneumatic vane motors M25-770-KSL-ATEX is compact in design, light in weight, have Keyed shaft spindle It is suitable for building using handheld machines or any industrial equipment. This non-reversible air motor delivers a maximum power of 250 W (0.35 hp), with a maximum torque of 14.2 Nm (10.5) and 770 rpm free speed and is ATEX certified Ex II 2 G Ex h IIC T6 Gb for gas and Ex II 2 D Ex h IIIC T85 degree C Db for dust.
Benefits:
- Designed with limited retention areas on the housing and double it on nose seals to prevent contamination risk
- Low friction and lubrication-free design of vanes for ruggedness. Sustain stall torque loading indefinitely
- Short and compact planetary gear system for versatile solutions
- Long lasting efficiency with low air consumption design
- Strong starting torque for mobility during operation
Specifications:
- Back Head Coaxial: No
- Country of Origin: Hungary
- Customs Tariff: 84123900
- Air Consumption at Load: 5.3 l/s
- Air Flow Maximum Power: 5.3 l/s
- Air Inlet Thread Size: 1/8 in
- Air Inlet Thread Type: BSP
- Front Nut Threaded: No
- Index of Protection (IP Code): IP66, IP68, IP69
- Main Material Type: Stainless Steel
- Maximum Dynamic Air Working Pressure: 6.3 bar
- Maximum Free Speed Range: 770 rpm
- Maximum Outer Power: 0.3 kW
- Minimum Starting Torque: 13.5 Nm
- Motor Lubrication Free: Yes
- Output Spindle Size: 10mm
- Rotation Drive: Clockwise
- Shaft Loading Code: b
- Spindle Type: Keyed Shaft
- Stall Torque: 14.2 Nm
- Torque at Maximum Power: 7.1 Nm
- Weight: 0.83 kg
