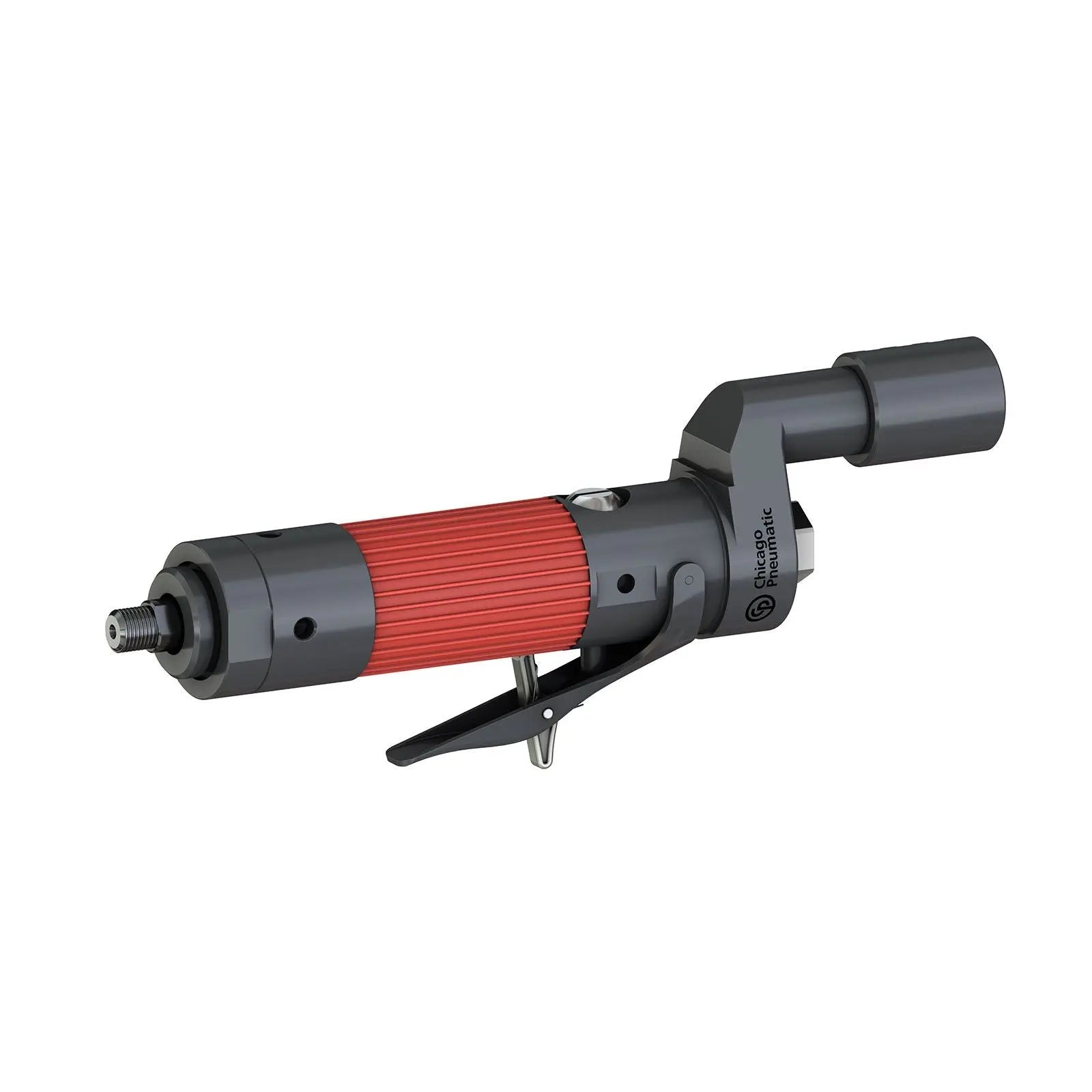

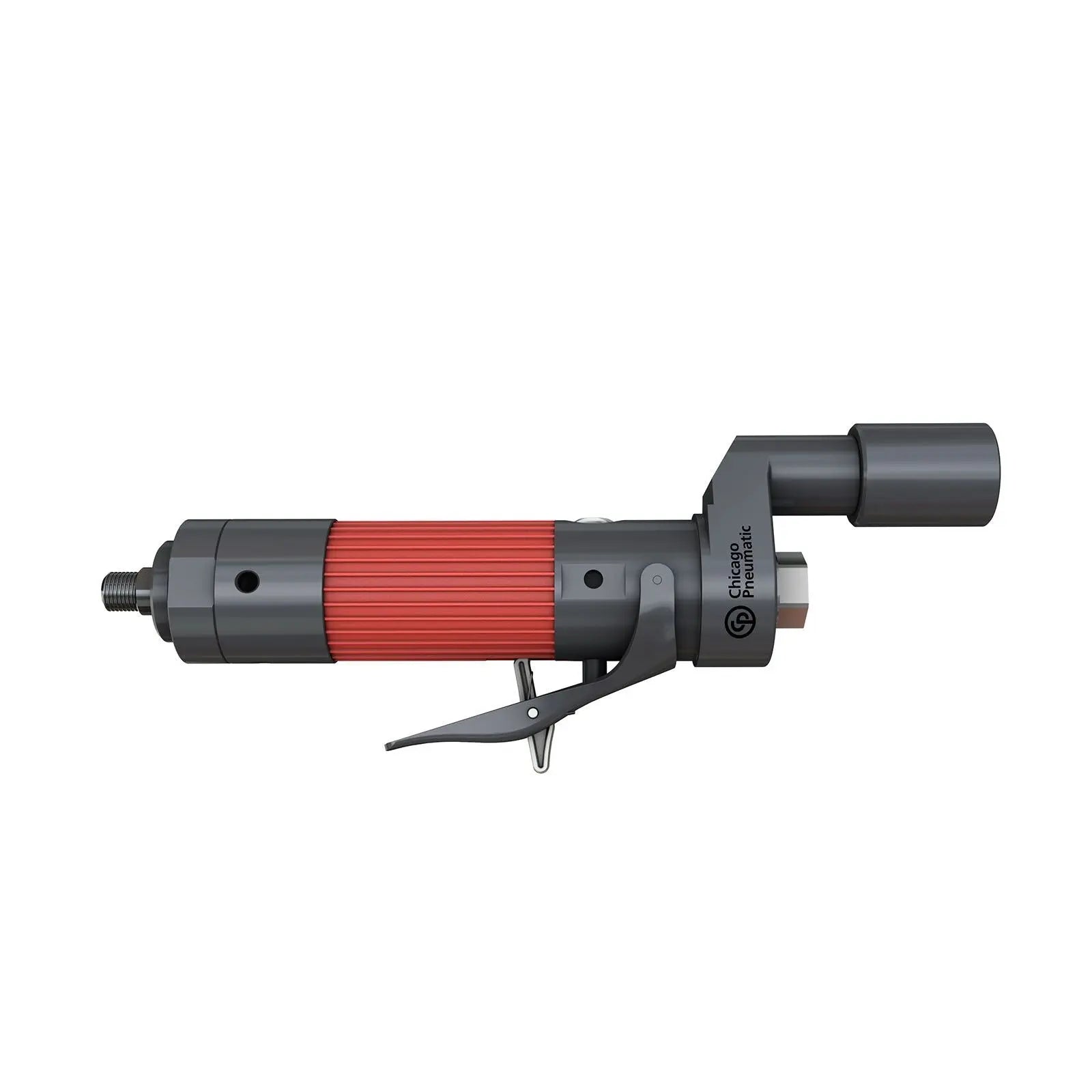

Chicago Pneumatic M2501-5500-TL 250 W Non-Reversible Vane Air Motor, Free Speed 5500 rpm, ATEX Certified - CP 2051481384
The standard pneumatic vane motors M2501-5500-TL is compact in design, light in weight, have Threaded shaft spindle It is suitable for building using handheld machines or any industrial equipment. This non-reversible air motor delivers a maximum power of 250 W (0.34 hp), with a maximum torque of 19.8 Nm (1.7) and 5500 rpm free speed.
Benefits:
- Low friction and lubrication-free design of vanes for ruggedness
- Sustain stall torque loading indefinitely
- Short and compact planetary gear system for versatile solutions
- Long lasting efficiency with low air consumption design
- Strong starting torque for mobility during operation
Specifications:
- Country of Origin: Hungary
- Customs Tariff: 84123900
- ATEX: No
- Air Consumption at Maximum Output: 7 l/s
- Built in Brake: No
- EC Standard: DIN EN 1127-1:2011 - DIN EN ISO 12100:2010
- EU Directives: 2006/42/EC (Annex I, Clauses 1.1, 1.2 (Excluding 1.2.4.3), 1.3, 1.4, 1.5, 1.6, 1.7)
- External Parts Material: Hardened Steel, Aluminum
- Free Speed: 5500 r/min
- Inlet Hose Size: 6mm
- Maximum Output: 0.23 kW
- Maximum Working Pressure: 100 psig
- Minimum Starting Torque: 2 Nm
- Outlet Hose Size: 10mm
- Rotation Direction: Clockwise
- Shaft Loading Code: b
- Shaft Type: Customer Special
- Speed at Maximum Output: 2800 r/min
- Stall Torque: 2.3 Nm
- Torque at Maximum Output: 1.1 Nm
- UK Legislation: S.I. 2008/1597 (Annex I, Clauses 1.1, 1.2 (Excluding 1.2.4.3), 1.3, 1.4, 1.5, 1.6, 1.7)
- UK Standard: DIN EN 1127-1:2011 - DIN EN ISO 12100:2010
- Vane Type: Lubrication Free
- Weight: 0.5 kg
