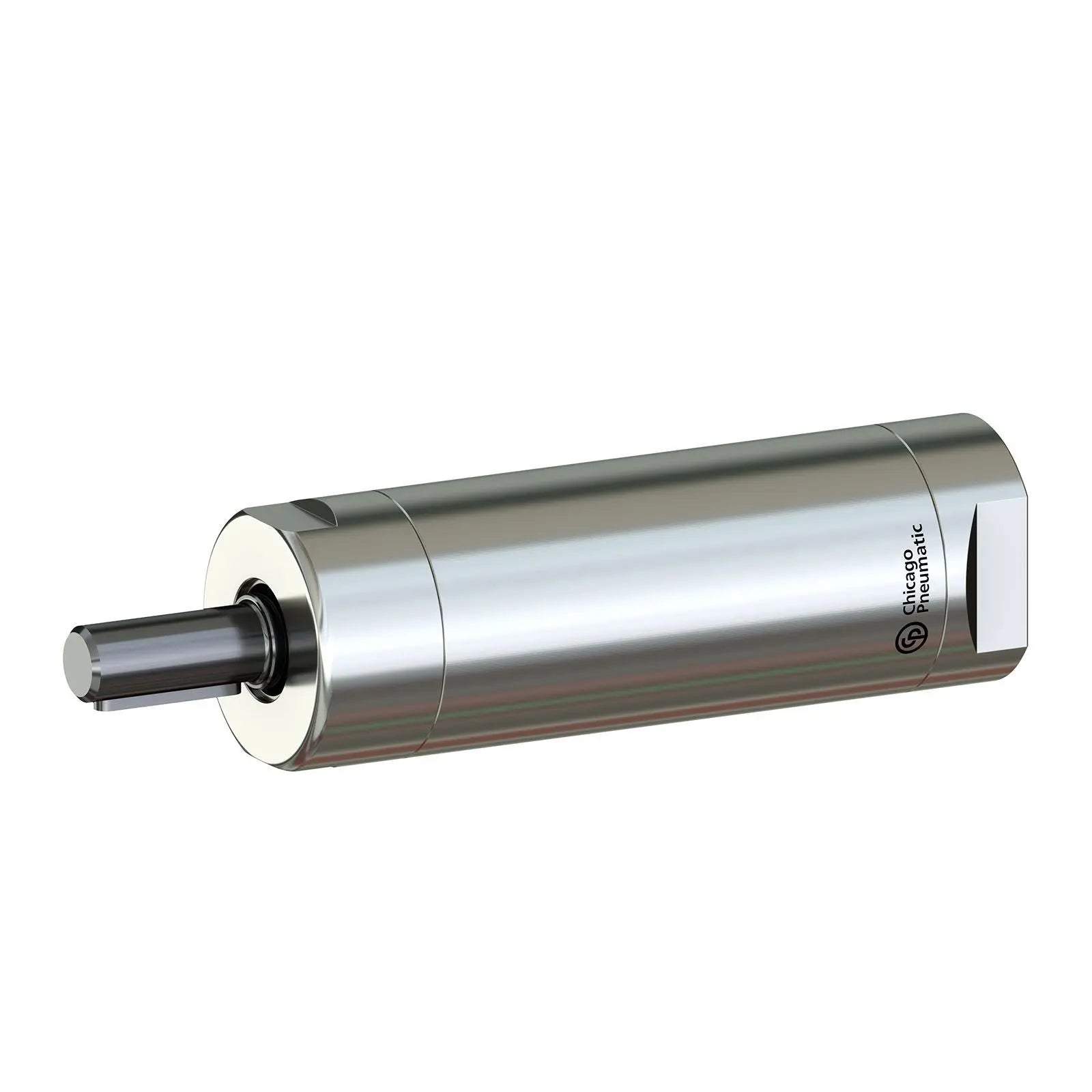

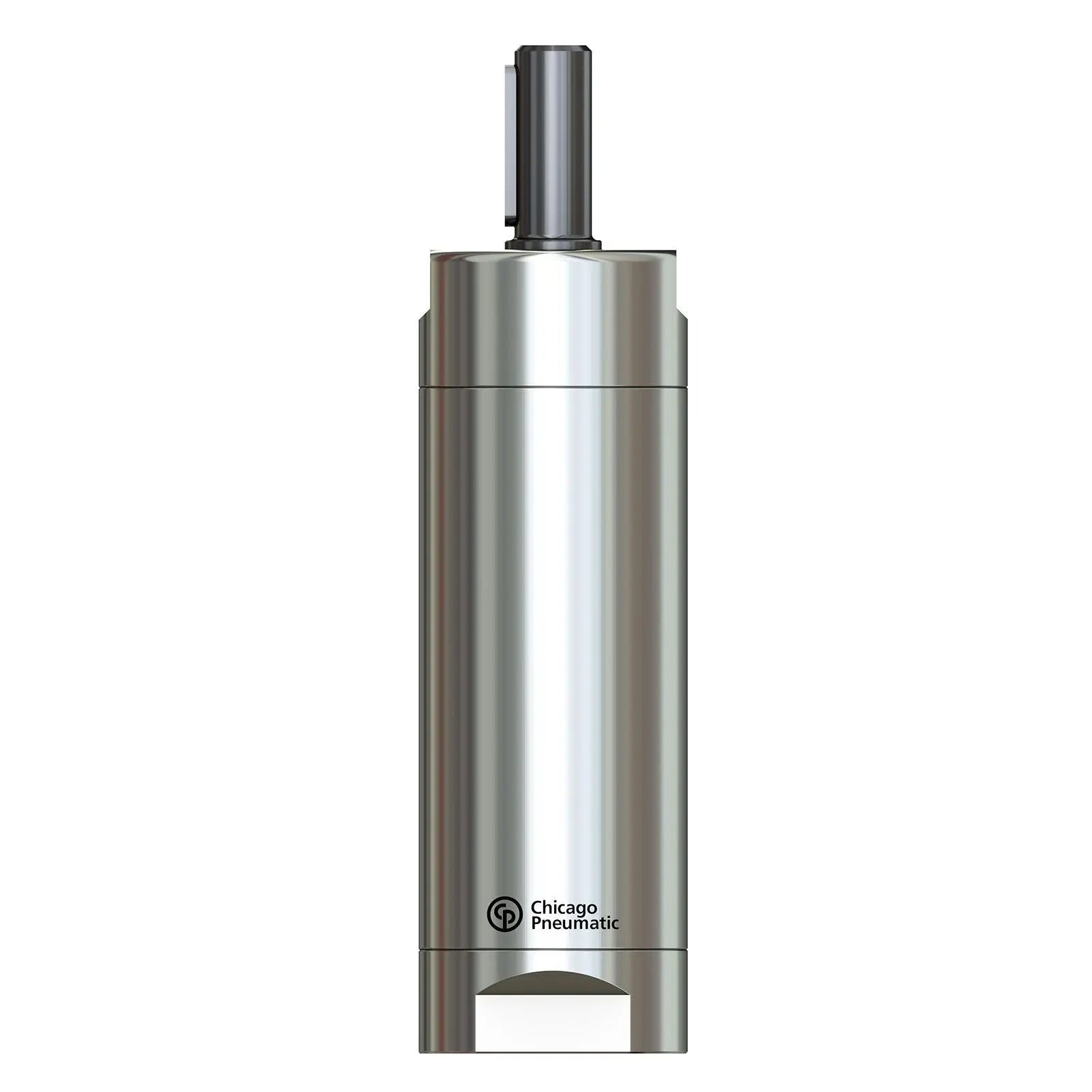

Chicago Pneumatic M39-2400-KSL-ATEX 390 W Non-Reversible Stainless Steel Air Motor, Free Speed 2400 rpm, ATEX Certified - CP 2051478814
The stainless steel pneumatic vane motors M39-2400-KSL-ATEX is compact in design, light in weight, have Keyed shaft spindle It is suitable for building using handheld machines or any industrial equipment. This non-reversible air motor delivers a maximum power of 390 W (0.52 hp), with a maximum torque of 6.4 Nm (4.7) and 2400 rpm free speed and is ATEX certified Ex II 2 G Ex h IIC T6 Gb for gas and Ex II 2 D Ex h IIIC T85 degree C Db for dust.
Benefits:
- Designed with limited retention areas on the housing and double it on nose seals to prevent contamination risk
- Low friction and lubrication-free design of vanes for ruggedness. Sustain stall torque loading indefinitely
- Short and compact planetary gear system for versatile solutions
- Long lasting efficiency with low air consumption design
- Strong starting torque for mobility during operation
Specifications:
- Back Head Coaxial: No
- Country of Origin: Hungary
- Customs Tariff: 84123900
- Air Consumption at Load: 8.1 l/s
- Air Flow Maximum Power: 8.1 l/s
- Air Inlet Thread Size: 1/4 in
- Air Inlet Thread Type: BSP
- Front Nut Threaded: No
- Index of Protection (IP Code): IP69, IP66, IP68
- Main Material Type: Stainless Steel
- Maximum Dynamic Air Working Pressure: 6.3 bar
- Maximum Free Speed Range: 2400 rpm
- Maximum Outer Power: 0.4 kW
- Minimum Starting Torque: 6.1 Nm
- Motor Lubrication Free: Yes
- Output Spindle Size: 12mm
- Rotation Drive: Clockwise
- Shaft Loading Code: c
- Spindle Type: Keyed Shaft
- Stall Torque: 6.4 Nm
- Torque at Maximum Power: 3.2 Nm
- Weight: 0.95 kg
