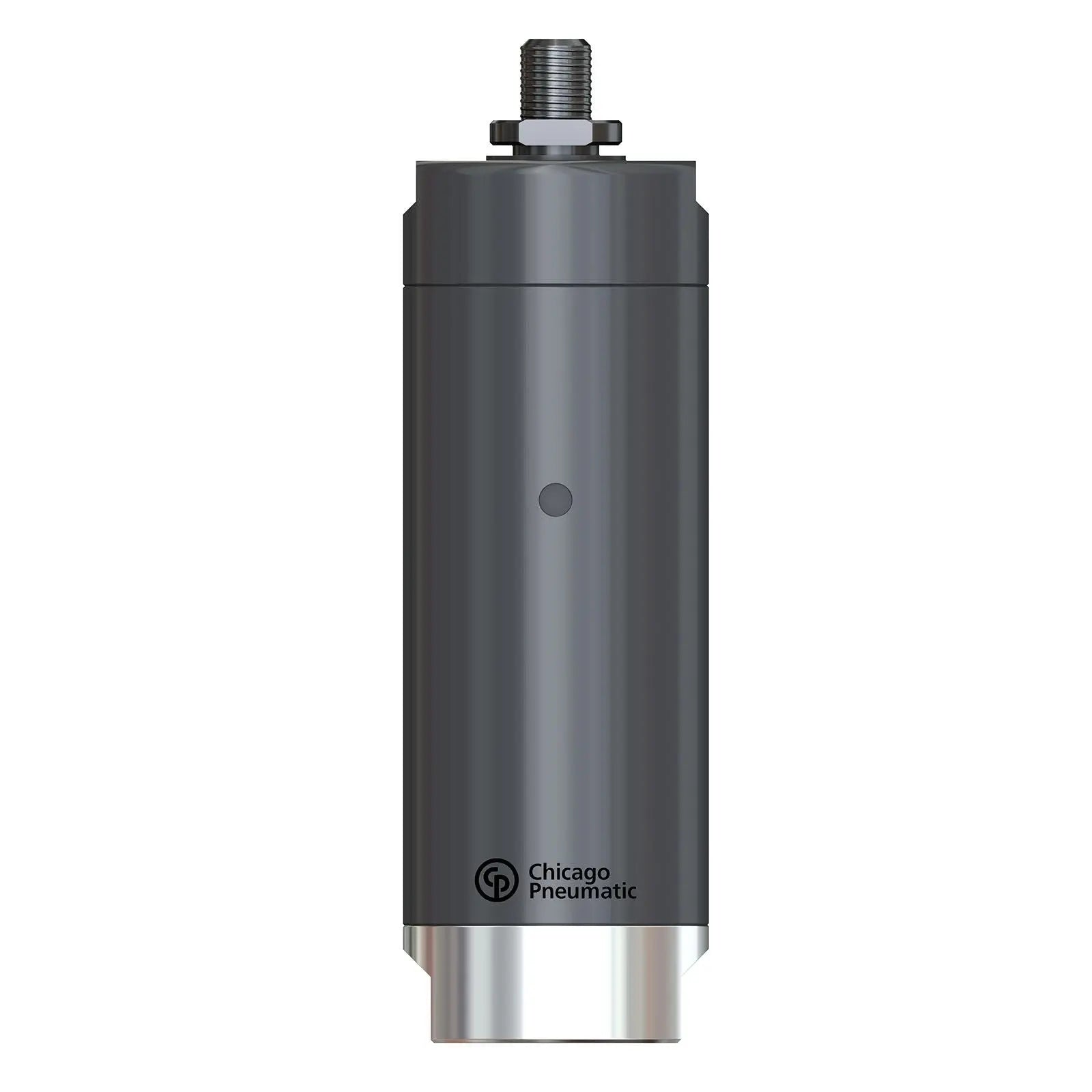

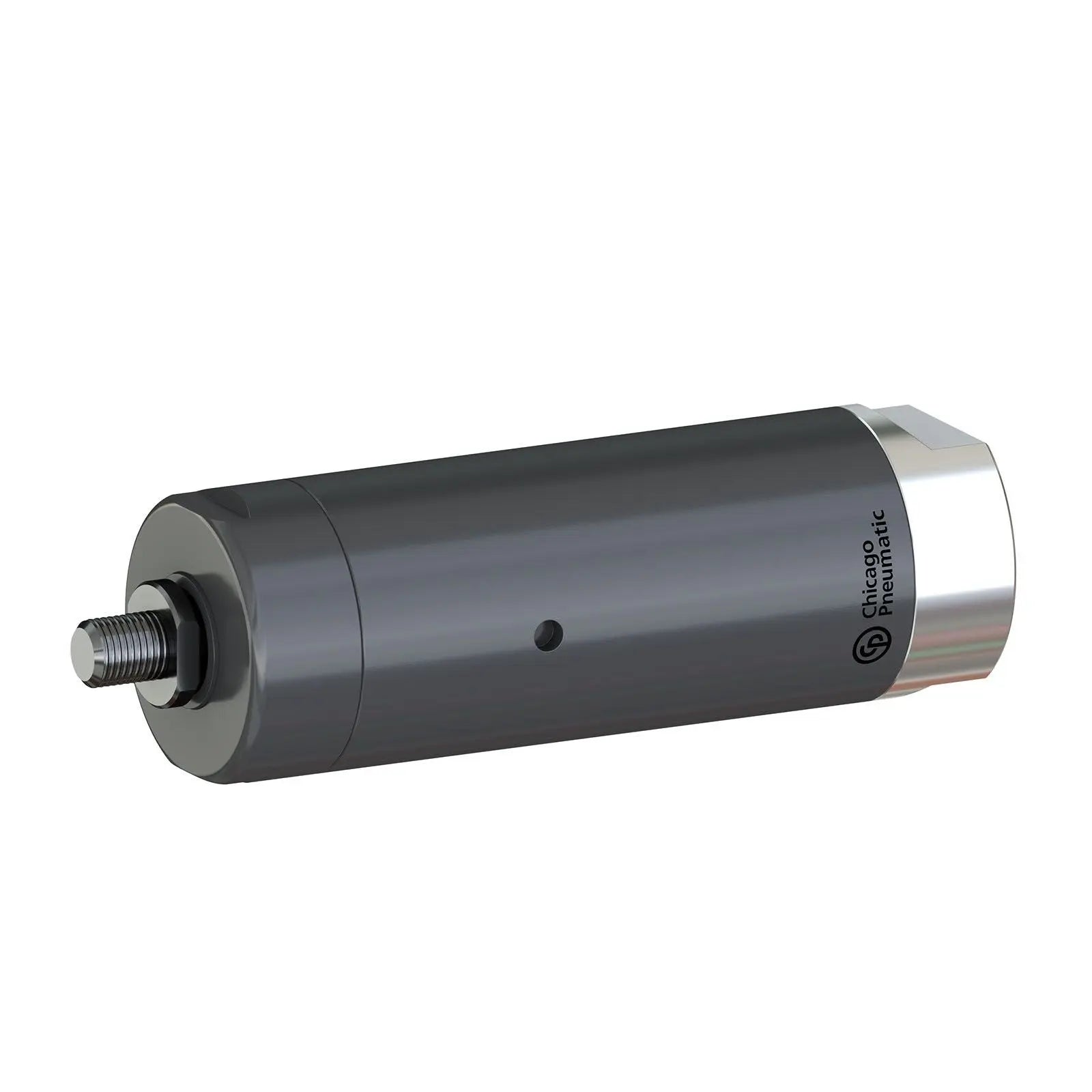

Chicago Pneumatic M3901-520-TL-ATEX 390 W Non-Reversible Vane Air Motor, Free Speed 520 rpm, ATEX Certified - CP 2051481694
The standard pneumatic vane motors M3901-520-TL-ATEX is compact in design, light in weight, lubrication free, have Threaded shaft spindle It is suitable for building using handheld machines or any industrial equipment. This non-reversible air motor delivers a maximum power of 390 W (0.51 hp), with a maximum torque of 28 Nm (21) and 520 rpm free speed.
Benefits:
- Low friction and lubrication-free design of vanes for ruggedness
- Sustain stall torque loading indefinitely
- Short and compact planetary gear system for versatile solutions
- Long lasting efficiency with low air consumption design
- Strong starting torque for mobility during operation
Specifications:
- Back Head Coaxial: Yes
- Country of Origin: Hungary
- Customs Tariff: 84123900
- Air Consumption at Load: 8.1 l/s
- Air Flow Maximum Power: 8.1 l/s
- Air Inlet Thread Size: 1/4 in
- Air Inlet Thread Type: BSP
- Front Nut Threaded: Yes
- Index of Protection (IP Code): IP66
- Main Material Type: Steel
- Maximum Dynamic Air Working Pressure: 6.3 bar
- Maximum Free Speed Range: 520 rpm
- Maximum Outer Power: 0.4 kW
- Minimum Starting Torque: 26 Nm
- Motor Lubrication Free: Yes
- Output Spindle Thread: 5/8 - 16 UNF
- Rotation Drive: Clockwise
- Shaft Loading Code: c
- Spindle Type: Threaded Shaft
- Stall Torque: 28 Nm
- Torque at Maximum Power: 14.2 Nm
- Weight: 1.02 kg
