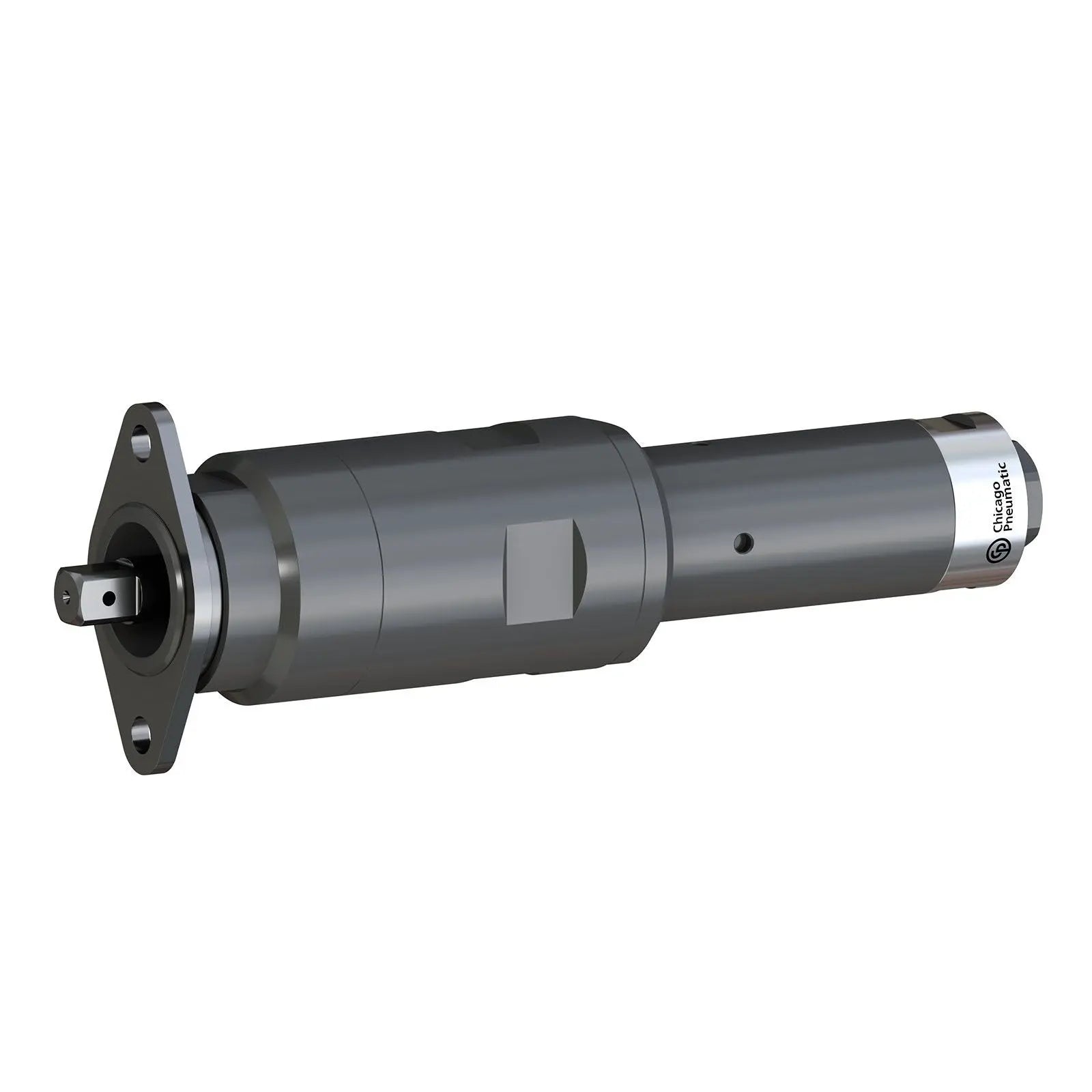

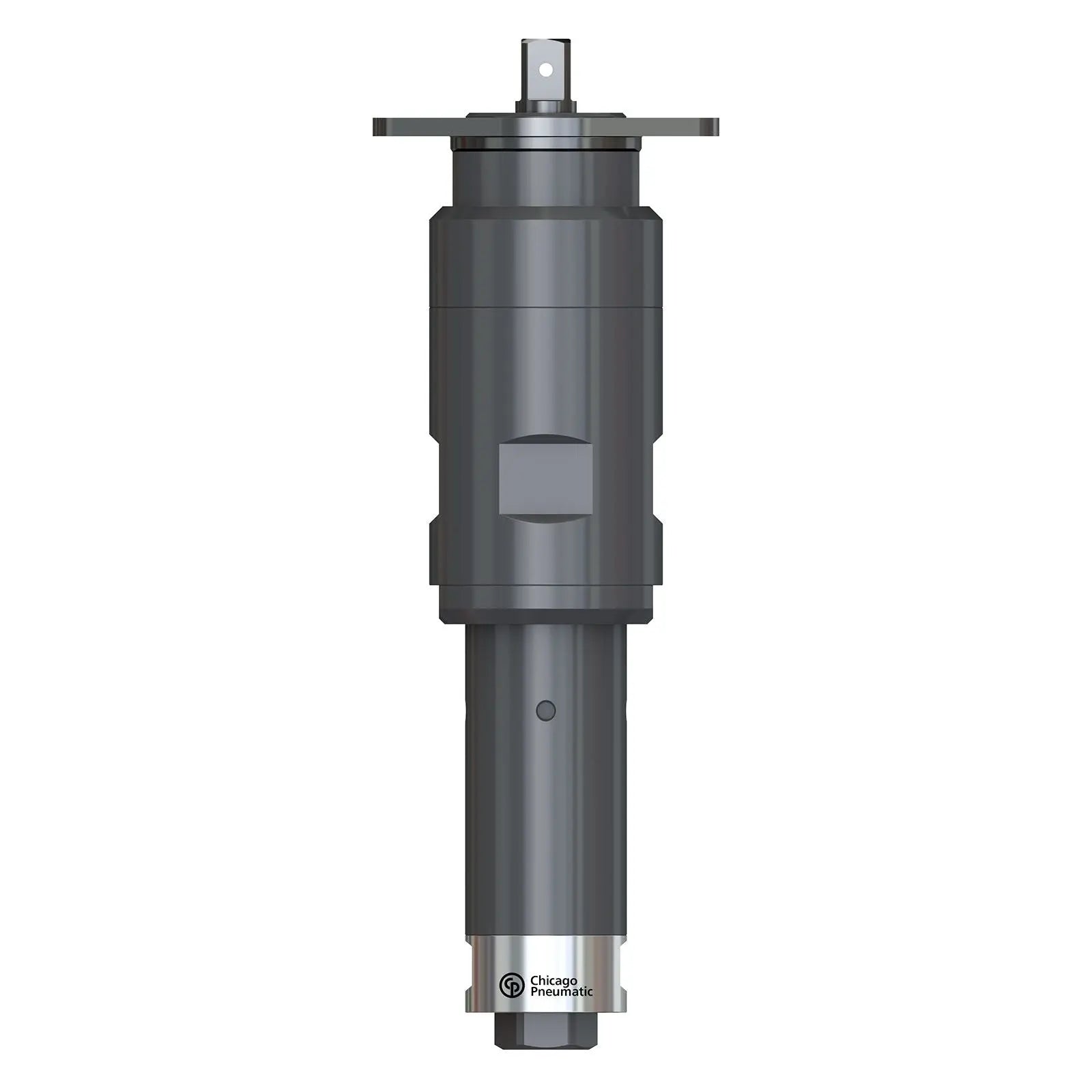

Chicago Pneumatic M3901-70-SQ 390 W Non-Reversible Vane Air Motor, Free Speed 70 rpm, ATEX Certified - CP 2051481604
The standard pneumatic vane motors M3901-70-SQ is compact in design, light in weight, have Square shaft spindle It is suitable for building using handheld machines or any industrial equipment. This non-reversible air motor delivers a maximum power of 390 W (0.5 hp), with a maximum torque of 220 Nm (162) and 70 rpm free speed.
Benefits:
- Low friction and lubrication-free design of vanes for ruggedness
- Sustain stall torque loading indefinitely
- Short and compact planetary gear system for versatile solutions
- Long lasting efficiency with low air consumption design
- Strong starting torque for mobility during operation
Specifications:
- Back Head Coaxial: Yes
- Country of Origin: Hungary
- Customs Tariff: 84123900
- Air Consumption at Load: 8.1 l/s
- Air Flow Maximum Power: 8.1 l/s

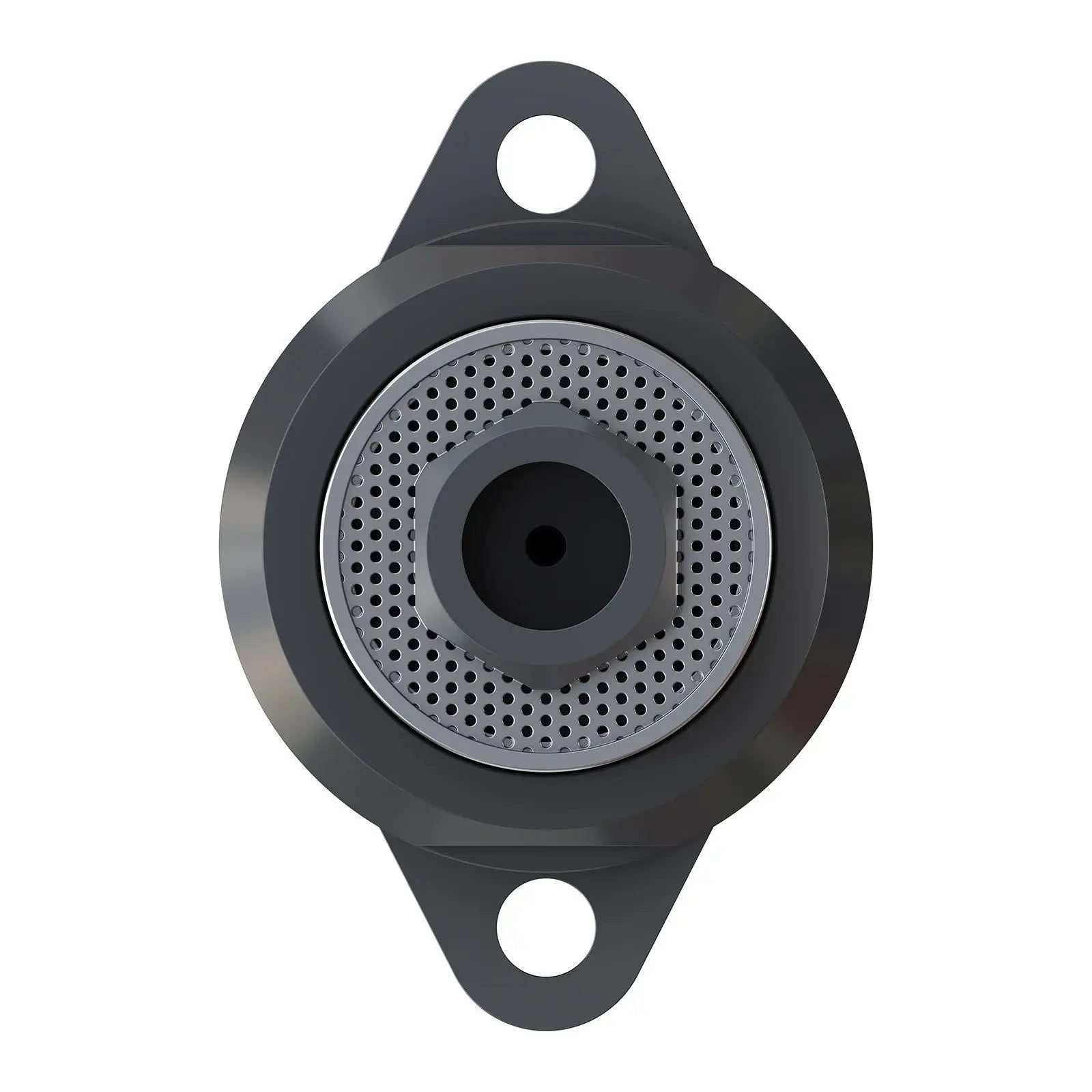

- Air Inlet Thread Size: 1/4 in
- Air Inlet Thread Type: BSP
- Front Nut Threaded: Yes
- Index of Protection (IP Code): IP66
- Main Material Type: Steel
- Maximum Dynamic Air Working Pressure: 6.3 bar
- Maximum Free Speed Range: 70 rpm
- Maximum Outer Power: 0.4 kW
- Minimum Starting Torque: 200 Nm
- Output Spindle Size: 12.7mm
- Rotation Drive: Clockwise
- Shaft Loading Code: c

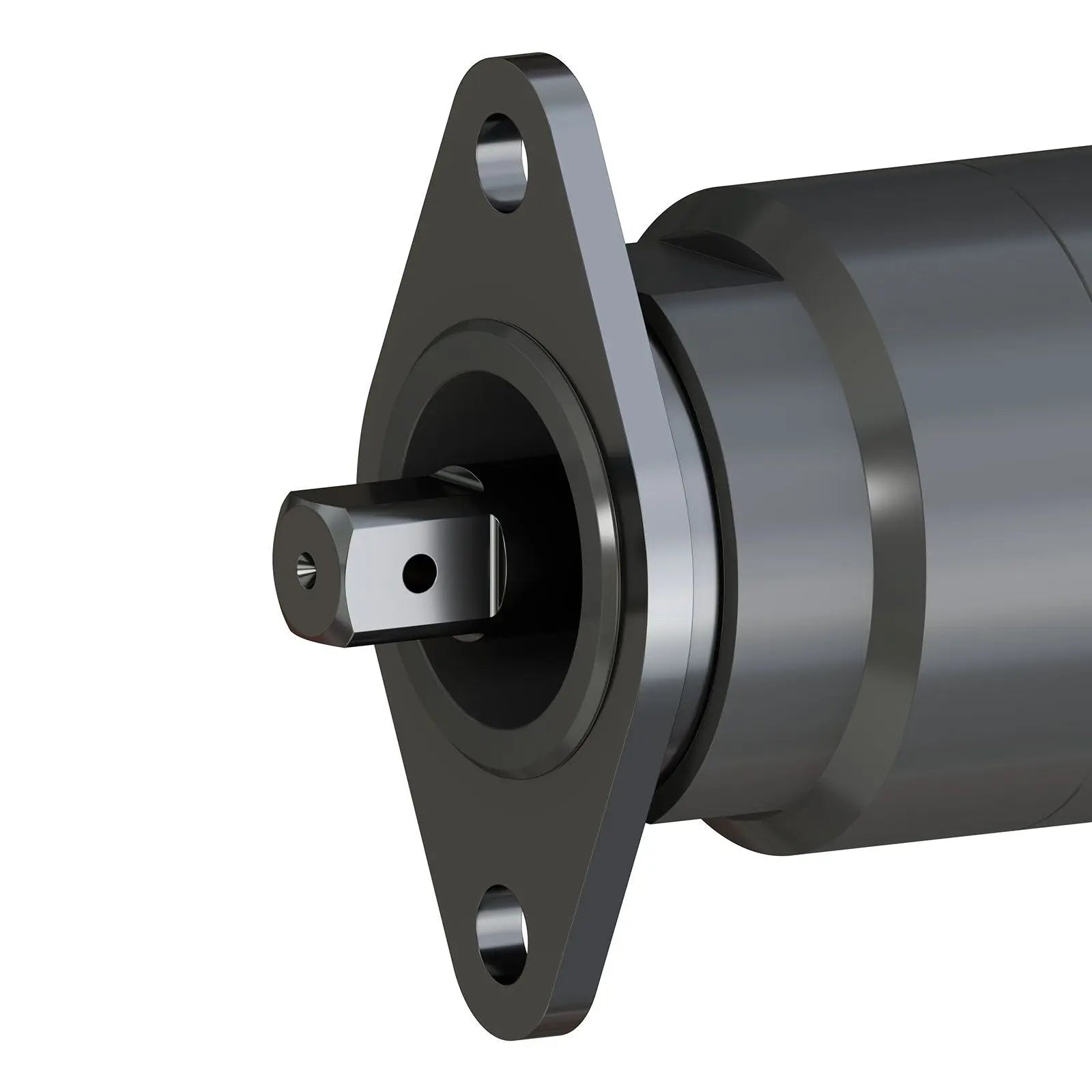

- Spindle Type: Square
- Stall Torque: 220 Nm
- Torque at Maximum Power: 110 Nm
- Weight: 2.6 kg
