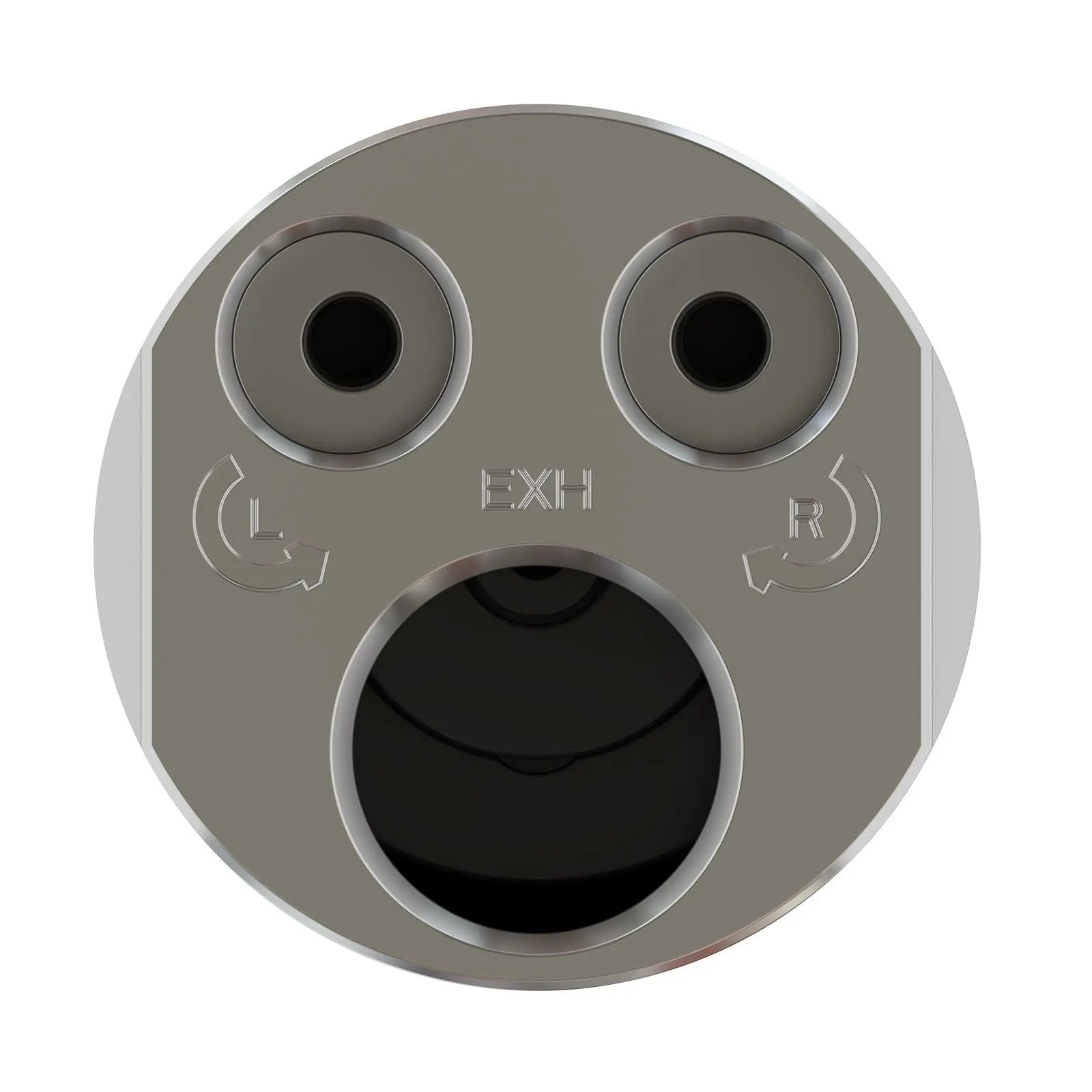

Chicago Pneumatic MR25-1300-KL-ATEX 160 W Reversible Vane Air Motor, Free Speed 1300 rpm, ATEX Certified - CP 2051478394
The standard pneumatic vane motors MR25-1300-KL-ATEX is compact in design, light in weight, have Keyed shaft spindle It is suitable for building using handheld machines or any industrial equipment. This reversible air motor delivers a maximum power of 160 W (0.21 hp), with a maximum torque of 4.8 Nm (3.5) and 1300 rpm free speed and is ATEX certified Ex II 2 G Ex h IIC T6 Gb for gas and Ex II 2 D Ex h IIIC T85 degree C Db for dust.
Benefits:
- Low friction and lubrication-free design of vanes for ruggedness
- Sustain stall torque loading indefinitely
- Short and compact planetary gear system for versatile solutions
- Long lasting efficiency with low air consumption design
- Strong starting torque for mobility during operation
Specifications:
- Back Head Coaxial: No
- Country of Origin: Hungary
- Customs Tariff: 84123900
- Air Consumption at Load: 5 l/s
- Air Flow Maximum Power: 5 l/s
- Air Inlet Thread Size: 1/8 in
- Air Inlet Thread Type: BSP
- Front Nut Threaded: No
- Index of Protection (IP Code): IP66
- Main Material Type: Steel
- Maximum Dynamic Air Working Pressure: 6.3 bar
- Maximum Free Speed Range: 1300 rpm
- Maximum Outer Power: 0.2 kW
- Minimum Starting Torque: 3.2 Nm
- Motor Lubrication Free: Yes
- Output Spindle Size: 10mm
- Rotation Drive: Reversible
- Shaft Loading Code: b
- Spindle Type: Keyed Shaft
- Stall Torque: 4.8 Nm
- Torque at Maximum Power: 2.4 Nm
- Weight: 0.55 kg
