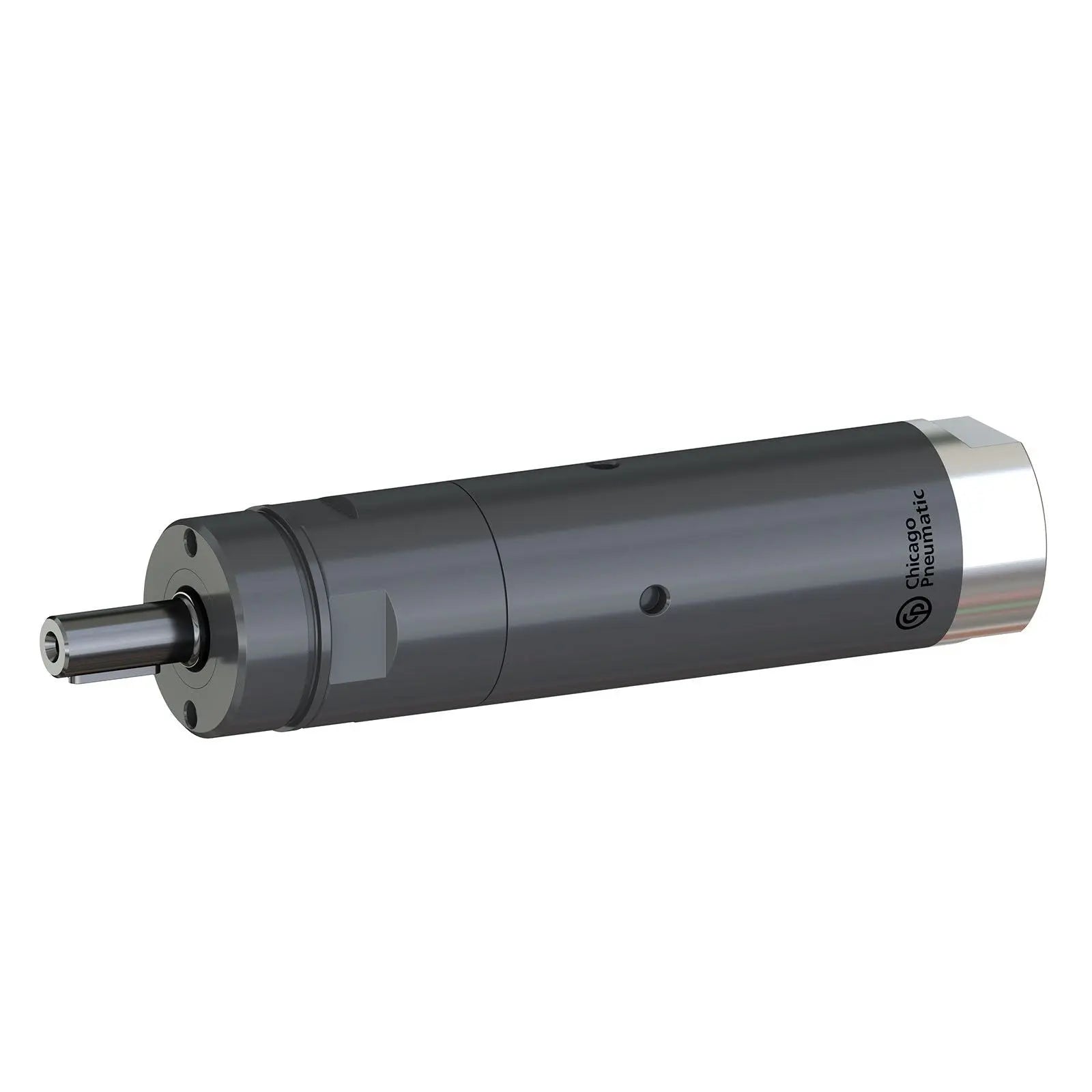

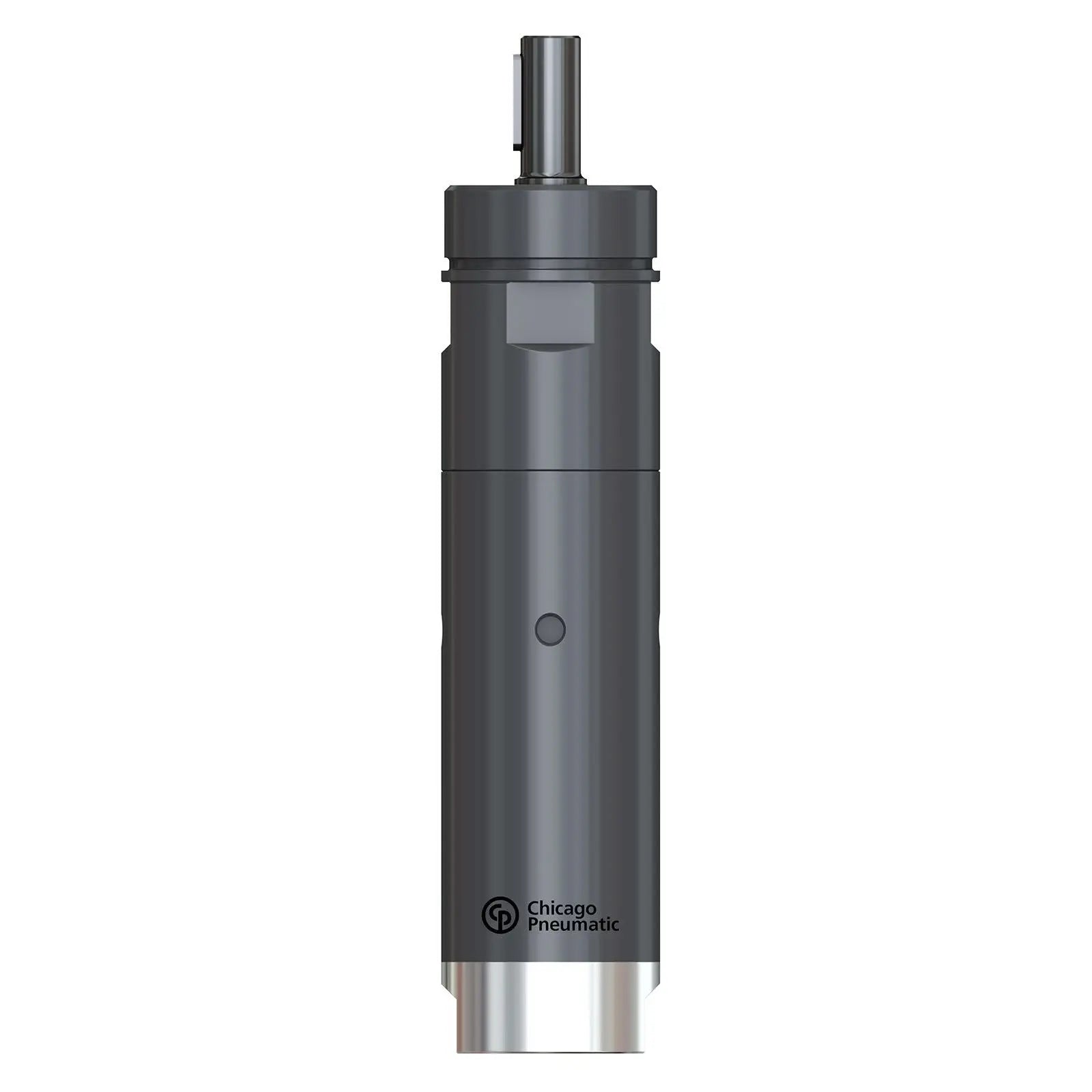

Chicago Pneumatic MR2501-640-KL-ATEX 160 W Reversible Vane Air Motor, Free Speed 640 rpm, ATEX Certified - CP 6151780950
The standard pneumatic vane motors MR2501-640-KL-ATEX is compact in design, light in weight, lubrication free, have Keyed shaft spindle It is suitable for building using handheld machines or any industrial equipment. This reversible air motor delivers a maximum power of 160 W (0.21 hp), with a maximum torque of 9.4 Nm (6.9) and 640 rpm free speed.
Benefits:
- Low friction and lubrication-free design of vanes for ruggedness
- Sustain stall torque loading indefinitely
- Short and compact planetary gear system for versatile solutions
- Long lasting efficiency with low air consumption design
- Strong starting torque for mobility during operation
Specifications:
- Back Head Coaxial: No
- Country of Origin: Hungary
- Customs Tariff: 84123900
- ATEX: Yes
- Air Consumption at Load: 5 l/s
- Air Flow Maximum Power: 5 l/s
- Air Inlet Thread Size: 1/8 in
- Air Inlet Thread Type: BSP
- Front Nut Threaded: No
- Index of Protection (IP Code): IP66
- Main Material Type: Steel
- Maximum Dynamic Air Working Pressure: 6.3 bar
- Maximum Free Speed Range: 640 rpm
- Maximum Outer Power: 0.2 kW
- Minimum Starting Torque: 6.3 Nm
- Motor Lubrication Free: Yes
- Output Spindle Size: 10mm
- Rotation Drive: Reversible
- Shaft Loading Code: b
- Spindle Type: Keyed Shaft
- Stall Torque: 9.4 Nm
- Torque at Maximum Power: 4.7 Nm
- Weight: 0.75 kg
