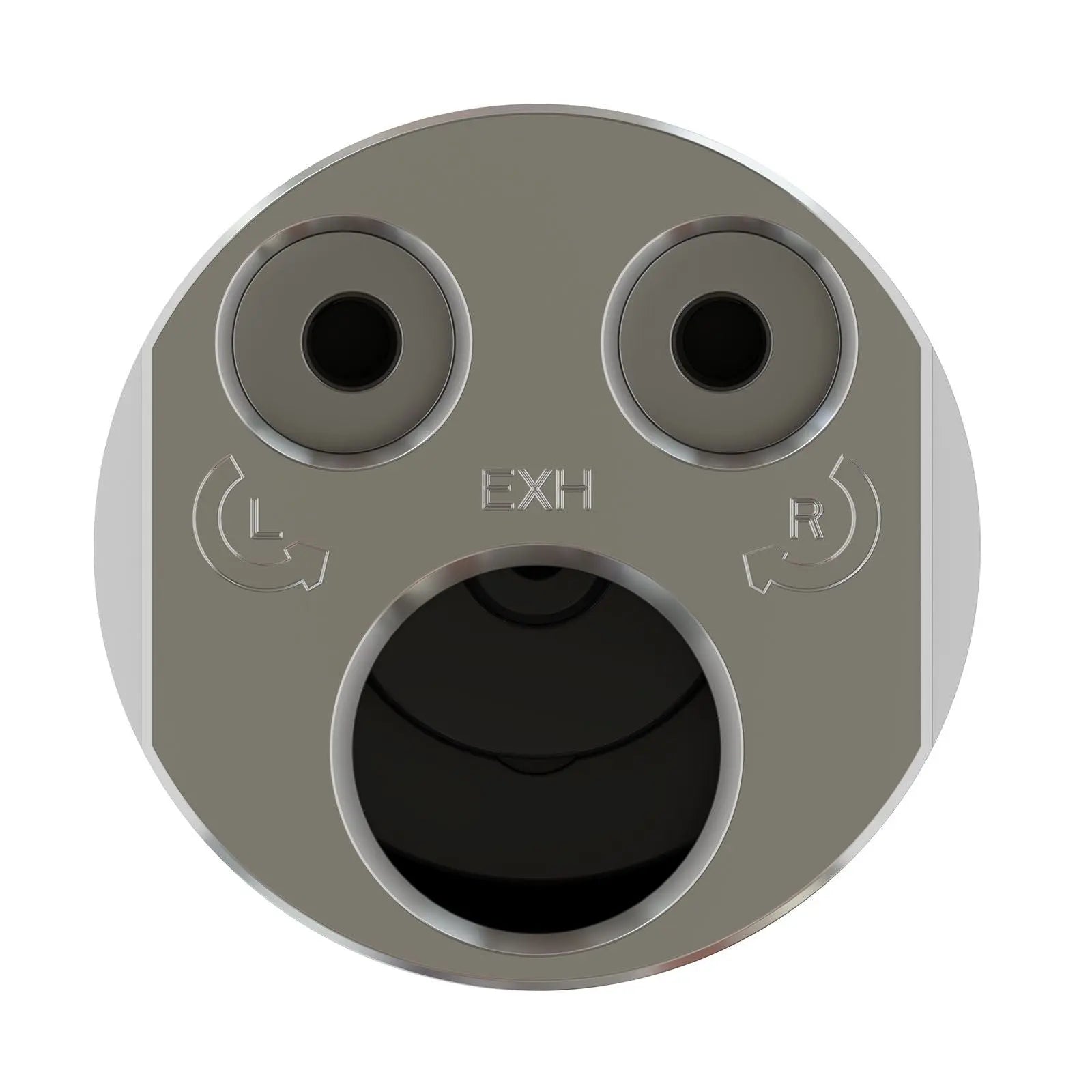

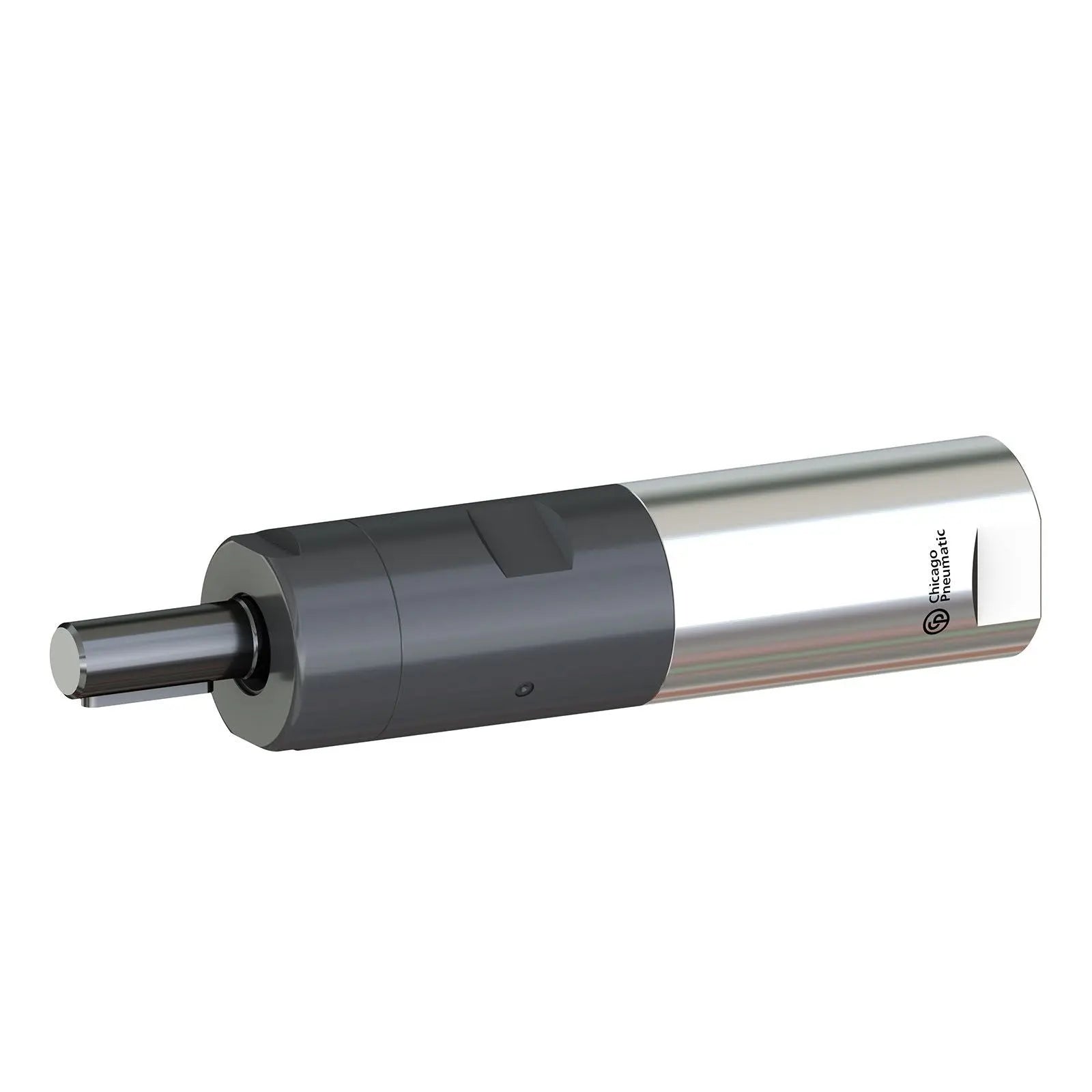

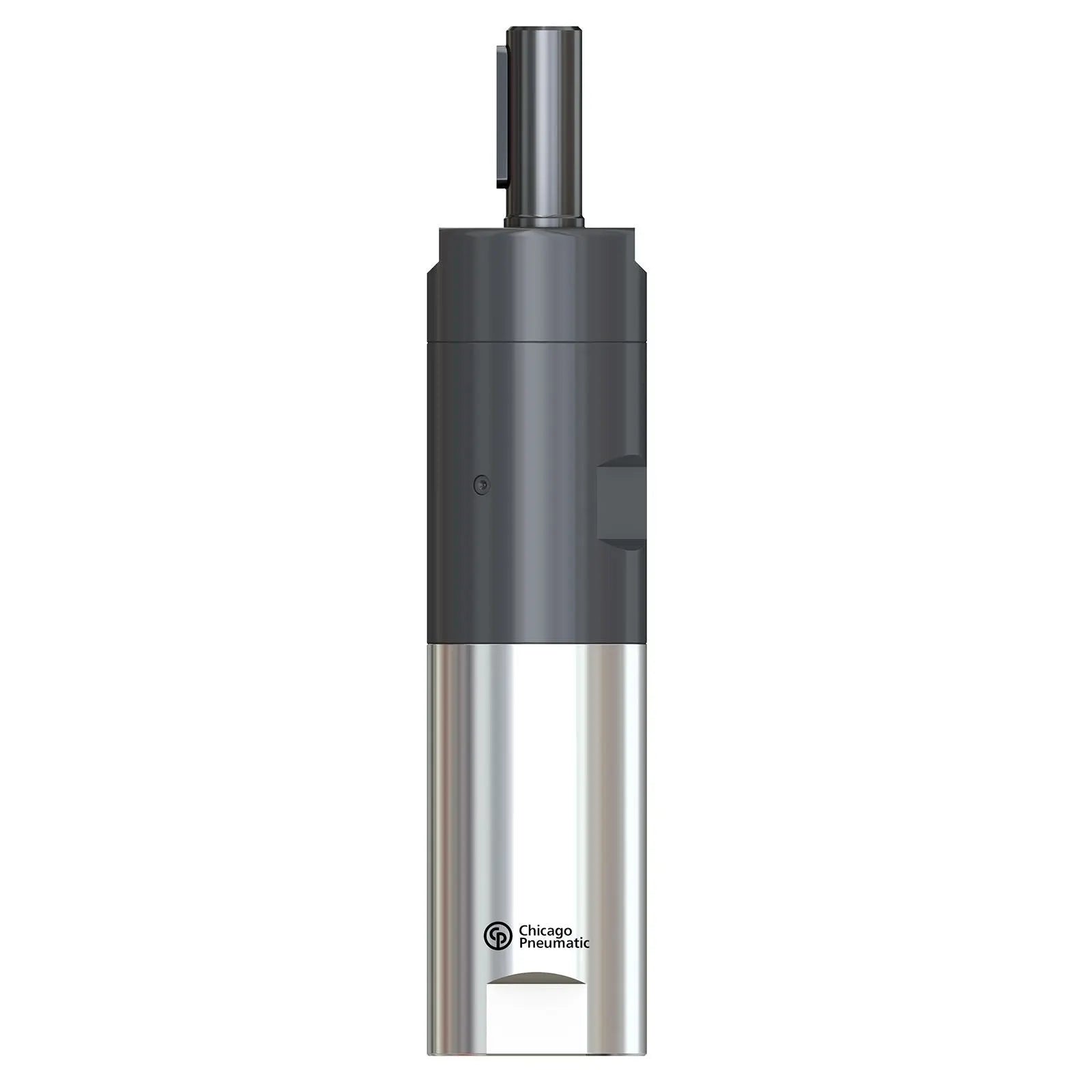

Chicago Pneumatic MR84-3200-K-ATEX 630 W Reversible Vane Air Motor, Free Speed 3200 rpm, ATEX Certified - CP 2051479264
The standard pneumatic vane motors MR84-3200-K-ATEX is compact in design, light in weight, have Keyed shaft spindle It is suitable for building using handheld machines or any industrial equipment. This reversible air motor delivers a maximum power of 630 W (0.84 hp), with a maximum torque of 7.2 Nm (5.3) and 3200 rpm free speed and is ATEX certified Ex II 2 G Ex h IIC T4 Gb for gas and Ex II 2 D Ex h IIIC T110 degree C Db for dust.
Benefits:
- Low friction and lubrication-free design of vanes for ruggedness
- Sustain stall torque loading indefinitely
- Short and compact planetary gear system for versatile solutions
- Long lasting efficiency with low air consumption design
- Strong starting torque for mobility during operation
Specifications:
- Back Head Coaxial: No
- Country of Origin: Hungary
- Customs Tariff: 84123900
- Air Consumption at Load: 14 l/s
- Air Flow Maximum Power: 14 l/s
- Air Inlet Thread Size: 3/8 in
- Air Inlet Thread Type: BSP
- Front Nut Threaded: No
- Index of Protection (IP Code): IP66
- Main Material Type: Steel
- Maximum Dynamic Air Working Pressure: 6.3 bar
- Maximum Free Speed Range: 3200 rpm
- Maximum Outer Power: 0.6 kW
- Minimum Starting Torque: 4.9 Nm
- Motor Lubrication Free: No
- Output Spindle Size: 10mm
- Rotation Drive: Reversible
- Shaft Loading Code: e
- Spindle Type: Keyed Shaft
- Stall Torque: 7.2 Nm
- Torque at Maximum Power: 3.6 Nm
- Weight: 1.2 kg
