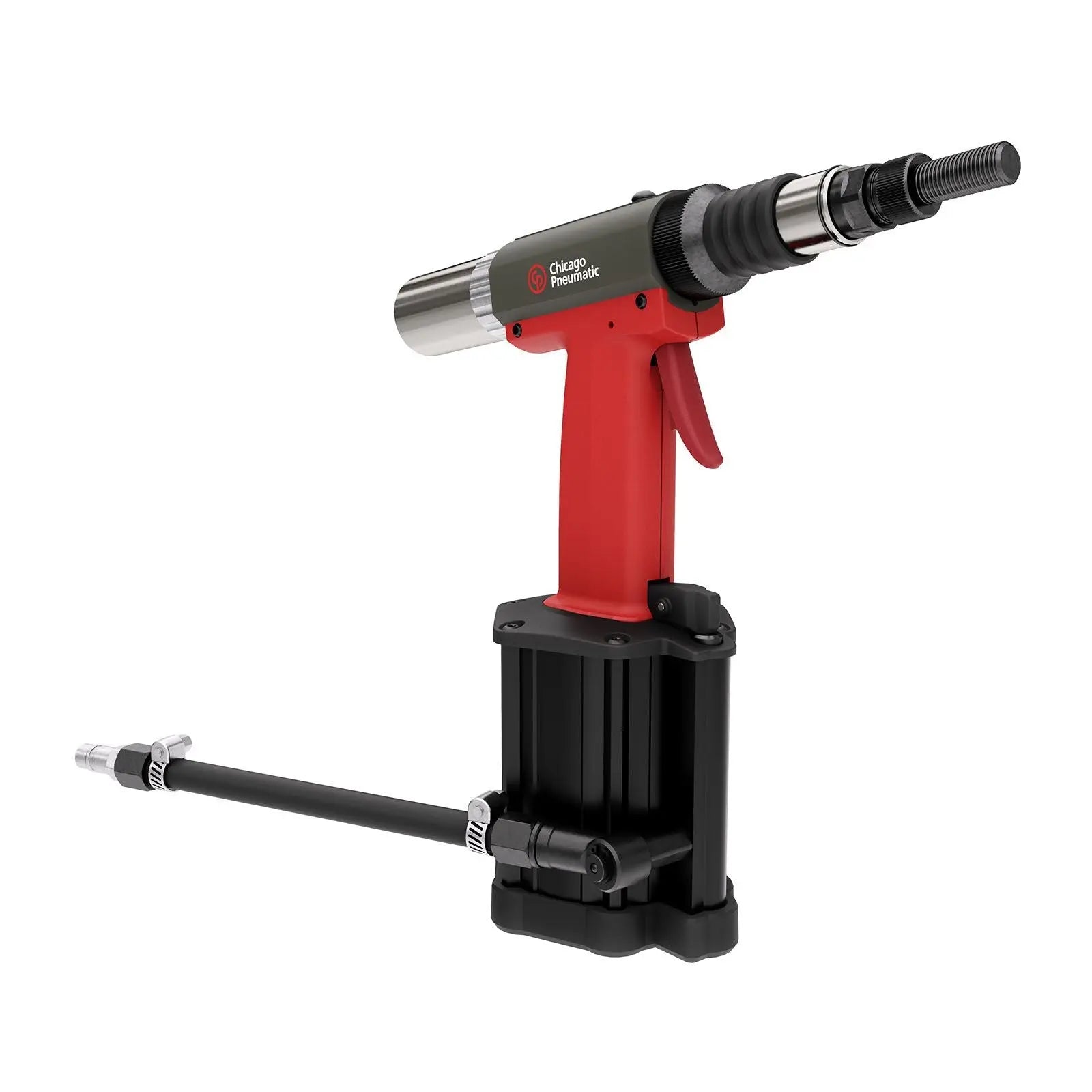

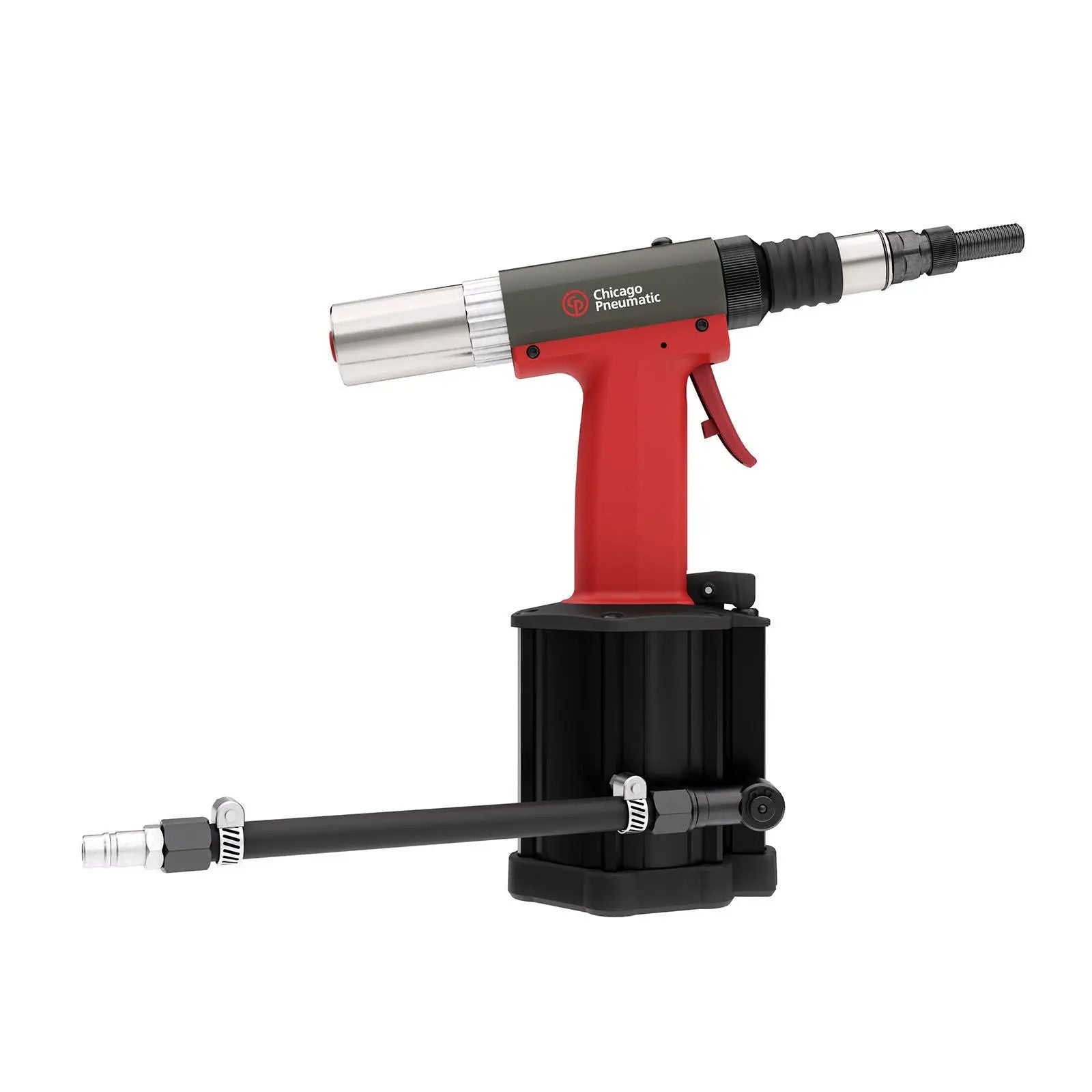

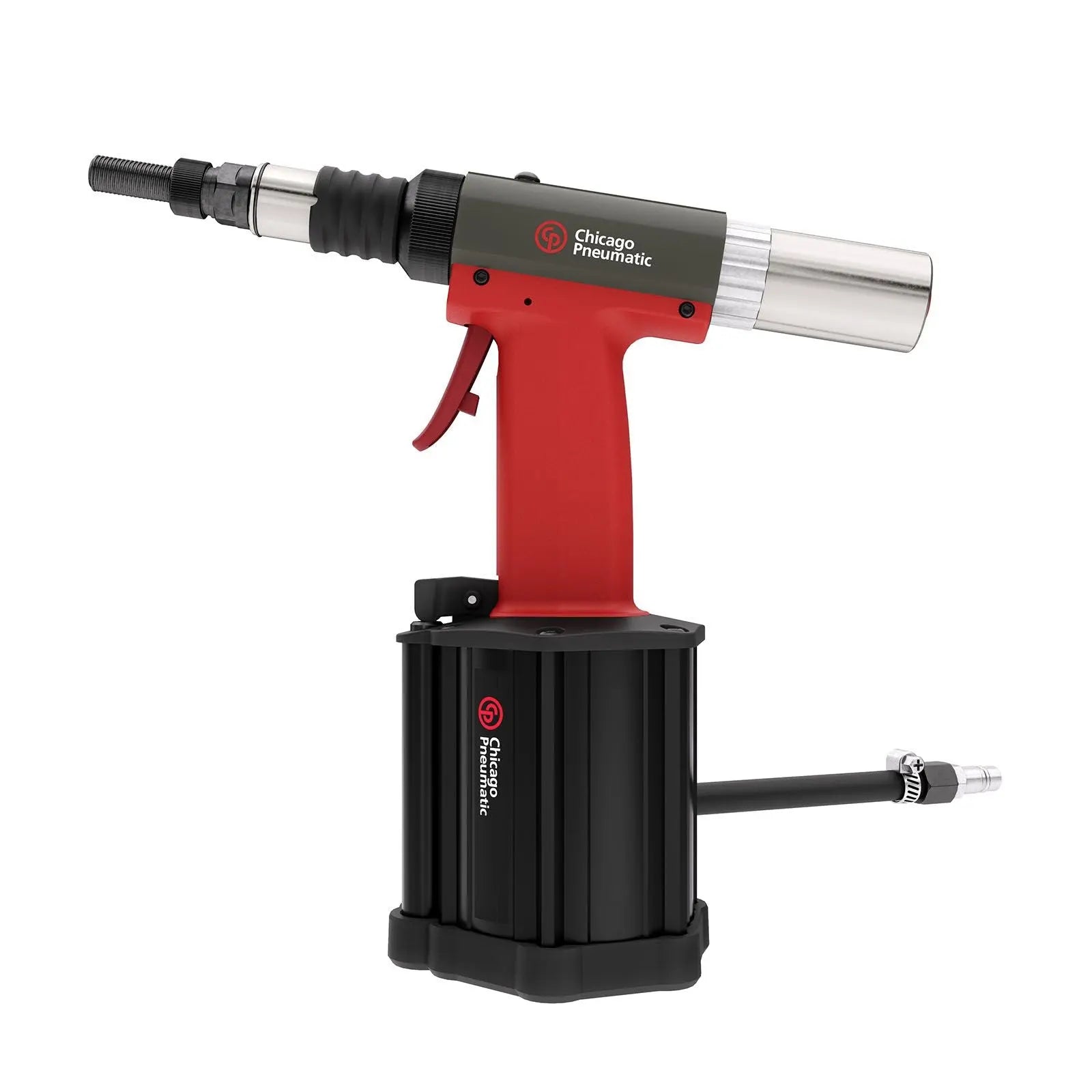

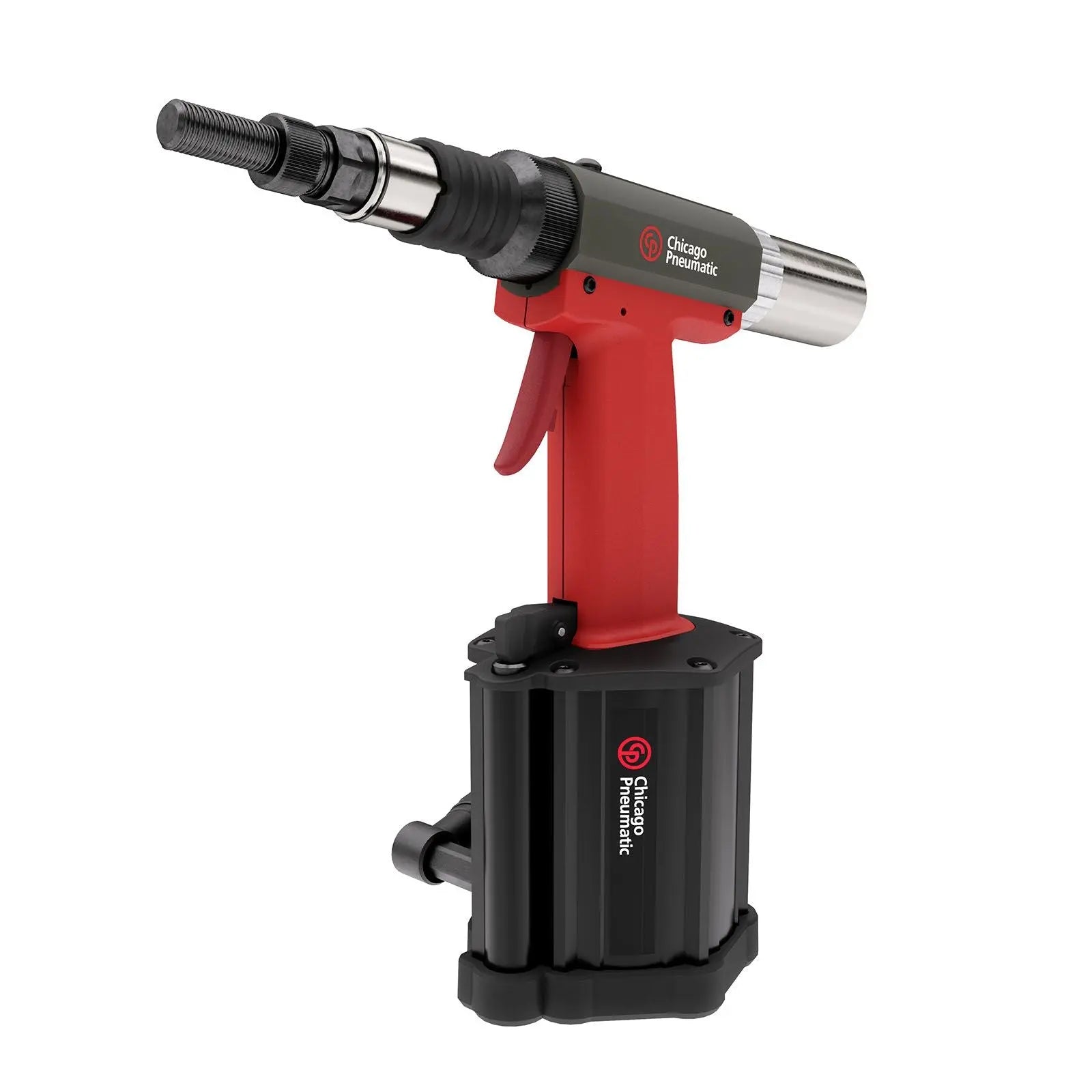

Chicago Pneumatic Nut Riveter, M3 - M12 - CP 8941098880
The CP9888 is part of a complete range of professional pneumatic blind riveters and blind nut riveter. The CP9888 can process rivet nuts from M3 to M12. A Pneumatic Nut Riveter is designed for quick and secure installation of rivet nuts in metal, plastic, and composite materials. Powered by compressed air, it delivers consistent pulling force, ensuring strong and accurate fastening with minimal operator effort.
Pack Includes:
- Blind Nut Riveter CP9888 (x1), Accessory Kit (x1)
Benefits:
- Powerful with high setting forces
- Comfortable and safe with low vibration and kickback
- Cold insulating composite handle higher comfort
- Flexible air connection with 360 degree rotation option
- Robust with an industrial-grade aluminum alloy cylinder material
Specifications:
- Length (L): 280mm
- Sound Power: 88.8 dB(A)
- Sound Pressure: 77.8 dB(A)
- Country of Origin: China
- Customs Tariff: 84671900
- Air Consumption at Load: 2.8 l/s
- Air Inlet Thread Size: 1/4 in
- Air Inlet Thread Type: NPT
- Height (H): 115mm
- Main Material Type: Aluminum, Composite Over-Sleeve
- Maximum Dynamic Air Working Pressure: 6.3 bar
- Max Rivet Size: M12 mm
- Maximum Stroke Length: 7mm
- Minimum Hose Diameter (5m Hose Length): 10mm
- Minimum Rivet Size: M3 mm
- Mouthpiece Delivered: 7
- Rivet Type: Insert
- Starting System: Trigger
- Uncertainty Vibration-K: 0.6 m/s sq
- Vibration: 2.5 m/s sq
- Width (W): 280mm
- Weight: 2.2 kg
