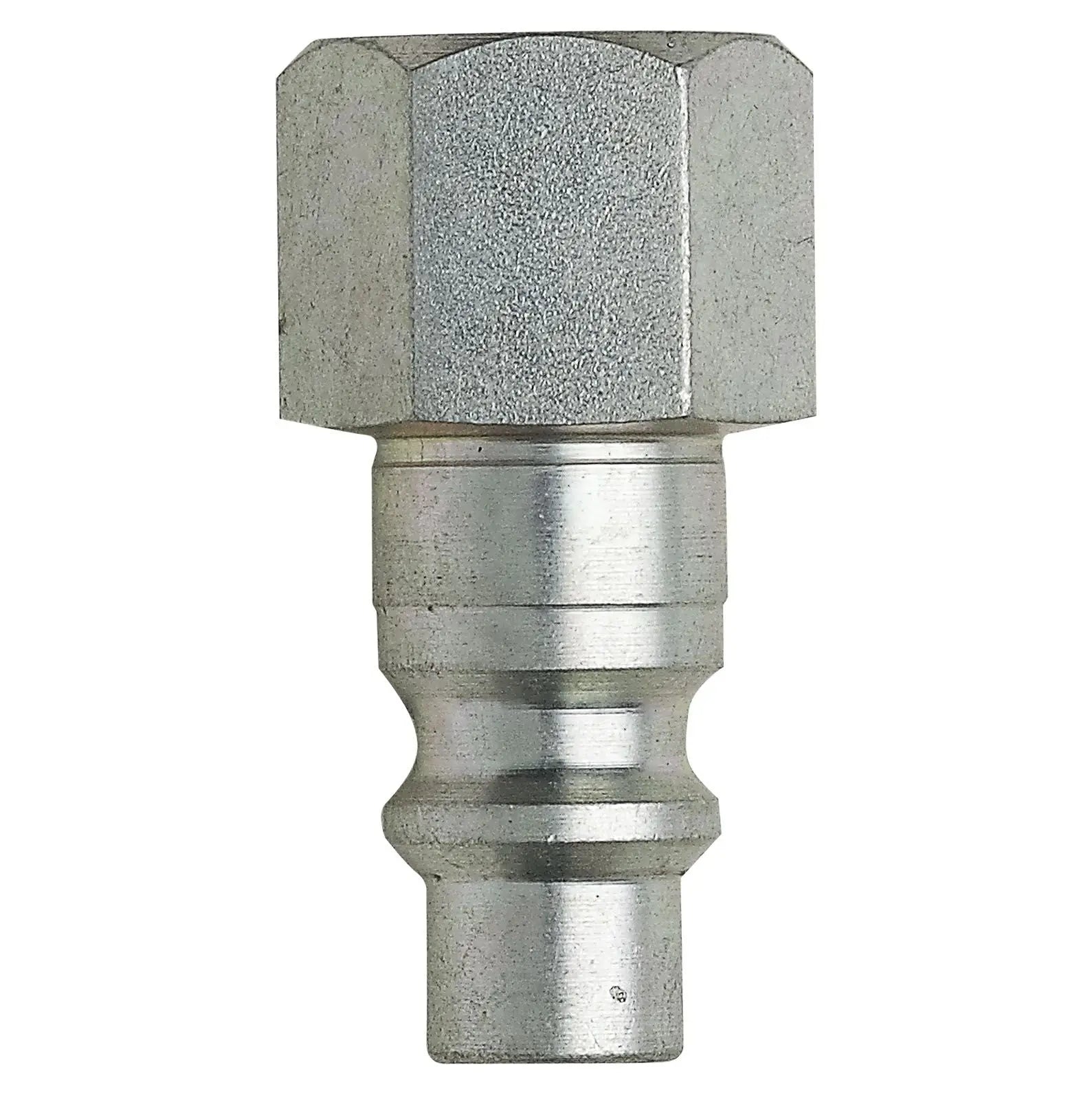

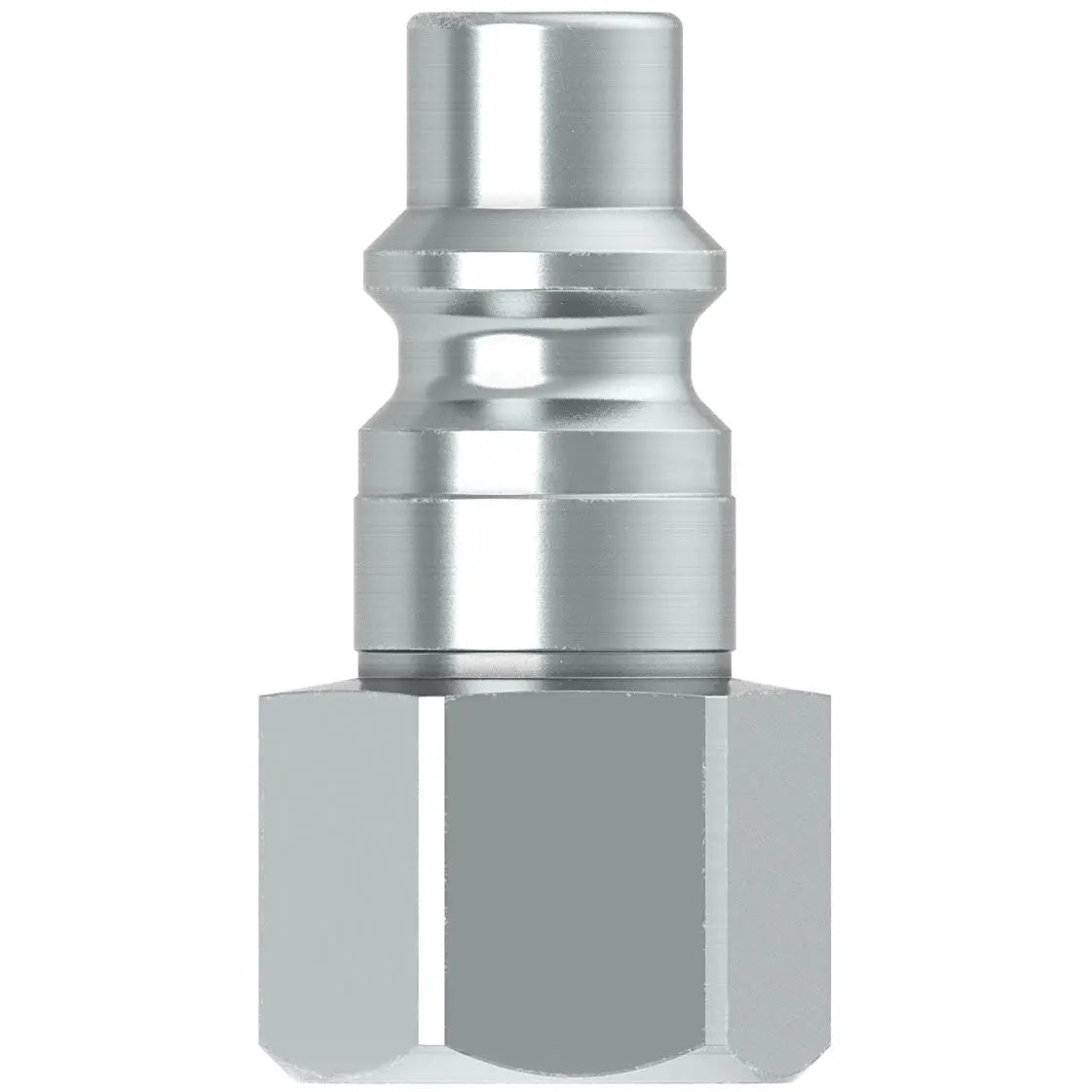

Chicago Pneumatic Set of 5 F08S 14 NPT Nipple - CP 6158134740
Chicago Pneumatic nipples serve as connectors between hoses, pipes, and other pneumatic components. They allow air to flow smoothly within the system. The compact and versatile design allows easy installation and removal, making it suitable for use in compressed air systems, and pneumatic tools. It supports efficient airflow passage with minimal pressure drop, ensuring optimal system performance.
Features:
- Pressure Drop Minimization - Ergonomic design eliminates air restriction, resulting in minimal pressure drop
- Rugged Environment Suitability - Chicago Pneumatic nipples are well-suited for rough environments
Specifications:
- Maximum Ambient Operating Temperature: 100 deg C
- Country of Origin: Sweden
- Customs Tariff: 73079910
- Air Connection Thread Gender: Female
- Air Connection Thread Size: 1/4 in
- Air Connection Thread Type: NPT
- Coupling Profile: ISO 6150B-08
- Main Material Type: Hardened Zinc Plated Steel
- Maximum Air Flow: 41 l/s
- Maximum Dynamic Air Working Pressure: 16 bar
- Minimum Ambient Operating Temperature: -20 deg C
