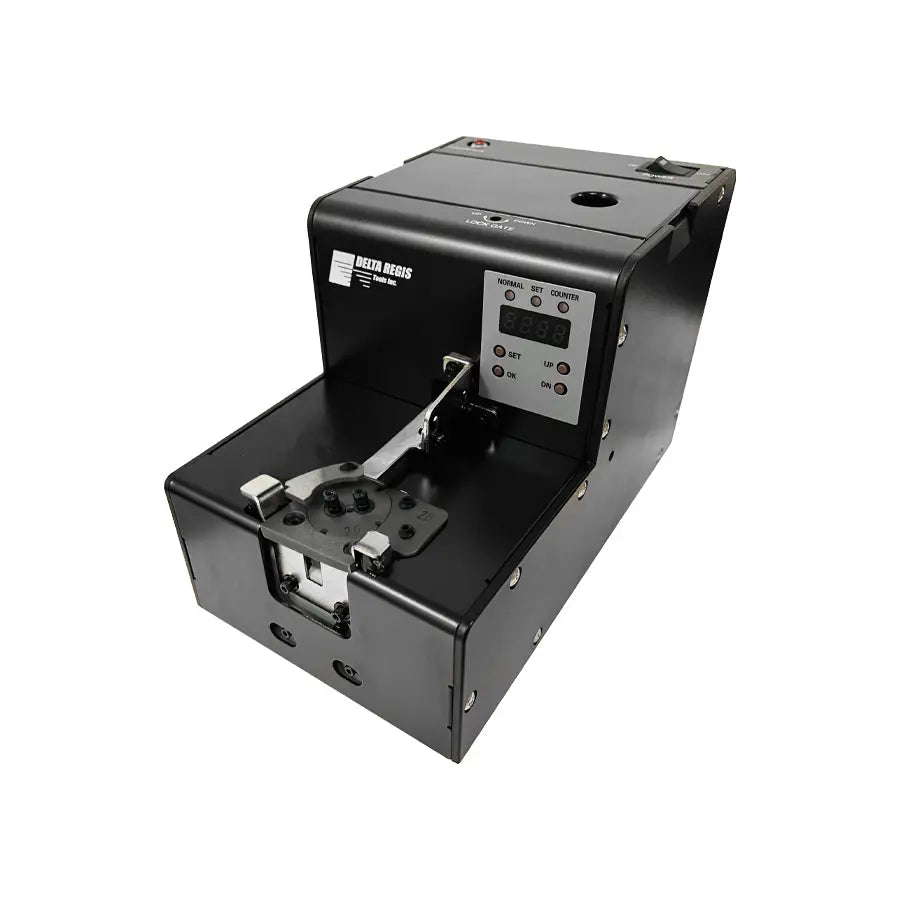

Delta Regis DRFF-519RE Screw Presenter, M2.0 - DRFF-519RE-2.0
The Screw Presenter is a compact, precision-engineered device designed to automatically feed and present screws for fast, efficient assembly operations. By delivering screws one at a time to the pickup point, it eliminates manual handling, improves productivity, and reduces operator fatigue.
Features:
- Ideal for robotic applications, magnetic or vacuum pick-up
- Extended fastener rail allows more fasteners to be lined up and ready for pick-up
- Signal output when screw is ready for pick-up/PLC counting
- Brushless driver motors for vibration and feeding
- Quiet operation
- Simple service and set-up
- Integrated screw counter with LED displays for assembly process feedback
- Small size - does not clutter work space
- Includes AC adapter, set-up tools and shims
Specifications:
- Screw Size: M2.0
- Compliance: CE Certified
- Dimensions: 216 x 126 x 150mm
- Input: 100 - 240VAC
- Output: 12VDC (AC Adapter)
- Hopper Size: 12.2 - 13.4 cu.in
- Maximum Screw Thread Length: 0.75 in
- Pick-Up Type: Robotic
- Weight: 3.1 kg
