Delta Regis Electric Torque Screwdriver, 4 - 12 Nm, 880 Push - CESLT855PFM

CESLT8_M Series Screwdrivers incorporate an aluminum front collar to facilitate fixture mounting and each driver includes an accessory side handle for handheld applications. 40VDC Series drivers are capable of developing high torques. These drivers must be used with the included side handle attachment or mounted in a torque reaction arm for operator safety.

Features:

• Precise Torque Control, Low Torque Reaction
• Quiet, Brushless DC motor means no carbon dust
• Compact body design results in exceptional maneuverability and operator comfort
• Less heat build-up and higher duty cycle capabilities than conventional brush motors
• 3 year motor warranty

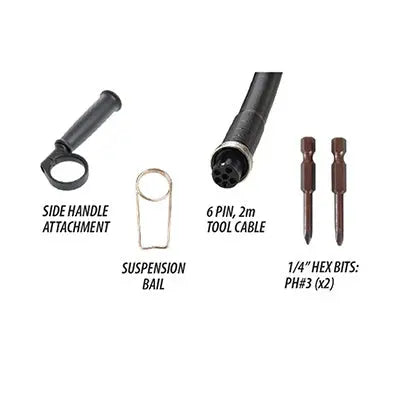

• Screwdriver includes an accessory side handle and a 6-pin, 2m long cable for connecting to a compatible brushless controller (controller required - sold separately), torque lock sleeve
• CE, RoHS Compliant

Specifications:

• Start Type: Push
• Speed (RPM): 880/660
• Drive Size: 1/4 in Hexagon Drive
• ESD Safe / Non ESD Safe: Non ESD Safe
• Class: 40V High Torque Shut-Off
• Compliance: CE / RoHS
• Diameter: 1.8 in
• Overall Length: 297mm
• Style: Inline
• Torque Range: 36 - 106 in.lbs
• Overall Weight: 2.6 lbs

Digital Assets:

• Manual
• Part Sheet
• Dimensional Drawings
