Gedore 1/2 in 6-Point VDE Socket Wrench Insert, 22mm - GD 6123400

A VDE Socket Wrench Insert is an insulated socket head attachment designed for use with insulated VDE ratchet or torque handles when working on live electrical systems up to 1000V AC / 1500V DC. It’s engineered to provide maximum user protection while maintaining mechanical performance.

Features:

• Hexagonal, manually operated
• Includes square drive as per DIN 3120 - C 12.5, ISO 1174
• GEDORE vanadium steel 31CrV3
• Protective insulation up to 1000 V, according to EN 60900/IEC 60900, 2-fold Check-Tool insulation
• 16 - 18 mm insulation overhang

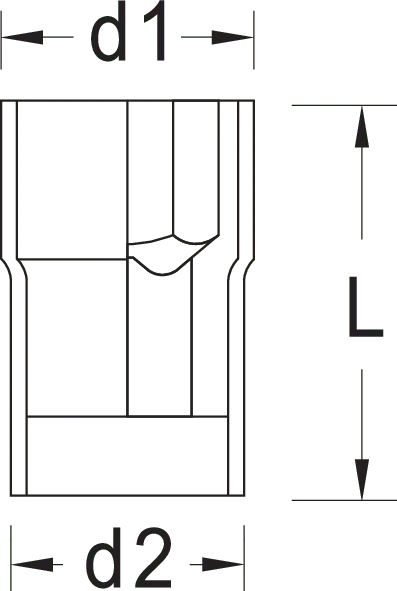

• The diameter d1 for the dimensions 27, 30 and 32 is not standardized

Specifications:

• Square Drive Connector: 1/2"
• Square Drive Mount: 12.5mm
• Insert Diameter 1: 34.5mm
• Insert Diameter 2: 27mm
• Material: Chrome-Vanadium Steel 31CrV3
• Overall Weight: 0.27 lbs
• Standard: DIN 3120 - C 12,5 ISO 1174 EN 60900/IEC60900
• Surface: 2-Fold Check-Tool Insulation, VDE Insulated up to 1000 V
• Overall Length: 57.5mm
• Overall Width: 34.5mm
• Width Across Flats 1: 22mm
• Working Length: 57.5mm
