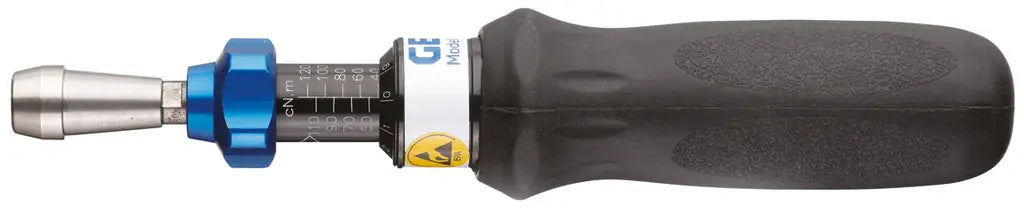

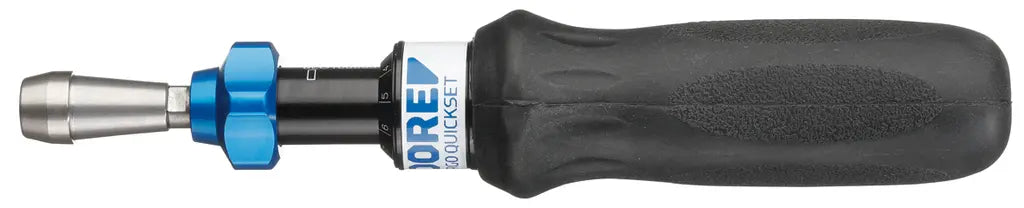

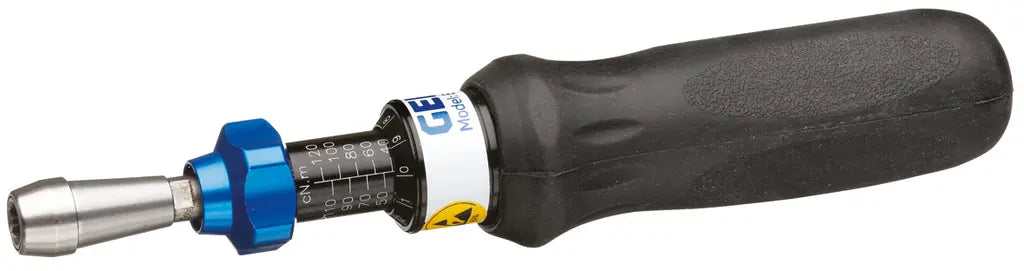

Gedore 1/4 in Torque Screwdriver, 2 - 12 lbf.in, Length 183mm - GD 2293544
A torque screwdriver is a precision tool specifically engineered to apply a controlled amount of torque when tightening screws, ensuring consistent and accurate fastening without over-tightening or damaging the material. Essential in industries such as electronics, aerospace, automotive, medical device assembly, and precision manufacturing, this tool is ideal for tasks where exact torque specifications are critical.
Use:
- Controlled screw tightening in the range of 0.8 - 80 lbf.in / 12 - 160 ozf.in
- High-speed, controlled tightening enables serial production
- Electrical and electronic hardware industry, instrument-making industry and industrial manufacturing or in quality control
Features:
- Adjustable Torque Wrench - with Scale
- With 1/4" female hexagon drive for use with 1/4" hexagon bits as per DIN 3126 - C 6.3
- Working accuracy - +/- 6% tolerance of set torque
- Acc. to DIN EN ISO 6789, traceable to national standards
- Precision radial ball clutch and cam design for controlled bi-directional tightening
- Precision mechanism slips very noticeably when the pre-set value is achieved
- Automatic resetting to the starting position
- Positive-Lock system automatically fixes the set value preventing it from wrong setting
- 4 Models ranging from 0.8 - 80 lbf.in / 2 models ranging from 12 - 160 ozf.in
- Micrometer scale graduation - 1 cNm resp 0.1 Nm
- EPA-conformant (Electrostatic Protected Area), for use in sensitive electrostatic applications
- Scope of Delivery:
- Torque screwdriver Type QSA
- Test certificate acc. to DIN EN ISO 6789
- Delivery in sturdy cardboard packaging
Specifications:
- Hexagon Drive Connector: 1/4"
- Drive Type: Bit Holder
- Graduation: 1 lbf.in
- Overall Weight: 0.51 lbs
- Precision: +/- 6 %
- Range of Application: Assembly Production Quality Control Series, Assembly Maintenance and Repair
- Test Certificate: DIN EN ISO 6789-2:2017
- Tightening Direction: Left and Right
- Maximum Torque: 2 lbf.in
- Minimum Torque: 12 lbf.in
- Overall Height: 34.3mm
- Overall Length: 183mm
- Trigger Mechanism: Friction Clutch
