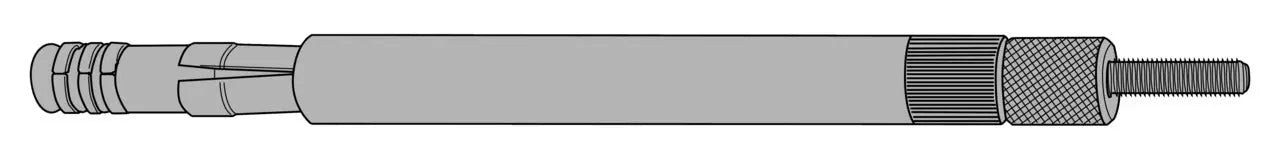

Gedore 2102781 Clutch-Centring Pin Set, 15 - 28mm - GD KL-0500-405

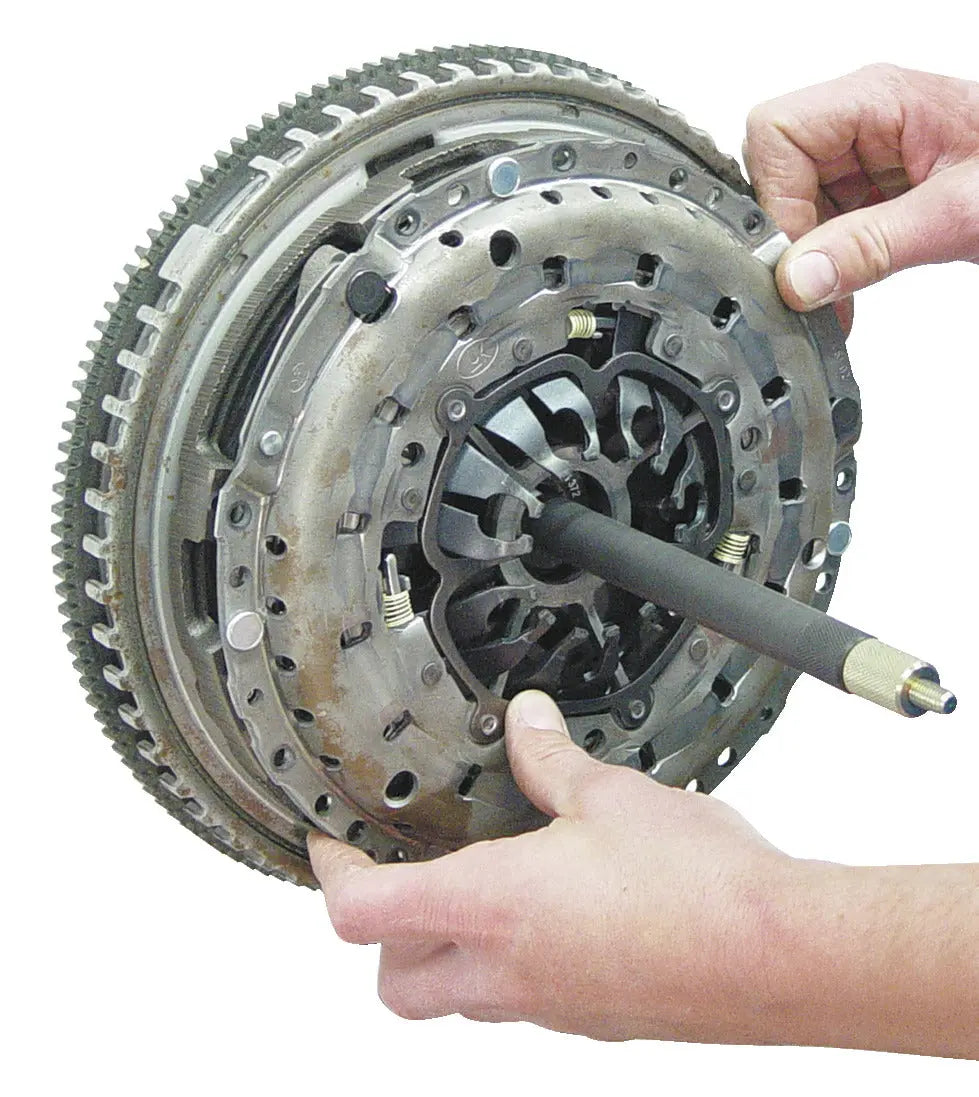

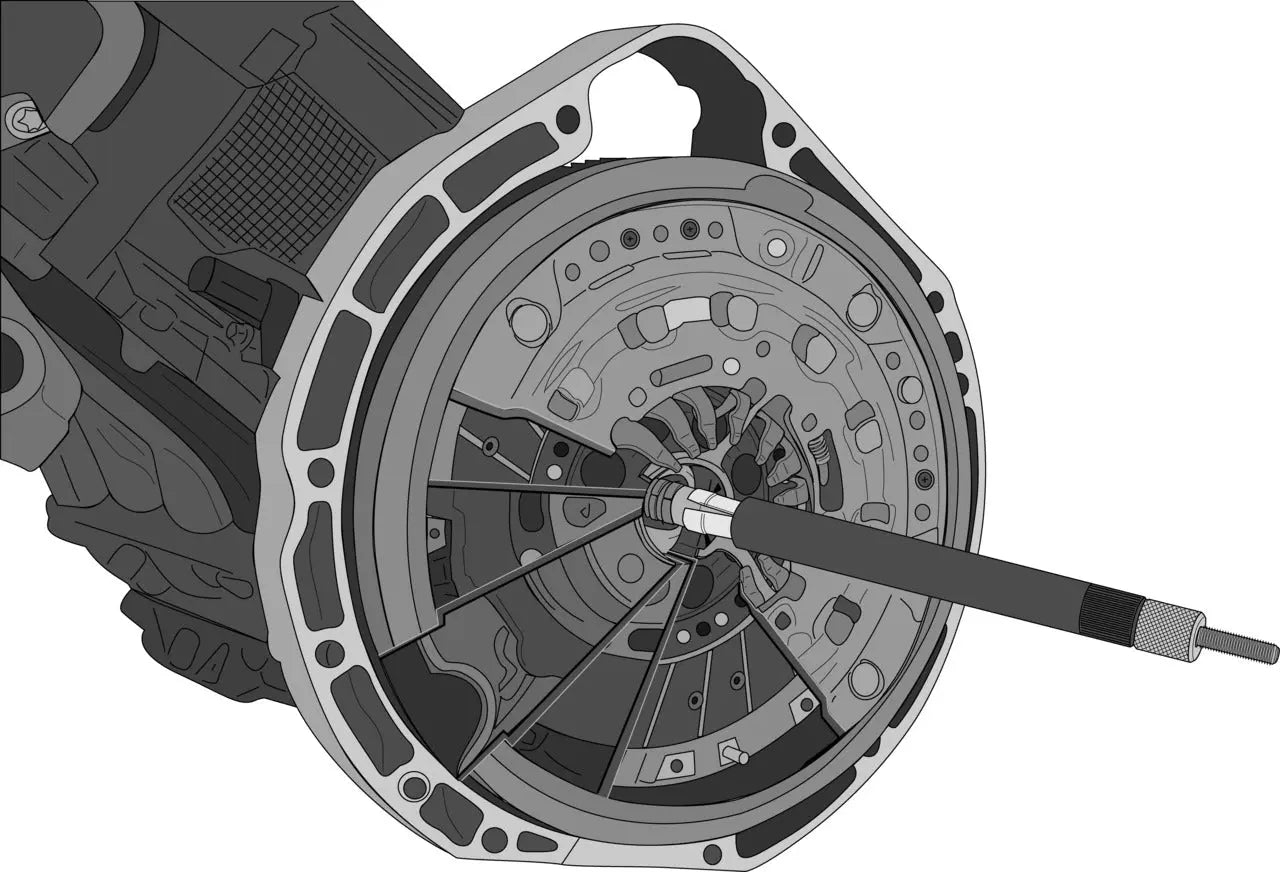

The newly developed clutch aligner KL-0500-405 enables clutch discs to be centered also on vehicles that do not feature a pilot bearing in the crankshaft. The two clamping-/centring elements ensure, on the first clamping element ( Diameter 15 - 28mm) the accurate centring in the clutch disc, and on the second element ( Diameter 12 - 28mm) the accurate centring in the pilot bearing, respectively the crankshaft bore. Even clutches on engines with the crankshaft bore Diameter larger than the clutch disc hub Diameter can be aligned neatly and accurately thanks to this tool. The two clamping / centring elements ensure precise centring in the clutch disc on the first clamping element ( Diameter 15 - 28 mm), and precise centring in the guide bearing or crankshaft hole on the second clamping element ( Diameter 12 - 28 mm). Even clutches on engines with the crankshaft bore Diameter larger than the clutch disc hub Diameter can be aligned neatly and accurately thanks to this tool.
Features:
- Suitable for SAC clutches, e.g. on vehicles without guide bearing
- For a precise centring of the clutch disc

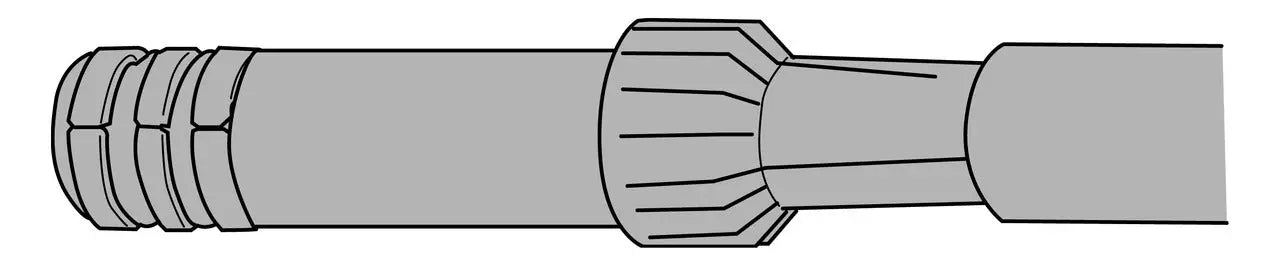

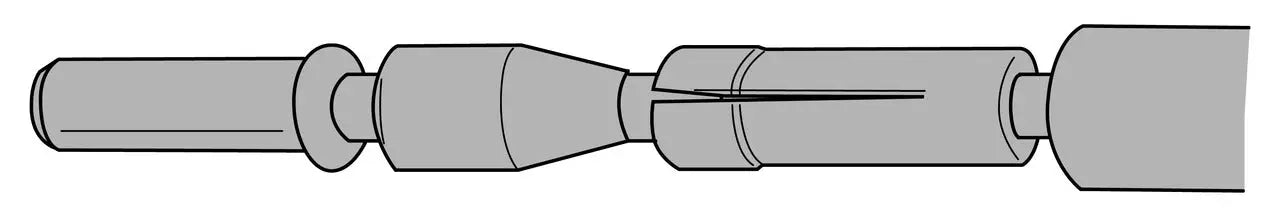

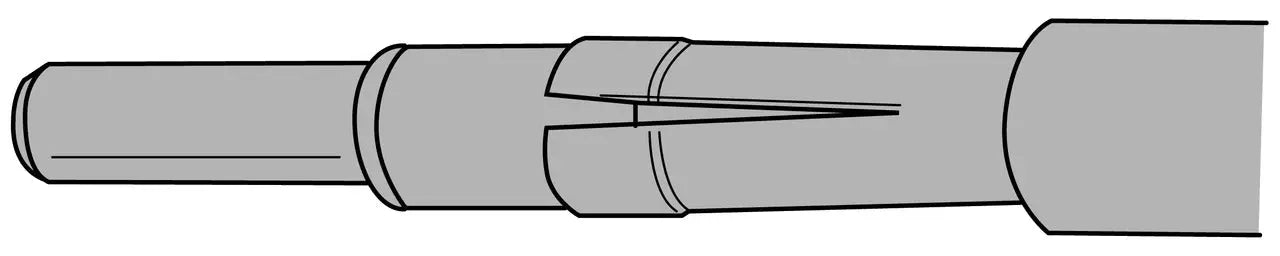

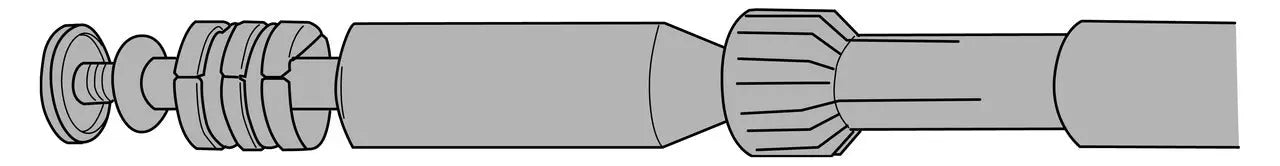

- Two clamping / centring elements (for clutch disc and guide bearing / crankshaft bore)
- Clutches with a larger crankshaft bore as the clutch disc hub diameter can be centered
- Suitable for SAC clutches
- Especially required for vehicles without guide bearing in the crankshaft
Specifications:
- Suitability: Universal
- Clamping Range (Max.): 28mm
- Clamping Range (Min.): 15mm

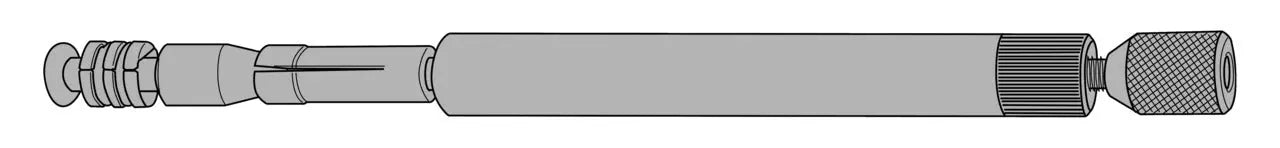

- Length Basic Tool: 375mm
- Weight: 1.94 lbs
- Country of Origin: Germany

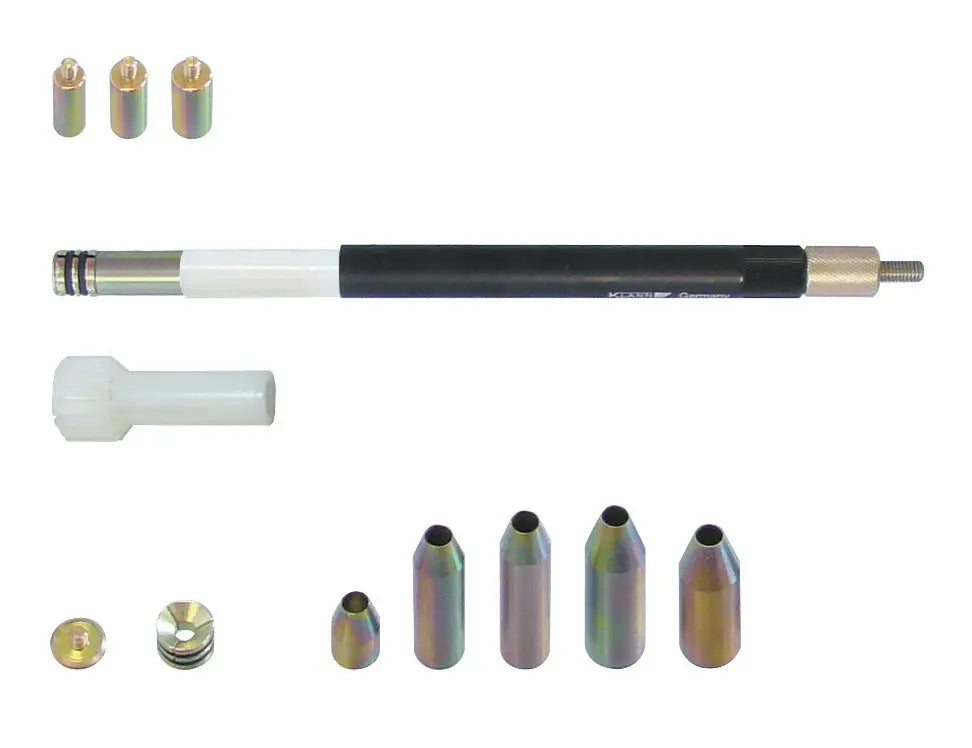

Scope of Delivery:
1 x KL-0500-4050 - Guide tube complete, 1 x KL-0500-4057-1 - Centring mandrel with a diameter of 12mm, 1 x KL-0500-4057-2 - Centring mandrel with a diameter of 14mm, 1 x KL-0500-4057-3 - Centring mandrel with a diameter of 15mm, 1 x KL-0069-0006 - Clamping cone size 2 - 22mm, 1 x KL-0500-4055 - Cone attachment, 1 x KL-0500-4054 - Clamping set with a diameter 20mm, 1 x KL-0500-4056-2 - Sliding cone with a diameter of 15mm, 40mm long, 1 x KL-0500-4056-3 - Sliding cone with a diameter of 15mm, 67mm long, 1 x KL-0500-4056-4 - Sliding cone with a diameter of 15mm, 75mm long, 1 x KL-0500-4056-6 - Sliding cone with a diameter of 18mm, 75mm long, 1 x KL-0500-4056-5 - Sliding cone with a diameter of 18mm, 67mm long
