Gedore 2372290 Wheel Bearing Toolkit, Ford Transit, 97.5mm, 111mm - GD KL-0040-860

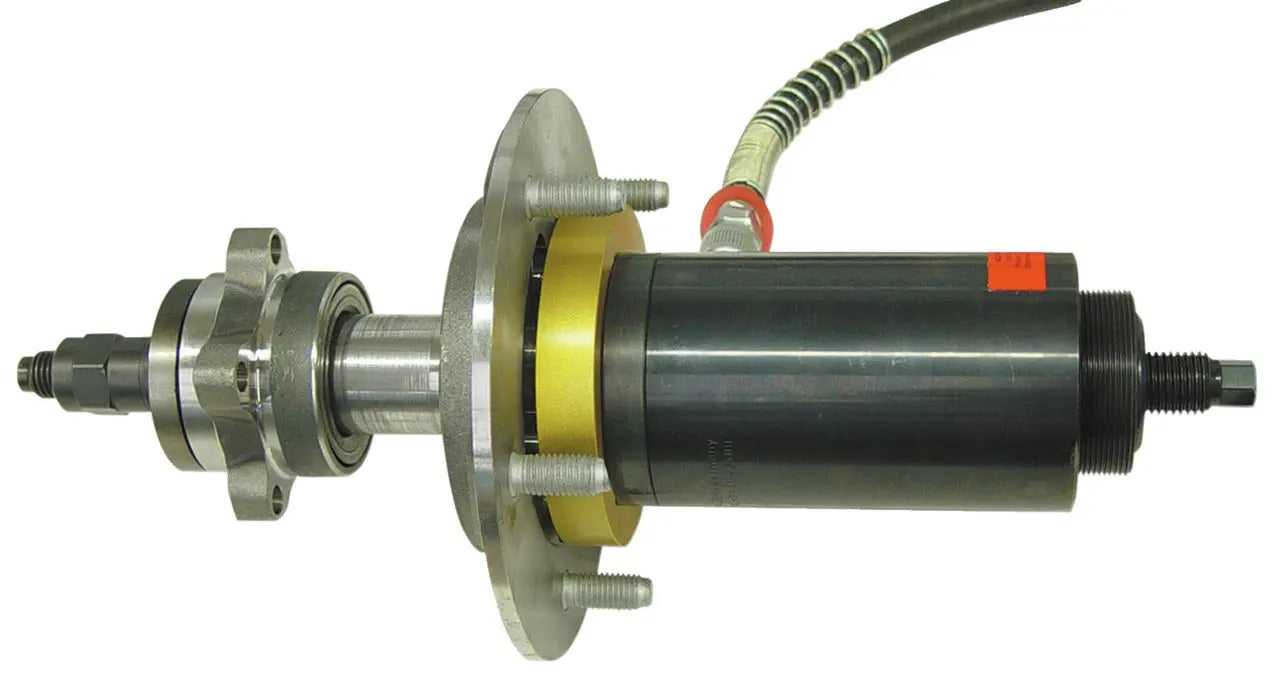

The wheel bearing tool KL-0040-860 enables front axle wheel bearings to be removed and installed quickly and without any trouble. For this, the hydraulic cylinder KL-0040-2800 is necessary. To replace a brake disc or a wheel bearing, it is usually necessary to pull out the wheel bearing along with the hub and brake disc from the wheel bearing housing. Thanks to this tool, the removal and installation of the wheel bearing can be carried out in-situ on the vehicle within just a few minutes, without having to dismount the suspension strut. Required, for example, when replacing the wheel bearing and brake disc, as these are located behind the wheel hub. All work can be carried out directly on the vehicle within a few minutes. A time-consuming removal and installation of the wheel bearing housing as well as a resulting wheel alignment is not necessary.
Features:
- Suitable for the front axle of Ford Transit/Tourneo (My. 2000-2006 / 2006-2014 / from 2014) with front as well as all-wheel drive (bolt circle- Diameter at brake disc bolts 97,5 and 111 mm)
- For removing the bolted wheel bearing unit with wheel hub and brake disc
- For removing and pressing in the wheel hub on the wheel bearing unit
- Advantages - No removal and installation of the wheel bearing housing
- No wheel alignment necessary
- Fits with the front axle on Ford Transit/Tourneo (2000-2006 / 2006-2014 / 2014 onwards) with front and all-wheel drive and a hole circle diameter of 97.5 mm and 111 mm of the brake disc fastening screws
Specifications:
- Suitability: Ford
- Drive Type: Hydraulic
- Load (Max.): 28000 kgs
- Weight: 10.14 lbs
- Wheel Stud Circle: 97.5
- Wheel Stud Circle (2): 111mm
- Country of Origin: Germany

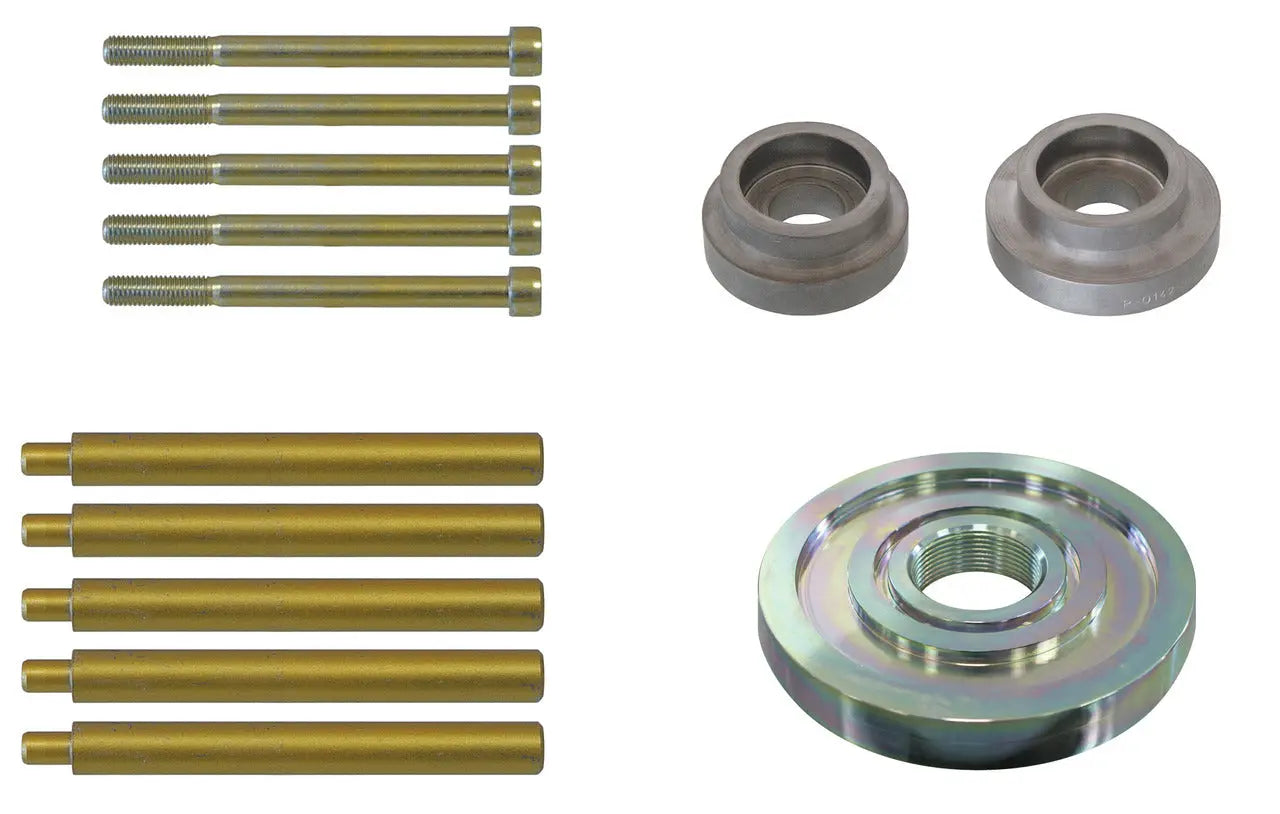

Scope of Delivery:
1 x KL-0040-8601 - Pressure disc diameter 77mm, 1 x KL-0040-8602 - Pressure disc diameter 68mm, 1 x KL-0040-8501 A - Pressure ring, 5 x KL-0039-1823-4 - Cylinder screw M10 x 120, 5 x KL-0040-8503 - Dorn
