Gedore 2480239 Wheel Bearing Toolkit, VW T5, Diameter 85mm - GD KL-0041-451 B

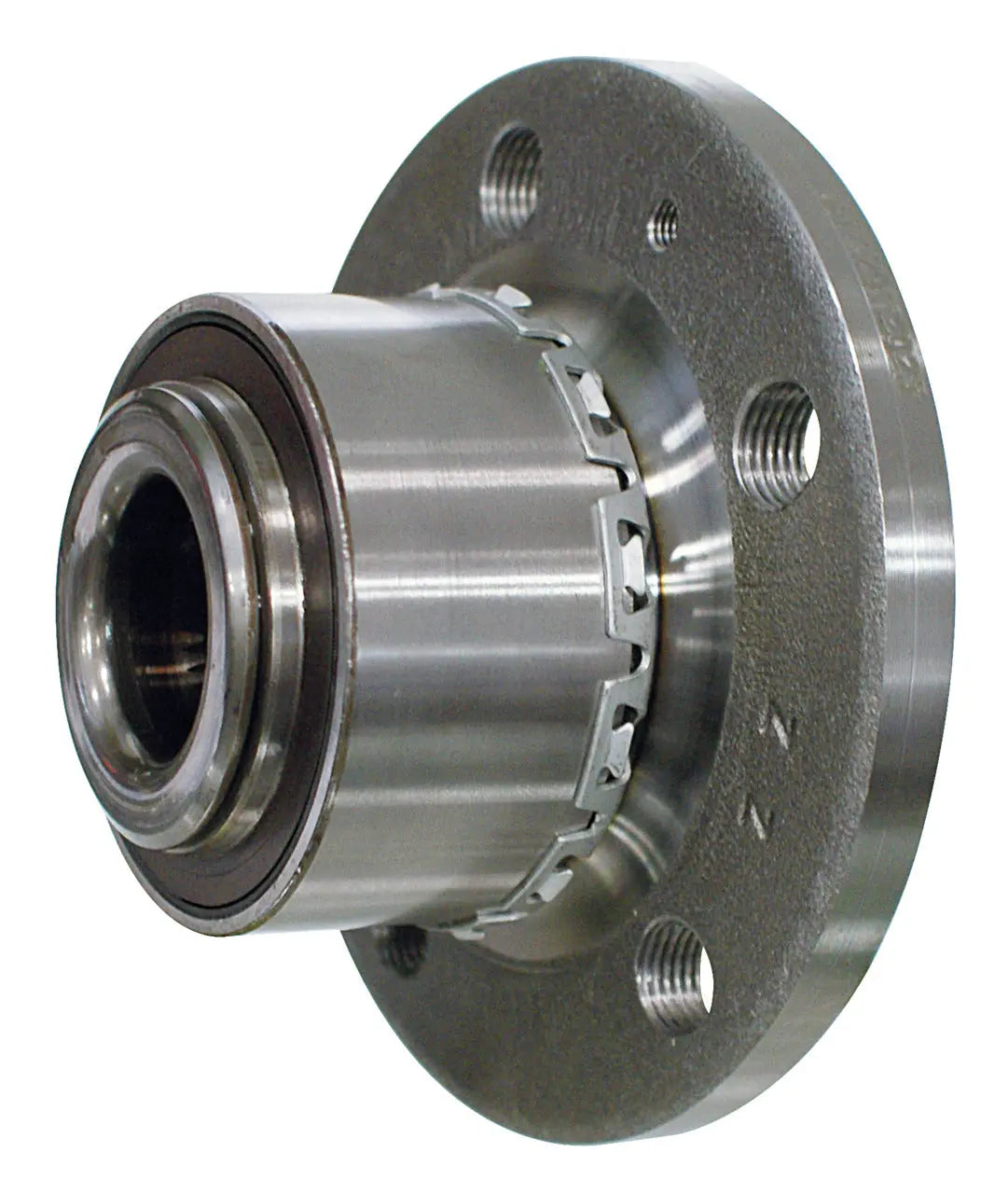

The upgrade kit KL-0041-451 B enables the quick and safe installation of wheel hub bearing units without the risk of damaging them. For this, the hydraulic cylinder KL-0040-2500, retaining adaptor KL-0039-1002, retaining adaptor KL-0039-1003, pull spindle M20 KL-0039-1920-1 and clamping nut KL-0040-3009 are necessary. The special design of the tool ensures that during installation the applied press-in force only acts on the bearing outer ring and not on the wheel hub This prevents the bearing from being damaged. Without this tool kit, it is nearly impossible to professionally install the wheel hub bearing unit.
Features:
- Suitable for vehicles with a bearing diameter of 85 mm (with or without locking ring)
- e.g. VW T5 front and rear axle, VW Touareg and Porsche Cayenne front axle
- Enables a quick and secure installation of wheel hub bearing units
- No damage to the bearing as pressure is only applied via the outer bearing ring
- Additional drive parts required
- Suitable for vehicles with a wheel bearing with 85 mm diameter (with or without locking ring), e.g. on VW T5 (type 7H/7E), T6 (type SG/SH) on the front and rear axle as well as VW Touraeg and Porsche Cayenne on the front axle
Specifications:
- Suitability: Universal, VW, Porsche
- Drive Type: Hydraulic
- Inner Diameter: 75mm
- Outer Diameter: 177mm
- Outer Diameter (Bearing): 85mm
- Weight: 8.82 lbs
- Country of Origin: Germany
Scope of Delivery:
1 x KL-0041-4500 B - Clamping jaw pair, diameter 85mm, 5 x KL-0041-3931 - Thrust screw, M14 x 1.5, 1 x KL-0039-1502 - Thrust ring, diameter 93mm, 1 x KL-0039-1803 - Centring sleeve, long, diameter 29.7mm, 1 x KL-0039-1273 - Thrust ring, diameter 73mm, 1 x KL-0039-1283 - Thrust ring, diameter 83mm, 1 x KL-0039-1289 - Thrust ring, diameter 89mm
