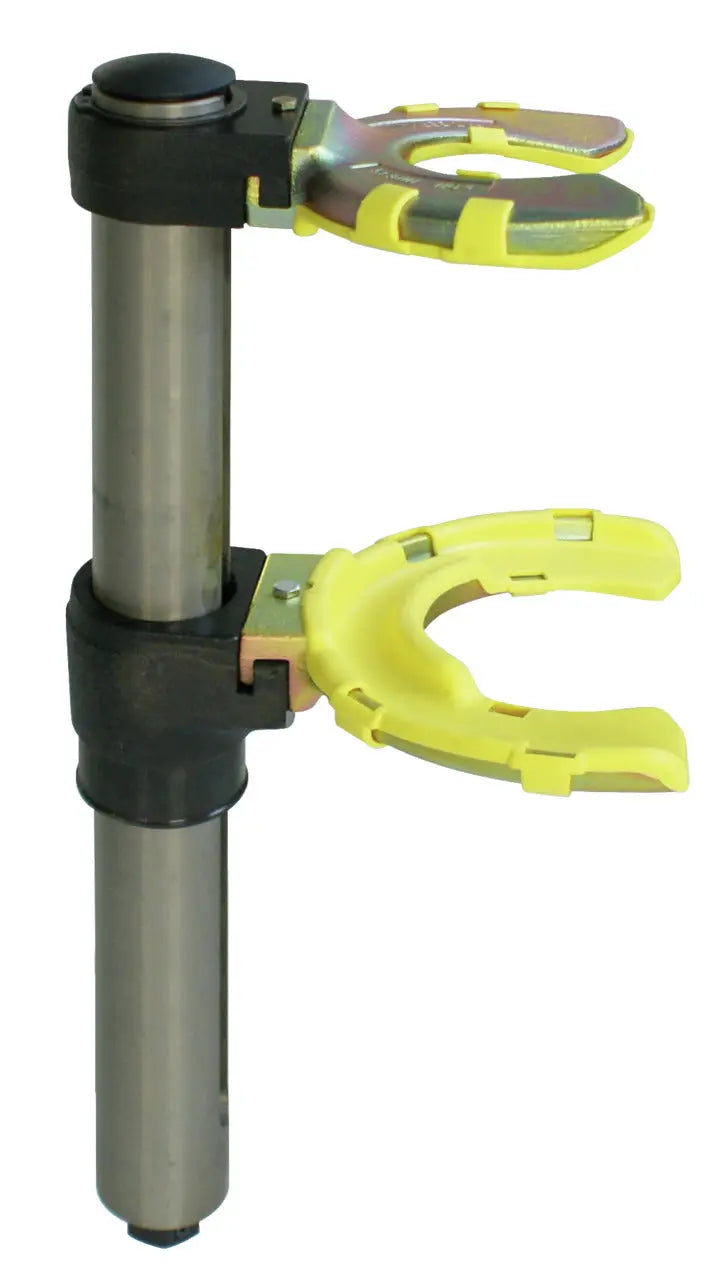

Gedore 2480328 Spring Compressor Set with Protective Insert, Maximum Load 17.500 N - GD KL-0015 SP

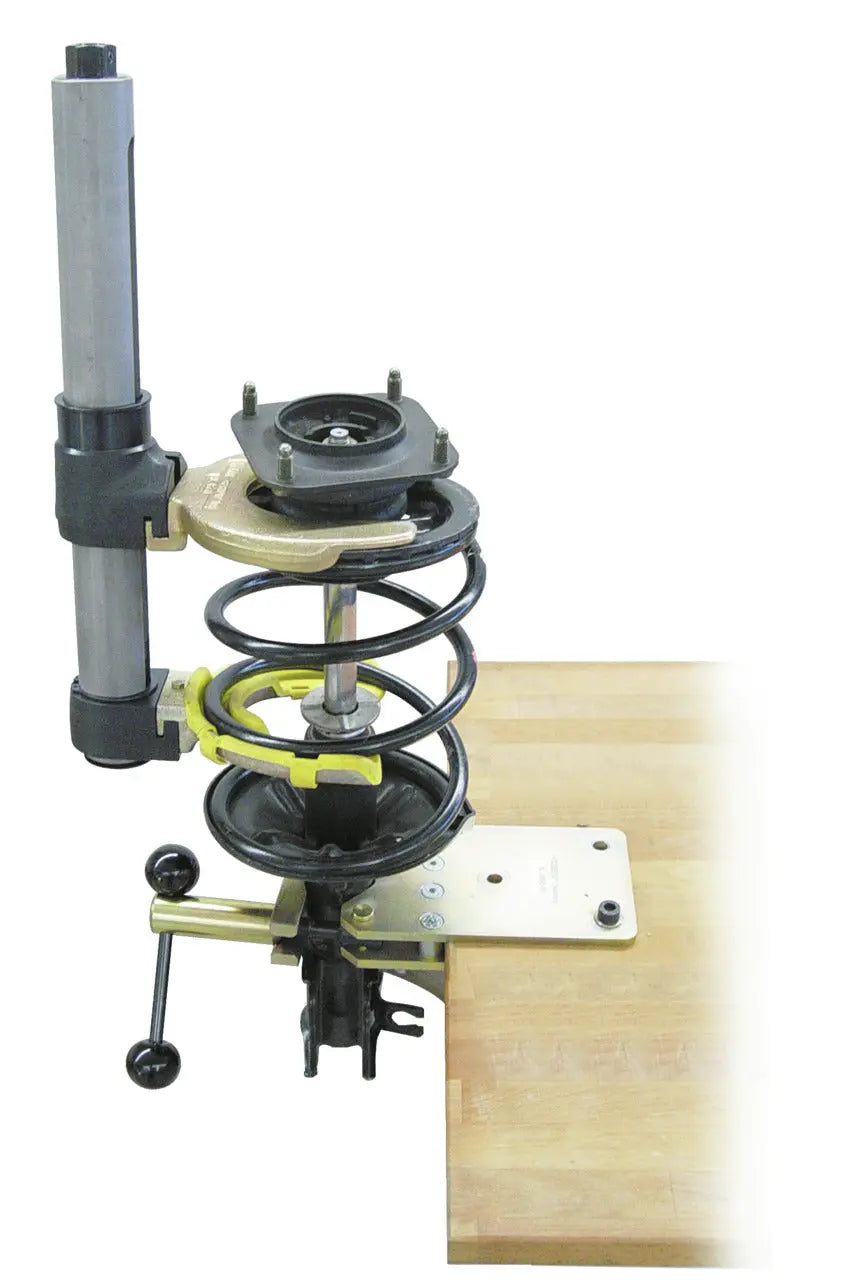

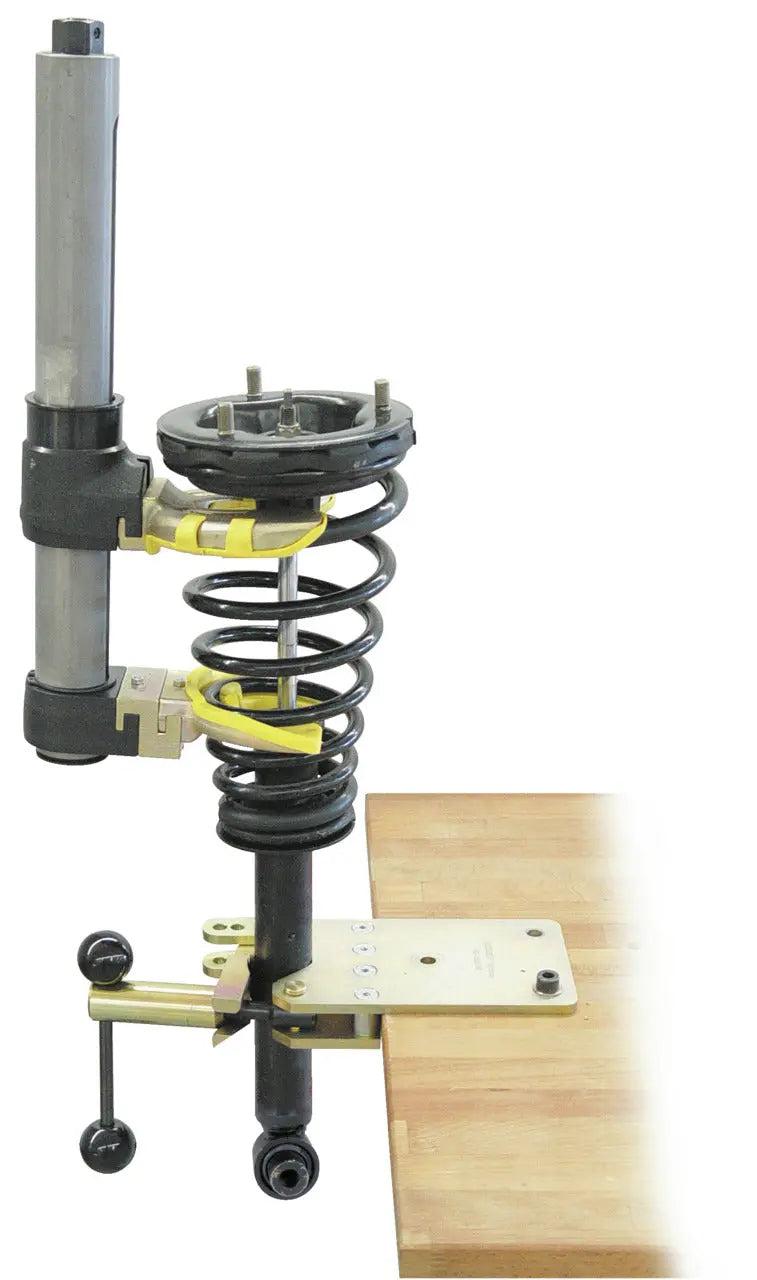

Universal spring compressor with prolonged operating stroke The spring compressor KL-0015 SP, including spring retaining pairs KL-1510 SP size 1N and KL-1520 SP size 2N is suitable for replacing the right-hand coil springs and shock absorbers on passenger car chassis systems. Due to the anti-slip protective inserts, the spring is prevented from turning out and the sensitive spring surface coating from being damaged. Pros: Self-locking of the mobile holder / lifting carriage Released by the trade association Can also be used for conical springs Plastic protective inserts.
Features:

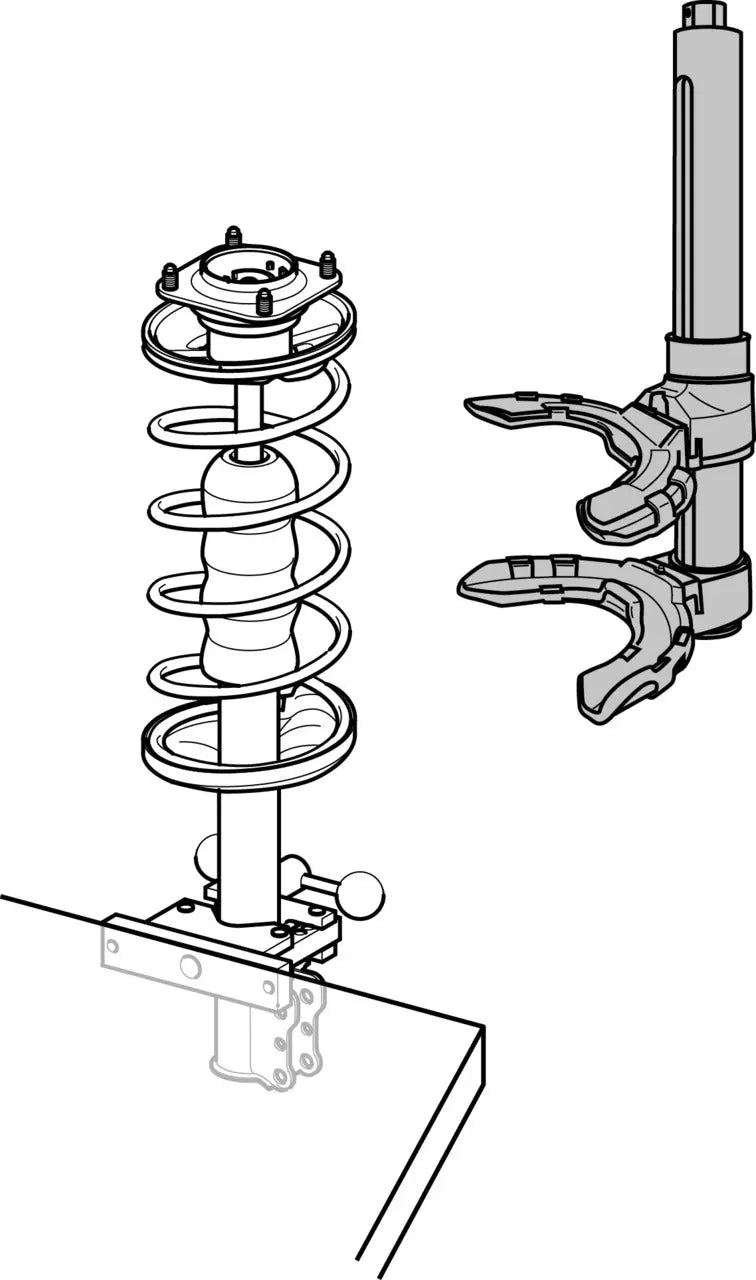

- Suitable for suspension strut axles with a spring diameter of 90 mm (inside) - 190 mm (outside)

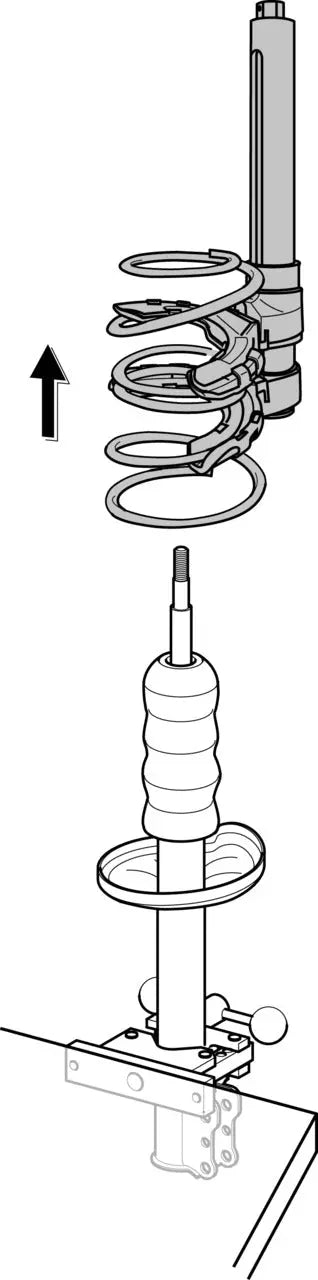

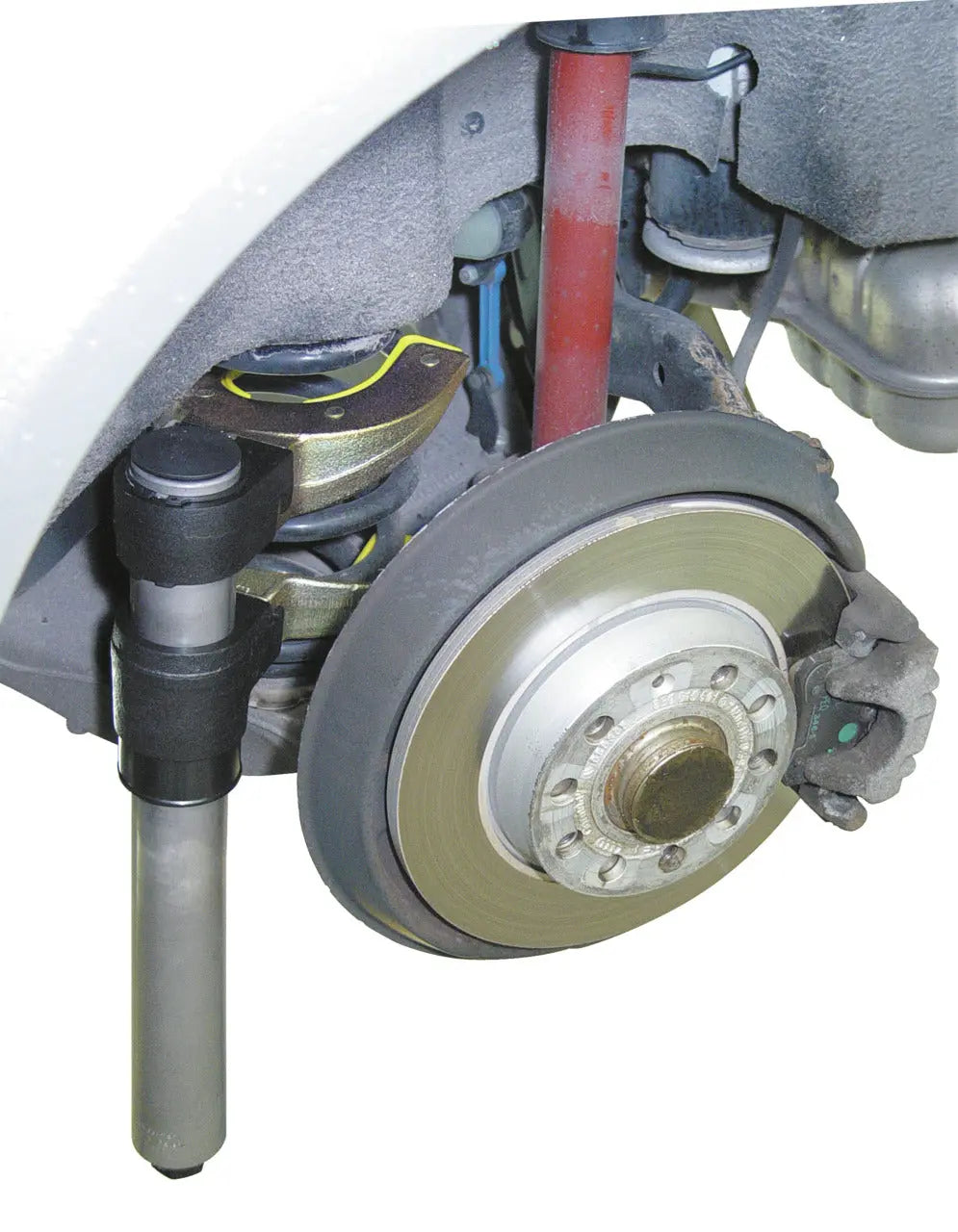

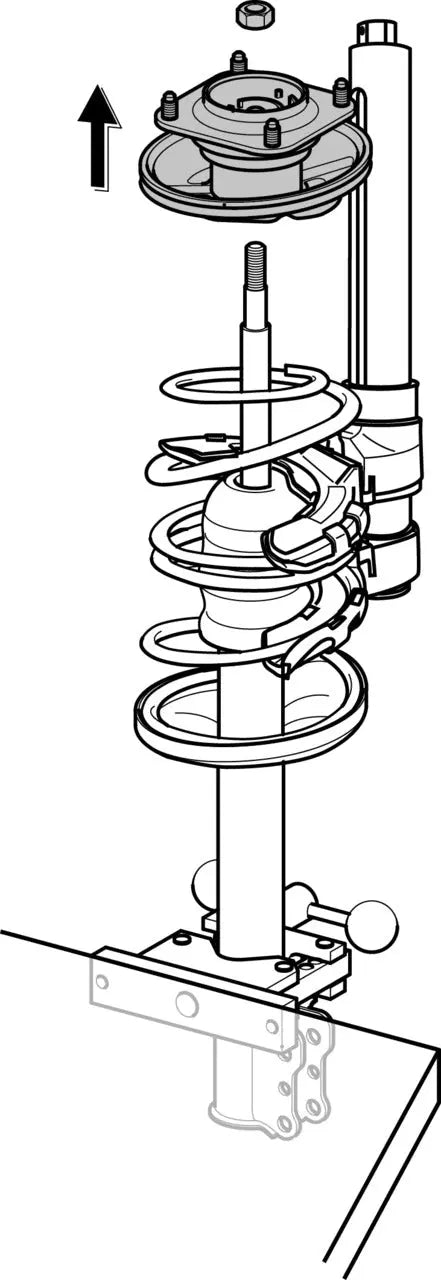

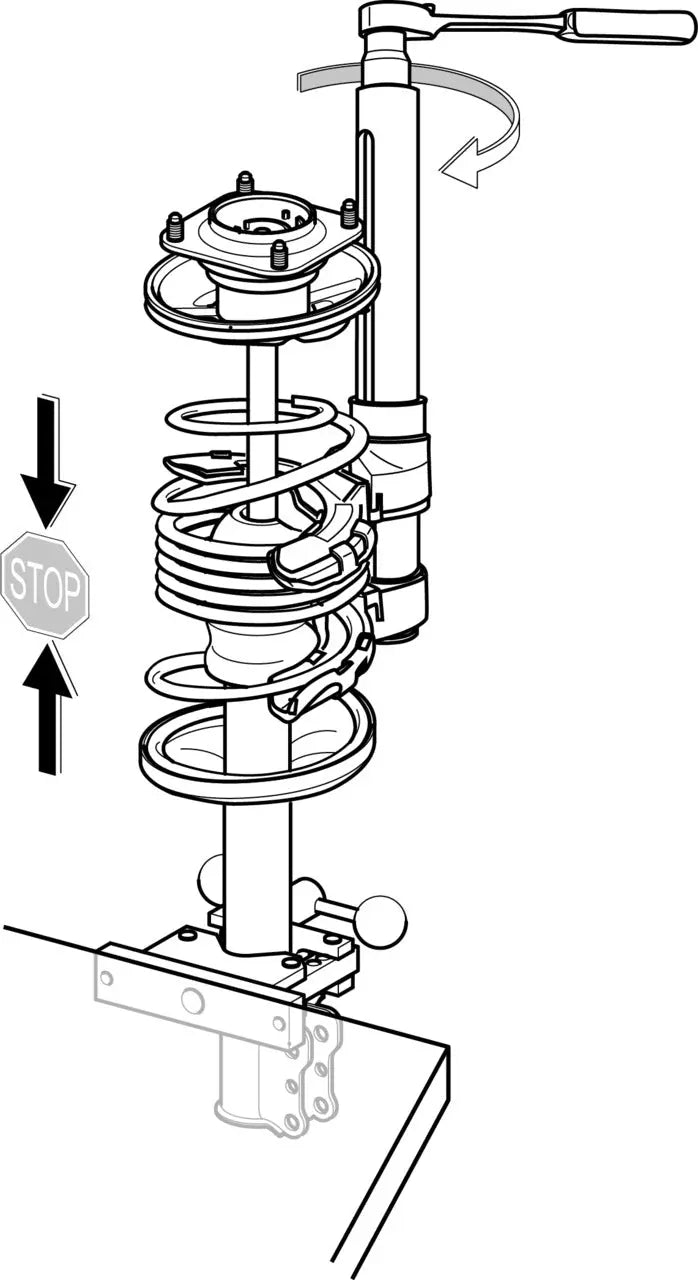

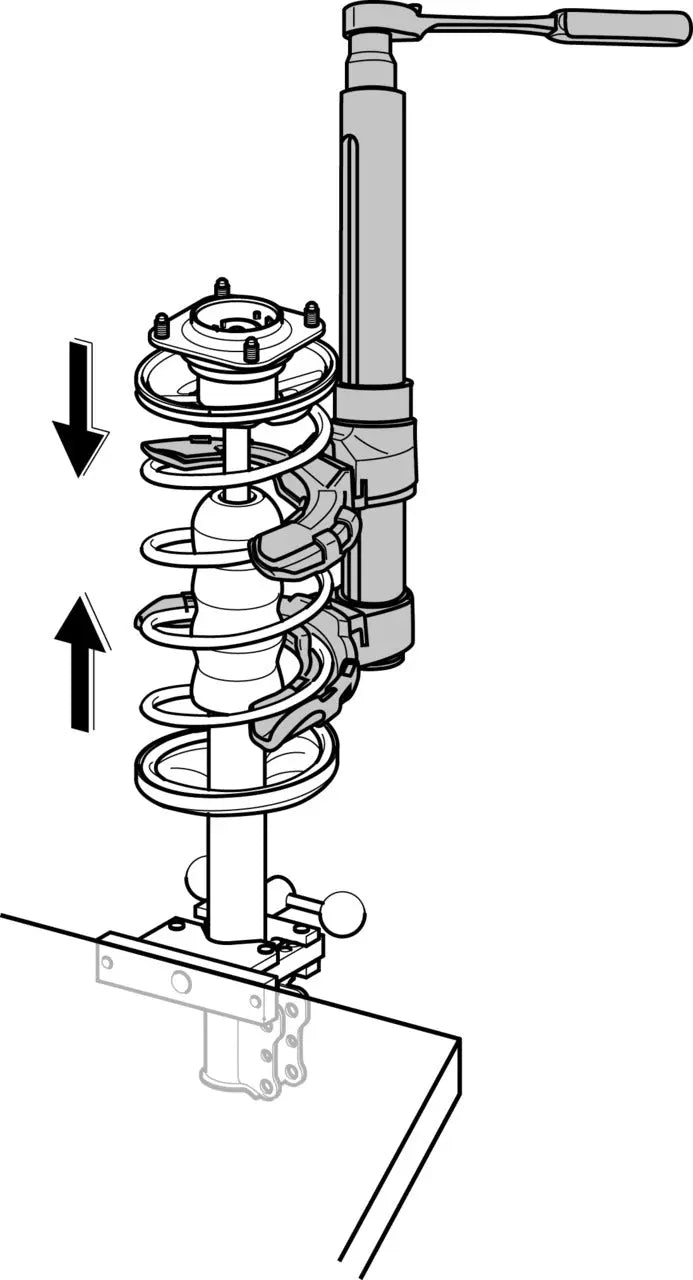

- For replacing the right-hand coil springs and shock absorbers
- With anti-slip and surface protecting protective inserts

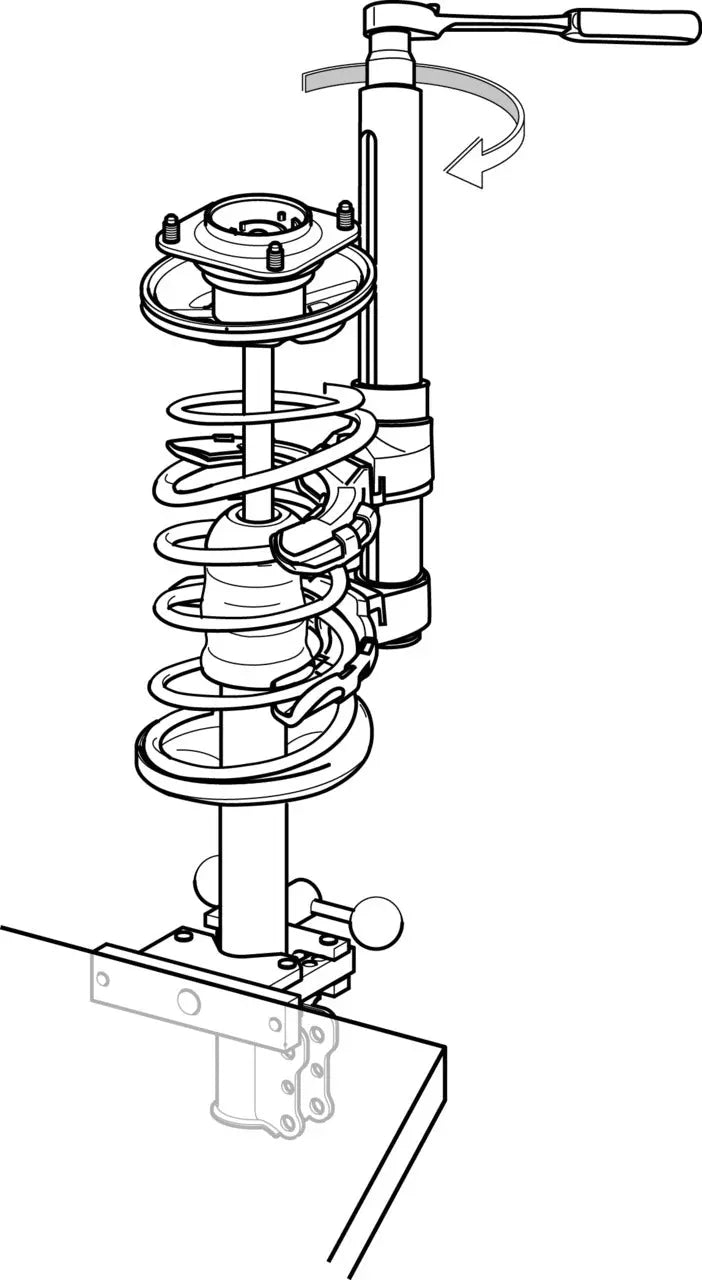

- Self-locking mechanism of the movable holder / lifting carriage
- Released by the trade association
- Can be also used for conical springs
- Suitable for suspension strut axles, including spring retaining pair with protective inserts size 1N and 2N for spring diameter of 90 mm (inside) - 190 mm (outside)
- Further spring retainers for spring diameters of 65 (inside) - 195 (outside) available
Specifications:
- Suitability: Universal

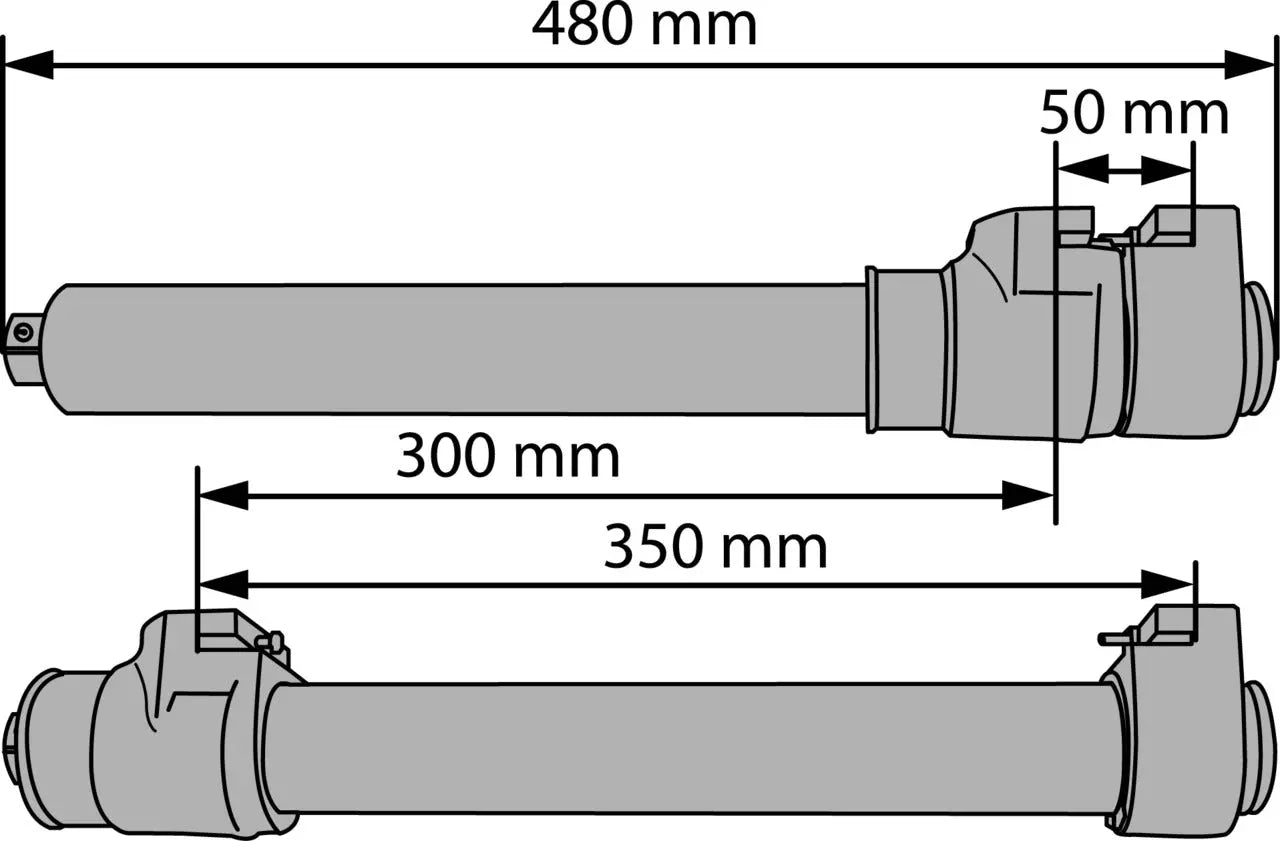

- Clamping Width (Max.): 345mm
- Clamping Width (Min.): 50mm
- Drive Size: 27mm (waf)
- Inner Spring Diameter (Min.): 90mm
- Load (Max.): 17.500 N
- Outer Spring Diameter (Max.): 190mm
- Weight: 24.03 lbs
- Working Travel: 295mm
- Country of Origin: Germany
Scope of Delivery:

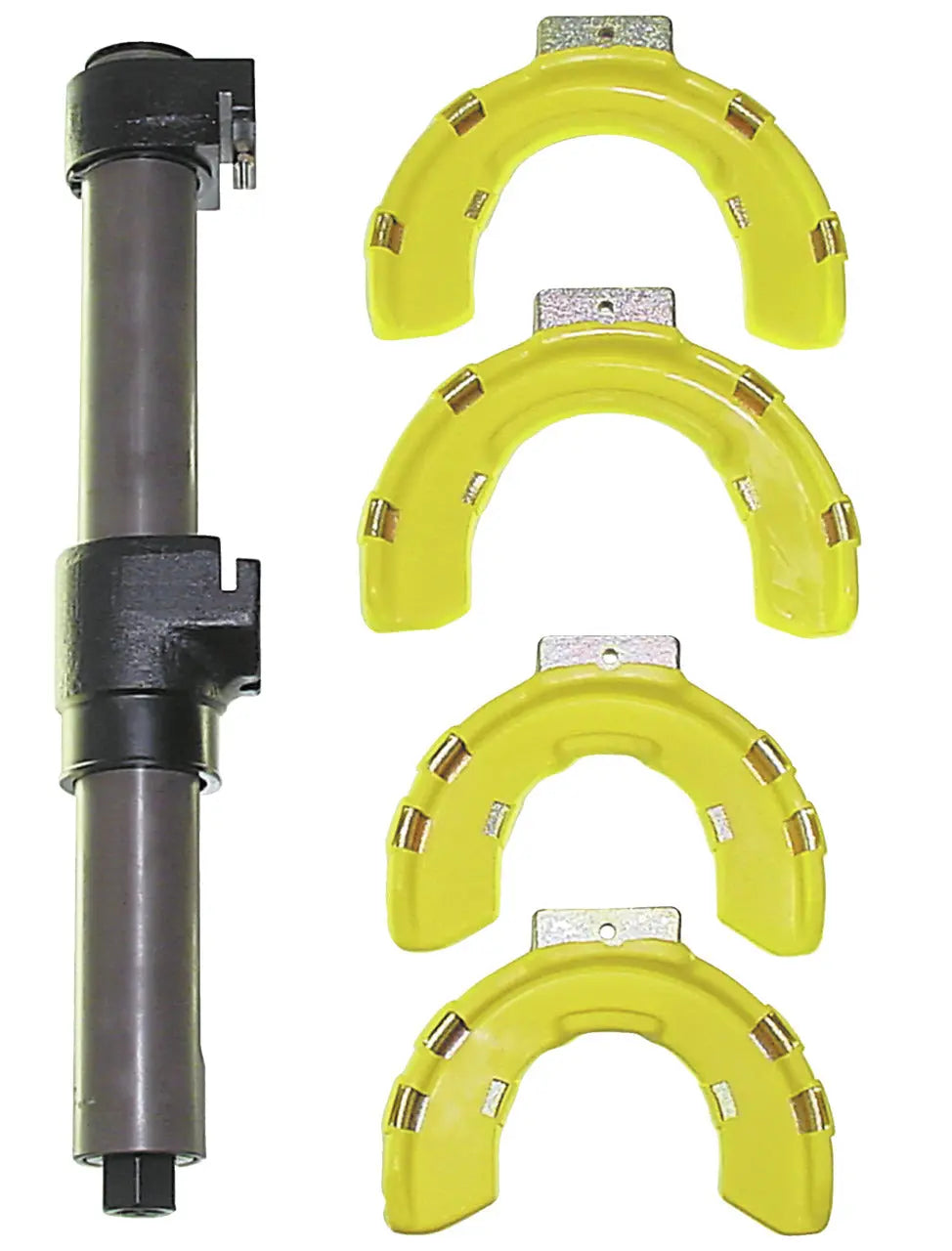

1 x KL-0015-100 - Compressor cylinder, 1 x KL-1510-SP - Spring retaining pair size 1N, 1 x KL-1520-SP - Spring retaining pair size 2N
