Gedore 2737493 Pulling Device Set Double-Type Silentblock, VW-Audi, Hydraulic - GD KL-0214-221

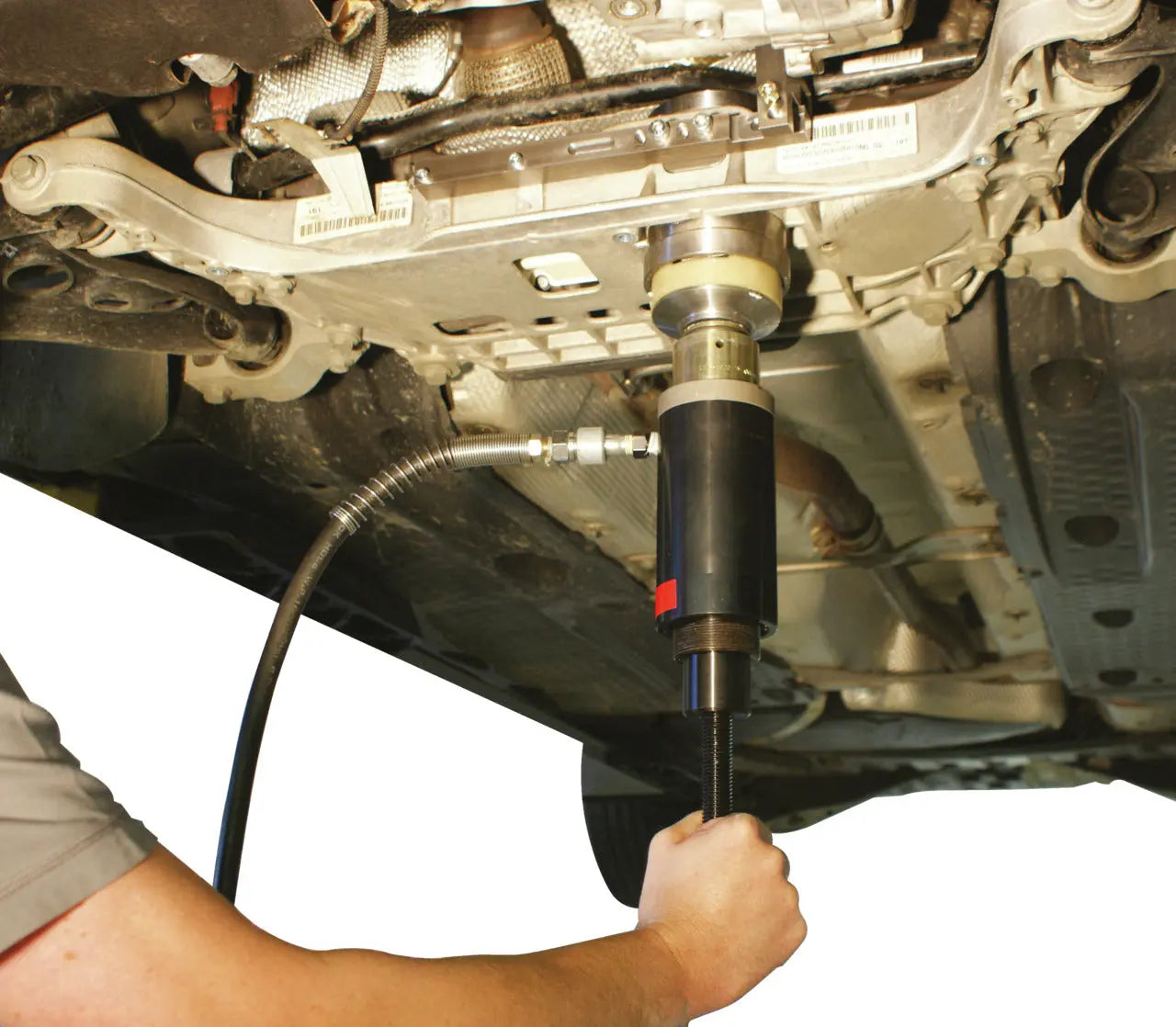

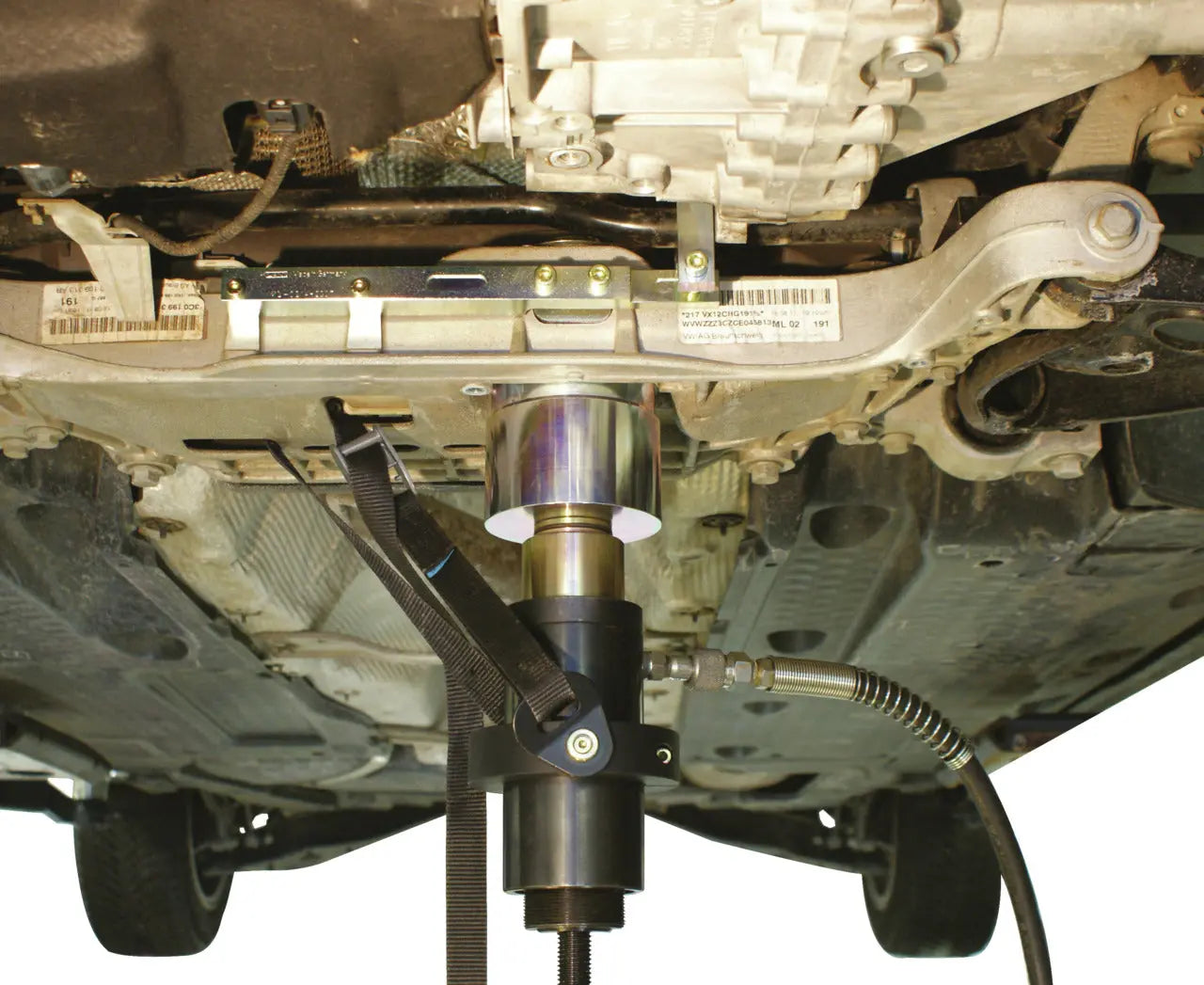

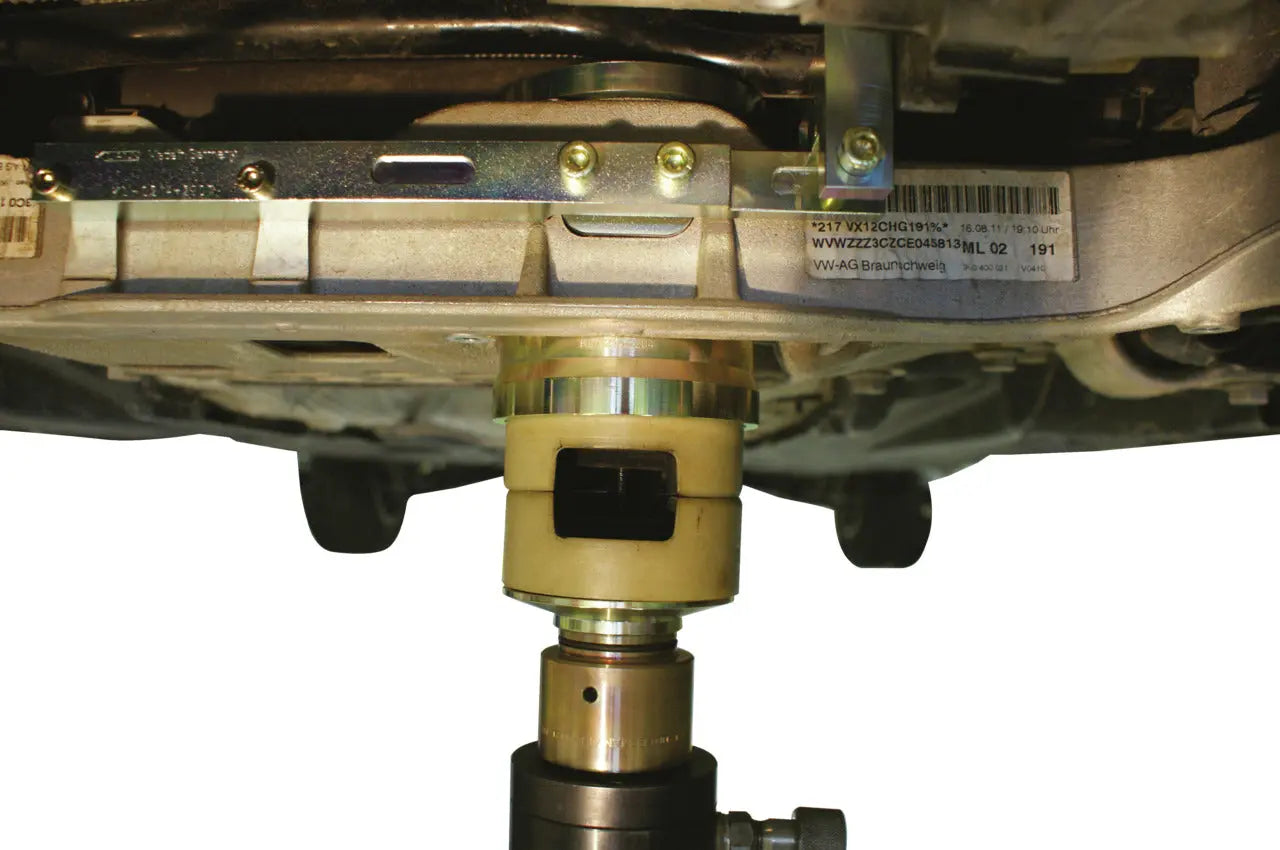

The KL-0214-221 pulling device allows the quick and safe removal and installation of assembly carrier double-type silentblocs to be performed in situ on the vehicle. For this, the hydraulic cylinder KL-0040-2500 and retaining adaptor KL-0039-1003, pull spindle KL-0039-1912-1 and shoulder nut KL-0039-1912-3 are needed. Releasing or removing the assembly carrier from the vehicle as well as follow-up wheel alignments are not necessary. Releasing or removing the assembly carrier from the vehicle as well as follow-up wheel alignments are not necessary. Pros: Substantial time and cost savings, No loosening or removal of the unit carrier required, No wheel alignment required, All individual parts available as spare parts.
Features:
- Suitable for Audi A3, TT, Seat Altea, Leon, Toledo, Skoda Octavia, VW Caddy, Golf, Touran, Passat, Scirocco, Tiguan, etc.
- For a quick and secure removal and installation of the unit carrier double silent block
- No loosening or removal of the unit carrier required
- No wheel alignment required
- Additional drive parts necessary
- Suitable for Audi A3 (8P1), TT (8J3, 8J9) bis 06/2010, Seat Altea (5P5, 5P5, 5P8), Leon (1P1), Toledo III (5P2), Skoda Octavia (1Z3, 1Z5) bis 12/2010, VW Caddy (2K/2C), EOS (1F7, 1F8), Golf Plus (5M1, 521), Golf V (1K1, 1K5), Golf VI (5K1, AJ5), Jetta (1K2) Touran (1T1, 1T2, 1T3), Passat (3C2, 3C5, 362, 365), Scirocco (137), Tiguan (5N)
Specifications:
- Suitability: VW, Audi, Seat, Skoda
- Drive Type: Hydraulic
- Weight: 10.8 lbs
- Country of Origin: Germany
Scope of Delivery:
1 x KL-0214-2201 - Thrust piece 89.5mm dia., 1 x KL-0214-2202 - Spacer ring 30mm dia., 1 x KL-0214-2203 A - Positioning plate, 1 x KL-0214-2204 - Conical sleeve 90mm dia., 1 x KL-0214-2205 - Support sleeve 92.7mm dia., 1 x KL-0214-2206 - Clamping bracket with screw, 1 x KL-0214-2207 - Clamping device, 1 x KL-0214-2208 - Set of plastic wedges
