Gedore 2756544 Wheel Bearing Toolkit, Volvo, Ford, Diameter 78mm, 82mm - GD KL-0041-461 D

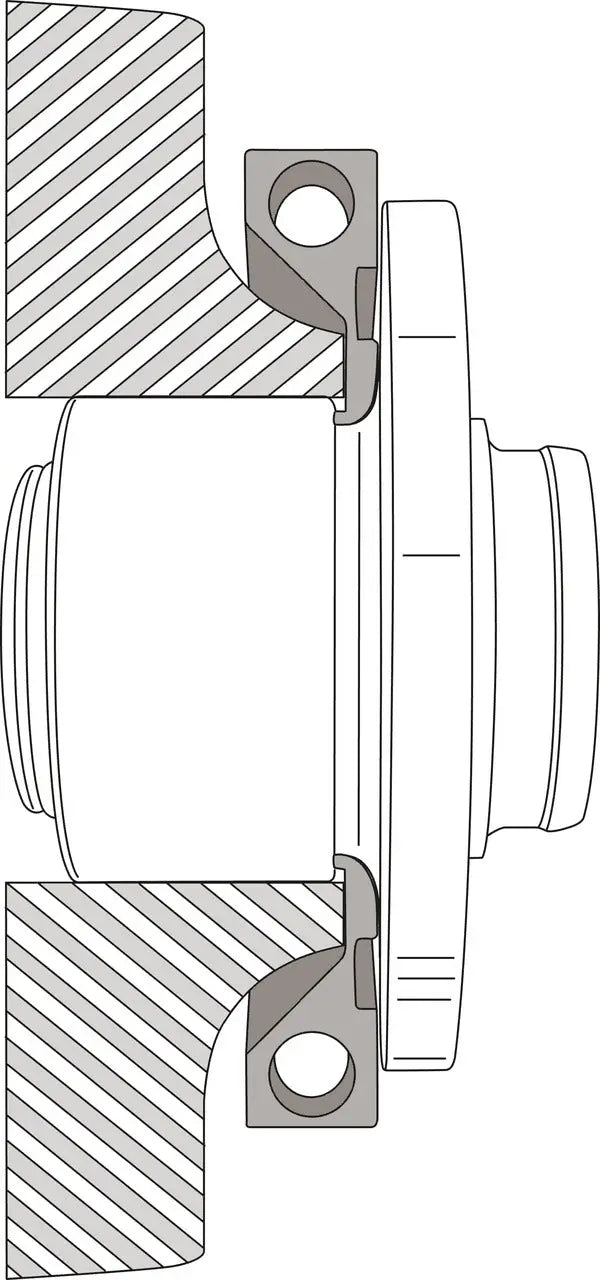

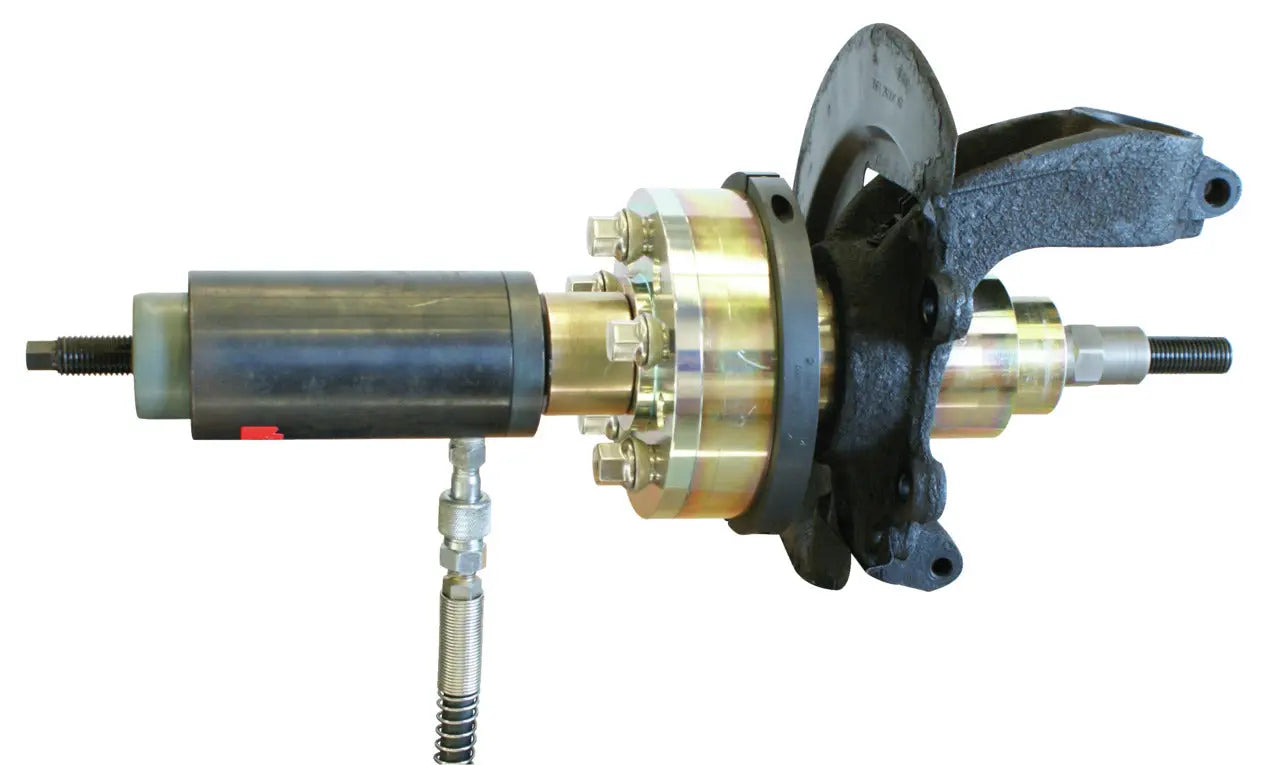

Designed for the quick and safe installation of wheel hub bearing units in-situ on the vehicle. For this, the hydraulic cylinder KL-0040-2500, retaining adaptors KL-0039-1002 and KL-0039-1003, pull spindle KL-0039-1920-1, and clamping nut KL-0040-3009 are necessary. Due to its special design, this tool ensures that during the installation process the applied pressing force will only be distributed on the outer bearing race and not on the wheel hub. This prevents damage to the bearing. Professional installation of wheel hub bearing units is almost impossible without the use of this tool set. The special design of the tool ensures that during installation the applied press-in force only acts on the bearing outer ring and not on the wheel hub This prevents the bearing from being damaged. Without this tool kit, it is nearly impossible to professionally install the wheel hub bearing unit.
Features:
- Suitable for vehicles with bearing diameter 78 mm, e.g. Ford Focus II, C-Max (from 10/03), Mazda 3 (from 10/03 to 06/09) Volvo C30, C70 II, S40 II, V50 and bearing dia. 82 mm, e.g. Ford S-Max (from 2006), Galaxy (from 2006), Mondeo IV (from 2006), Volvo S60 II, S80 II, V60, V70 III (from 10/2007), XC60, XC70 II
- Enables a quick and secure installation of wheel hub bearing units
- No damage to the bearing as pressure is only applied via the outer bearing ring
- Additional drive parts required
Specifications:
- Suitability: Universal, Ford, Mazda, Volvo
- Drive Type: Hydraulic
- Inner Diameter: 69mm
- Outer Diameter: 177mm
- Outer Diameter (Bearing): 78mm, 82mm
- Weight: 15.88 lbs
- Country of Origin: Germany

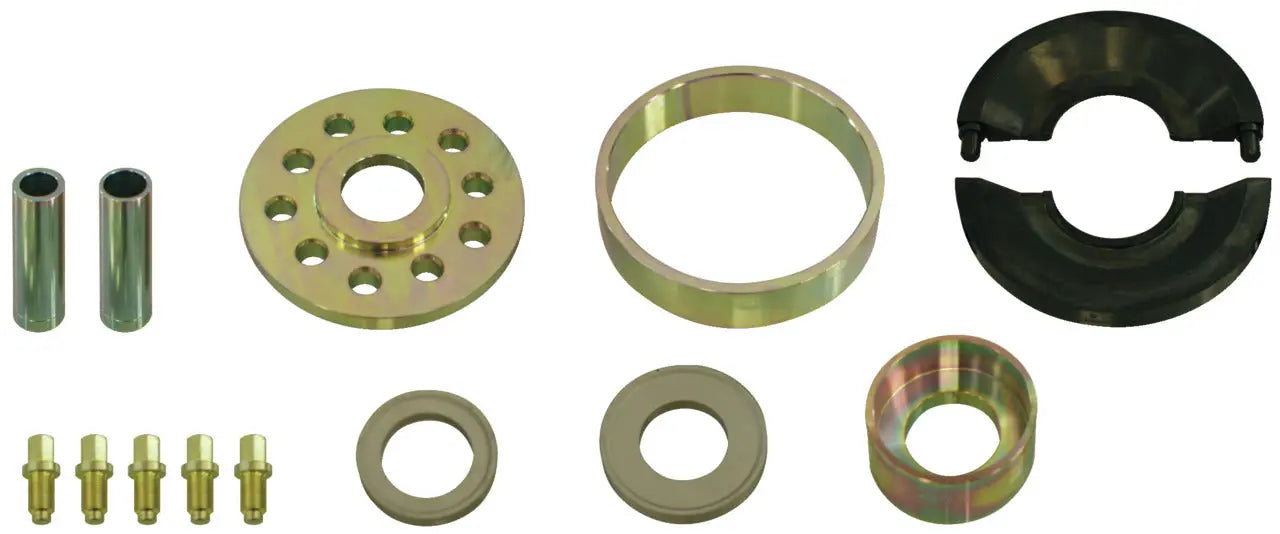

Scope of Delivery:
1 x KL-0041-4600 D - Clamping jaw pair 78mm dia., 1 x KL-0041-4607 - Housing, 1 x KL-0041-4608 D - Cover, 1 x KL-0039-1288 - Thrust ring 88mm dia., 5 x KL-0041-3931 - Thrust screw M14 x 1.5, 1 x KL-0041-4601 - Guide sleeve 29.5mm dia., 1 x KL-0039-1272 - Thrust ring 72mm, 1 x KL-0041-4602 - Guide sleeve 26.3mm, 1 x KL-0039-1682 - Pressure / support sleeve short 82mm dia.
