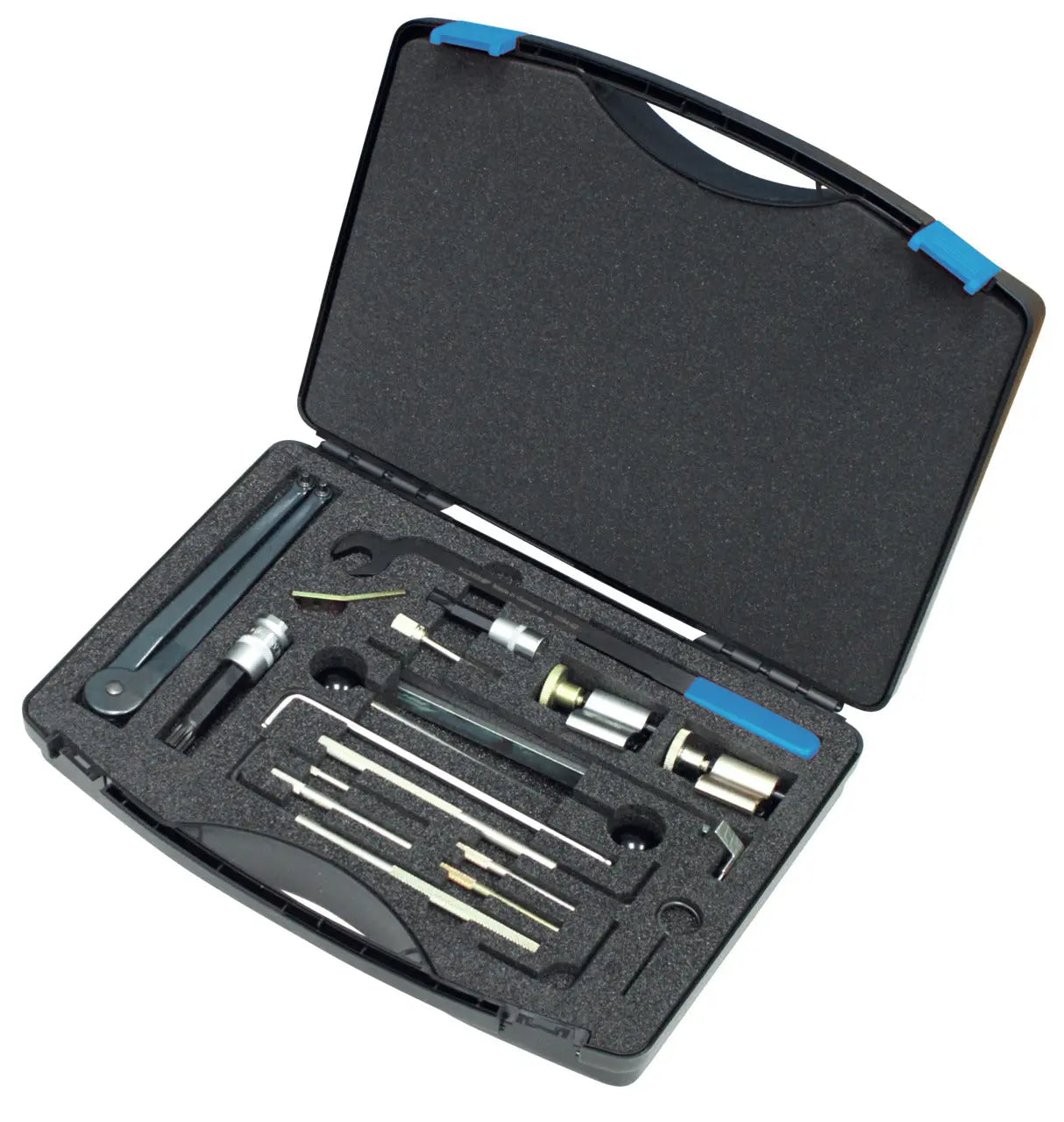

Gedore 2805294 Locking Toolkit, VW (1.2 - 2.0 TDI), Width 395mm - GD KL-0280-702 K
Designed to be used for the locking/positioning of engine shafts such as camshaft, injection pump shaft and crankshaft. The kit also includes tools to lock/position and adjust the timing belt tensioner. An indispensable tool set when replacing a timing belt or performing an engine repair. Scope of Delivery: KL-0149-131 Pin-Type Face Spanner, Diameter 14 - 100mm, pin- Diameter 5mm. Designed to hold the pulley in position when removing/installing the Viscos-Fan. KL-0180-3024 Retaining Pin, Diameter 2.4mm. For locking the timing belt tensioner. KL-0280-16 Holding Tool. For locking the timing belt tensioner. KL-0280-19 Locking Tool. For locking the crankshaft sprocket. KL-0280-20 Locking Tool, 2.0 TDI, PD. For locking the oval crankshaft sprocket. KL-0280-2201 A Locking Pin (angled), Diameter 2.5mm. For locking the timing belt tensioner. KL-0280-2202 A Special Hexagon Socket Key, size (waf) 6mm. For positioning the timing belt tensioner. KL-0280-221 Locking Pin, Diameter 4mm, angled. For adjusting the timing belt tensioner. KL-0280-222 Locking Pin, Diameter 4mm, angled. For locking the timing belt tensioner. KL-0280-2501 Locking Pin, Diameter 4.4mm. For locking the auxiliary drive belt tensioner (V-ribbed belt). KL-0280-6101 Locking Pin, Diameter 4mm. For adjusting the timing belt tensioner. KL-0280-6102 Locking Pin, Diameter 7mm. For adjusting the timing belt tensioner. KL-0284-91 A Adjustment Tool for Timing Belt Tensioner, 240mm. For positioning the timing belt tensioner. KL-0284-92 Tension Pulley Spanner (waf 16mm). For positioning the V-ribbed belt tensioner. KL-0286-11 Guide Pin Set for Front-End Carrier. These guide pins are used to slide the front-end carrier forward (to service position). As a result, the removal of the front-end carrier is no longer necessary. KL-1480-16 Locking Pin, Diameter 6mm, long. For locking the injection pump sprocket. For positioning the camshaft. KL-4031-3610 Screwdriver Bit Socket XZN-M10. For loosening/tightening the fastening screws of the high pressure fuel pump sprocket. KL-4031-3114 Screwdriver Bit Socket XZN-M14, 100mm. For loosening/tightening the balancer fastening screws. KL-4990-7029 Plastic Storage Case. Required when changing the timing belt or repairing the engine.
Features:
- Suitable for VW-Audi and Ford vehicles with 1.2, 1.4, 1.6, 1.9 and 2.0 Common-Rail and pump nozzle diesel engines
- For locking the engine shafts like camshaft, injection pump shaft and crankshaft
- For locking and adjusting the toothed belt tensioning unit
- Suitable for VW-Audi, Seat Skoda and Ford vehicles with 1.2, 1.4, 1.6, 1.9 and 2.0 Common-Rail and pump nozzle diesel engines Installed on VW Beetle, Caddy, Crafter, Fox, Golf, Jetta, Lupo, Passat, Polo, Scirocco, Sharan, Tiguan, Touran, Transporter T5, Audi A1, A2, A3, A4, A5, Q5, A6, TT, Seat Alhambra, Altea, Arosa, Exeo, Ibiza, Leon, Toledo, Skoda Fabia, Fabia II, Octavia II, Roomster, Superb, Superb II, Yeti and Ford Galaxy etc.
Specifications:
- Suitability: VW, Audi, Seat, Skoda, Ford
- Depth: 295mm
- Height: 106mm
- Motor Type: Diesel
- Storage: Case
- Weight: 6.39 lbs
- Width: 395mm
- Country of Origin: Germany

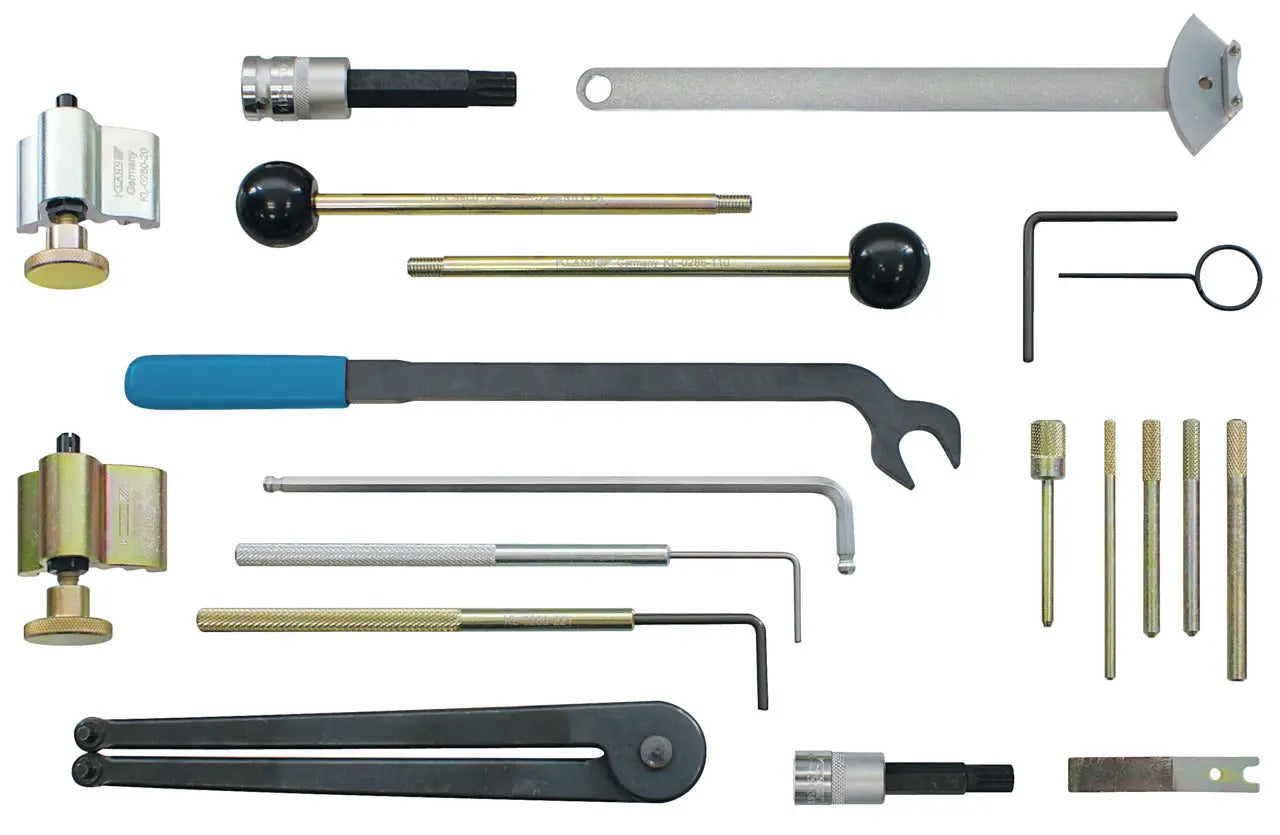

Scope of Delivery:
1 x KL-0149-131 - Face spanner with a diameter of 14 - 100mm, pivot with a diameter of 5mm, 1 x KL-0180-3024 - Locking pin with a diameter of 2.4mm, 1 x KL-0280-16 - Holding sheet, 1 x KL-0280-19 A - Locking tool, 1 x KL-0280-20 A - Locking tool, 1 x KL-0280-2201 A - Locking mandrel with a diameter of 2.5mm, angled, 1 x KL-0280-2202 A - Special hexagon L key SW 6, 1 x KL-0280-221 - Locking mandrel wit a diameter of 4mm, angled, 1 x KL-0280-222 - Locking mandrel with a diameter of 4mm angled, 1 x KL-0280-2501 - Locking mandrel with a diameter of 4.4mm, 1 x KL-0280-6101 - Locking mandrel with a diameter of 4mm, 1 x KL-0280-6102 - Locking mandrel with a diameter of 7mm, 1 x KL-0284-91 A - Toothed belt socket spanner 240mm, 1 x KL-0284-92 - Belt tensioning spanner SW 16, 1 x KL-0286-11 - Guide bolt kit, 2 x KL-1480-16 - Locking mandrel with a diameter of 6mm, long, 1 x KL-4031-3610 - in-hex socket XZN-M10, 1 x R62701419 - in-hex socket XZN-M14, 100mm, 1 x KL-0280-7029 - Plastic case
