Gedore 2814595 Counter-Holding Toolkit, VW-Audi, 11.5mm - GD KL-0184-022

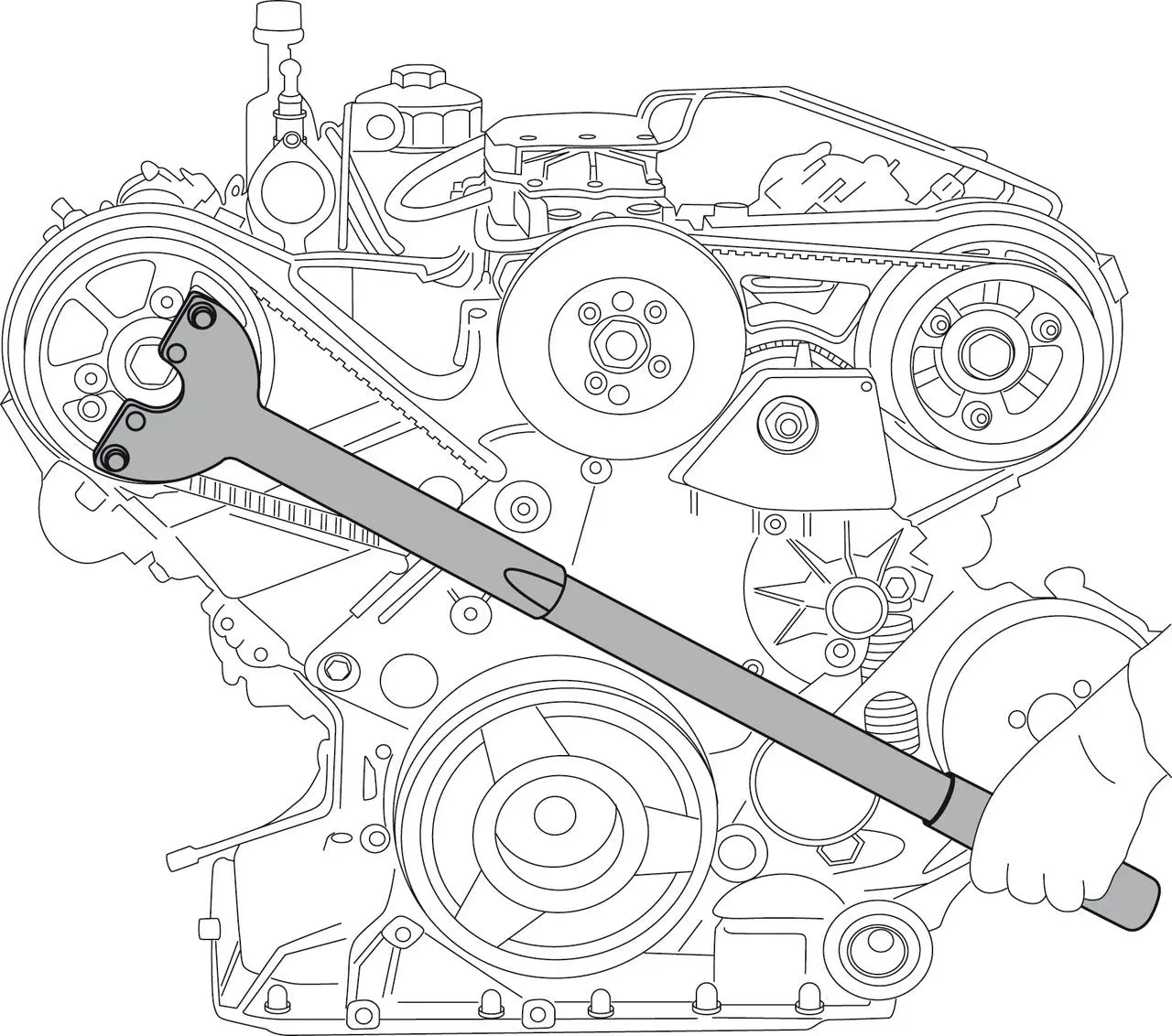

This tool is designed to counter-hold pulleys, timing belt sprockets etc. It is required when loosening/tightening the fastening screw. The locking takes place either via the pins ( Diameter 11.5mm) which engage the holes of the pulleys/timing belt sprockets, or by fixing the reaction wrench to the crankshaft timing belt sprocket by means of the M8 bolt. Thanks to its special length of 704mm, this tool allows even very tight-fitting or stubborn fastening screws to be loosened with ease. It is required when loosening/tightening the fastening screw. The locking takes place either via the pins ( Diameter 11.5mm) which engage the holes of the pulleys/timing belt sprockets, or by fixing the reaction wrench to the crankshaft timing belt sprocket by means of the M8 bolt. Thanks to its special length of 704mm, this tool allows even very tight-fitting or stubborn fastening screws to be loosened with ease.
Features:
- Fits universally with, e.g. VW-Audi 1.2, 1.4 and 1.6 petrol engines and 1.9 SDI diesel engines
- For counter holding the pulleys, toothed belt wheels, etc.
- For unscrewing and tightening the fastening screw
- The counter holding is done via pivots with a diameter of 11.5 mm or via the bolts M8
- Especially suitable for VW-Audi, Seat and Skoda 1.2, 1.4 and 1.6 engines and for Skoda 1.9 SDI diesel engines
- Installed in VW Beetle, Bora, Caddy/Caddy Maxi, Eos, Fox, Golf, Golf Plus, Golf VI Cabrio, Jetta, Lupo, Passat, Polo, Scirocco, Sharan, Tiguan, Touran, Audi A1, A2, A3, A3 Cabrio, Seat Alhambra, Altea/Altea XL, Arosa, Cordoba, Ibiza, Inca, Leon, Toledo, Skoda Fabia, Fabia II, Octavia II, Octavia/Octavia Tour, Praktik, Roomster, Superb II, Yeti
Specifications:
- Suitability: VW, Audi, Seat, Skoda
- Length Assembled: 704mm
- Length Basic Tool: 351mm
- Length Extension with Handle: 403mm
- Motor Type: Diesel, Petrol
- Pin Diameter: 11.5mm
- Pin Height: 31.5mm
- Pin Spacing: 99.5mm
- Weight: 5.51 lbs
- Country of Origin: Germany
Scope of Delivery:

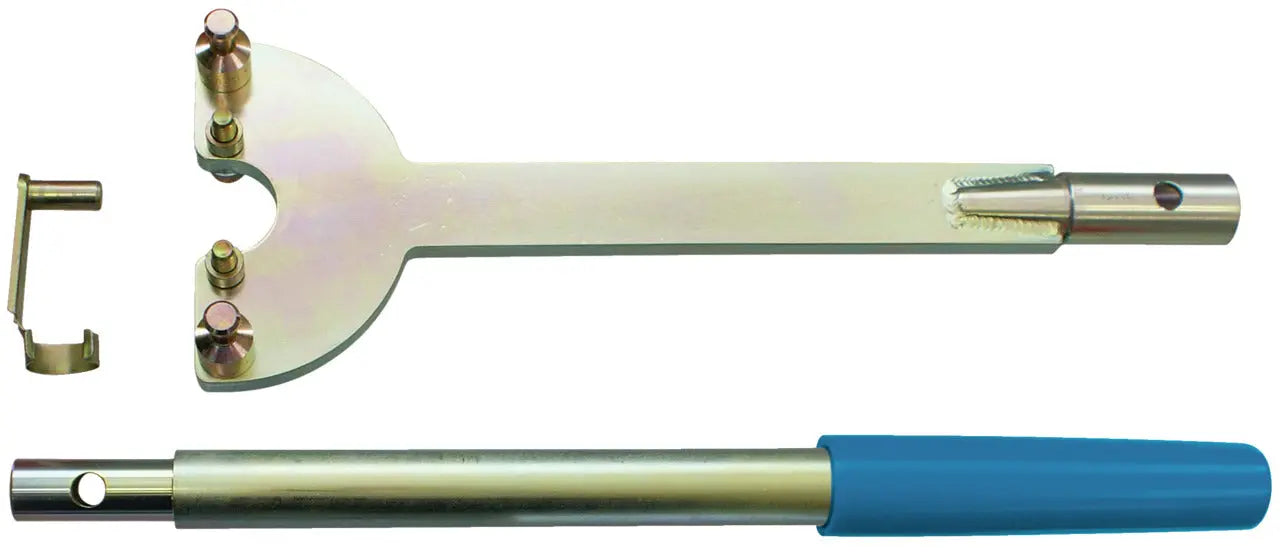

1 x KL-0184-0220 - Counter holding spanner, base tool with bolts, 1 x KL-0184-0101 - Extension tube with protective handle, 1 x KL-0184-0103 - Spring hinge pin
