Gedore 2840723 Press/Support Sleeve Set, Short, Diameter 30 - 90mm - KL-0039-160 E

Name: Gedore 2840723 Press/Support Sleeve Set, Short, Diameter 30 - 90mm - KL-0039-160 E
Brand: Gedore Automotive
SKU: KL-0039-160 E
Price: 2310.3 USD
Availability: InStock

SKU KL-0039-160 E

Factory Stock: (1)

Now:

$2,310.30

$2,718.00

$2,310.30

15% OFF

UPC:

Product Description

Gedore 2840723 Press/Support Sleeve Set, Short, Diameter 30 - 90mm - GD KL-0039-160 E

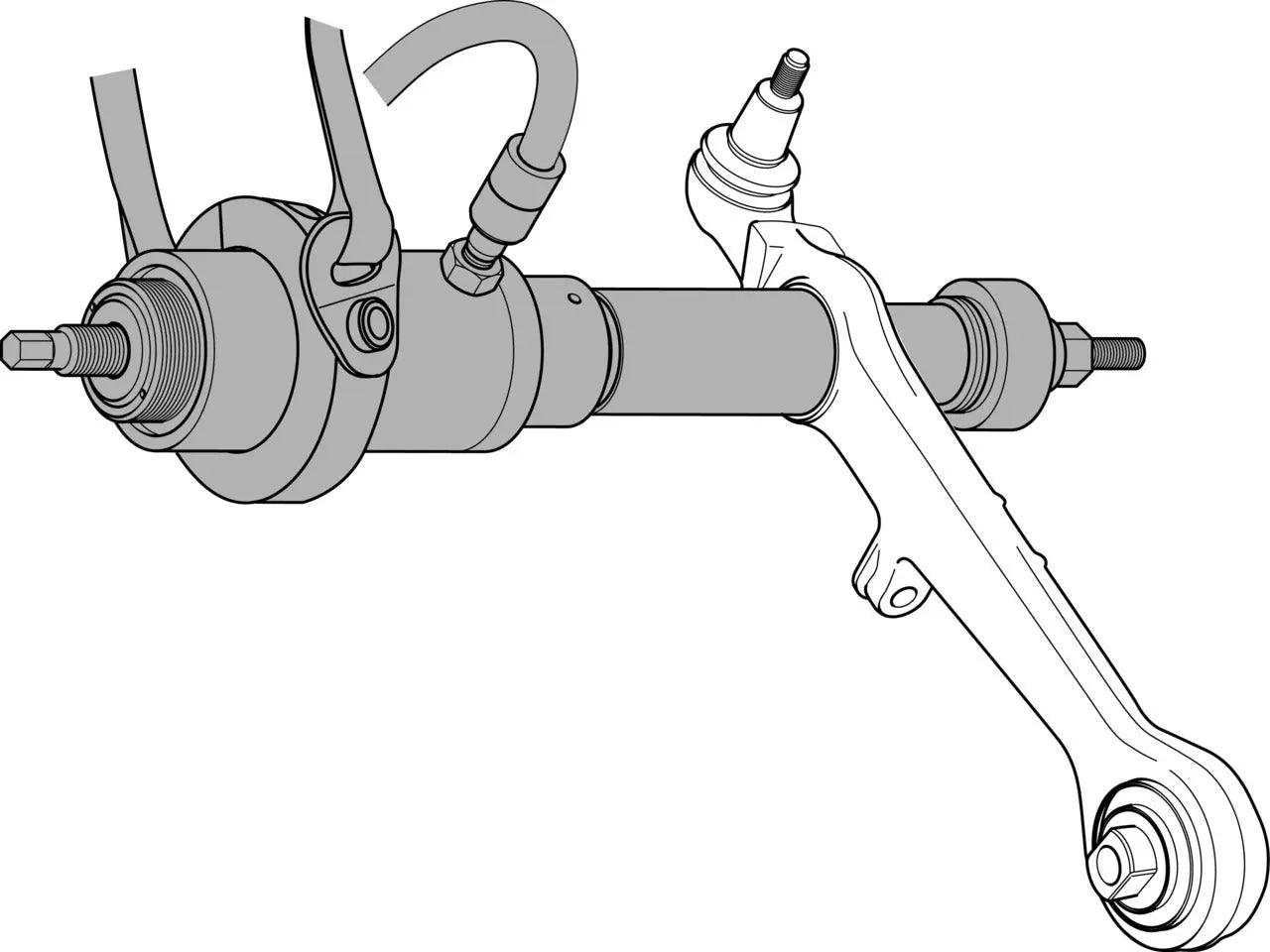

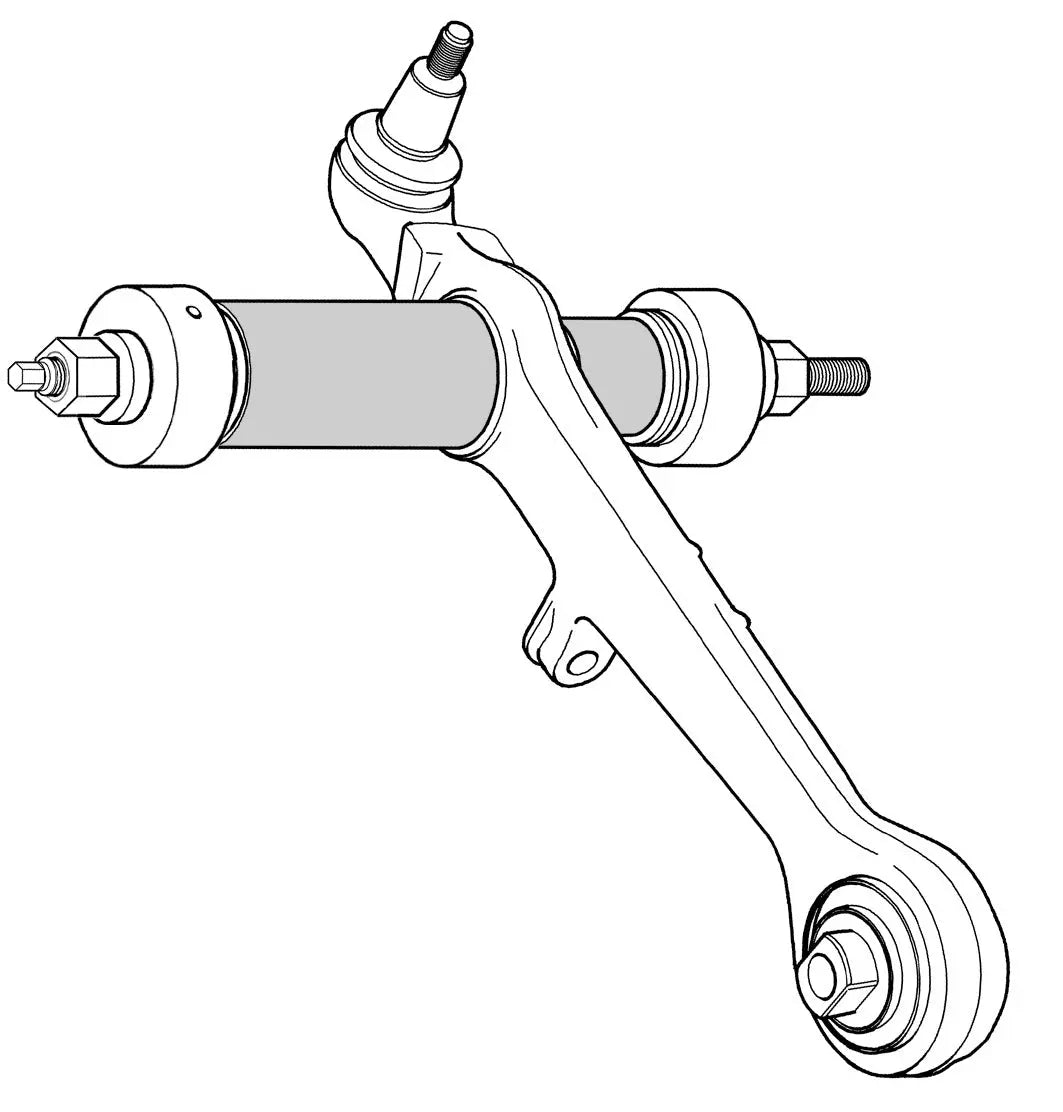

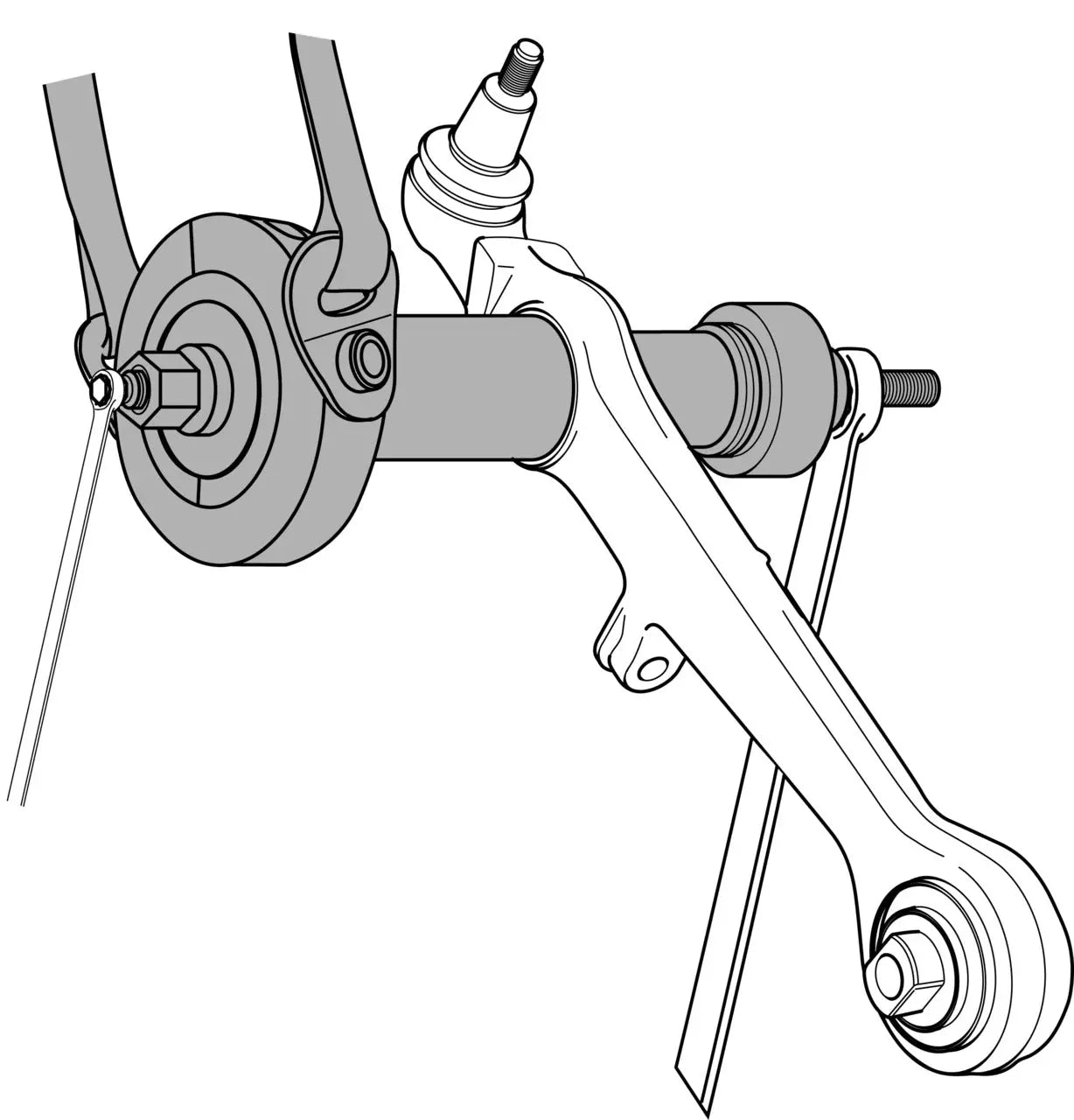

Indispensable tool set for pressing in and pressing out silentblocs, shafts, bushings etc. The sleeves are used in conjunction with the tools of the KL-0039. Series.

Features:

For forcing out and forcing in of silent blocks, shafts, bushings, etc.
Additional drive parts required (mechanical or hydraulic)

Specifications:

Suitability: Universal
Depth: 305mm
Drive Type: Hydraulic, Mechanical
Height: 105mm
Inner Diameter of Sleeve (Max.): 82mm
Inner Diameter of Sleeve (Min.): 22mm
Length (Sleeve): 45mm
Outer Diameter of Sleeve (Max.): 90mm
Outer Diameter of Sleeve (Min.): 30mm

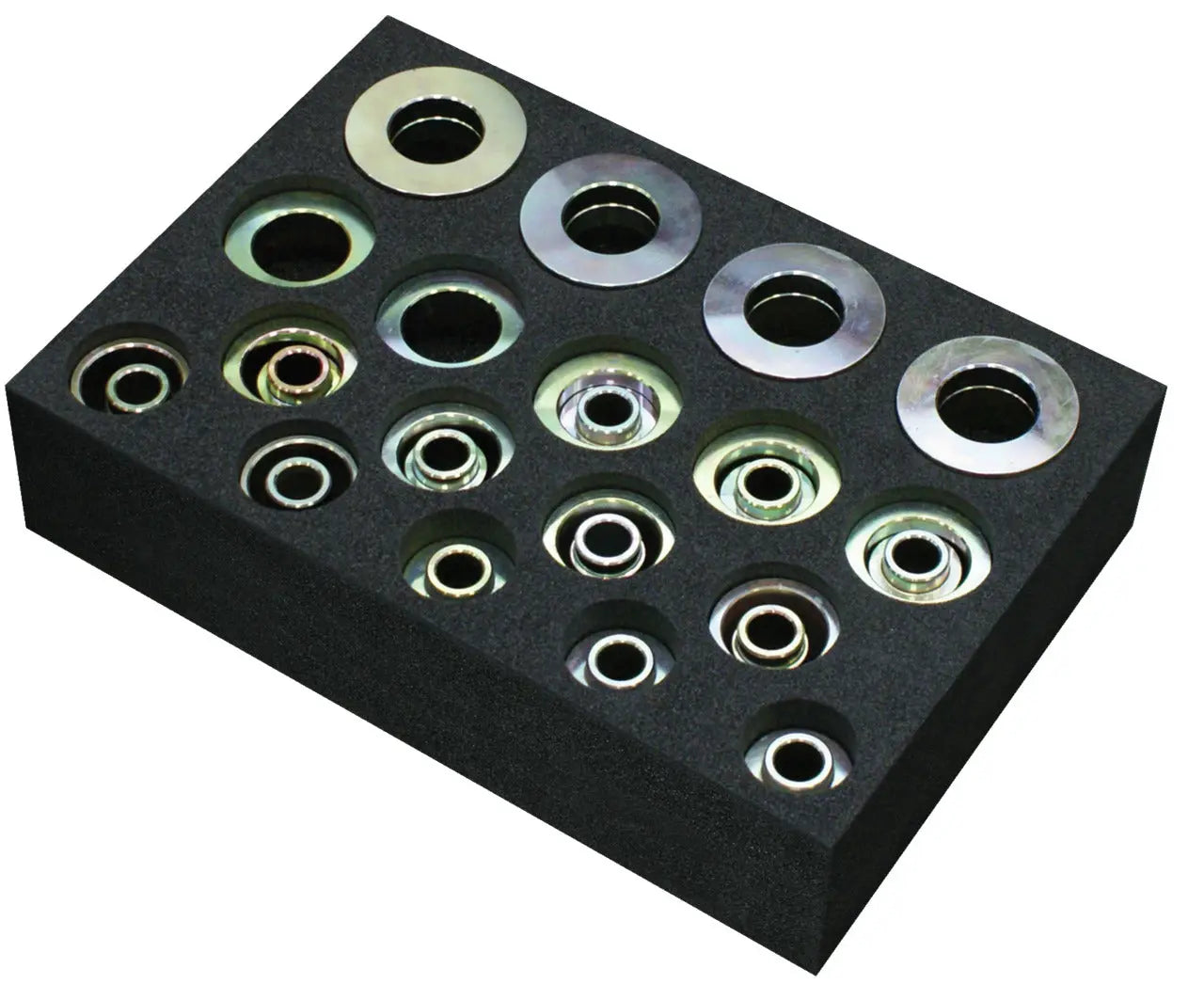

Storage: Foam Insert
Version: Short
Weight: 30.87 lbs
Width: 445mm
Country of Origin: Germany

Scope of Delivery:

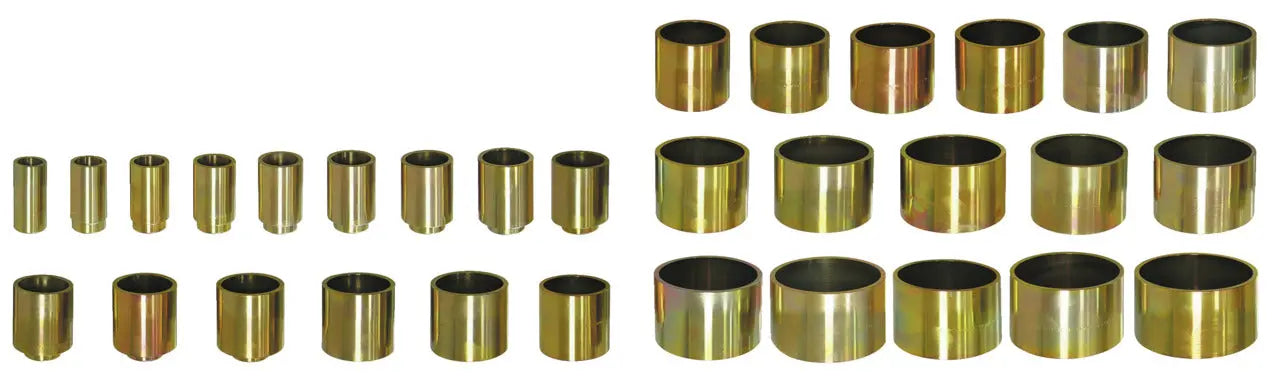

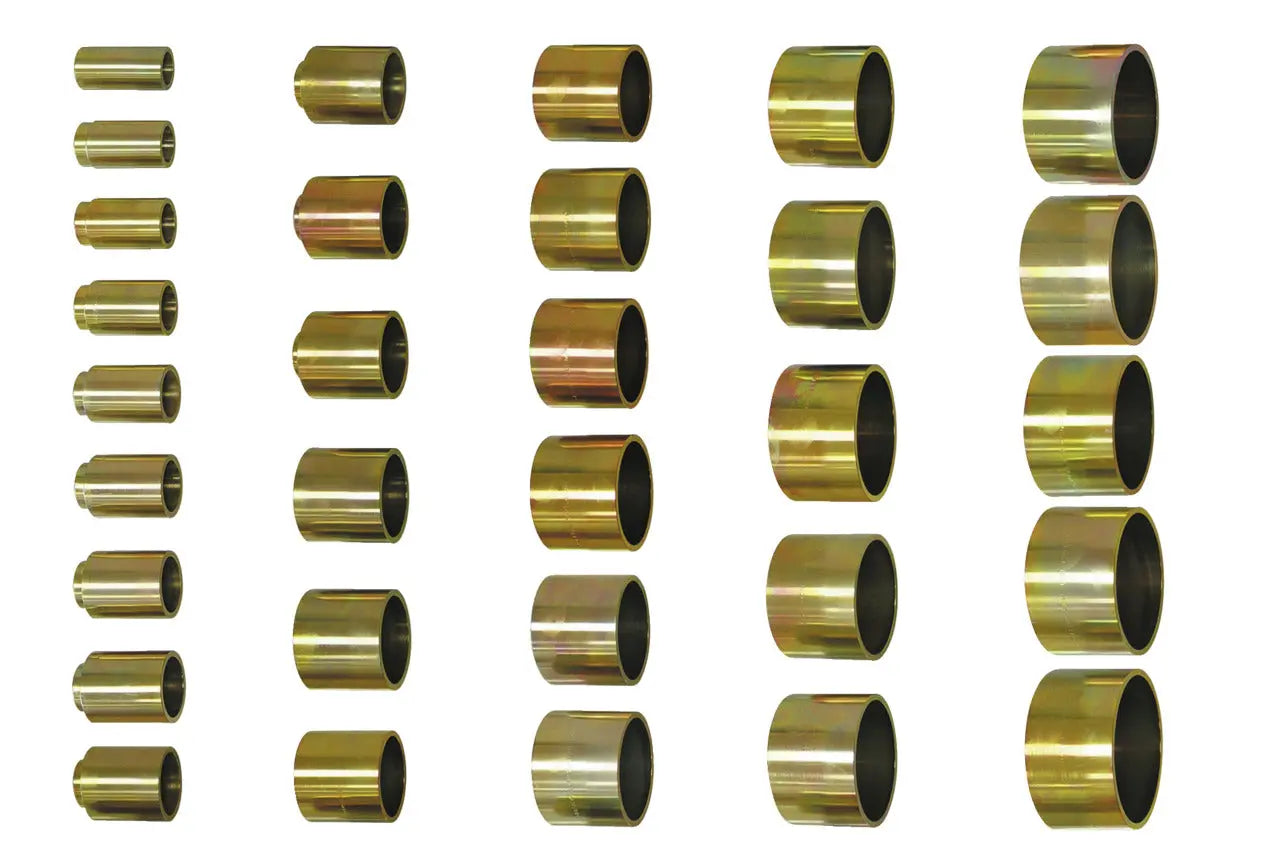

1 x KL-0039-1630 - Pressure / support sleeve short 30 / 22mm dia., 1 x KL-0039-1632 - Pressure / support sleeve short 32 / 24mm dia., 1 x KL-0039-1634 - Pressure / support sleeve short 34 / 26mm dia., 1 x KL-0039-1636 - Pressure / support sleeve short 36 / 28mm dia., 1 x KL-0039-1638 - Pressure / support sleeve short 38 / 30mm dia., 1 x KL-0039-1640 - Pressure / support sleeve short 40 / 32mm dia., 1 x KL-0039-1642 - Pressure / support sleeve short 42 / 34mm dia., 1 x KL-0039-1644 - Pressure / support sleeve short 44 / 36mm dia., 1 x KL-0039-1646 - Pressure / support sleeve short 46 / 38mm dia., 1 x KL-0039-1648 - Pressure / support sleeve short 48 / 40mm dia., 1 x KL-0039-1650 - Pressure / support sleeve short 50 / 42mm dia., 1 x KL-0039-1652 - Pressure / support sleeve short 52 / 44mm dia., 1 x KL-0039-1654 - Pressure / support sleeve short 54 / 46mm dia., 1 x KL-0039-1656 - Pressure / support sleeve short 56 / 48mm dia., 1 x KL-0039-1658 - Pressure / support sleeve short 58 / 50mm dia., 1 x KL-0039-1660 - Pressure / support sleeve short 60 / 52mm dia., 1 x KL-0039-1662 - Pressure / support sleeve short 62 / 54mm dia., 1 x KL-0039-1664 - Pressure / support sleeve short 64 / 56mm dia., 1 x KL-0039-1666 - Pressure / support sleeve short 66 / 58mm dia., 1 x KL-0039-1668 - Pressure / support sleeve short 68 / 60mm dia., 1 x KL-0039-1670 - Pressure / support sleeve short 70 / 62mm dia., 1 x KL-0039-1672 - Pressure / support sleeve short 72 / 64mm dia., 1 x KL-0039-1674 - Pressure / support sleeve short 74 / 66mm dia., 1 x KL-0039-1676 - Pressure / support sleeve short 76 / 68mm dia., 1 x KL-0039-1678 - Pressure / support sleeve short 78 / 70mm dia., 1 x KL-0039-1680 - Pressure / support sleeve short 80 / 72mm dia., 1 x KL-0039-1682 - Pressure / support sleeve short 82 / 74mm dia., 1 x KL-0039-1684 - Pressure / support sleeve short 84 / 76mm dia., 1 x KL-0039-1686 - Pressure / support sleeve short 86 / 78mm dia., 1 x KL-0039-1688 - Pressure / support sleeve short 88 / 80mm dia., 1 x KL-0039-1690 - Pressure / support sleeve short 90 / 82mm dia., 1 x KL-4999-1312 - Foam insert
