Gedore 2841029 Puller Set for Wheel Hubs, 45 - 65mm - GD KL-0174-150 E

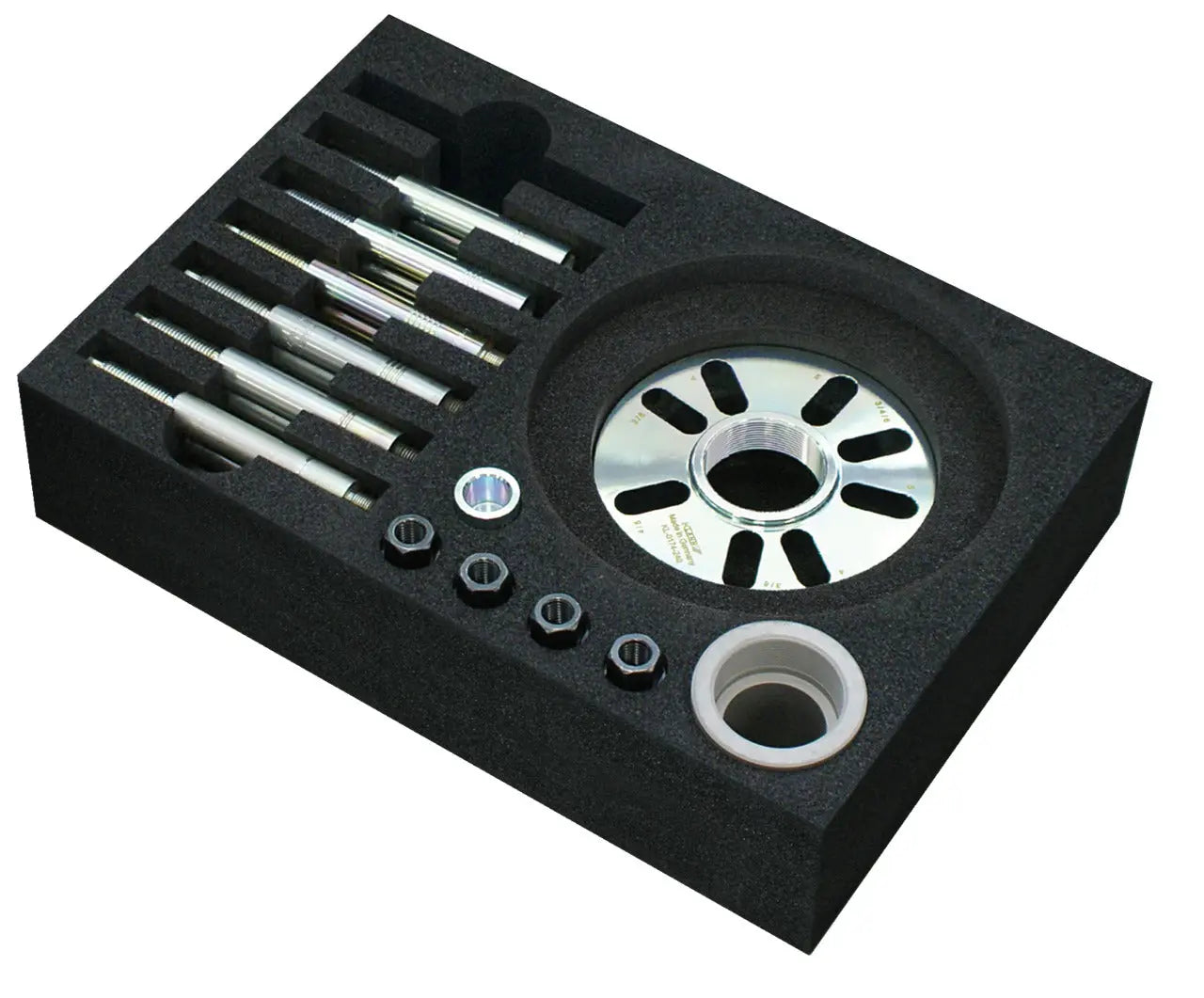

The tools of this set are designed be used with the KL-0040-2500 hydraulic cylinder for pressing out drive shafts. The set can also be used in conjunction with the KL-0049-31 slide hammer puller to extract wheel hubs, full-floating axles, etc. The tool control foam inserts of the KL-4999-131. Series are designed to keep the tools of the KL-00174. Puller Tool Series always properly organized and well protected. The modules can conveniently be stored in a workshop trolley such as the KL-4999-120 but also fit snugly in the robust stackable plastic storage cases of the KL-4999-139. Series. This ingenious tool storage system from GEDORE Automotive allows you to find the tool you need quickly and easily, and to identify missing tools at a glance. As a result, repairs can be carried out more efficiently - saving you time and money. The foam inserts are provided with specifically tool-shaped spaces to ensure that tools are safely stored and can be taken out and put back in place with ease. The KL-0174 puller series is almost universally applicable due to the use and composition of the various perforated discs, pull bolts and drives.
Features:

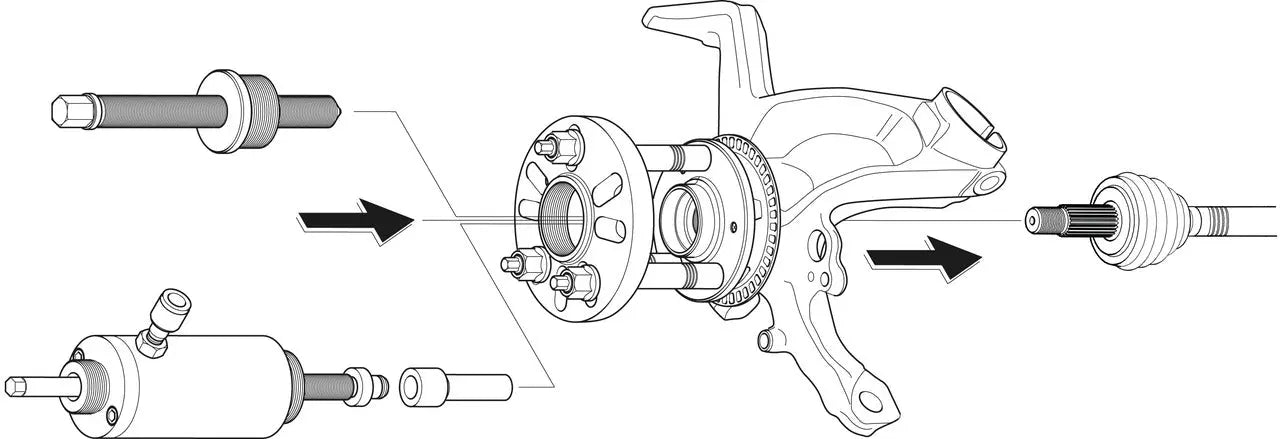

- For mechanically or hydraulically pressing out cardan shafts

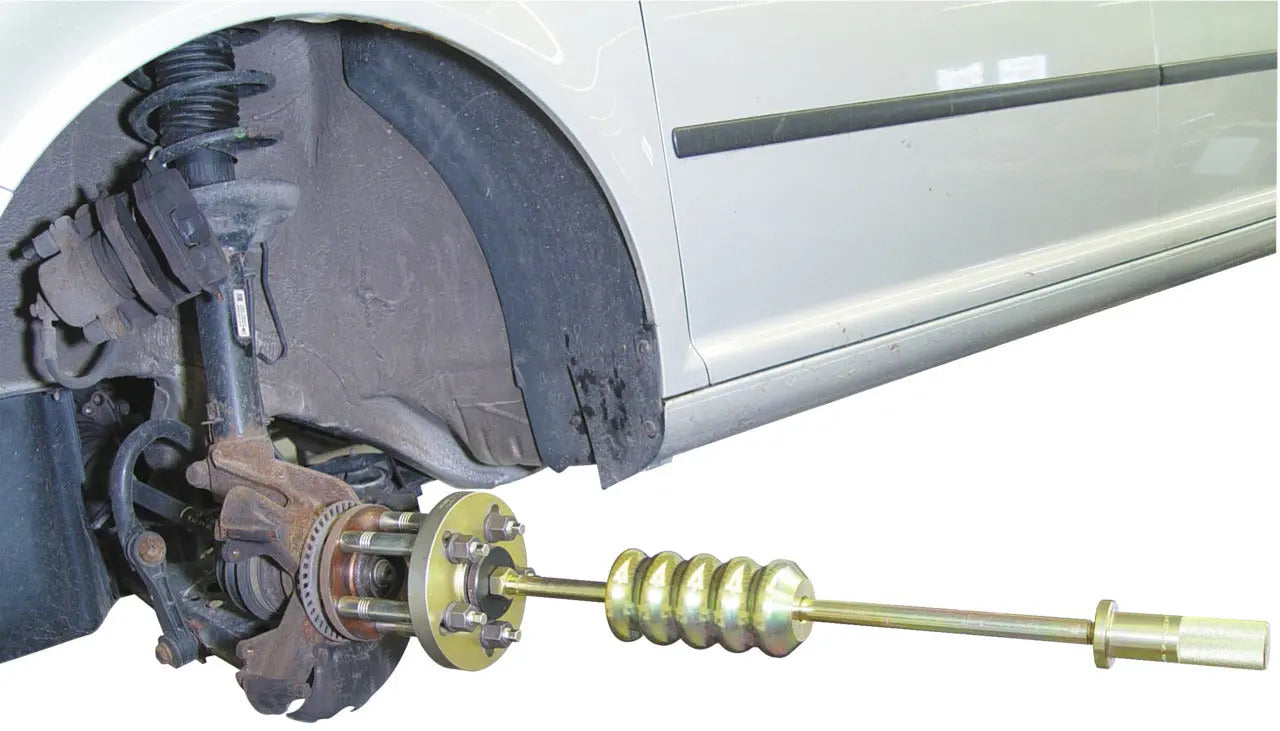

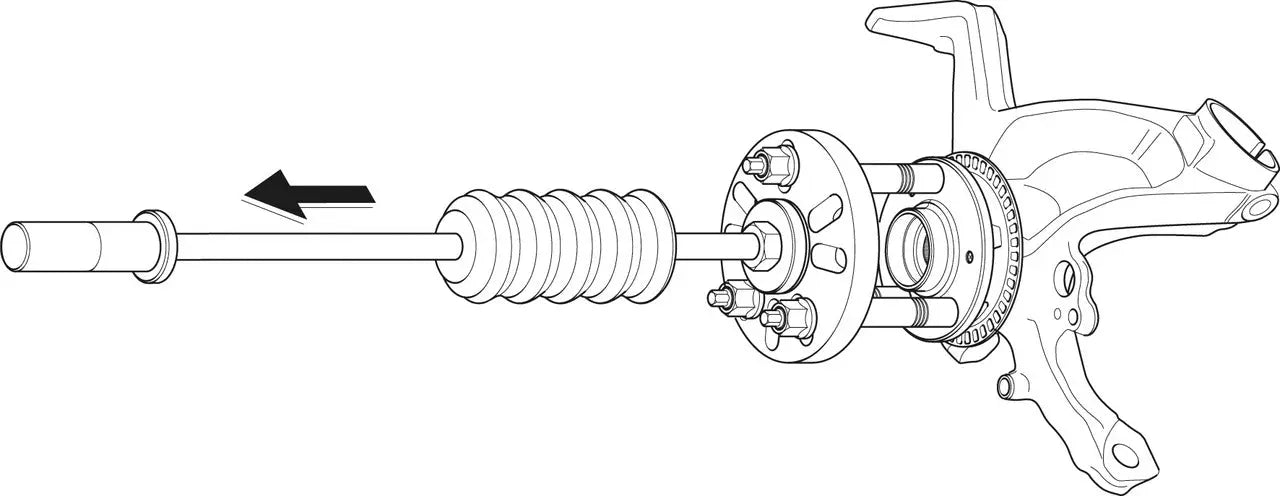

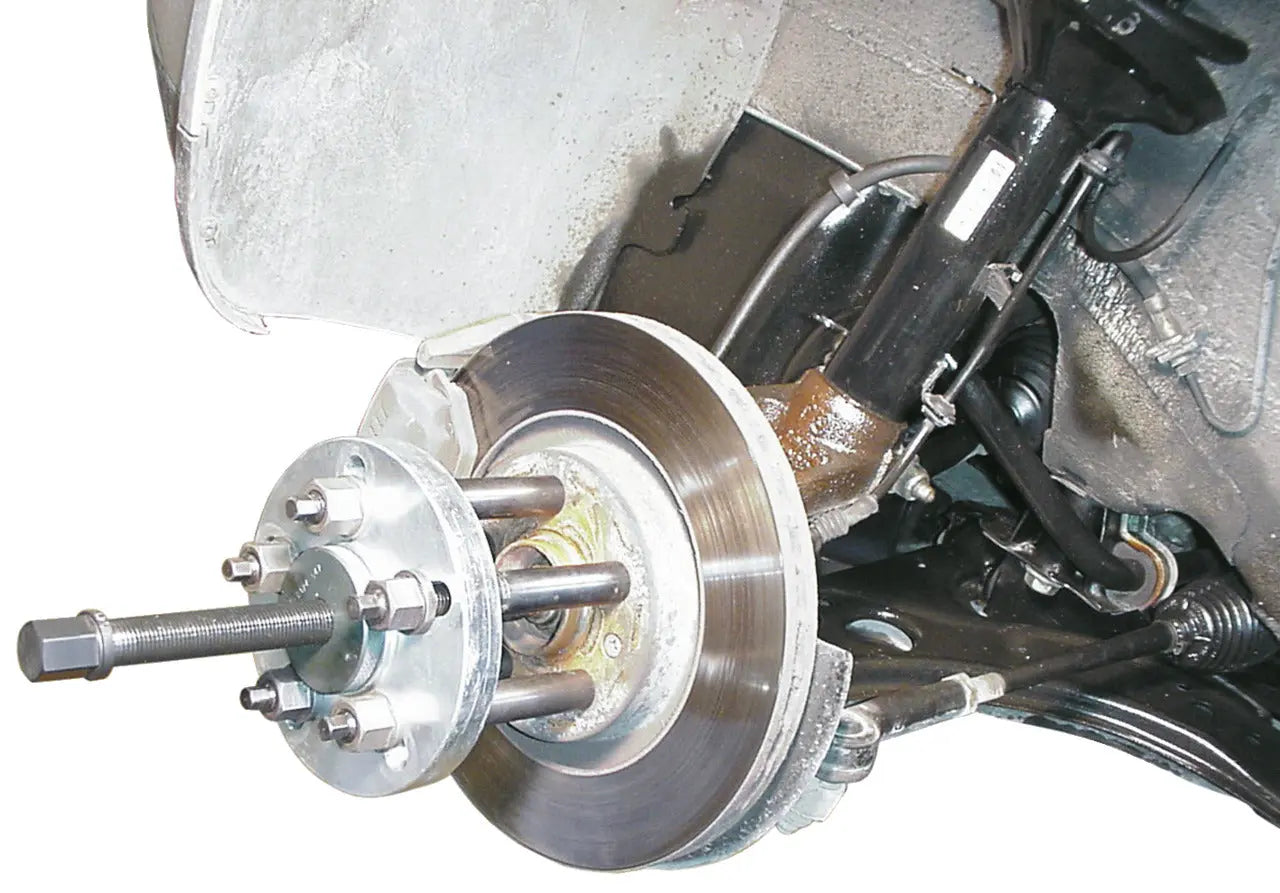

- For pulling the wheel hub, brake drum, stub axles, etc.
- Additional drive parts required
- Suitable for VW-Audi, Alfa Romeo, BMW, Citroen, Fiat, Ford, Honda, Hyundai, Jeep, KIA, Lancia, Mazda, Mercedes, Mini, Mitsubishi, Nissan, Opel, Peugeot, Porsche, Renault, Seat, Skoda, Smart, Suzuki, Toyota, Volvo etc.
Specifications:
- Suitability: Universal
- Depth: 305mm
- Drive Type: Hydraulic, Mechanical, Manual
- Height: 115mm
- Storage: Foam Insert
- Version: Type B, Type M
- Weight: 27.56 lbs
- Wheel Stud Circles: 45 - 65mm
- Width: 445mm
- Country of Origin: Germany

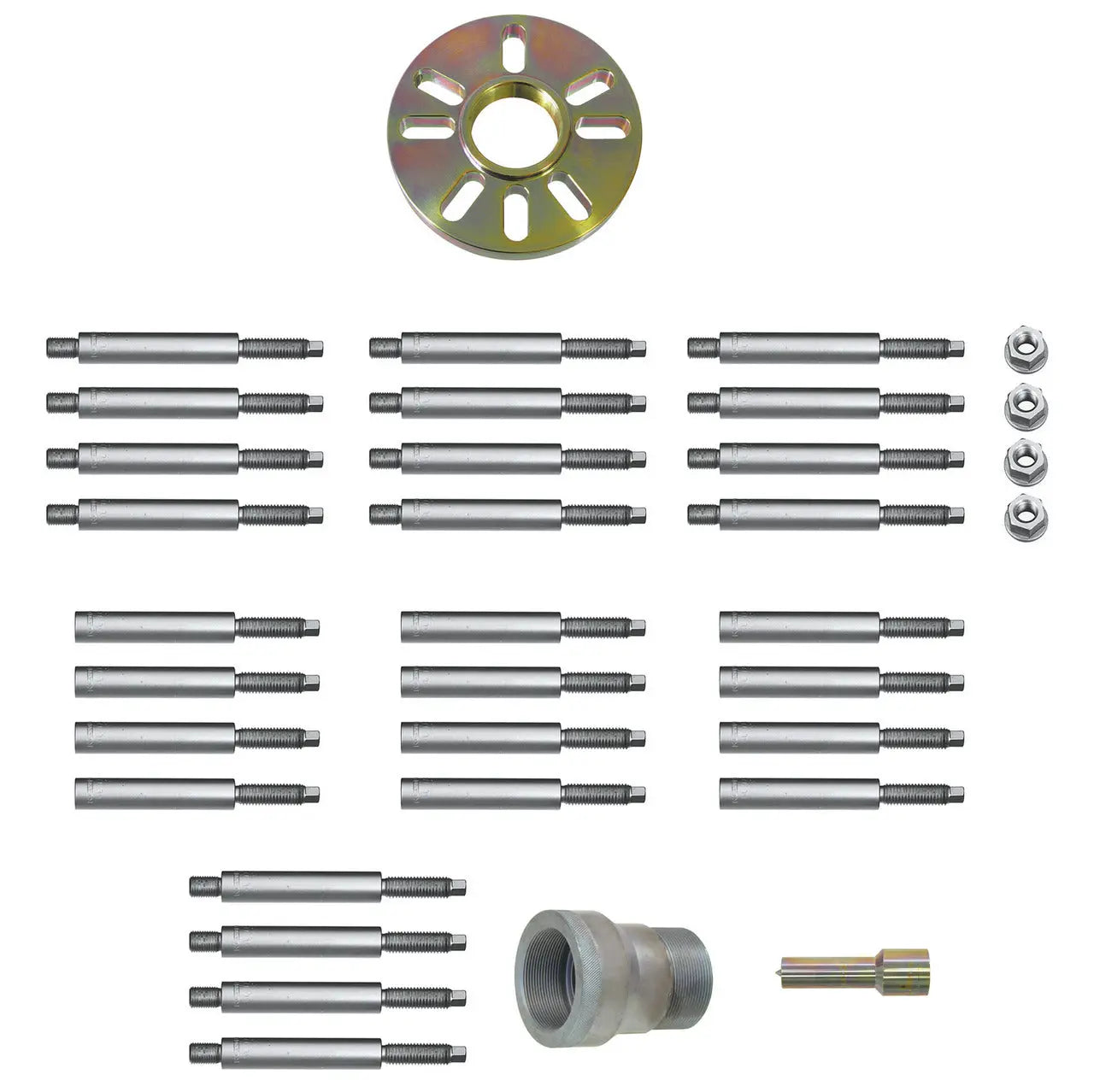

Scope of Delivery:
1 x KL-0039-1935 - Thrust piece, 1 x KL-0174-559 - Adaptor, 4 x KL-0174-701 - Hexagon collar nut M14, 1 x KL-0174-240 - Perforated disc size 2, 4 x KL-0174-722 - Pull bolt type B, M12 x 1.25, 4 x KL-0174-723 - Pull bolt type B, M12 x 1.5, 4 x KL-0174-724 - Pull bolt type B, M14 x 1.5, 4 x KL-0174-727 - Pull bolt type B, M14 x 1.25, 4 x KL-0174-762 - Pull bolt type M, M12 x 1.25, 4 x KL-0174-763 - Pull bolt type M, M12 x 1.5, 4 x KL-0174-764 A - Pull bolt type M, M14 x 1.5, 1 x KL-4999-1316 - Foam insert
